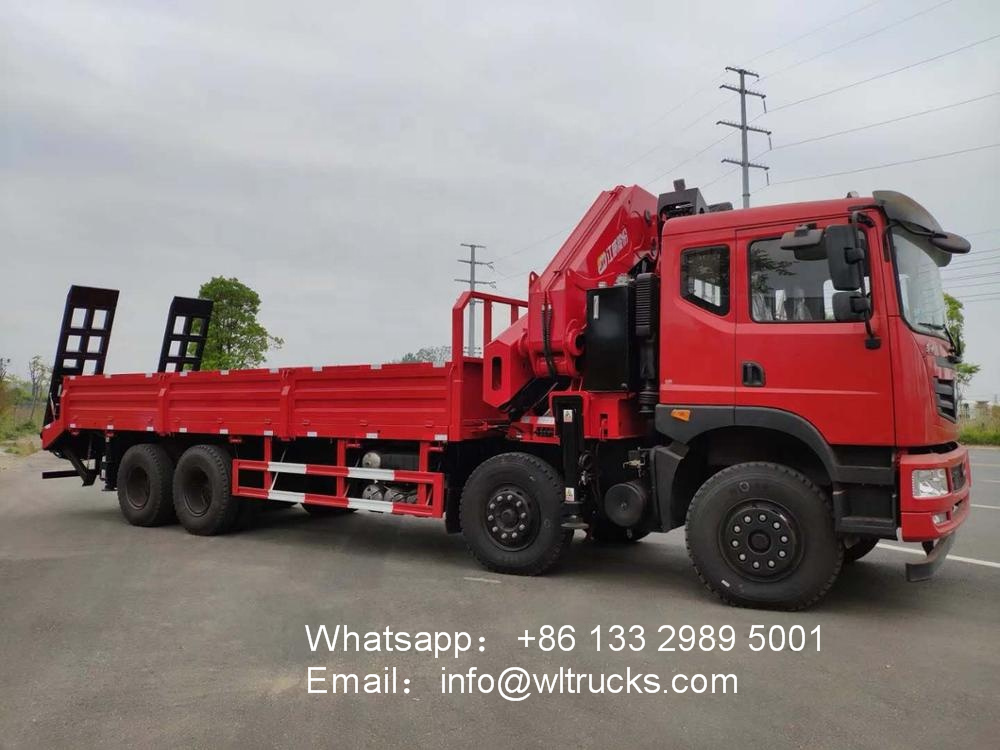

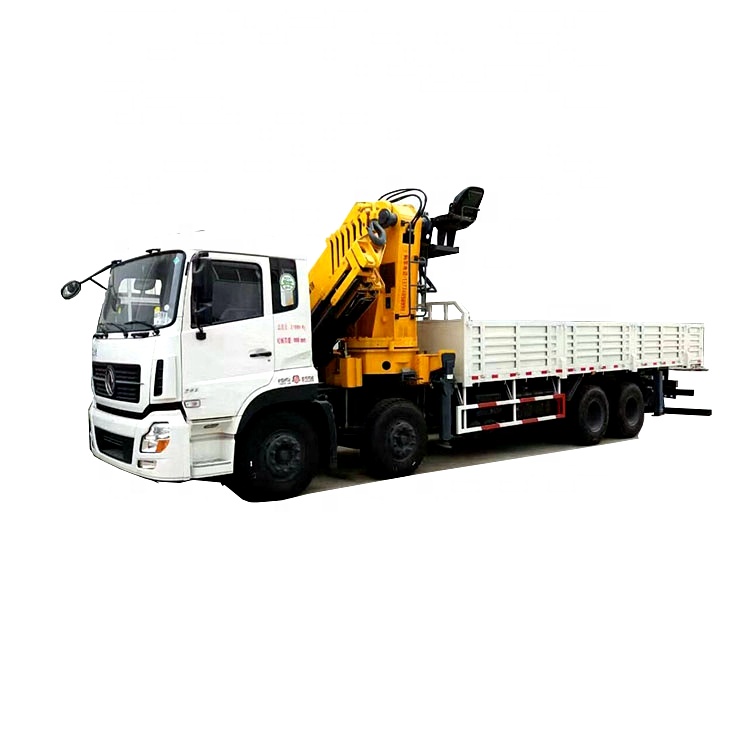

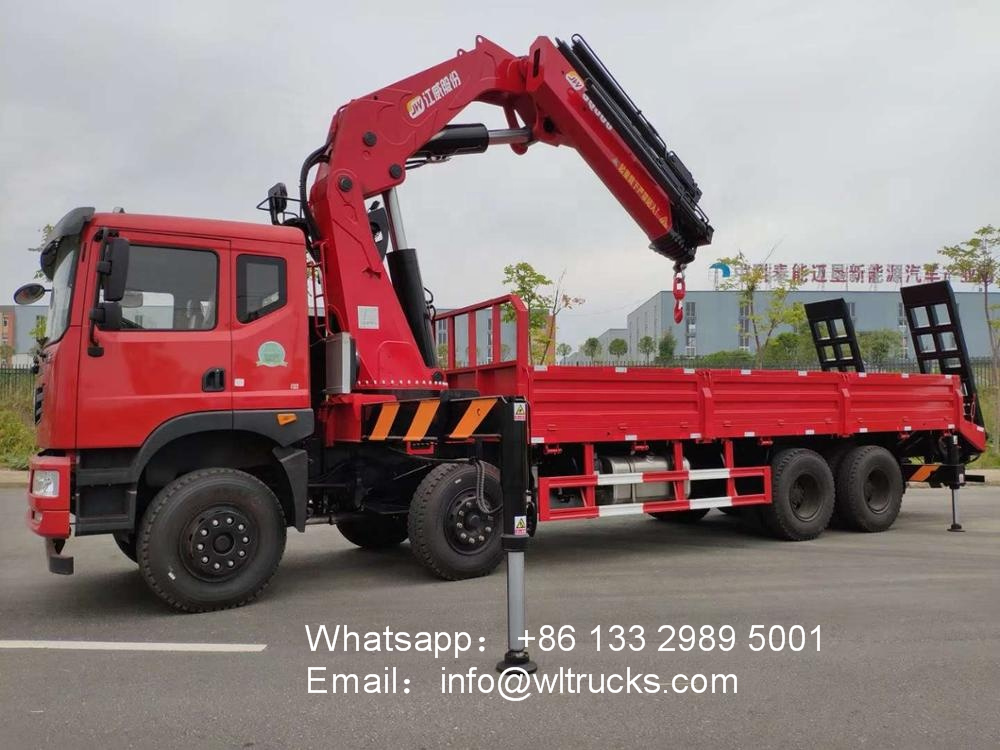

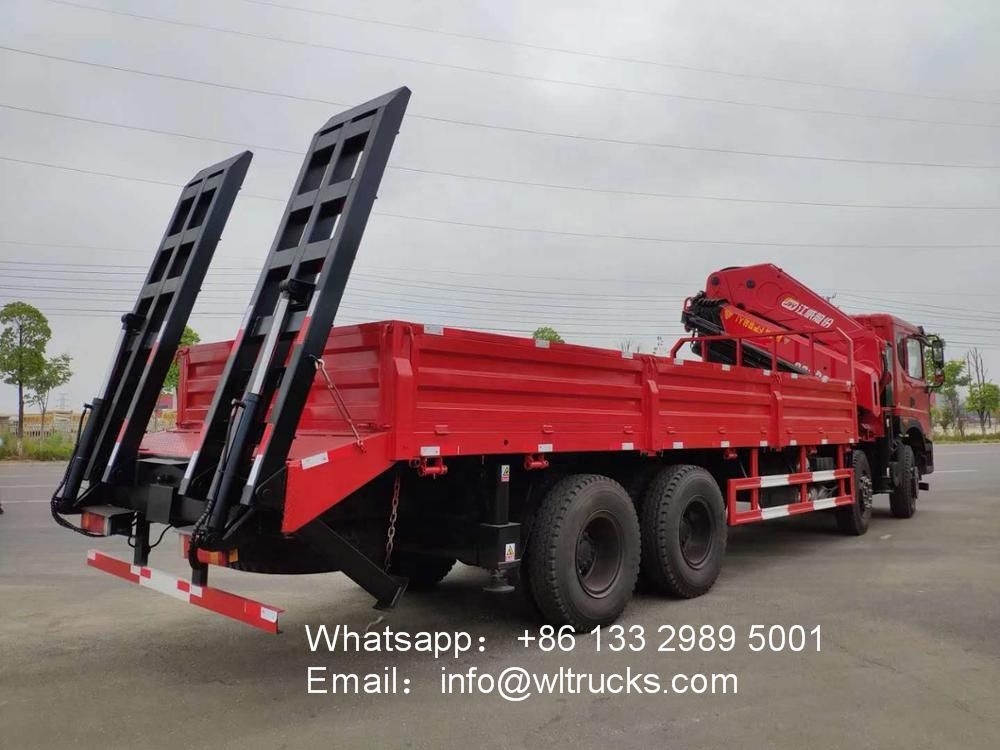

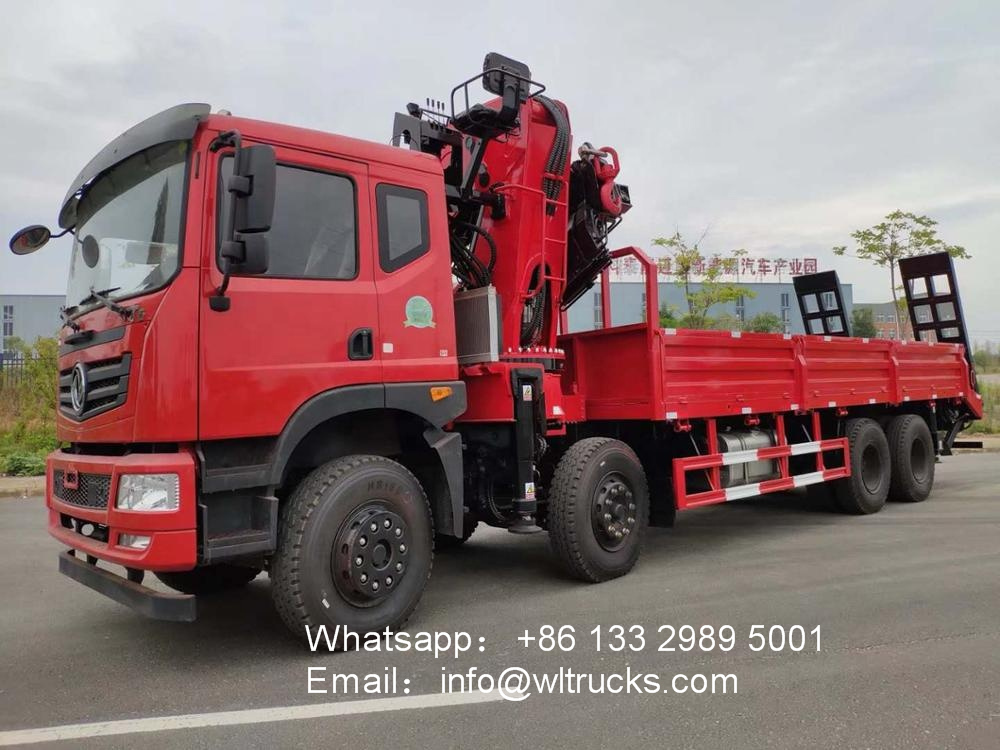

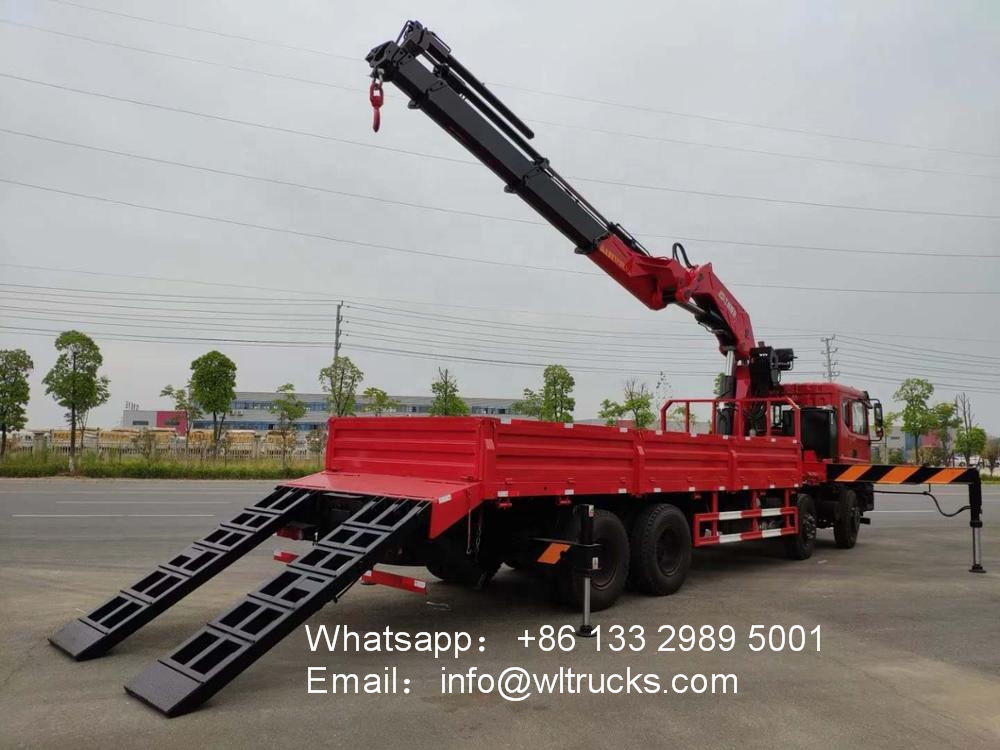

8×4 Dongfeng 20ton to 30ton big crane truck
8×4 Dongfeng 20ton to 30ton big crane truck Adopt 8×4 Dongfeng Longlong luxury cab, Cummins 310 horsepower, 10-speed gearbox, wheelbase 1100-20 tires, cargo box size: 8500 × 2294 × 550, can be customized manually retractable or hydraulic retractable cargo box can be equipped with a ladder, Automatic unloading elevator, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
8×4 Dongfeng 20ton to 30ton big crane truck specification:
|
Products Name
|
dongfeng 8*4 folding arm truck with crane
|
||
|
Cab
|
Single row cab, two doors, rated passengers 2 or 3
|
||
|
Chassis Model
|
EQ1310VFJ
|
Driving type
|
8*4
|
|
Tire
|
11.00R20 with one spare tyre
|
Tire No.
|
6+1 (spare)
|
|
Braking system
|
air brake
|
Transmission
|
Manual , 9 forward and 1 reverse
|
|
Model
|
ISC8.3-270E40A
|
Fuel Type
|
diesel
|
|
Horse Power (kw/hp)
|
200 kw /270 hp
|
Displacement
|
8300ml
|
|
Emission Standard
|
Euro 2/3
|
Overalldimension
|
12000*2500*3960 mm
|
|
Max Speed (km/h)
|
85
|
Max Lifting |
25000 kgs
|
|
Crane type
|
folding arm
|
||
|
Max lifting moment
|
60 T.m
|
Recommend Power
|
45kw
|
|
The weight of crane
|
7500 kg
|
Installation space
|
1600mm
|
|
oil tank capacity
|
280 L
|
Recommend hydraulic flow
|
80 L/min
|
|
Rated hydraulic pressure
|
28 Mpa
|
Span
|
7800 mm
|
| product name | Cheng Li 50 tons truck crane | Cheng Li 80 tons truck crane | Chengli 120 tons truck crane | Cheng Li 25 tons truck crane |
| engine | Heavy truck 340 horsepower | Heavy truck 340 horsepower | Heavy truck 380 horsepower | Heavy truck 340 horsepower |
| Gearbox | 10 files | 10 files | 10 files | 10 files |
| Dimensions (mm) | 12000x2500x3980 | 12000x2500x3980 | 11500x2500x3980 | 12000x2500x3980 |
| Container size (mm) | / | / | / | / |
| Total mass (kg) | 43000 | 43000 | 50000 | 43000 |
| Curing quality (kg) | 42870 | 42870 | 49870 | 42870 |
| Front and rear axle | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons |
| Tire specifications | 12.00 wire tire | 12.00 wire tire | 12.00 wire tire | 12.00 wire tire |
| Braking System | Air brake | Air brake | Air brake | Air brake |
| Wheelbase (mm) | 1800+4600+1350 | 1800+4600+1350 | 1950+3075+1375+1350 | 1800+4600+1350 |
| Adaptation crane | 50 tons / 60 tons | 80 tons / 90 tons | 100 tons / 120 tons | 20 tons / 25 tons |
8×4 Dongfeng 20ton to 30ton big crane truck Working parameter:
