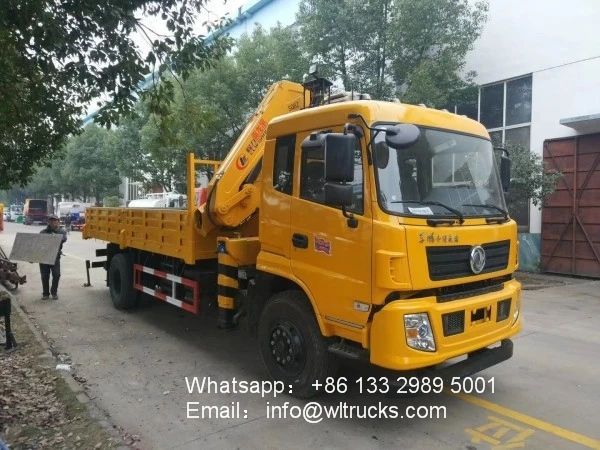

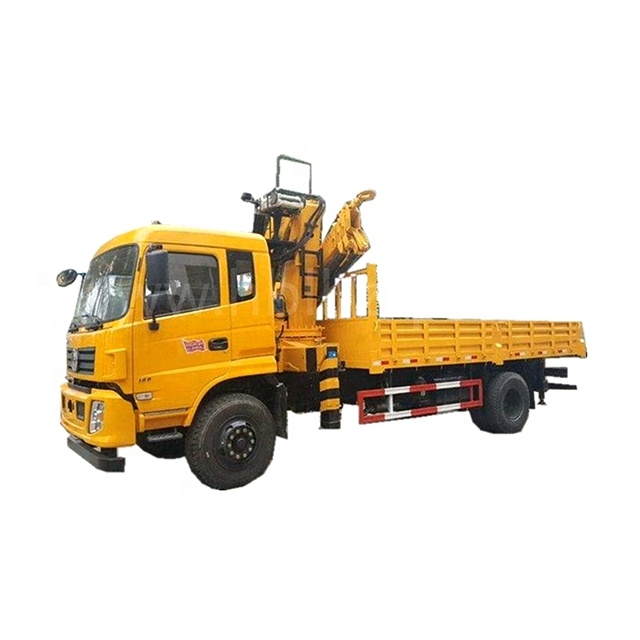

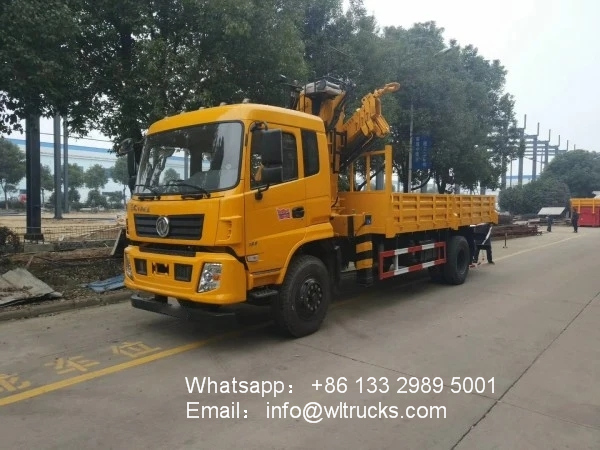

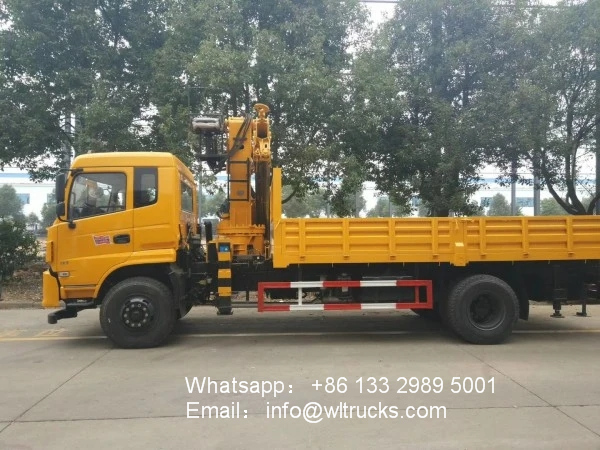

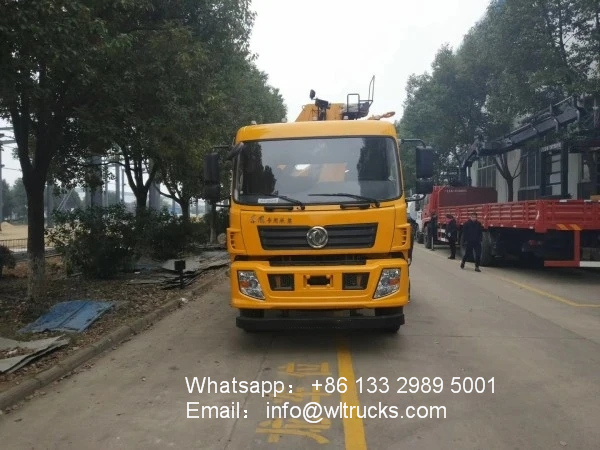

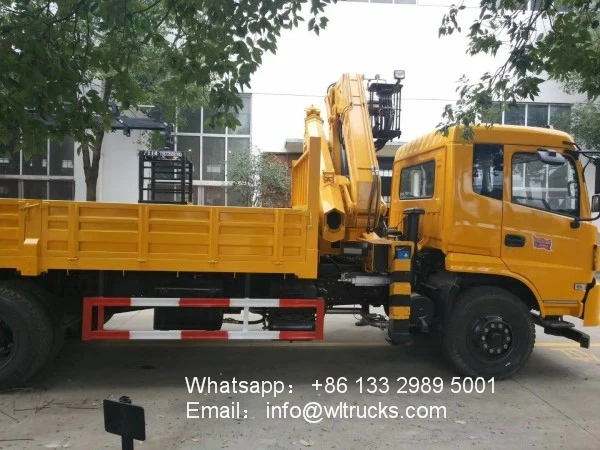

Dongfeng 6ton to 8ton Folding Arm hydraulic crane truck
Dongfeng 6ton to 8ton Folding Arm hydraulic crane truck Adopt Dongfeng Tianjin luxury cab, Cummins 190 horsepower, 8-speed gearbox, wheelbase 4500mm, 900-20 tires, compartment size: 4500 * 2400 * 550mm, can be customized manual telescopic or hydraulic telescopic cargo box can be equipped with ladders Automatic unloading elevator, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Dongfeng 6ton to 8ton Folding Arm hydraulic crane truck specification:
| Vehicle information Items | Technical parameters |
| Brand of chassis | DONGFENG |
| Overall dimensions ( L * W * H) | 8550x2450x3250 mm |
| Cargo dimension ( L * W * H) | 5100 x 2300 x 500 |
| Wheel base | 4500 mm |
| Axle load (kgs) | 1610(front)/3810(rear) |
| Tire | 9.00R20 (6+1 spare) |
| Engine | B170 |
| Emission Standard | Euro 3 |
| Engine horsepower | 170 HP |
| Front overhang and rear overhang | 1415/1975 mm |
| Approach angle /Departure angle | 24/13 |
| Cabin seat | 2+3 |
| Max.speed | 85 km/h |
| Operation control system | Steering wheel |
| Model | SQ6.3ZA3 | Unit |
| Max Lifting Capacity | 6300 | kg |
| Max Lifting Moment | 12.6 | T.M |
| Rotation Angle | All Rotation, hydraulic | |
| Crane Weight | 1050 | kg |
| Oversize (H x W x Thickness) | 2118 x 2000 x 556 | |
Dongfeng 6ton to 8ton Folding Arm hydraulic crane truck Working parameter:
