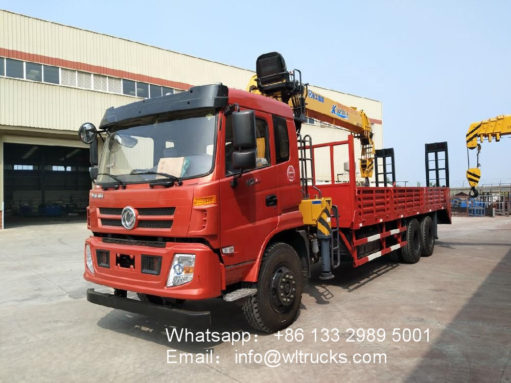

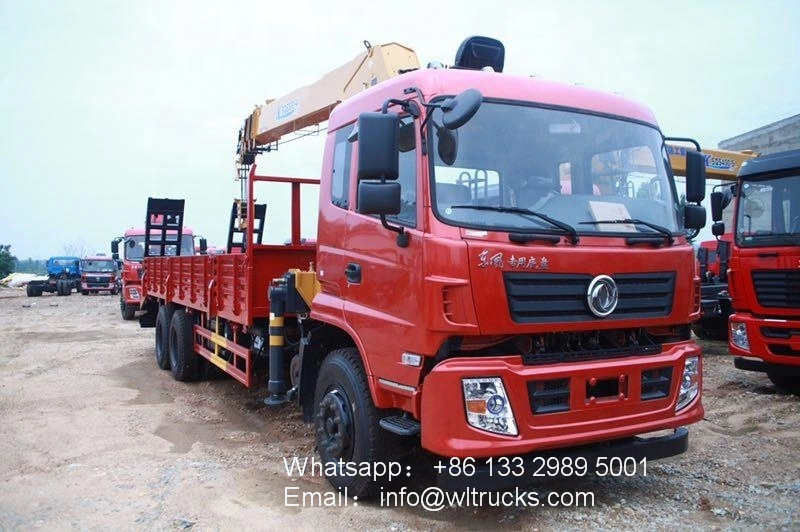

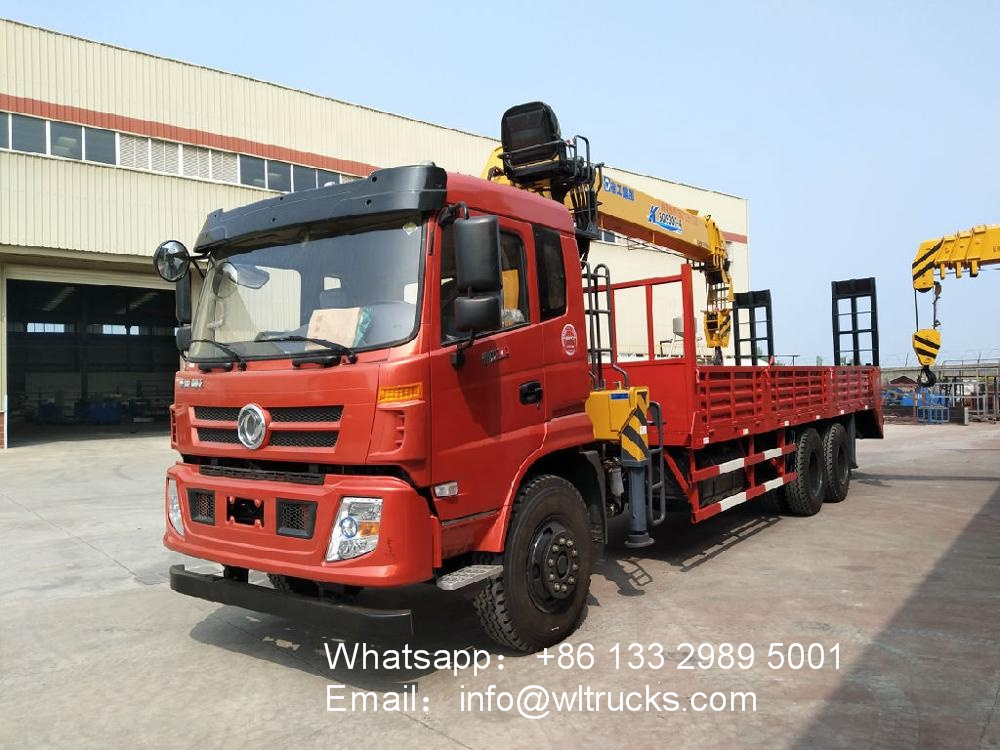

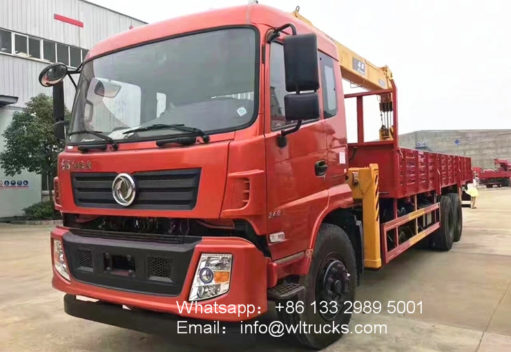

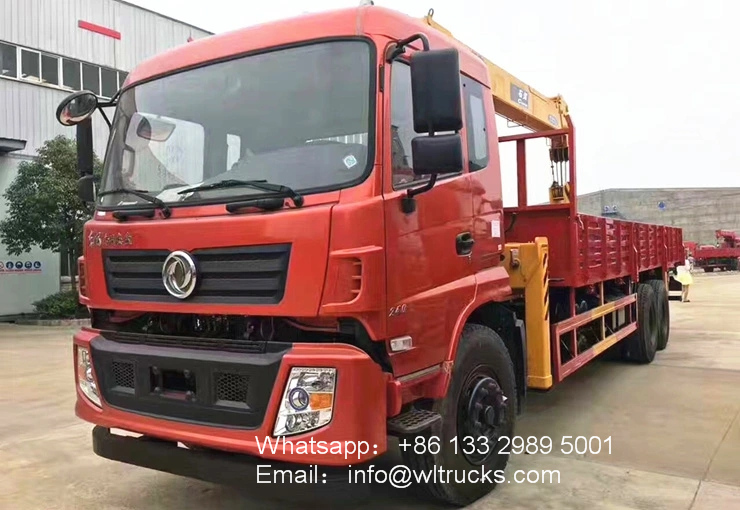

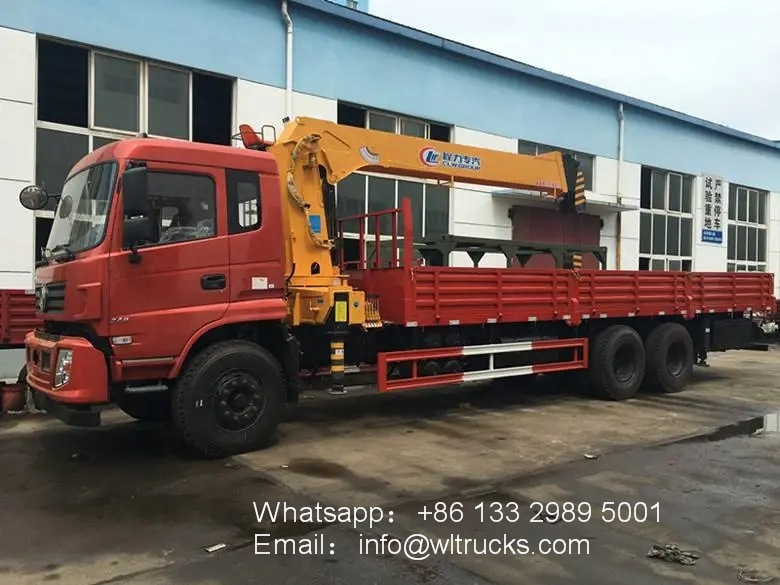

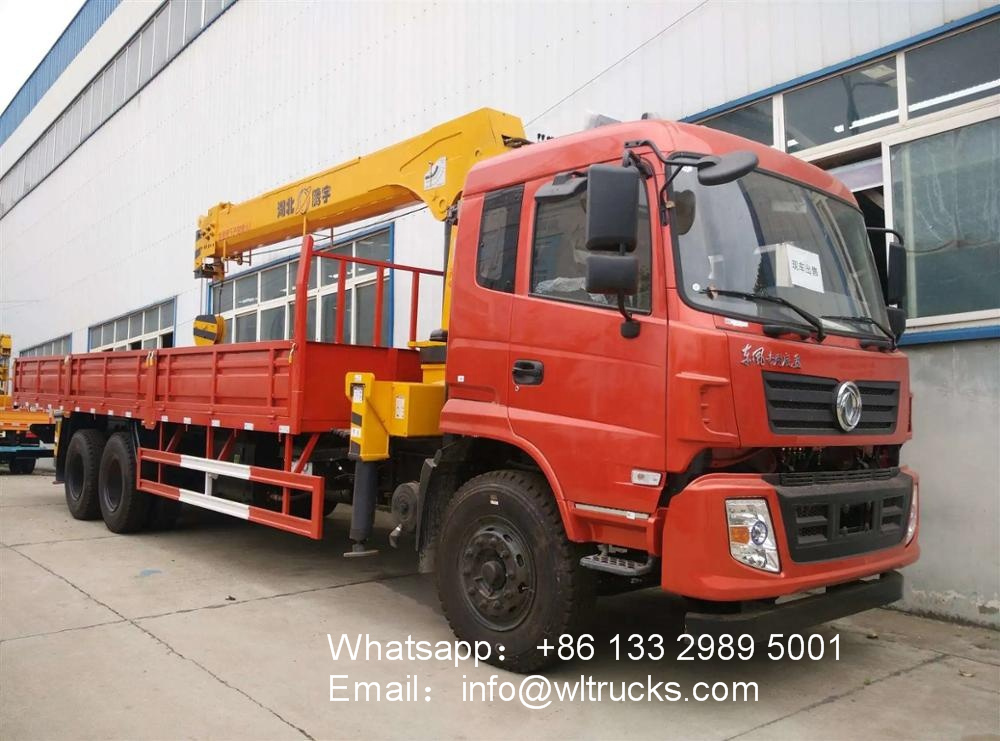

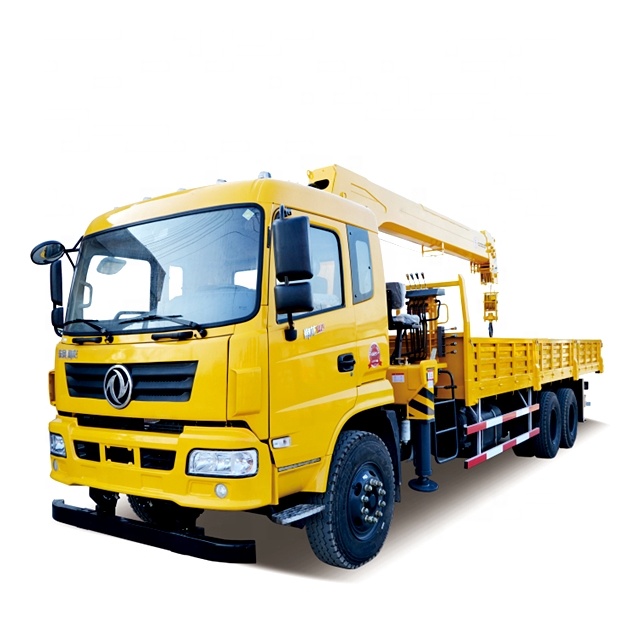

6×4 Dongfeng 10ton 12ton service truck with crane
6×4 Dongfeng 10ton 12ton service truck with crane Adopt Tianjin luxury cab, Cummins 210 or 240 horsepower, Fast 8-speed gearbox, wheelbase 4500 + 1350mm, 1000 tires, standard cargo box can be made into 8.2 meters manual telescopic or hydraulic telescopic cargo box, rear Equipped with ladders, automatic unloading elevators, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
6×4 Dongfeng 10ton 12ton service truck with crane specification:
| General Technical Parameters | ||||
| Overall Dimension | 11900x2500x3850 (mm) | |||
| Gross Vehicle Weight | 25000kg | |||
| Curb Weight | 15000kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Dongfeng | ||
| Cabin | Left Hand Driving, with A/C | |||
| ABS System | Equipped | |||
| Engine | Model | 6 Cylinders | ||
| Power | 210hp | |||
| Emission standard | EURO V | |||
| Displacement | 6.7L | |||
| Fuel type | Diesel | |||
| Gearbox | 9 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 7T/10T | |||
| Wheel base | 5700+1300(mm) | |||
| Overhang( Front/Rear) | 1460/2350(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 11.00R20, 10 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 8450x2300x550(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Telescopic Boom | |||
| Max lifting weight | 12,000(kg) | |||
| Max lifting height | 15(m) | |||
| Max working range | 13(m) | |||
| Rotation angle | 360 degree full rotation | |||
| Crane Weight | 4361kg | ||
| Installation space | 1150(mm) | ||
| Outrigger | 2 pcs, Front leg | ||
| Operation | Hydraulic control, with Aerial Seat | ||
| Optional Parts | 1. Remote control 2. Rear leg |
||
6×4 Dongfeng 10ton 12ton service truck with crane Working parameter:
