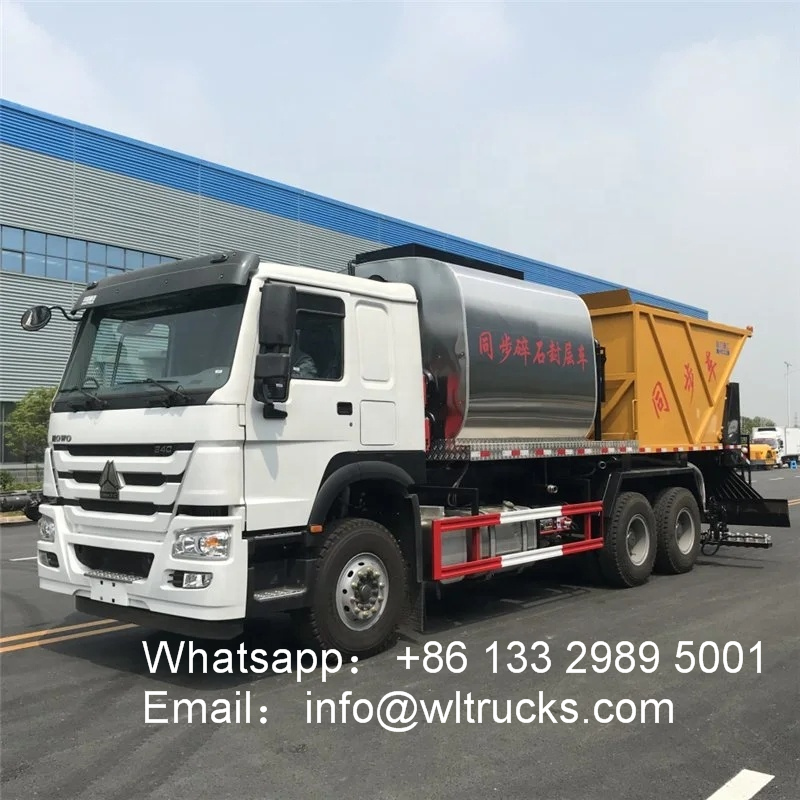

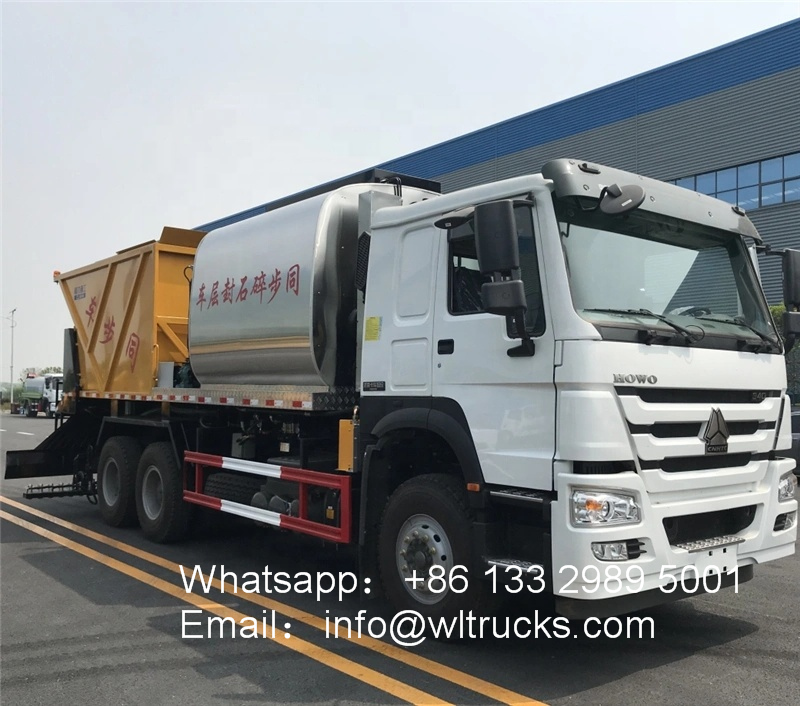

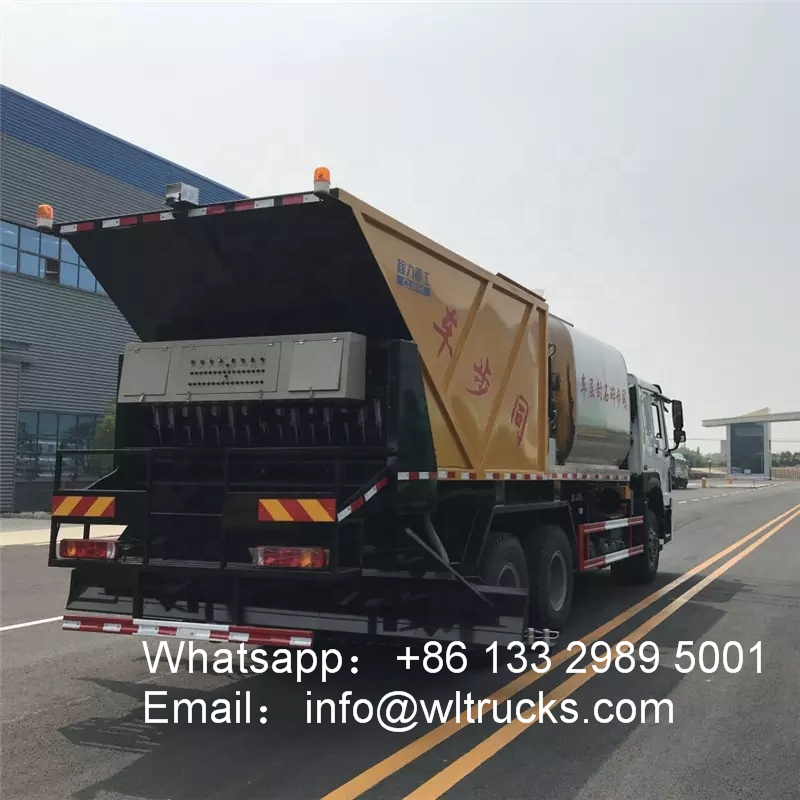

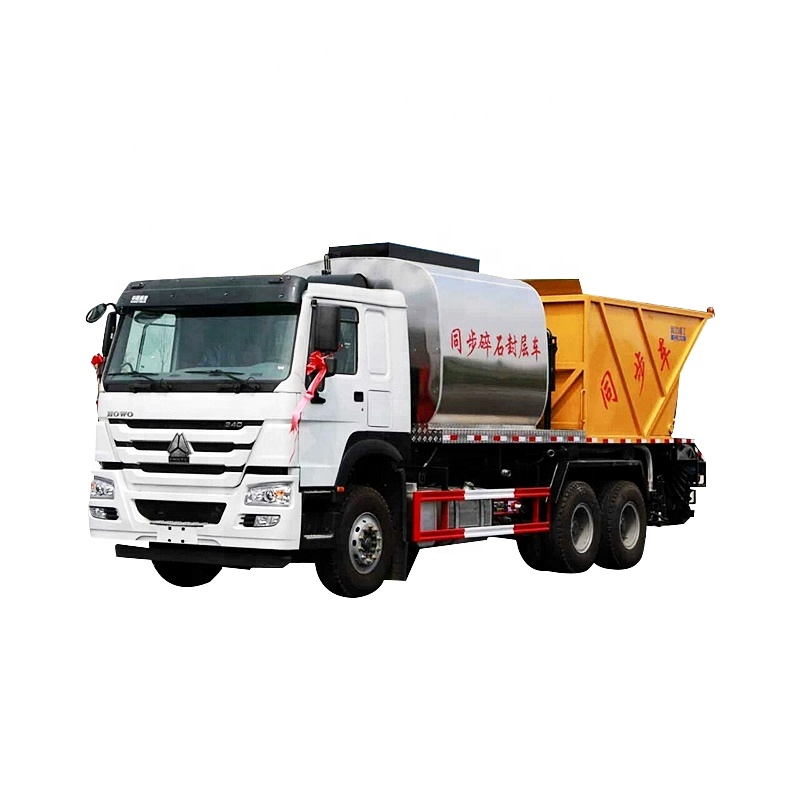

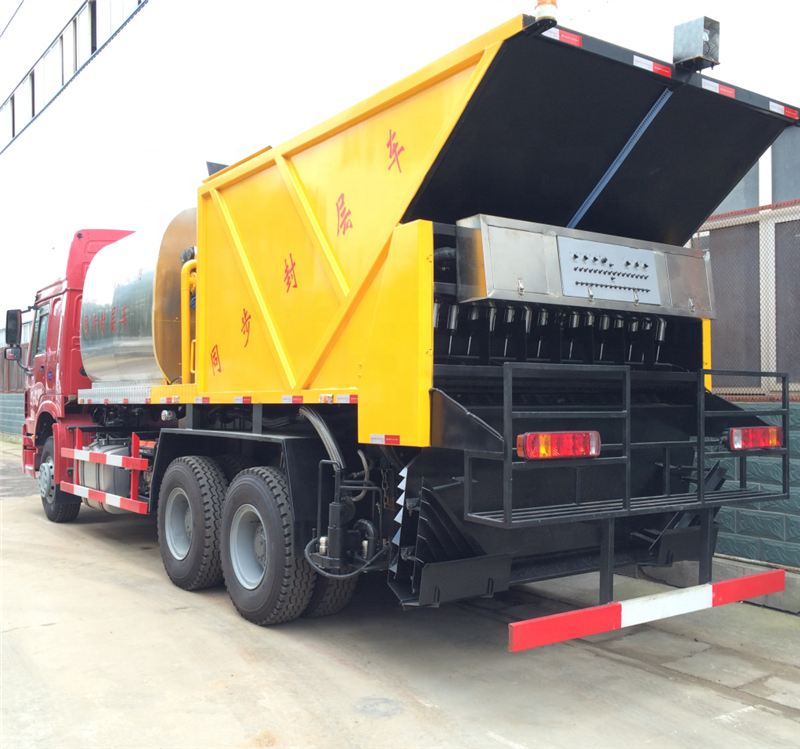

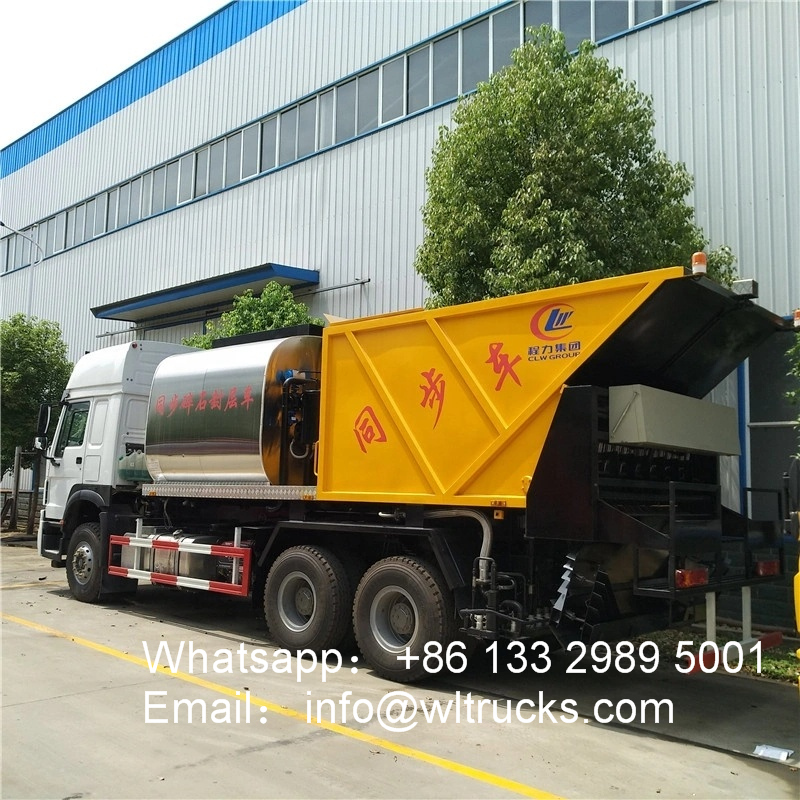

6X4 Sinotruk HOWO 8m3 Bitumen Tank and 12m3 Gravel Tank Asphalt Spraying Truck
6X4 Sinotruk HOWO 8m3 Bitumen Tank and 12m3 Gravel Tank Asphalt Spraying Truck Adopt 10wheels Howo A7 Cab, Sintruk 336hp/370hp Euro 3 engine in the cloud, Ten-speed gearbox, a wheelbase of 4500+1350mm, tires 1000R20, and a vehicle size of 10250x2500x3650mm.
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
specification:
|
ITEM |
UNIT | PARAMETER | |
| Overall dimensions | mm | 10250x2500x3650 | |
| Asphalt tank dimention | 2400x2350x2020 /ellipse | ||
| Insulating layer | 80 | ||
| Asphalt tank capacity | m3 | 8 | |
| Gravel tank capacity | 12 | ||
| GVW | kg | Appro×38000 | |
| Curb weight | Appro×18000 | ||
| Wheel base | mm | 4600+1350 | |
| F/R track base | 2022/1830 | ||
| F/R suspension | 1500/2750 | ||
| Approach/departure angle | ° | 16/14 | |
| Suspension | mm | 1250/2800 | |
| Max speed | km/h | 95 | |
| Axle Load | kg | 7000/22900 | |
| Drive system | 6×4 | Steel | Power, sino |
| Tire specification | 12.00-20 16PR | Number of axles | 3 |
| Engine model | Manufacturer | China National Heavy Duty Truck Group Co ., Ltd | |
| Model | WD615.69 | ||
| Emission/kw | 9726ml/247Kw, 336hp | ||
| Gear box | 10F&2R | ||
| Asphalt tank | Stainless steel scrub, with Insulating layer | ||
6X4 Sinotruk HOWO 8m3 Bitumen Tank and 12m3 Gravel Tank Asphalt Spraying Truck Working parameter:
