JAC 8000liter Side-mounted bucket Compactor garbage truck Product Description:
JAC 8000liter Side-mounted bucket Compactor garbage truck is a structure of side-mounted garbage truck and Compactor garbage truck.
The garbage can is automatically poured into the garbage through the pull rod, and the garbage is pushed towards the rear of the carriage to achieve the purpose of compressing the garbage. The principle of compression is the use of mechanical, electrical, hydraulic linkage control system, computer control and manual operating system. Pushing shovel and other devices can be used to pour in garbage, crush or flatten it, and squeeze the garbage into the carriage and compact and push and unload.
Its characteristics are: large compression ratio and high loading capacity: the maximum crushing pressure is 12 tons, and the loading capacity is equivalent to twice and a half of the same ton of non-compressed garbage.
JAC 8000liter Side-mounted bucket Compactor garbage truck Specifications:
| Compactor garbage truck | ||
|
# |
Descriptions | Specifications and types |
| General | Truck Brand | Chengliwei (our brand) |
| Chassis Brand | JAC | |
| Approx. Dimension | 6470*2050*2560 mm | |
| GVW./Kerb Wt. | 6495 / 5365 kg | |
| Cab | Cab Capacity | 3 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | YUCHAI | |
| Power | 90 Ps / 66 KW | |
| Emission Standard | Euro II or EURO III or EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 3300 mm / 2 | |
| Tyre Specfication | 7.00-16,6.50-16,7.00R16,6.50R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Automative metallic paint | |
| Capacity | 4CBM | |
| Structure& Function | Equipped with hermetic dustbin, hydraulic system and operating system
Automatic compress and uninstall, sewage can be collected by the dump tank. Lock system is operated by machinery hydraulic system can reduce second pollution mostly. |
|
JAC 8000liter Side-mounted bucket Compactor garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
JAC 8000liter Side-mounted bucket Compactor garbage truck New craft:

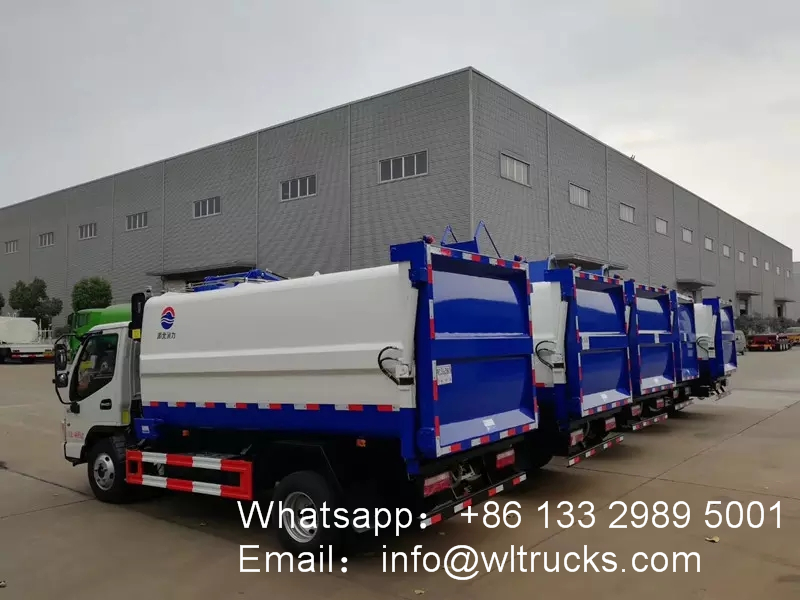

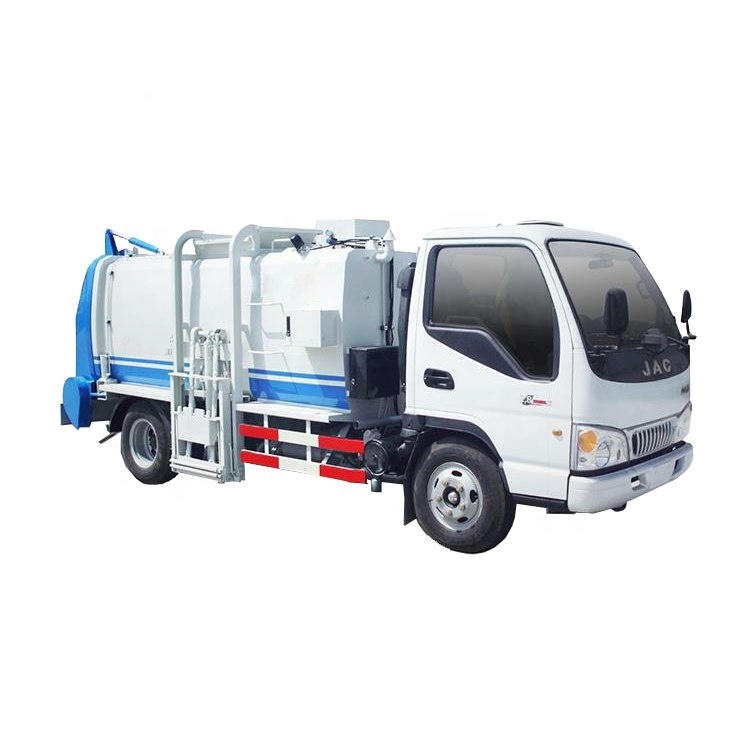

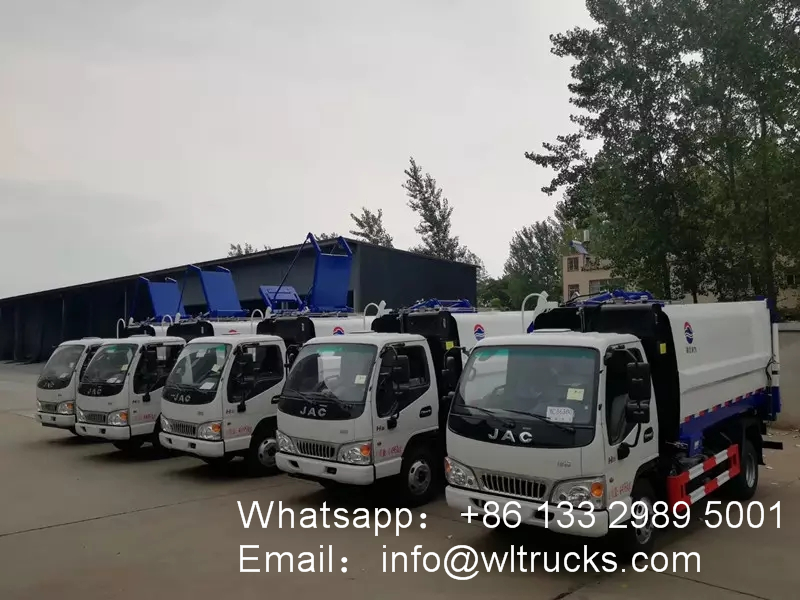

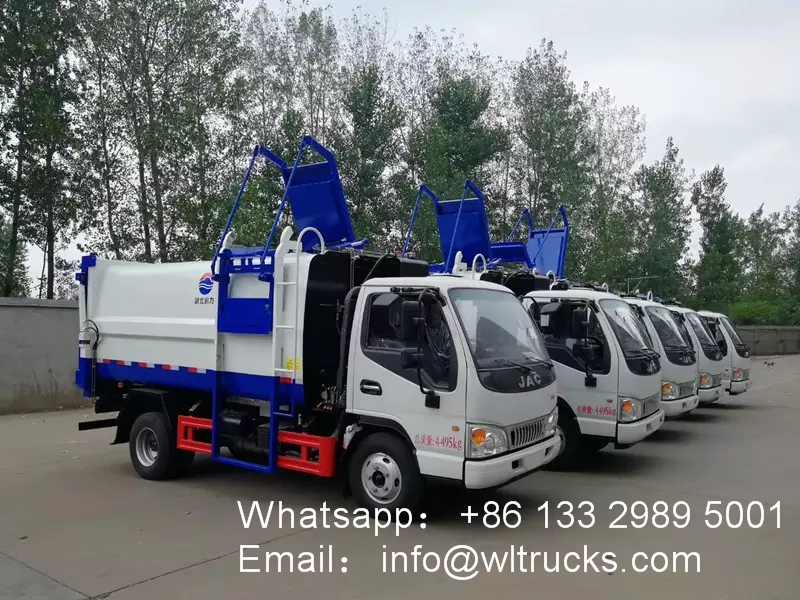

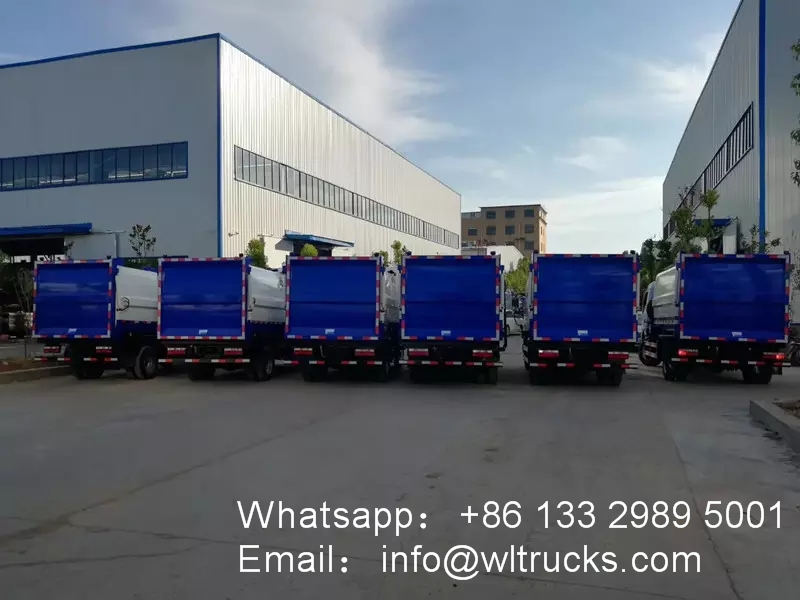

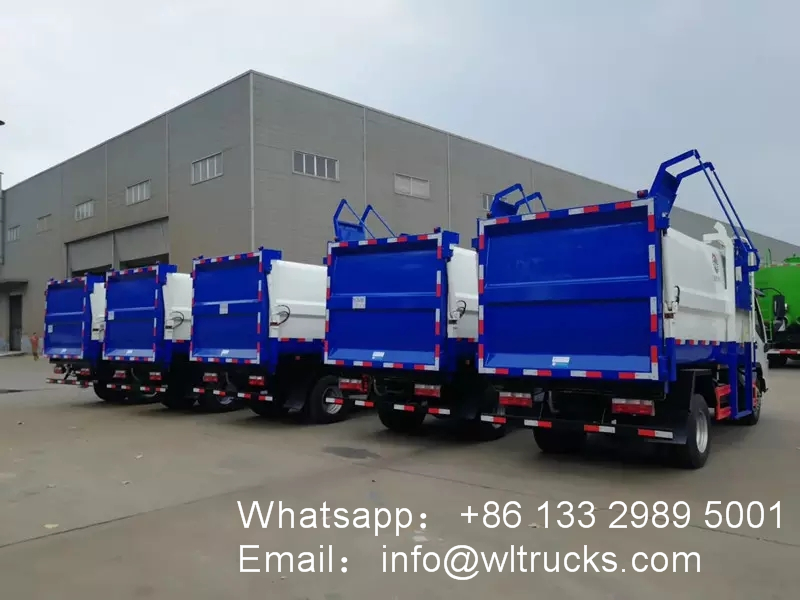

JAC 8000liter Side-mounted bucket Compactor garbage truck Detailed Images:
JAC 8000liter Side-mounted bucket Compactor garbage truck Structure diagram：
JAC 8000liter Side-mounted bucket Compactor garbage truck Detail drawing:
Customizable garbage truck models
