HOWO 5 ton mobile fresh milk tank truck Adopt Sinotruk Howo cab, Yunnei 110 horsepower engine, 5 speed gearbox. The volume of the tank is 5 cubic meters, and the internal size of the tank is 3700×1500×900 (mm). The standard sub-bin is a warehouse, and each warehouse has a self-flow outlet.
milk tanker truck advantages:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Tank manufacturing standards：
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
1. The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
2. The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
3. The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
4. The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
5. There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
6. It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
HOWO 5 ton mobile fresh milk tank truck Specification:
|
Milk Tank Truck Model
|
milk tanker truck
|
|
|
Cabin / Passenger Capacity
|
One and half row Seat, standard cab, tiltable, with air
conditioner (opting), 2+1 passenger.
|
|
|
Chassis
|
Model
|
ZZ1153GYYNM456
|
|
Overall dimensions
|
6178*2490*2670 mm
|
|
|
G.V.W
|
6000 kg
|
|
|
Net weight
|
4650 kg
|
|
|
Design load
|
50000 kg
|
|
|
Drive type
|
4×2,6×4,8×4
|
|
|
Suspension F/R
|
1525/2604 mm
|
|
|
Wheelbase
|
3360mm, 3800mm, 4500mm, 3500+1350mm, or1800+4500+1350 mm
|
|
|
Number of axles
|
2, 3, 4
|
|
|
Axle-load
|
Front 4 ton rear 6 ton
|
|
|
Approach/Departure Angle
|
16/14 °
|
|
|
Number of Spring leafs
|
13/12
|
|
|
TrackF/R
|
2036/2036/1860/1860 mm
|
|
|
Tire ( No. & specification)
|
7.00-16,7.50-16, 8.25R20, 12.00r20, 12pcs+1pc (opting vacuum tire or nylone tire, off road tire)
|
|
|
Max speed (Km/h)
|
≥ 92 km/h
|
|
|
Brake system
|
Pneumatic braking
|
|
|
Steering
|
Power Steering
|
|
|
Transmission
|
9JS119, Mechanical 9 forward + 1 reverse
|
|
|
Engine
|
Engine model
|
CY4102
|
|
Type of fuel
|
diesel
|
|
|
Power
|
120hp, 160hp, 200hp, 336hp, 340hp213 kw ( 290 hp )
|
|
|
Exhaust
|
9726 ml
|
|
|
Fuel Tank
|
Tank capacity
|
1. 5000 liters to 10000 liters
2. 12000liters to 20000liters optional
|
|
Tank shape
|
Oval shape.
|
|
|
Fuel tanker size
|
3500x1800x1350(3-6m3)
5500x2000x1450((10-15m3)
|
|
|
Tank material
|
Mild steel / stainless steel / Aluminum alloy
|
|
|
Standard equipment
|
With oil pump, oil loading and discharging system. Equipment opting China standard or EURO or US standard..The tank could be separated several compartment.
Also could modify in refuel or transport fuel tank truck.
|
|

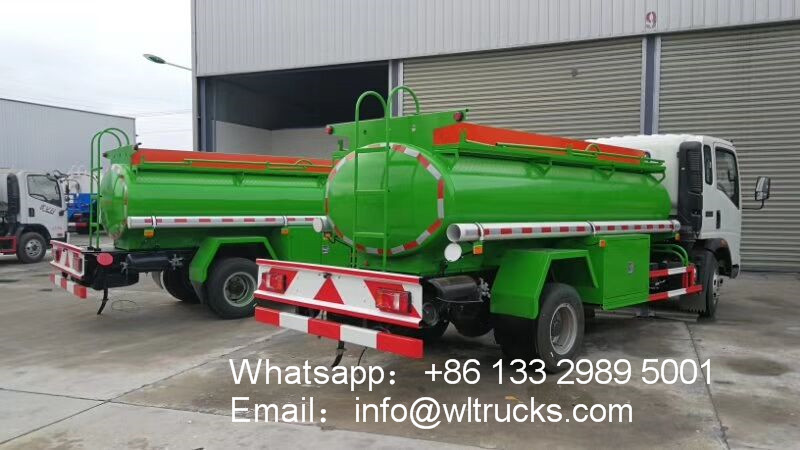

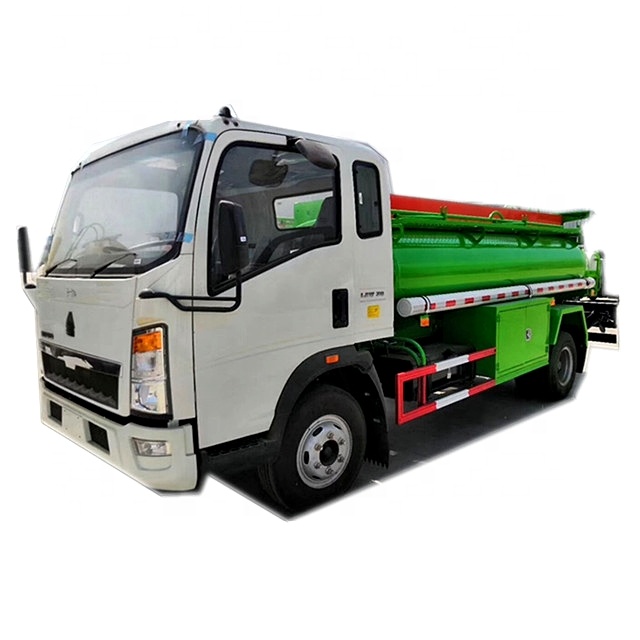

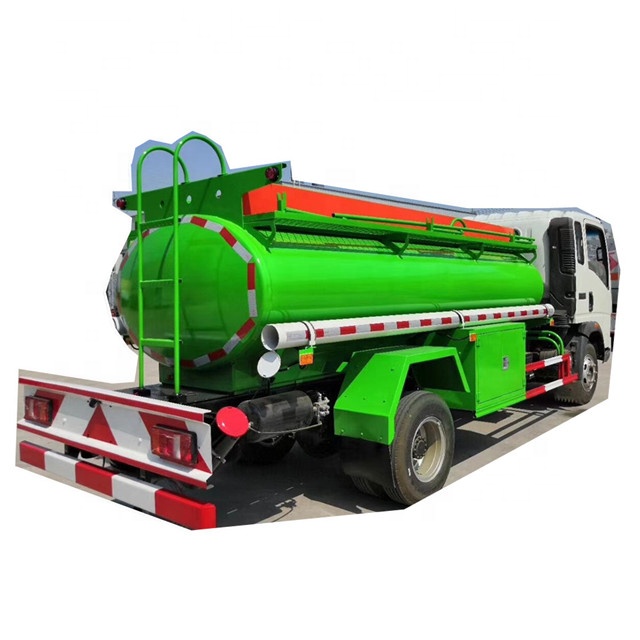

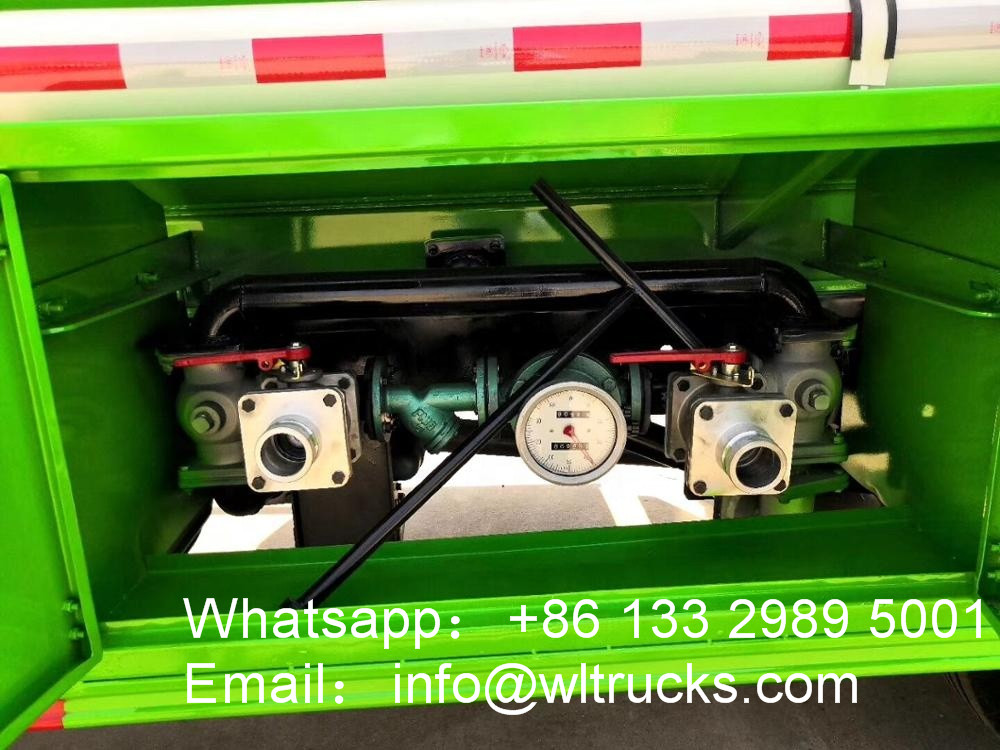

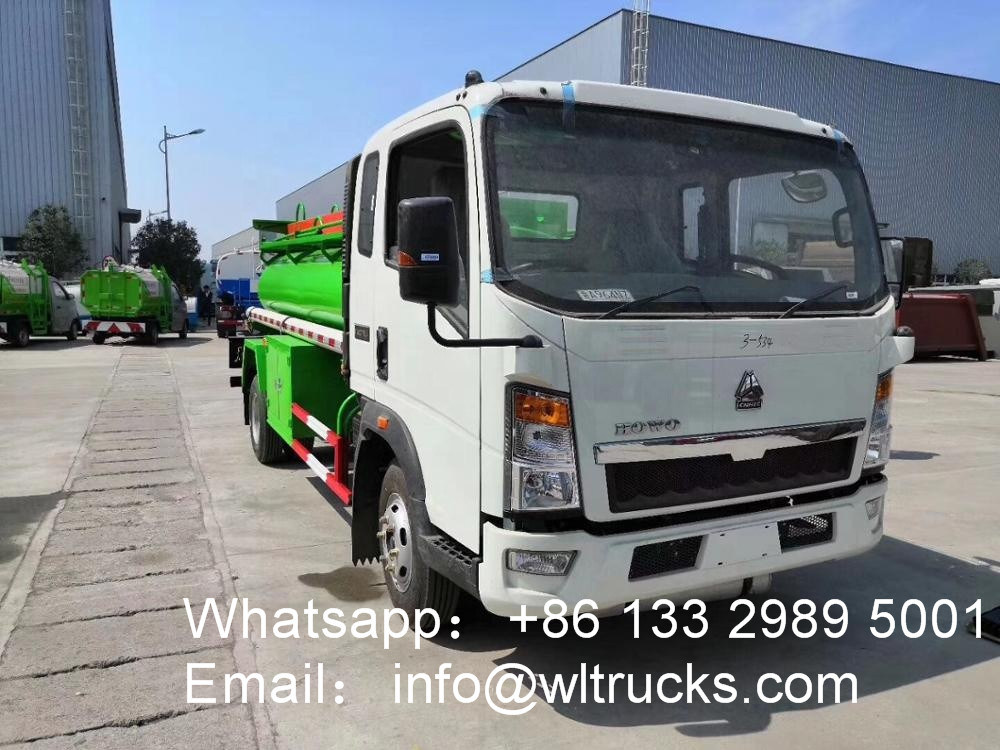

Milk tank truck detailed picture:
