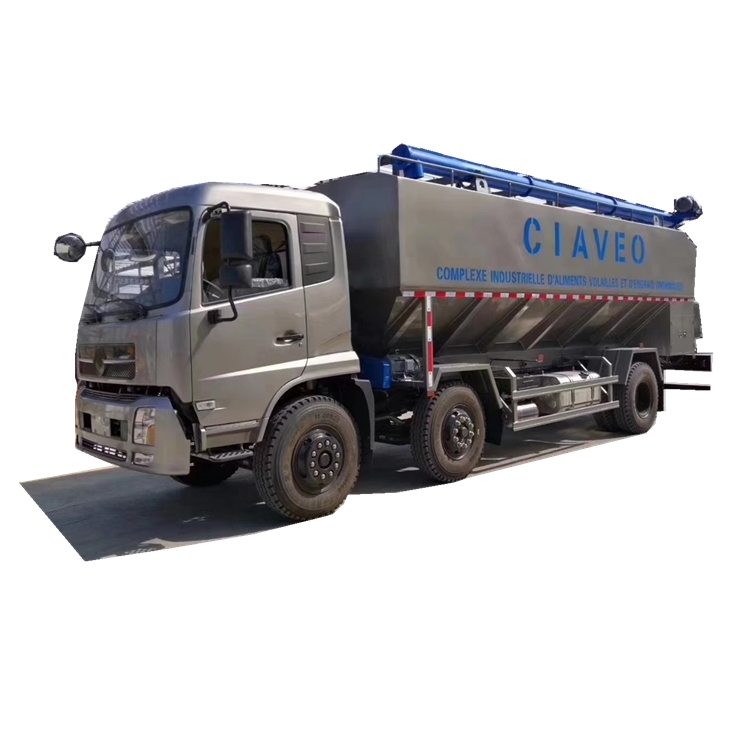

Dongfeng tianjin 22m3 bulk cattle feed transport truck Adopt Dongfeng Tianjin cab, Cummins 190 horsepower engine, 8 speed gearbox. The Vehicle size is 8400×2480×3700 (mm). 4mm thick carbon steel plate, can rotate 180° left and right.
product Introduction:
The bulk feed trucks produced by our company can transport different kinds of feeds through separate bins. It has obvious convenience advantages and wide-ranging uses. It is an essential transportation tool for farms and feed mills.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO ,FAW,SINOTRUK,I-SUZUbulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
bulk feed truck advantages：
1. Automatic feeding and unloading, the feed will not be separated again.
2. Complete functions, capable of transporting powdery materials, granular materials, forage amino acids, soybean meal, cereals, straw, green fodder, meat and bone meal, whey powder, fat, fish meal, miscellaneous meal, etc.
3.Jiaolong adopts graphite bearing and intermediate joint support structure.
4. Install auger alarm device and tail lighting device.
5. Fully automatic mechanized operation, without manual loading and unloading, only need to be equipped with a driver.
6. The tank body is made of high-strength steel plate, which is welded and formed at one time, with strong sealing performance, and the seamless inspection of the tank body is ensured through the inflation test.
7. The tank body is all sealed design, so there is no pollution to the air during transportation.
Dongfeng tianjin 22m3 bulk cattle feed transport truck Specification:
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Bulk feed transport truck |
| Drive Type | 4*2, left hand drive | |
| Gross Vehicle Weight(kg) | 15800 | |
| Curb Weight (kg) | 8900 | |
| Overall Dimensions (mm) | 8400×2480×3700 | |
| Engine | ||
| Fuel Type | Diesel | |
| Power | 140kw/190HP | |
| Emission Standard | Euro III | |
| Displacement(ml) | 5900 | |
| Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | Dongfeng |
| Tire No. | 6 | |
| Tire Specification | 10.00-20 Steel tire | |
| Axle No. | 2 | |
| Steering Wheel | Left hand drive with power-assisted | |
| Gear Box | 6 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Air Conditional | Suitable for tropical climate | |
| Tank | Tank Volume(L) | 17000 |
| Compartments No. | Depend on your requirement | |
| Discharge system | Discharge Type | Electric screw discharge or hydraulic screw |
| Discharge Speed(kg/min) | 510 | |
| Rotate angle of removable
discharging system |
180° | |
| Max.elevation of removable
discharging system |
60° | |
| Delivery | Max horizontal delivery
distance(m) |
7.2 |
| Max Vertical delivery
distance(m) |
8.5 |
Feed transport truck Composition structure:
scene working display：
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
