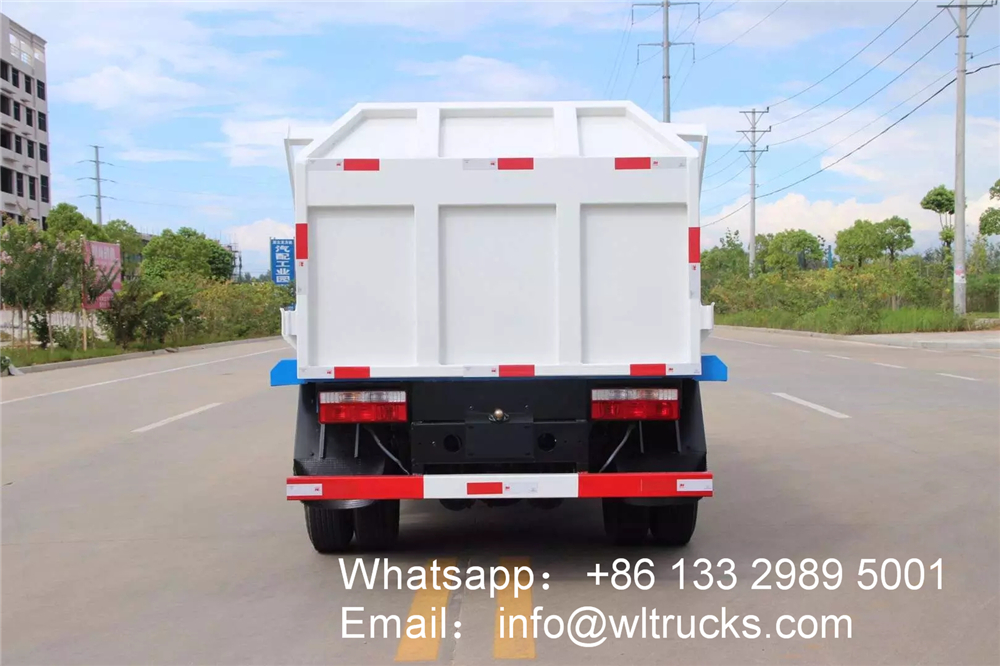

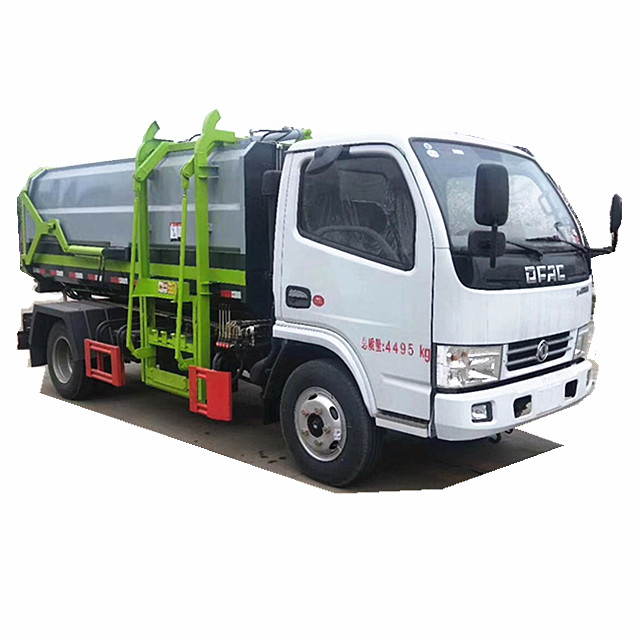

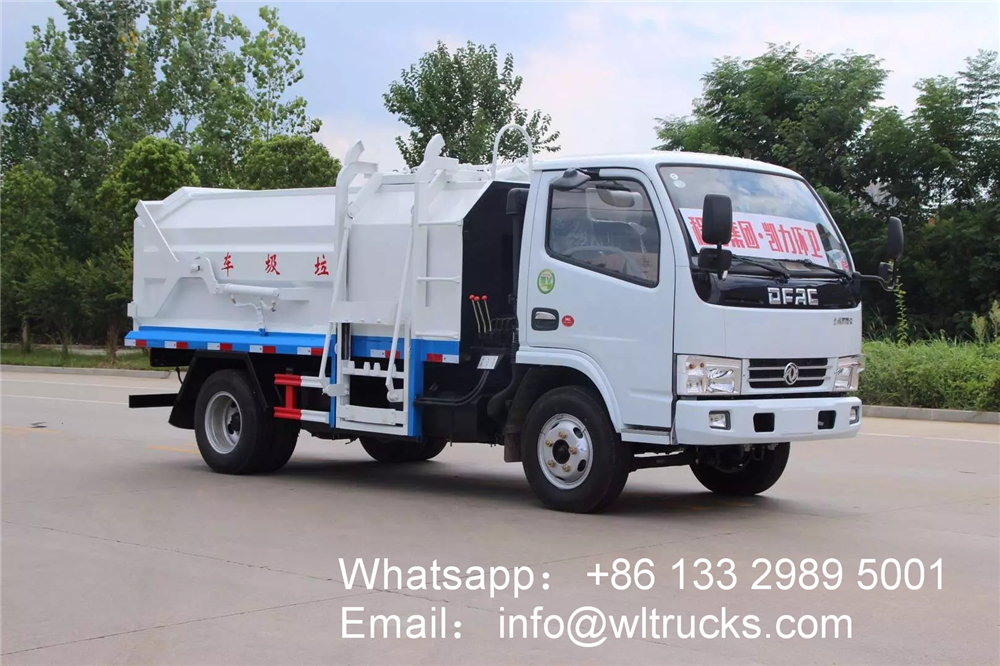

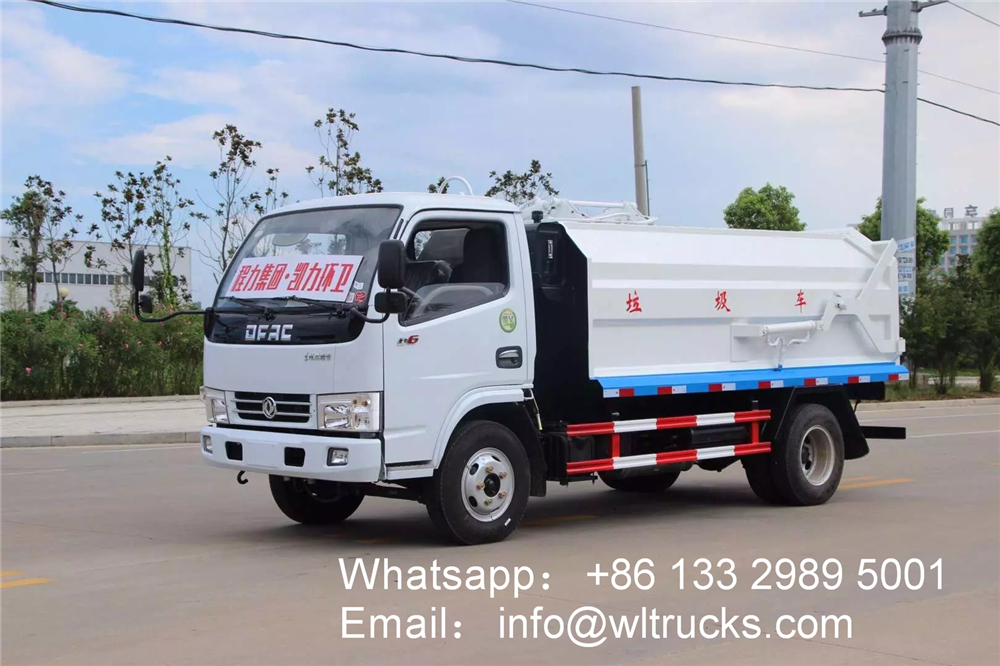

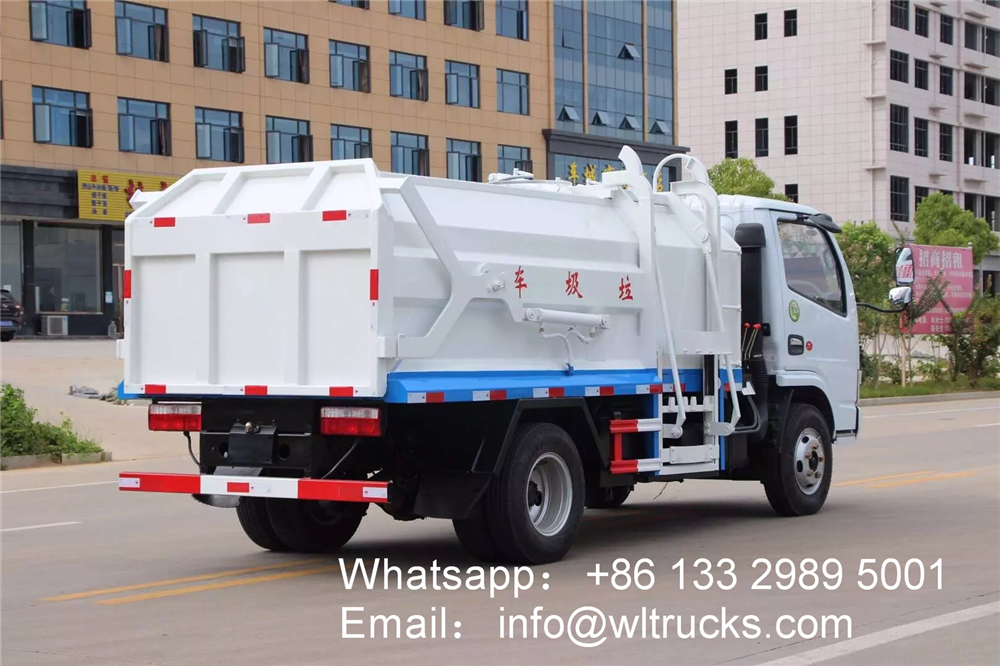

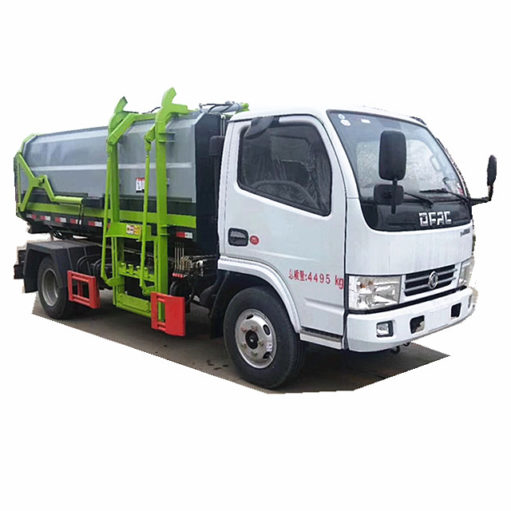

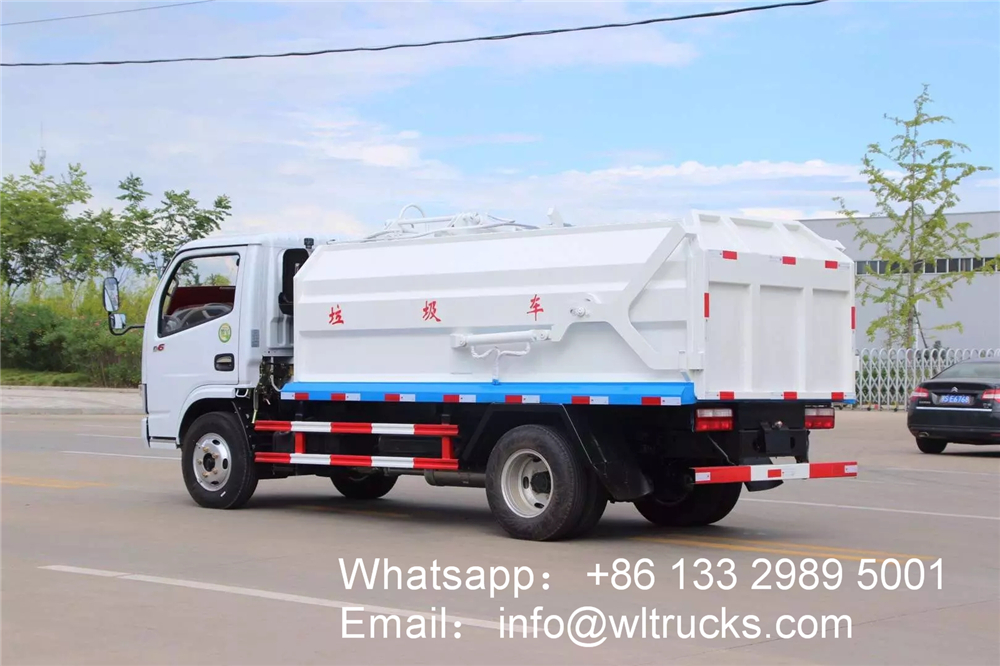

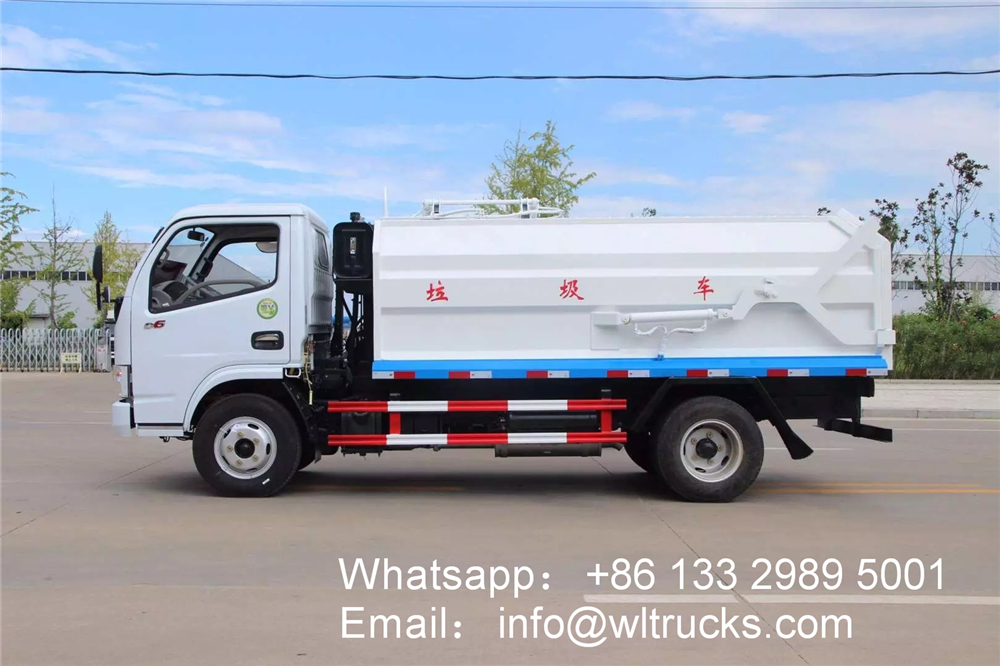

Dongfeng 5000liter Compression Docking garbage truck

Dongfeng 5000liter Compression Docking garbage truck Chassis configuration: the classic cab of Dorica series is used, which is stylish and generous, with spacious space and high comfort. The cab is designed with manual overturning for easy maintenance. Equipped with original direction assist and air brake, standard configuration makes you more comfortable driving, 2 tons front axle, 3.5 tons rear axle, 700-16 tires, stronger carrying capacity, Dongfeng Chaochai 95 horsepower diesel engine, Powerful, with 5-speed gearbox, no pressure under heavy load.

Dongfeng 5000liter Compression Docking garbage truck Special configuration: It is composed of hydraulic mechanism composed of car body, discharge mechanism, oil pump, oil cylinder, control valve and so on. The material of the car body is high-quality carbon steel, thickness (unit: mm): side 3 bottom 4, car body volume: 5m³, fully hydraulic drive during the working process, double oil cylinder lifting self-unloading, hydraulic opening and closing of the waste bin tailgate, high quality hydraulic Valves and hydraulic cylinders have low failure rates and higher transmission efficiency!

Classification	Item	Unit	Parameter
Vehicle	Overall dimensions	mm	5600*2000*2250
	Curb weight	kg	4030
	Traction system		4×2
	Max speed	km/h	95
Chassis	Number of axles		2
	Wheel base	mm	3308
	Tire specification		7.00-16
	Number of tires		6
	F/R track base	mm	1040 /1250
Engine	Engine model		CY4102-C3F
	Fuel type		Diesel
	Power	kw	70
	Engine horse power	hp	95
	Displacement	ml	2982
	emission standard		Euro 3
Instruction	1.  Garden   tanks , the effective volume reaches 90% 2.  Equipped   with rubbish drum lifting system , the system has dustbin lock structure make   sure that loading and unloading safe and reliable. 3.   Equipped   with hydraulic system and operating system. 4.  The   feature : high level of automation , reliable working , well sealed , bulk   loading , easy control and good environmental protection.
Color &Painting	According to customer’s requirements

Dongfeng 5000liter Compression Docking garbage truck Working parameter:

---

Hydraulic pump	Long source large flow 32-80 pump, optional double pump and double valve	Body material	High strength T420 special steel plate
Hydraulic cylinder	Xiamen Yinhua, Yantai Future	Box thickness	Lightweight design with 4mm at the bottom and 5 sides
Multi-way valve	Jiangsu Zhongmei, Italy imports	Sewage tank	2 (1 on the side and 1 on the rear)
Conversion mode	Photoelectric switch (formerly pressure relay)	Sewage seal	Tail diversion groove + rubber hydraulic lock
Automatic control	Standard configuration, Siemens PLC electronic control	Lighting device	Tail night light
Electric control box	3 (1 in the cab and 2 in the rear)	safety devices	Tail lift with hydraulic lock
Optional configuration	Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system
