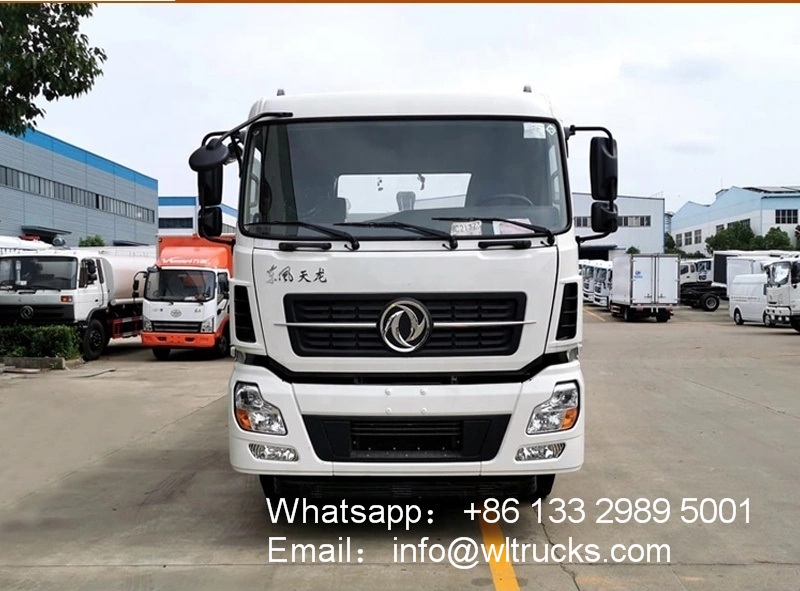

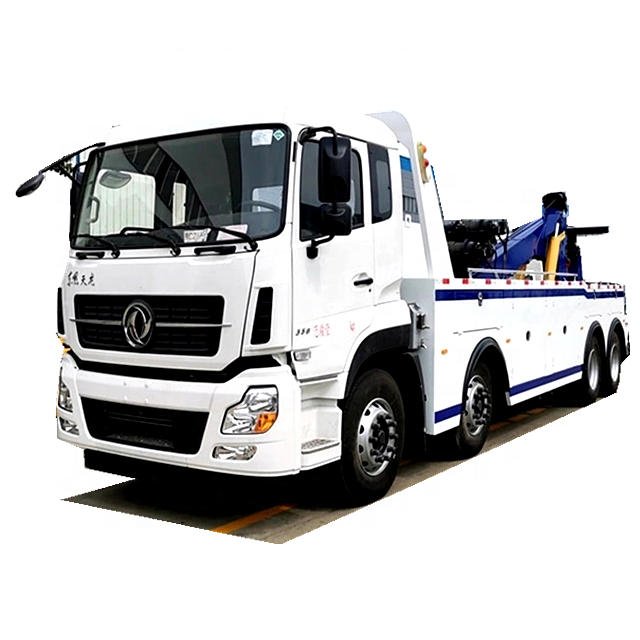

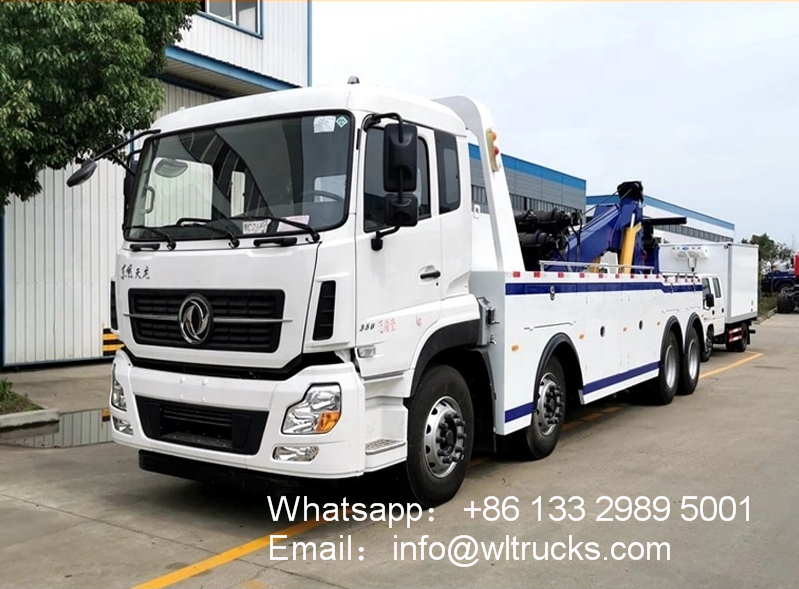

12 wheel Dongfeng 40ton to 50ton Road Towing Wrecker truck
12 wheel Dongfeng 40ton to 50ton Road Towing Wrecker truck Chassis：
Adopt Dongfeng Tianlong luxury row and half cab, original cab air conditioner, electric glass, Cummins 310 horsepower engine, Fast 8-speed gearbox, 7.5 tons front axle, 16 tons rear axle, wheelbase 5975mm, 12.00R20 original steel Tire, original abs.
12 wheel Dongfeng 40ton to 50ton Road Towing Wrecker truck Bodywork：
Shaanxi Automobile Delong front four rear eight heavy-duty wrecker, 20T MAN bipolar conjoined bodywork (can be installed with a reinforced configuration of 25 tons), two-section six-sided boom, three-section support arm, split carriage, imported Hydraulic system, double-sided linkage operation, a set of remote control operation device, the front bumper is equipped with counterweight, the trailer performance is more stable.
Equipped with two 10 tons hydraulic winches, 45 meters of steel wire rope, diameter 18mm, equipped with 4 sets of steel forks, a set of steel plate lugs, a set of U-shaped tire holding device, a set of tools on board, a set of auxiliary lights A set of auxiliary trachea assembly, with a long yellow LED warning lights.
12 wheel Dongfeng 40ton to 50ton Road Towing Wrecker truck specification:
| General Technical Specification | |||||
| Overall Dimension | 11380*2550*3250(mm) | ||||
| Gross Vehicle Weight | 31000 (Kg) | ||||
| Curb Weight | 21900 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | Dongfeng | ||||
| Drive model | 8*4 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 257KW/350HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 11120(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 12 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Air Brake | ||||
| Wheel Base | 2050+4400+1400(mm) | ||||
| Front/Rear Axle Loading | 15000/20000(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 11.00R20, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
| Winch | Quantity | 1 | |||
| Rating towing capacity | 50000(kg) | ||||
| Length of steel rope | 45(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Lifting Organ | Rating Lifting Capacity | 30000(kg) | |||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
12 wheel Dongfeng 40ton to 50ton Road Towing Wrecker truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
