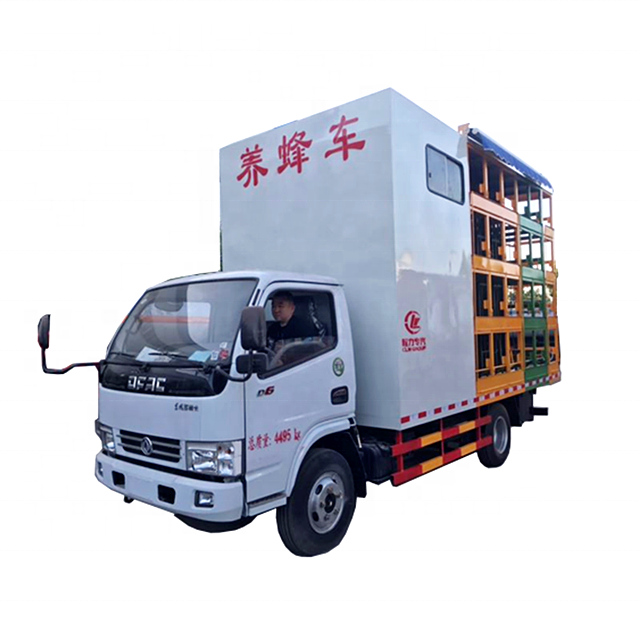

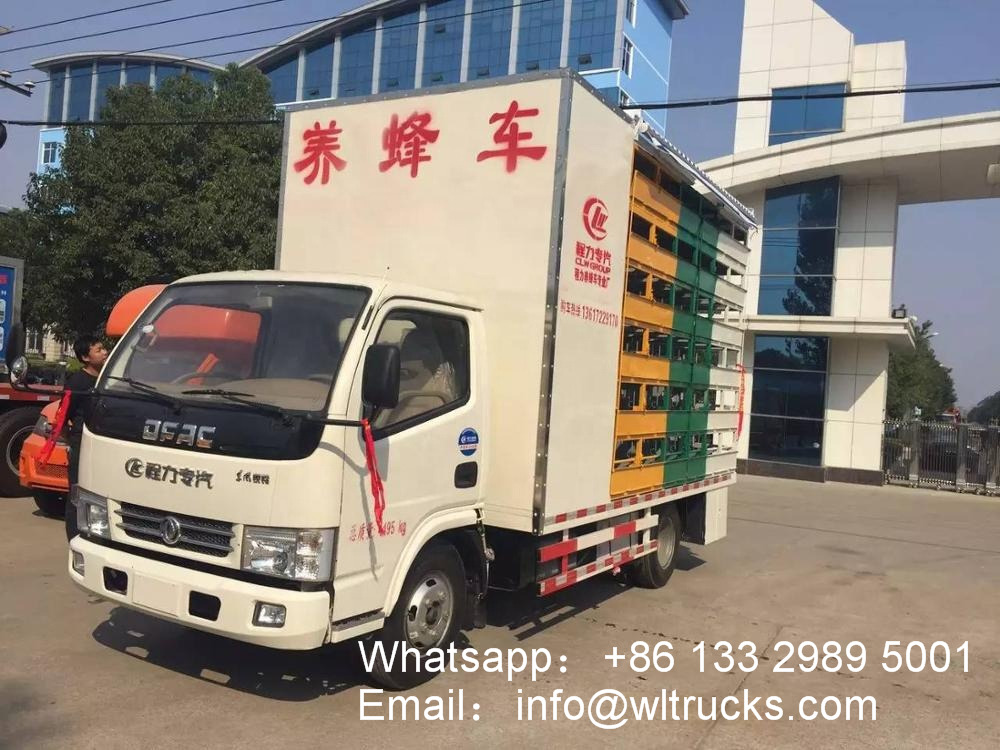

Dongfeng 40 to 64 Boxes mobile Beekeeping truck Adopt Dongfeng D6 cab, Chaochai 95 horsepower engine, 5 speed gearbox. The Vehicle size is 5995×2210, 2250×2990, 3900, 3800mm
product Introduction:
1. The middle of the beekeeping vehicle is a multi-layer frame. The front end of the beehive is equipped with a lifting device, which is convenient for loading and unloading.
2. The space between the two beehives is the workplace, and the beekeeping lane should have a working platform (lifting platform) to collect and manage the bee colony. The top of the passage should have sun-proof, rain-proof roof, good ventilation and drainage function. The collection of bee products has been completed on the truck.
3. The left and right sides of the beehive consist of frames for loading the beehive. The frame should have a device for fixing the hive and a platform for the bees to fly down.
4. The living office space should enable the beekeeper to rest, work, and modern facilities such as air conditioning, TV, shower room, and work platform, so as to reduce the boring wild life and improve the quality of life.
5. There is also a storage box in the lower part of the car, which is convenient to store the production of various bee products and living utensils, which is very suitable for professional beekeeping in the wild.
6. The roof is equipped with solar energy and energy storage system. In addition to transporting bee colonies, beekeeping vehicles can also transport honey barrels, bee products, bee products, etc.
Dongfeng 40 to 64 Boxes mobile Beekeeping truck Specification:
| Dongfeng brand beekeeping truck main technical parameters | |||
| product name | Dongfeng beekeeping truck | Emission Standards | Eruo 3 |
| Dimensions (mm) | 5995×2210, 2250×2990, 3900, 3800 | Environmental protection standards: | Yes |
| Car size (mm) | license | Blue card | |
| Total mass (kg) | 4495 | Fuel | Diesel |
| Rated mass (kg) | 265 | Number of tires: | 6 |
| Curing quality (kg) | 4100 | Top speed (km/h) | 99 |
| Tire specifications | 7.00-16 8PR | ||
| Top-loading configuration | ||
| Living area | beehive | Configuration |
| 40 boxes offixed beehives on both sides | Food grade stainless steel drinking water tank and tire cooling system, design toolbox, drowning platform, one-button lock beehive, honey mining platform, middle walkway two sides design horizontal ring, convenient for stacking beehives, the top of the middle walkway can be raised 1 Meters, each fixed beehive is designed to be independent, convenient for ventilation, electric crane for tail design, paint-free interior for living area, bunk bed, lower bunk during daytime, increase activity space, lighting, charging socket, car door A set, the living area to the beekeeping area design iron gate, 2500W gasoline generator, the design of the RV awning on both sides, the back door can be designed to open the door or single door. | |
| Without living area three floors | 48 boxes offixed beehives on both sides | Food grade stainless steel drinking water tank and tire cooling system, design toolbox, drowning platform, one-button lock beehive, honey mining platform, middle walkway two sides design horizontal ring, convenient for stacking beehives, the top of the middle walkway can be raised 1 Meters, each fixed beehive is designed to be independent, easy to ventilate, the tail is designed with electric crane, 2500W gasoline generator, and the back door can be designed to open the door or single door. |
| Without living area four floors | 64 boxes offixed beehives on both sides | Food grade stainless steel drinking water tank and tire cooling system, design toolbox, drowning platform, one-button lock beehive, honey mining platform, middle walkway two sides design horizontal ring, convenient for stacking beehives, the top of the middle walkway can be raised 1 Meters, each fixed beehive is designed to be independent, easy to ventilate, the tail is designed with electric crane, 2500W gasoline generator, and the back door can be designed to open the door or single door. |

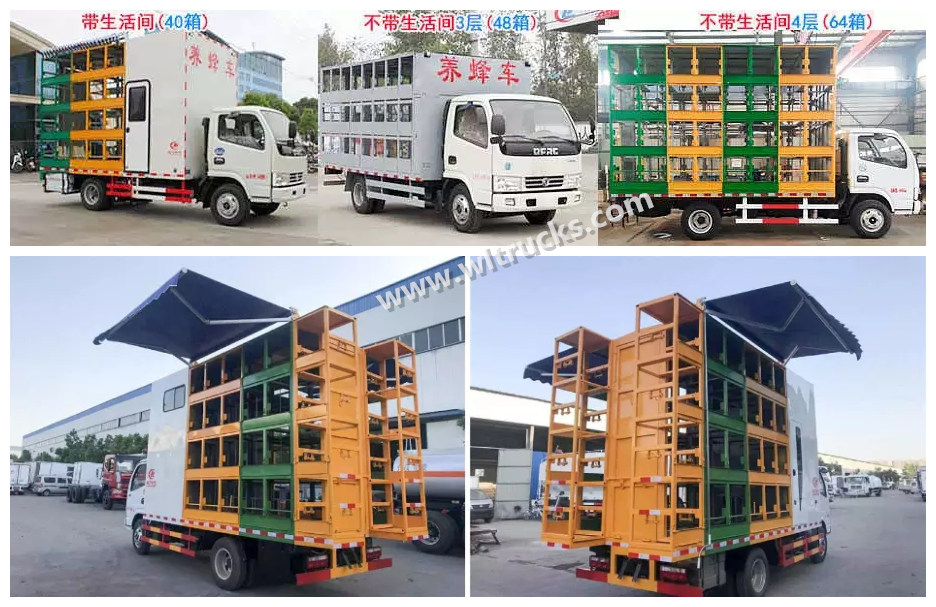

Beekeeping vehicle detailed picture:

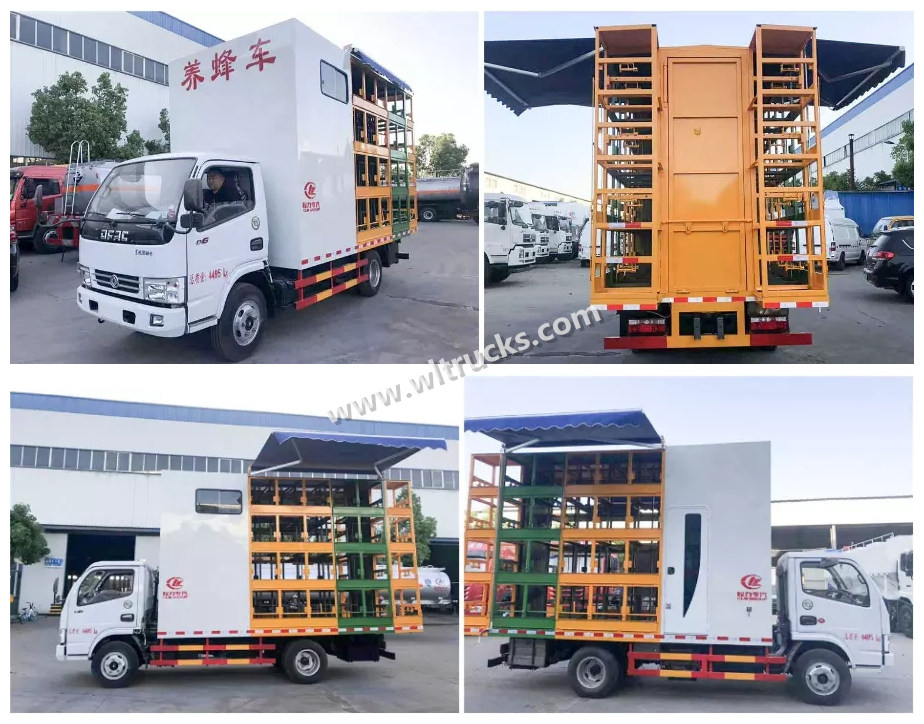

Beekeeping trucks Multi-angle picture:
