Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Product Description:
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck uses Dongfeng 145 wide body cab (optional new Tianjin cab), 3950mm to 4500mm wheelbase, Yuchai 130 / Cummins 170 horsepower, 190 horsepower Euro III diesel engine, small eight Gear / six-speed gearbox, 9.00-20 / 1000-20 tires, 3.6 tons on the front axle, 9 tons on the rear axle, air brake, direction assist.
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Top-loading configuration: The bucket-type garbage truck uses a chain and hydraulic cylinder linkage device to realize the lifting and turning of the garbage hopper, automatically collect the garbage in multiple garbage hoppers into the car, and dump it to the destination at one time. Self loading and unloading function, hydraulic operation.
The bucket-type garbage truck is a vehicle that can be equipped with dozens of garbage bins. It can realize the joint operation of one vehicle and multiple garbage bins. The circular transportation fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation. Composed of compartment, hydraulic system and operating system.
The lifting oil cylinder (2 pcs) garbage box can be lifted and laid down, the next working cycle time ≤50S. For example, the sanitation department cleans and transports urban garbage. It is applicable to the garbage cans of the national general standards: iron drums, plastic drums, and a large supply of garbage hanging bins.
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Specifications:
|
product name
|
Dongfeng 12m3 to 15m3 hanging bucket garbage truck
|
Chassis model
|
EQ1160GD5DJ
|
|
Actual volume ( cubic )
|
10 – 15
|
Total mass (kg)
|
13820
|
|
Engine horsepower
|
130 170 190 hp
|
Rated load mass (Kg)
|
9870
|
|
Engine name
|
YUCHAI CUMMINS
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
7890×2340×3150
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
900-20
|
|
Wheelbase (MM)
|
3950 4500
|
Maximum speed (km/h)
|
100
|
|
Front track
|
1940
|
Rear track
|
1860
|
|
Performance profile
|
The hanging bucket type garbage truck adopts the chain and the hydraulic cylinder linkage device to realize the lifting and turning of the garbage bucket, automatically collects the garbage in the multiple garbage buckets into the compartment, and automatically discharges it to the destination at one time. It has a full seal and self-installing. Unloading function, hydraulic operation. Trash cans suitable for national general standards: iron drums, plastic drums, and a large supply of garbage hanging buckets. | ||
|
Dedicated configuration
|
Self-loading and unloading garbage is also called hanging garbage truck. The car body can be: carbon steel, stainless steel, and epoxy resin anti-corrosion treatment inside. | ||
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Working parameter:
| Optional volume | 3-15 cubic | Bucket time | Less than 10 seconds |
| Bucket type | Plastic bucket or iron bucket | Unloading time | Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position | Car right |
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Operation display:

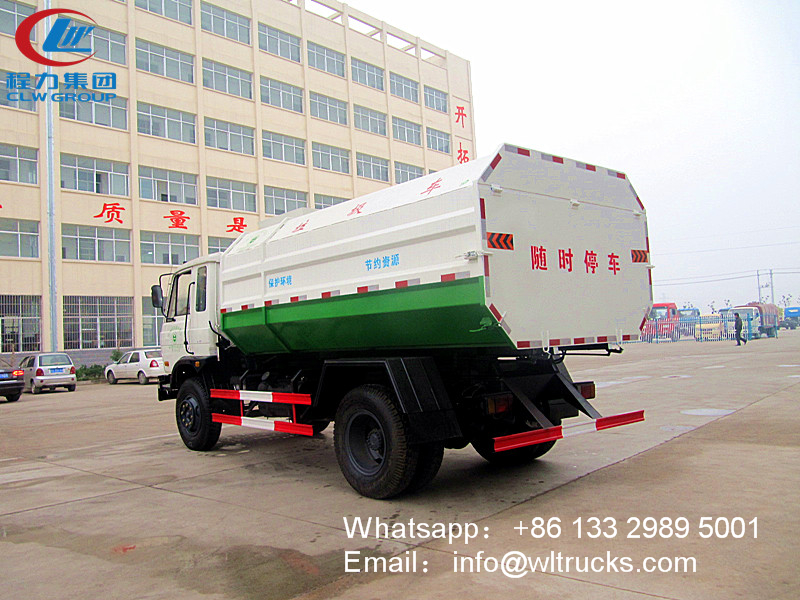

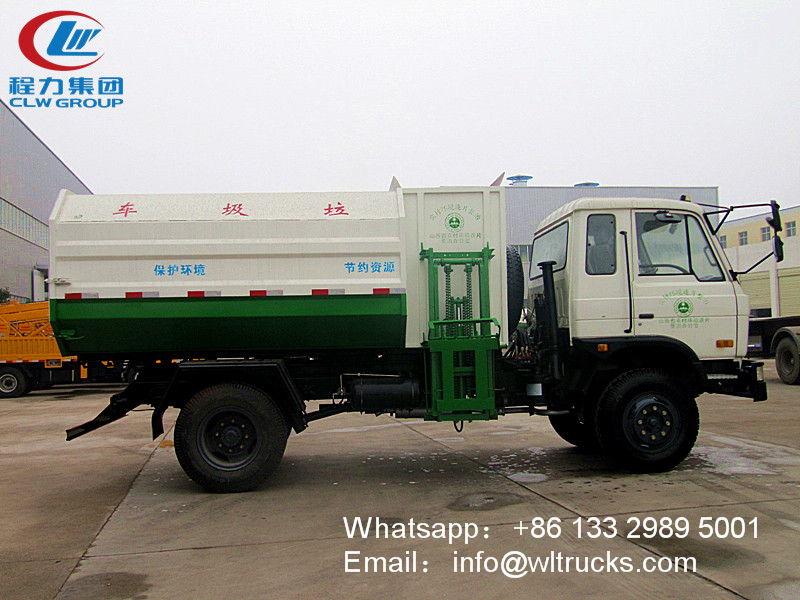

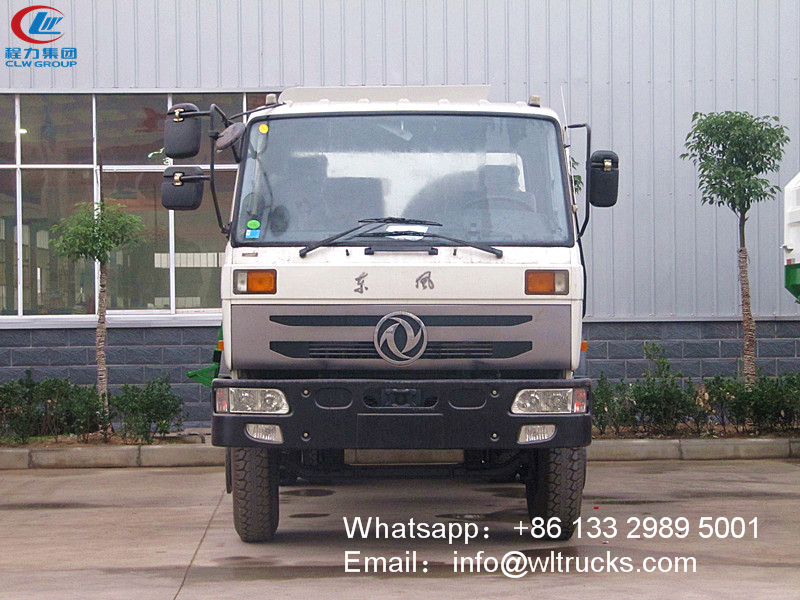

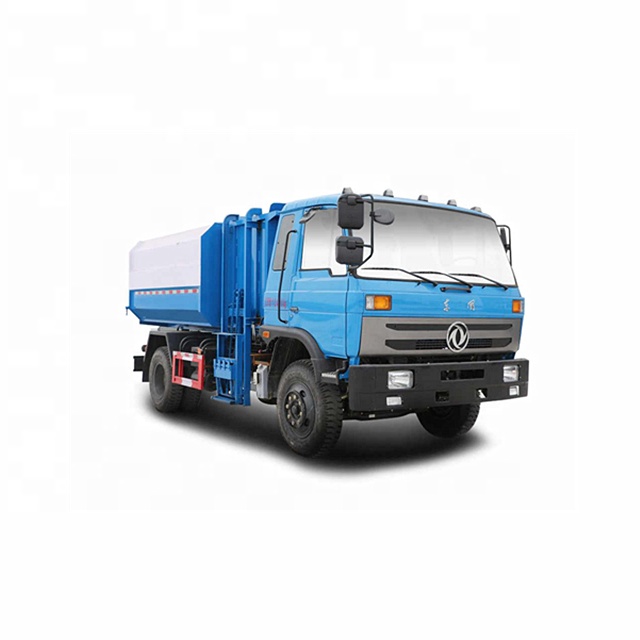

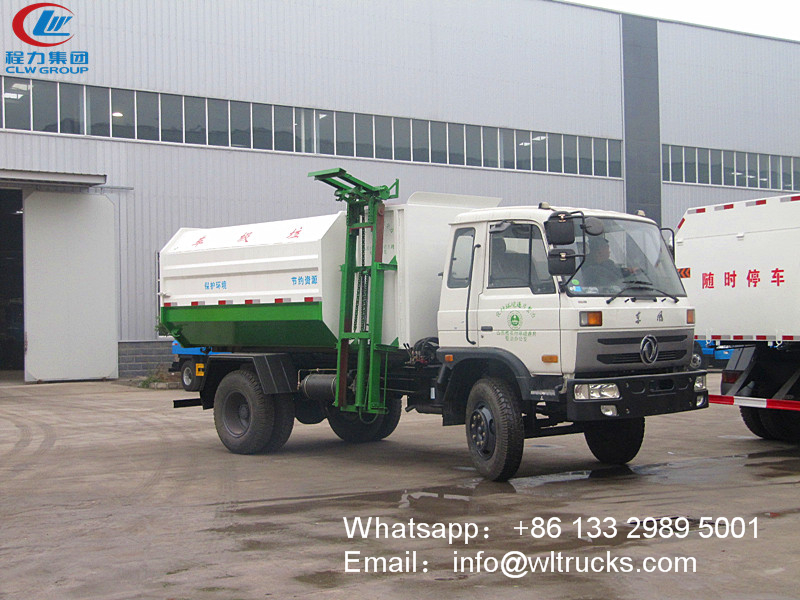

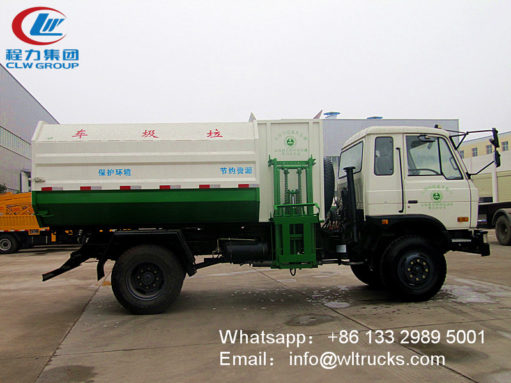

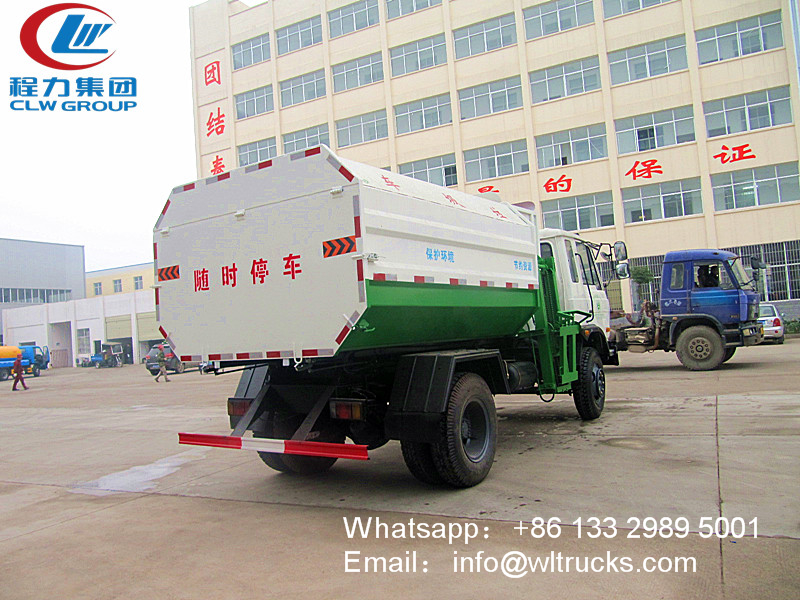

Dongfeng 10000 liter to 15000liters hanging bucket garbage truck detailed images:
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Structure diagram：
Dongfeng 10000 liter to 15000liters hanging bucket garbage truck Detail drawing:
Customizable garbage truck models
