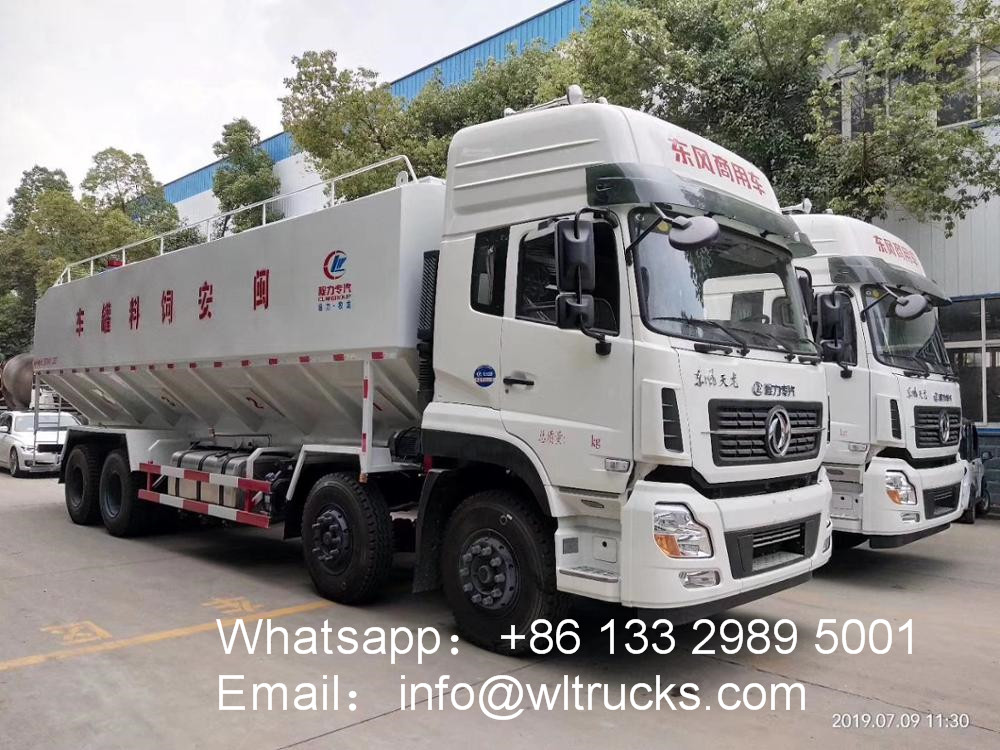

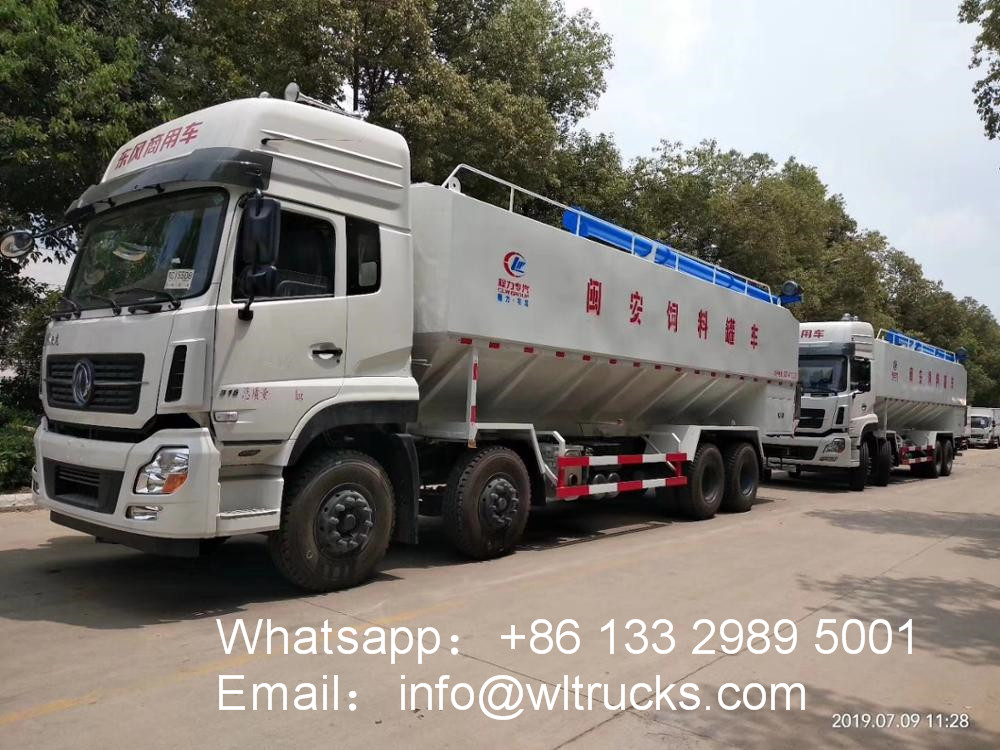

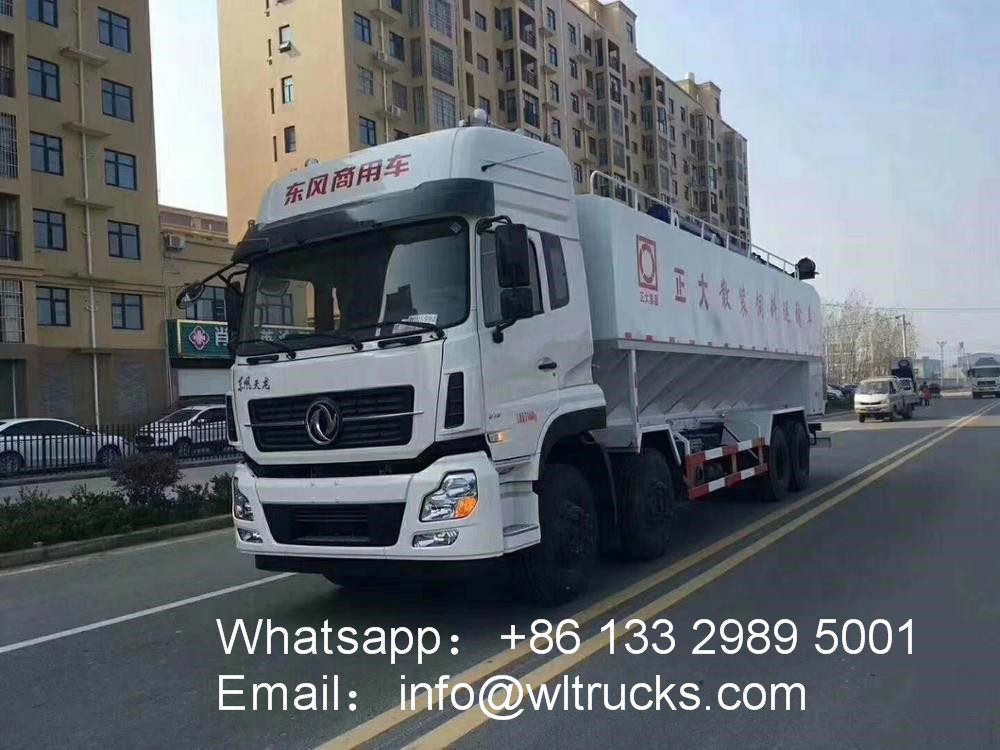

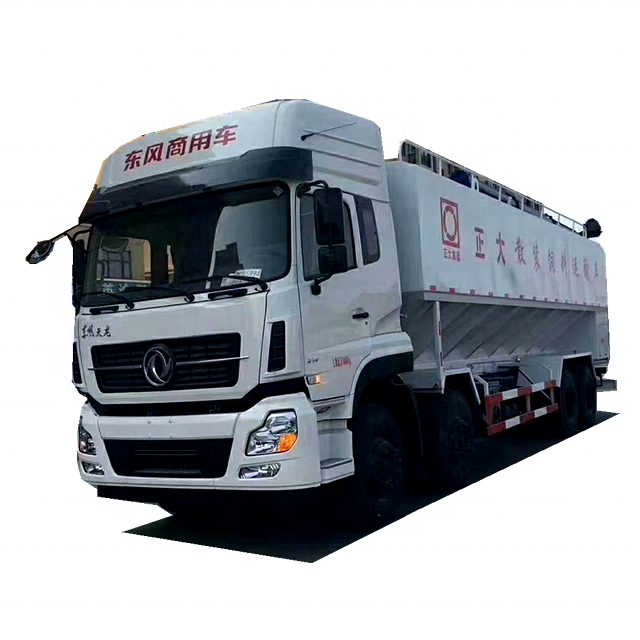

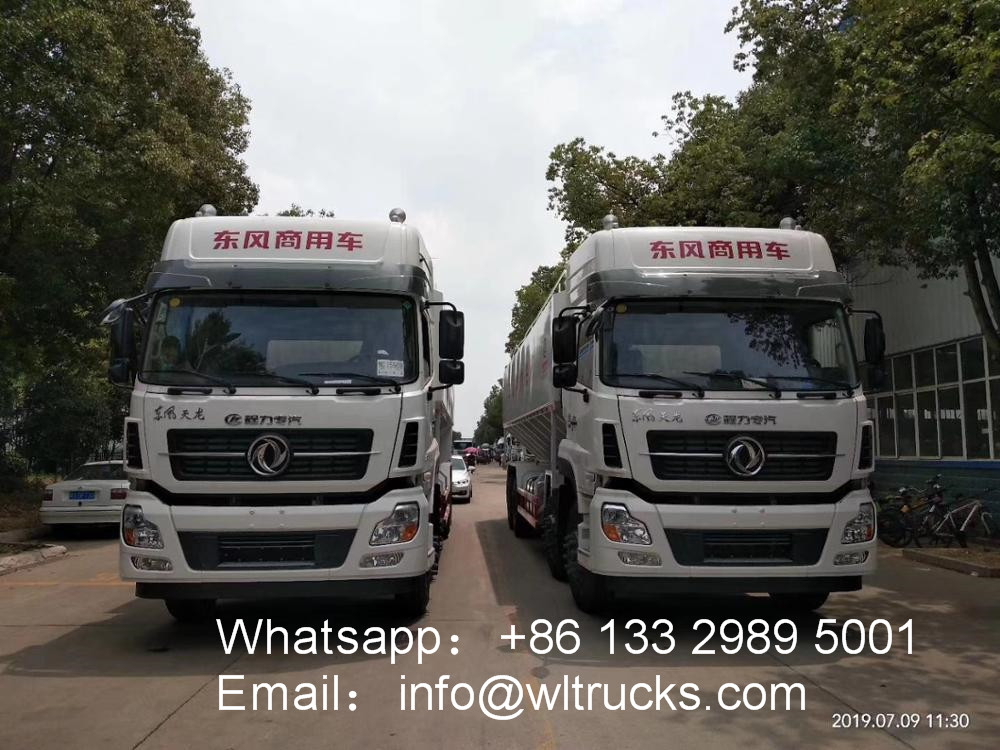

8×4 Dongfeng 40m3 Bulk feed delivery truck Adopt Dongfeng Tianjin cab, Cummins 310 horsepower engine, 10 speed gearbox. The Vehicle size is 12000×2500×3995 (mm). 4mm thick carbon steel plate, can rotate 180° left and right.
product Introduction:
The bulk feed trucks produced by our company can transport different kinds of feeds through separate bins. It has obvious convenience advantages and wide-ranging uses. It is an essential transportation tool for farms and feed mills.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO ,FAW,SINOTRUK,I-SUZUbulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
bulk feed truck advantages：
1. Automatic feeding and unloading, the feed will not be separated again.
2. Complete functions, capable of transporting powdery materials, granular materials, forage amino acids, soybean meal, cereals, straw, green fodder, meat and bone meal, whey powder, fat, fish meal, miscellaneous meal, etc.
3.Jiaolong adopts graphite bearing and intermediate joint support structure.
4. Install auger alarm device and tail lighting device.
5. Fully automatic mechanized operation, without manual loading and unloading, only need to be equipped with a driver.
6. The tank body is made of high-strength steel plate, which is welded and formed at one time, with strong sealing performance, and the seamless inspection of the tank body is ensured through the inflation test.
7. The tank body is all sealed design, so there is no pollution to the air during transportation.
8×4 Dongfeng 40m3 Bulk feed delivery truck Specification:
|
Vehicle Main parameter |
Cab type | Dongfeng single sleeper cab, flat proof, air conditioning |
| Overall dimension(L×W×H)(mm) | 12000×2500×3995 | |
| Axle number | 4 | |
| Drive type | 8*4 | |
| Steering type | LHD / RHD with hydraulic power steering | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | Approx 15870 | |
| Chassis parameter | Chassis brand | Dongfeng |
| Transmission | Manual ,10 speed forward and 2 reverse | |
| Brakes | air brake | |
| Tire | 11.00R20, 12 with 1 Spare tire | |
| Engine parameter | Engine brand | Dongfeng Cummins |
| Model | ISL9.5-315E51A | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 232(315p) | |
| Displacement(ml) | 9460 | |
| Emission Standard | Euro 3 | |
| Superstructure Parameter | 1. Transport Medium | Kinds of bulk feed |
| 2. Main compostion | Chassis, feed silo, feed inlet, discharge auger system, operation electric hydraulic system,etc | |
| 3.Tank volume(m3) | 40m3/20ton | |
| 4.Tank material | high quality carbon steel | |
| 5. Warehouse | With 4 units separate warehouses to load different kinds of feed | |
| 6. Discharger type: | electric auger, optional hydraulic auger or 24kw diesel generator with addiditional cost | |
| 7. Performance parameter: | (1).Average discharge rate(kg/min):500-600;
(2).Discharge system rotation angle:360 degree ,system elevation angle:60 degree; (3).Maximum horizontal distance:6m, Vertical distance:7m-8.5m |
Feed transport truck Composition structure:

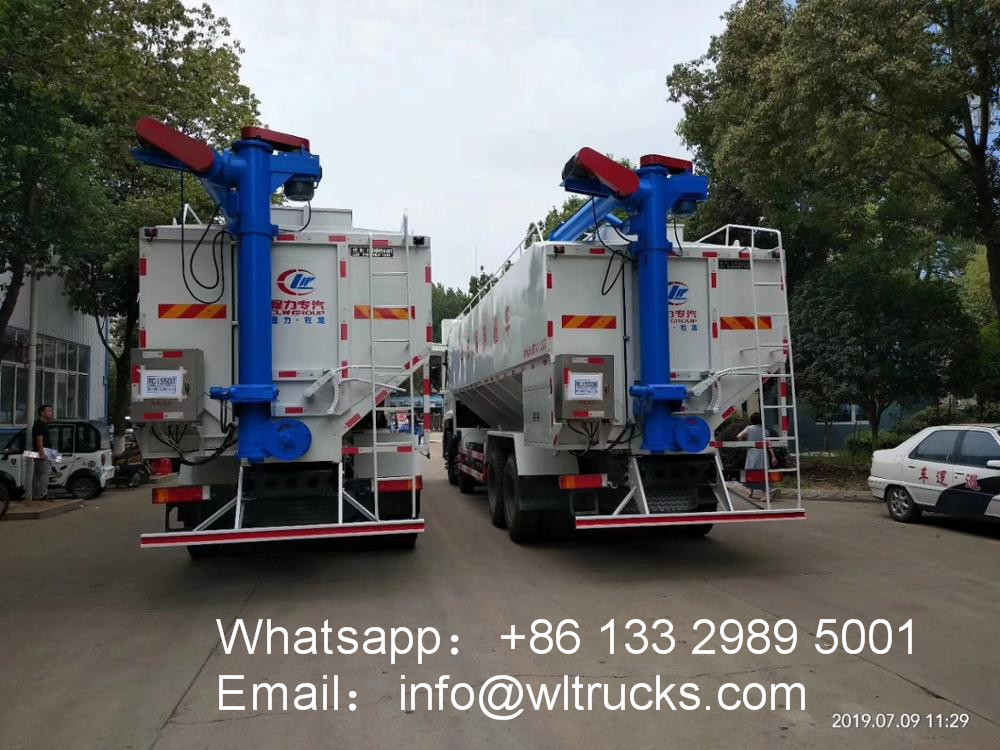

scene working display：
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
Feed truck catalog：
