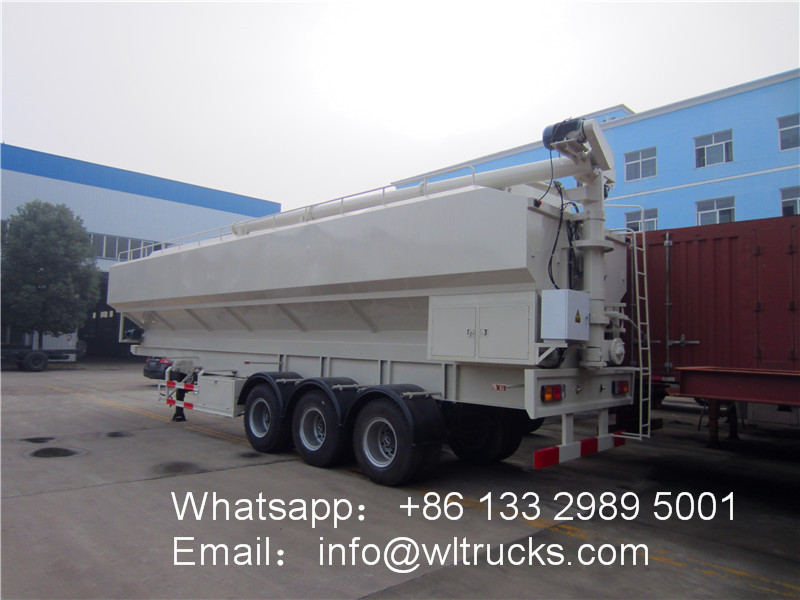

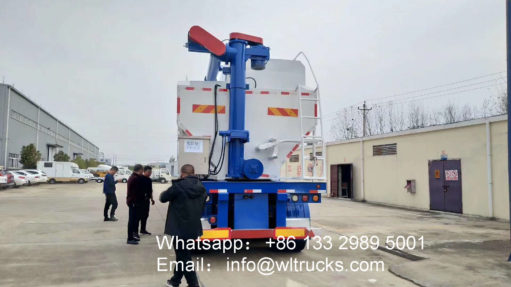

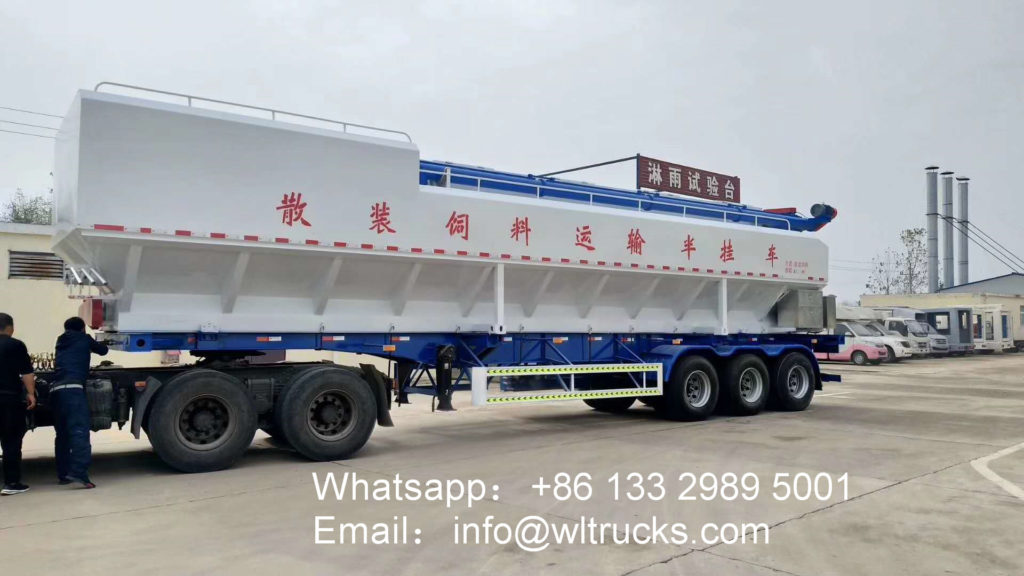

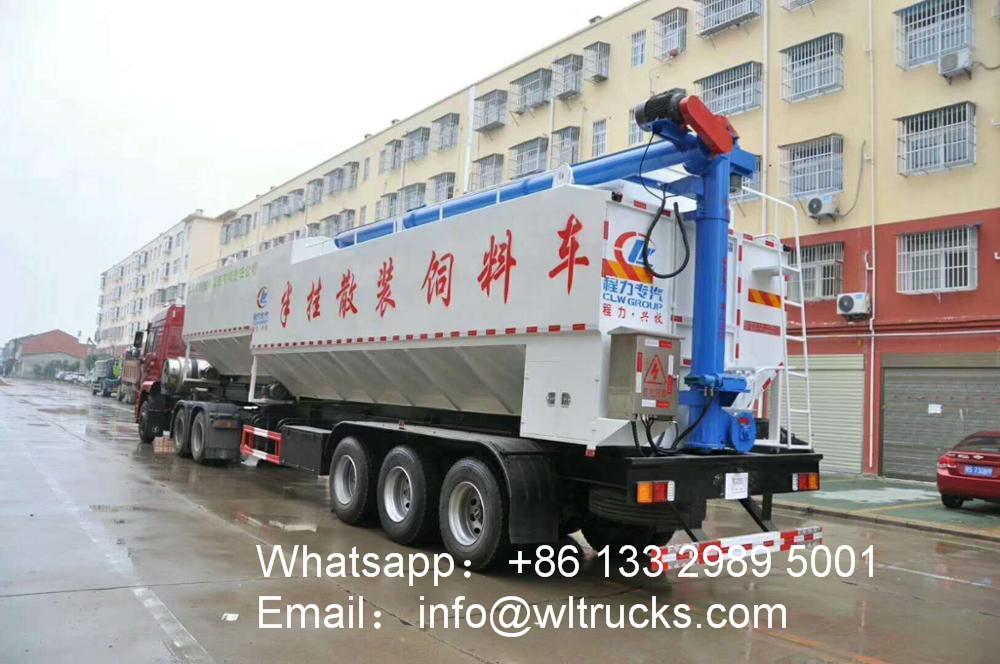

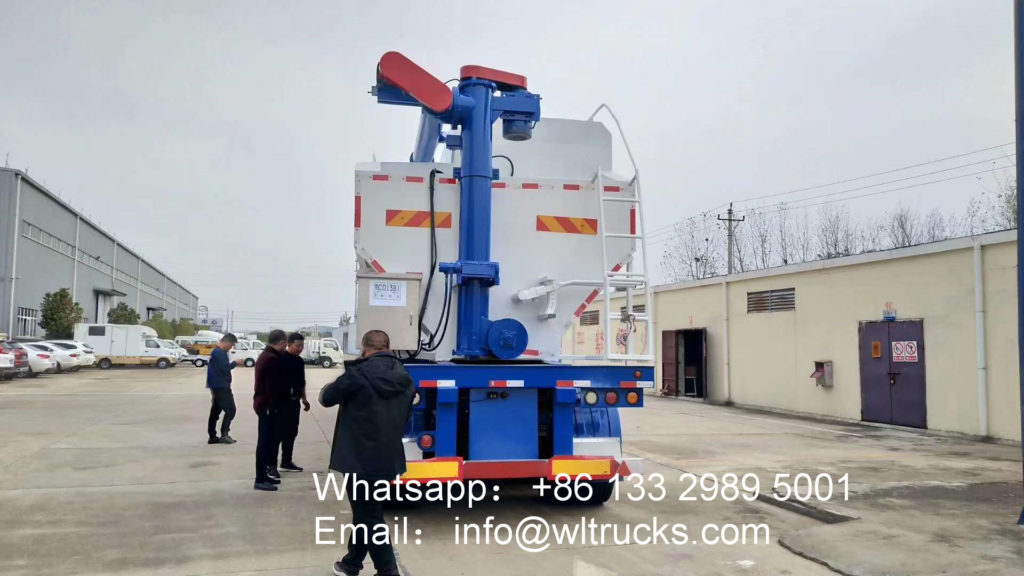

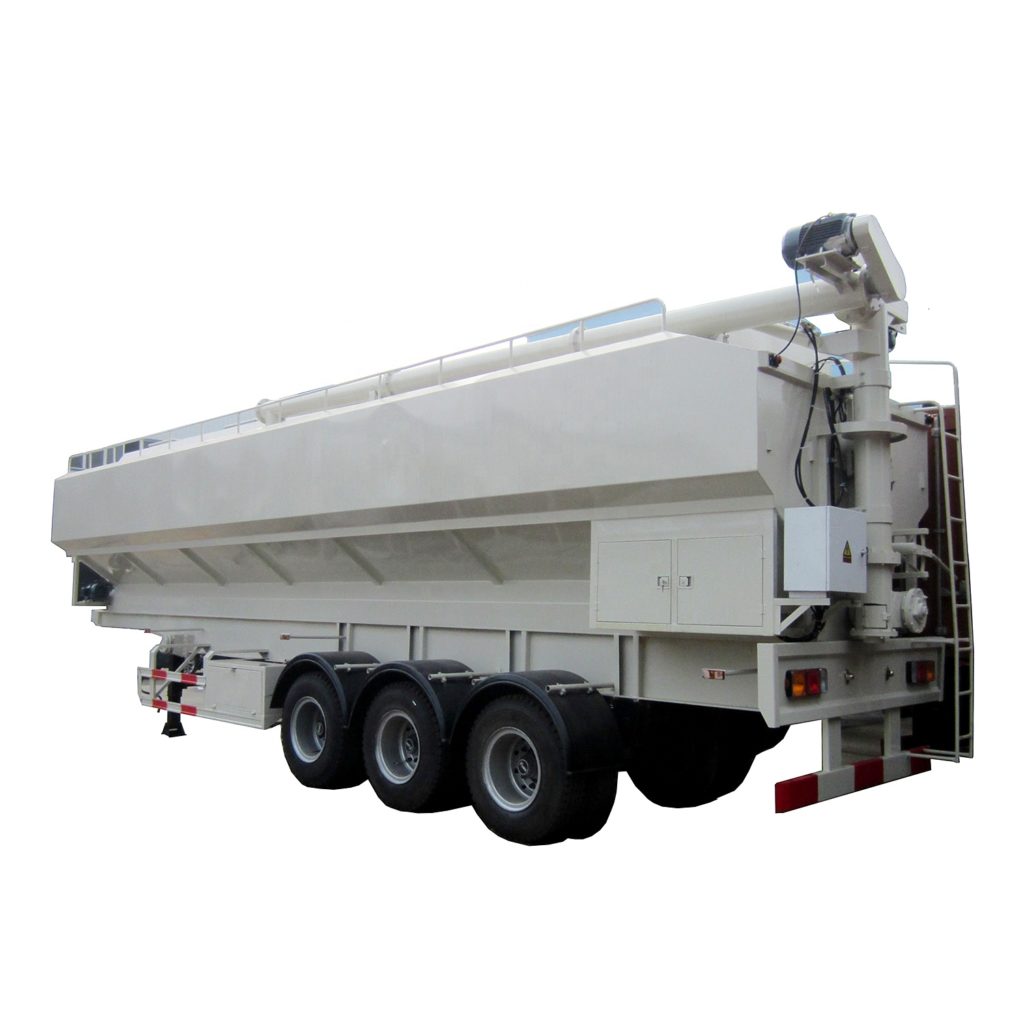

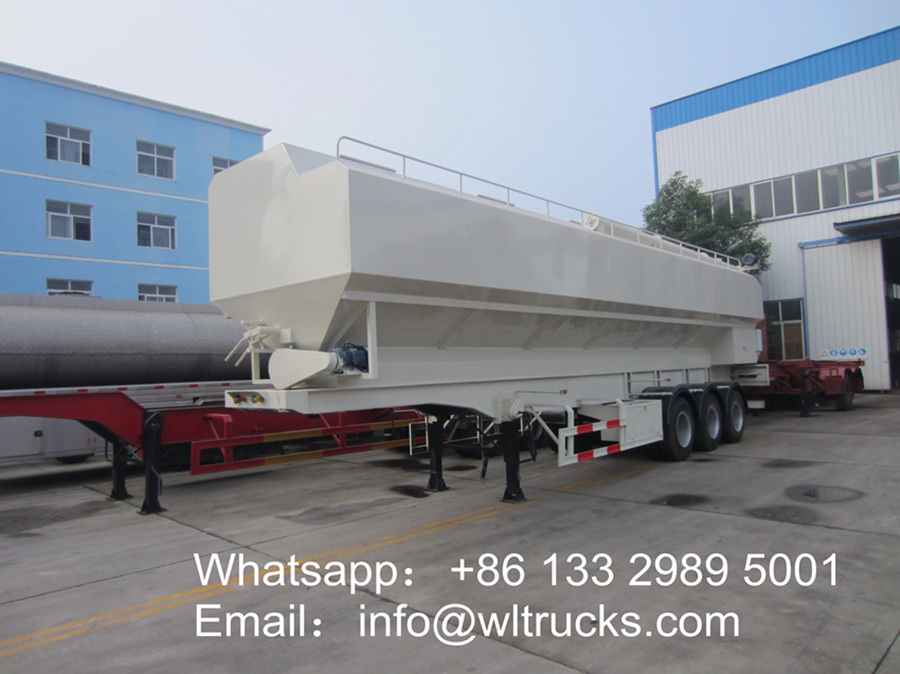

50000liter to 60000liters bulk animal feed trailer Adopt 3-axis Fuhua 13T Bridge,. The Vehicle size is 13000×2550×4000 (mm). 4mm thick carbon steel plate, can rotate 180° left and right.
product Introduction:
The bulk feed trucks produced by our company can transport different kinds of feeds through separate bins. It has obvious convenience advantages and wide-ranging uses. It is an essential transportation tool for farms and feed mills.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO ,FAW,SINOTRUK,I-SUZUbulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
bulk feed truck advantages：
1. Automatic feeding and unloading, the feed will not be separated again.
2. Complete functions, capable of transporting powdery materials, granular materials, forage amino acids, soybean meal, cereals, straw, green fodder, meat and bone meal, whey powder, fat, fish meal, miscellaneous meal, etc.
3.Jiaolong adopts graphite bearing and intermediate joint support structure.
4. Install auger alarm device and tail lighting device.
5. Fully automatic mechanized operation, without manual loading and unloading, only need to be equipped with a driver.
6. The tank body is made of high-strength steel plate, which is welded and formed at one time, with strong sealing performance, and the seamless inspection of the tank body is ensured through the inflation test.
7. The tank body is all sealed design, so there is no pollution to the air during transportation.
50000liter to 60000liters bulk animal feed trailer Specification:
|
Overall dimension
|
13000*2550*3980mm
|
|
Tank dimension
|
13000*2550*2640 mm
|
|
Compartment
|
6
|
|
Material
|
Carbon steel
|
|
Manhole
|
900*1100 mm
|
|
Discharge pipe
|
6.86 m
|
|
Discharge pipe Rotation angle
|
360 degree
|
|
The distance from Feed Outlet to ground when the discharge pipe lift degree in 60
|
8.5 m
|
|
Voltage
|
380 V
|
|
Rated discharge capacity
|
Powder 600-800 kg/min
Granular 800-1000 Kg / min
|
|
Residual rate
|
<0.05
|
|
Axle
|
3
|
|
Curb weight
|
12600 kgs
|
|
Gross vehicle weight
|
40000 kgs
|
|
Wheelbase
|
7130+1310+1310 mm
|
|
Wheel track
|
1840/1840/1840
|
|
Tire size
|
12.00R22.5
|
|
Electric motor
|
Feed conveyor and outlet motor5.5 KW
Lift motor 4.0 KW
|
Feed transport truck Composition structure:
scene working display：
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
