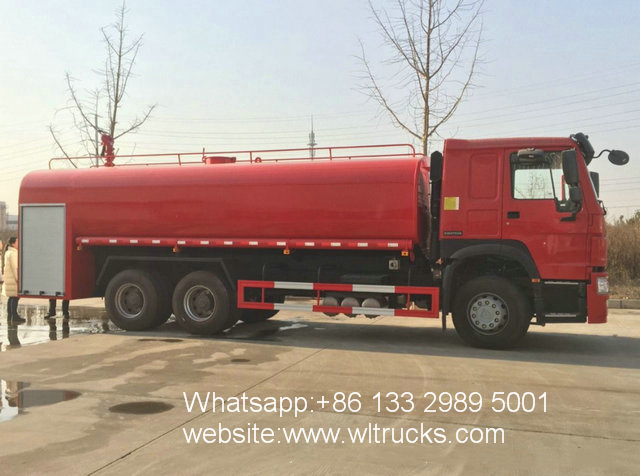

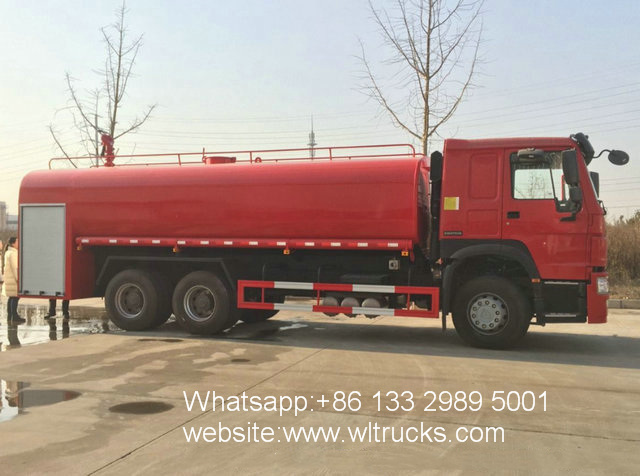

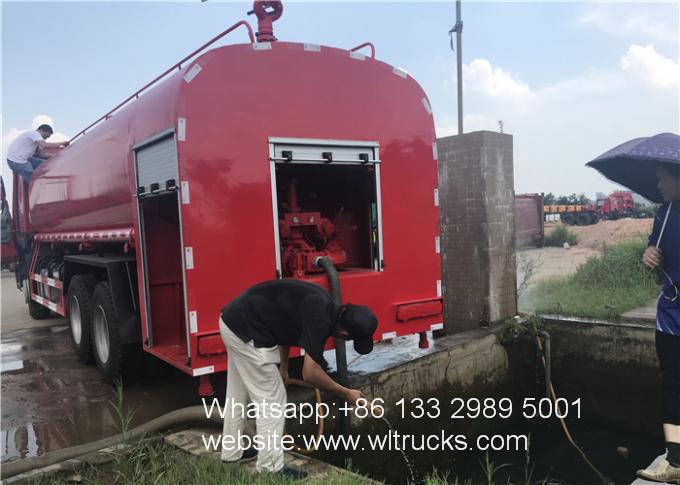

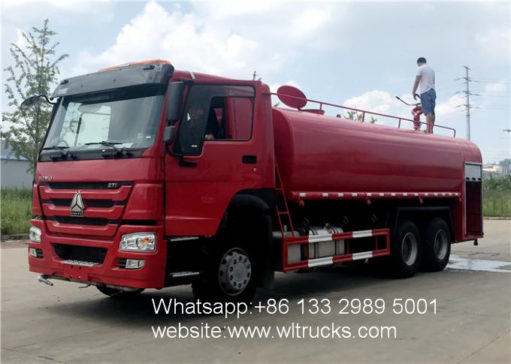

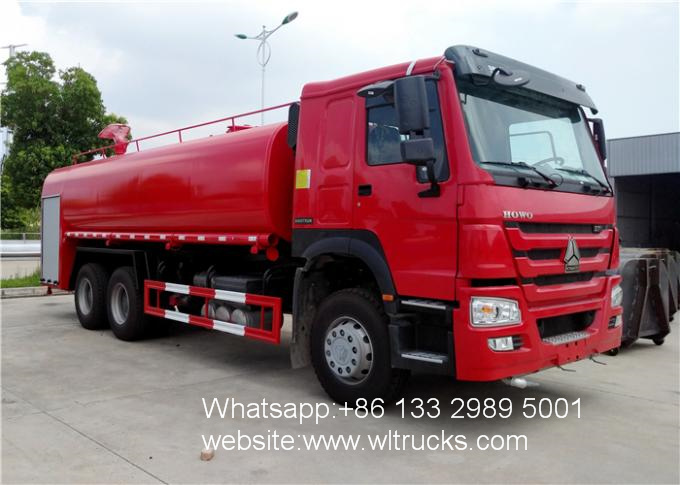

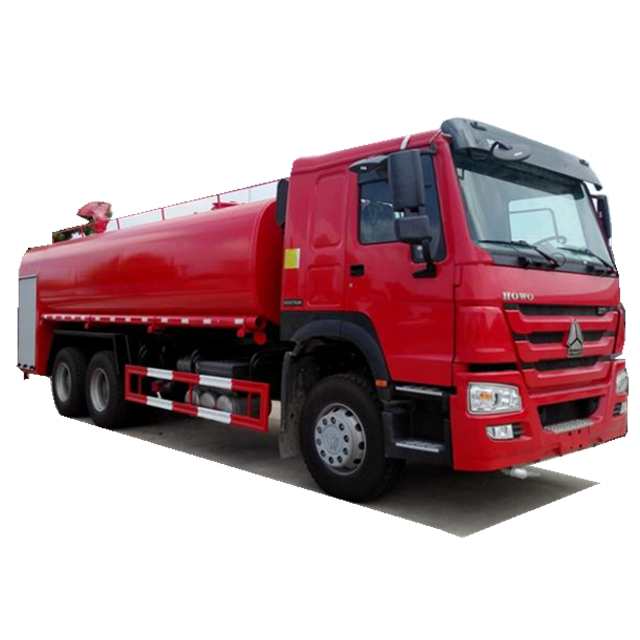

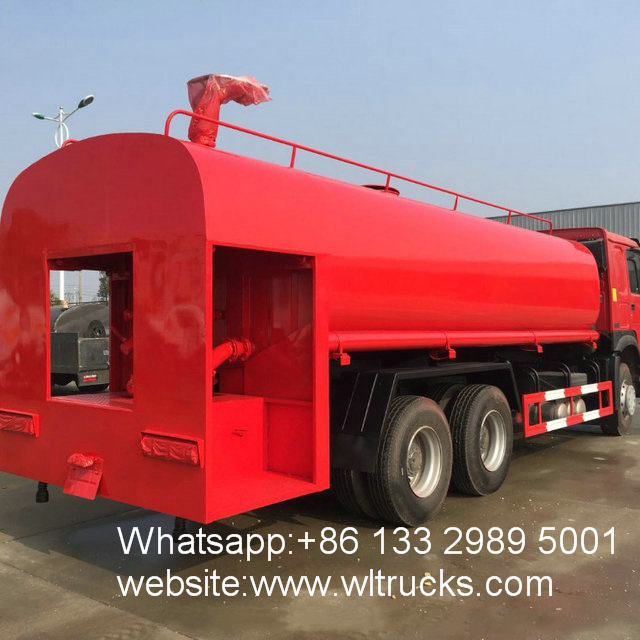

6×4 Sinotruk Howo 18000L fire water tanker truck is modified by HOWO 6×4 chassis. The tank has a liquid capacity of 15 ton to 20 ton. The hidden tank at the rear of the tank is equipped with a CB10/30 fire pump. The top of the tank is equipped with a PS30 fire water cannon. The fire cannon has a range of more than 50 meters, and behind the tank is a working platform equipped with a green spray cannon.
Fire water tanker truck Product Specifications:
| Cabin | HW 76 Standard Cab, Left hand drive, one sleeper. A/C
With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference) |
||||
| Vehicle Main Dimensions | (L x W x H)mm | 10400x2500x3300 | |||
| Wheel base (mm) | 5800+1400 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/15 | ||||
| Weight in KGS | Tare Weight | 12000KG | |||
| Loading Capacity | 20000 | ||||
| Front axles loading capacity | HF9 1×9000 | ||||
| Rear axles loading capacity | ST16 2×16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro Ⅱ | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300L | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
| Tank | 20000L, carbon steel. Tank thickness:5mm, End plate thickness: 6mm.
Equipped with front and rear Sprinkler. Equipped with pump and PTO (Suction lift >6m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. Equipped with fire brigade system, fire gun on top, (Sprinkling width>50m) |
||||
| Paint | Anti-corrosive | ||||
6×4 Sinotruk Howo 18000L fire water tanker truck detail structure diagram:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
