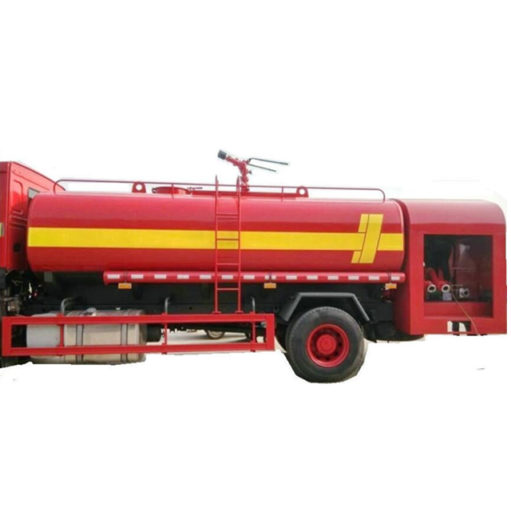

Sinotruk HOWO 12000 liters fire water sprinkler truck Modified with HOWO A7 chassis, 266hp or 290hp engine,high-quality carbon steel tank, tank volume 10-12 cubic meters, equipped with domestic well-known fire pumps and fire monitors, with a range of more than 50 meters, suitable for public security fire brigades, factories, mines, and enterprises , Communities, docks, forest firefighting and other general fire fighting.
fire water sprinkler truck Product Specifications:
| Truck Model | ZZ1167M5011W | |||
| Truck Brand | SINOTRUK-HOWO | |||
| Steering Type | Left hand drive or Right hand drive | |||
| Approaching angle/Departure angle(°) | 16/9 | |||
| Overhang(front/rear) (mm) | 1500/2070 | |||
| Wheel base (mm) | 5000 | |||
| Max speed(km/h) | 75 | |||
| Curb weight(kg) | 9500 | |||
| Gross Vehicle Weight(kg) | 19000 | |||
| Overall dimensions (mm) | 9000x2500x3500 | |||
| Water Tank | Tank volume:15m3
Carbon steel material, Tank body 4mm,End plate 5mm |
|||
| Equipment | Fire monitor:PL24-48,water output 24-48L/s,
water range 50m; Fire pump:CB10/40,water output 40L/s; PTO,equipment locker with curtain exterior door |
|||
| Engine
|
Model | WD615,water-cooled,four strokes,
6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
||
| Fuel type | Diesel | |||
| Horse Power | 266HP | |||
| Emission | EURO 2 | |||
| Fuel tanker capacity(L) | 300 | |||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | 8198,hydraulic steering with power assistance | ||
| Front axle | HF7 | |||
| Rear axle | ST16 | |||
| Color | As per customer’s requests | |||
| Tyre | 12R22.5,(one spare tyre).7units | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HW76 cab, one sleeper, with air-conditioner.
all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||

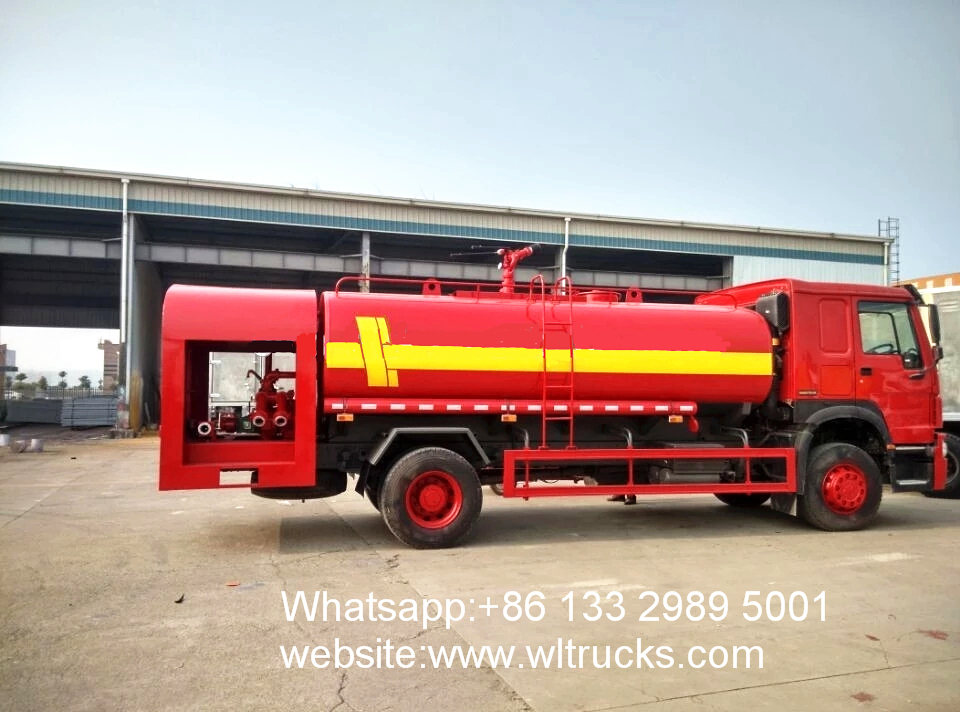

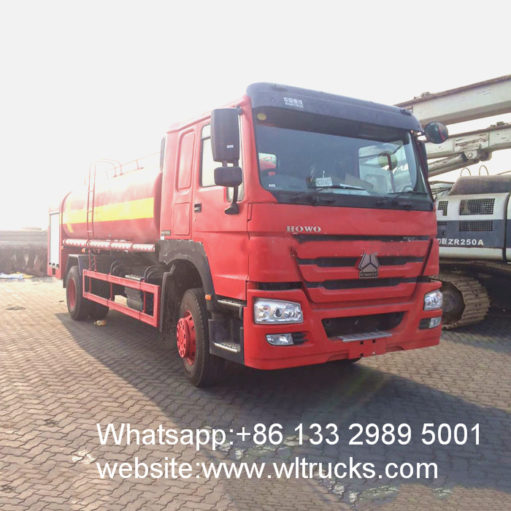

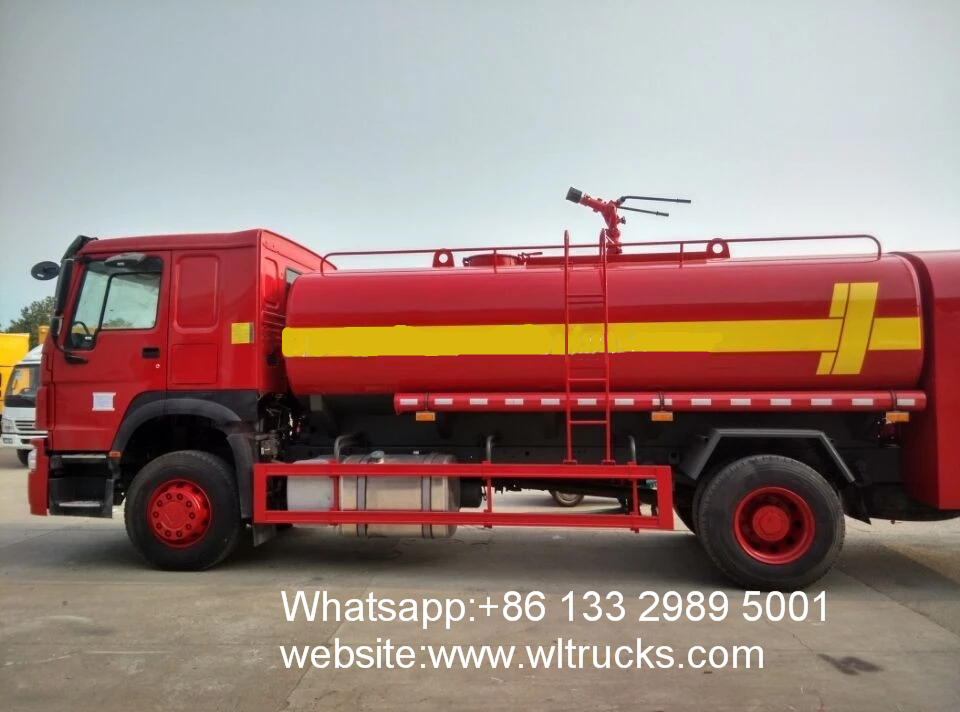

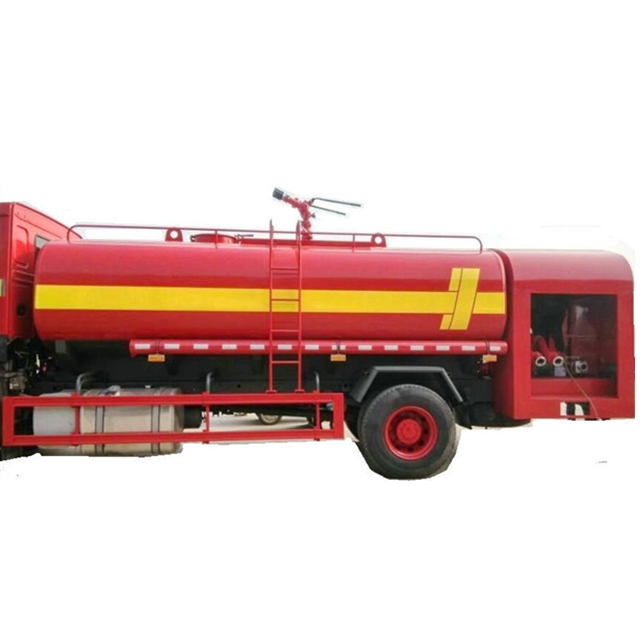

Sinotruk HOWO 12000 liters fire water sprinkler truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
