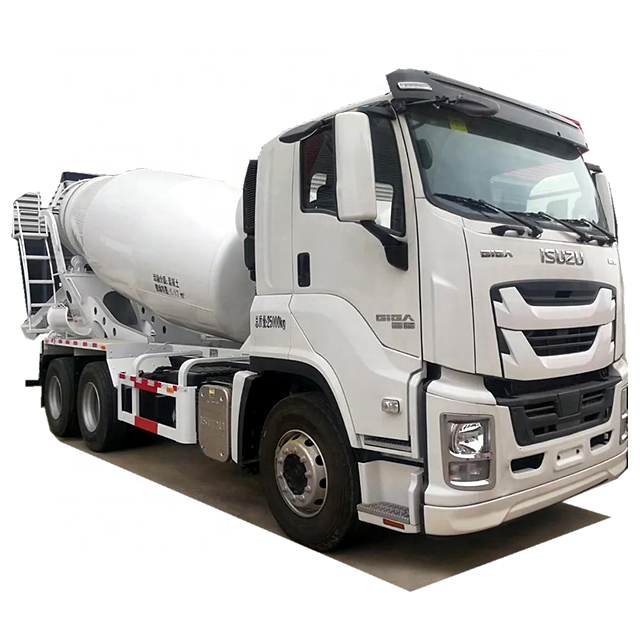

6×4 ISUZU 10m3 12m3 14m3 Concrete mixer truck Adopts ISUZU VC61 GIGA flat top with lying Cab, wheelbase:3600+1450mm,9 speeds gearbox, vehicle size:9250*2496*3980mm, equipped with ISUZU 350 hp Eruo 5 diesel engine.
products description:
Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our concrete truck mixer consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.
6×4 ISUZU 10m3 12m3 14m3 Concrete mixer truck Specification:
| Truck Specification | |||||||
| Truck model | CLW | ||||||
| Cab | ISUZU cab with one sleeper with A/C | ||||||
| Driving Type | 6*4 left hand drive | ||||||
| Max Speed (km/h) | 80 | ||||||
| Overall dimension(mm) | 9250*2496*3980 | ||||||
| GVW( kg) | 25000 | ||||||
| Mass in working order ( kg) | 13875 | ||||||
| Wheelbase(mm) | 3600+1450 | ||||||
| Tire | 11.00R20 (10+1) | ||||||
| Clutch | Single-plate dry diaphragm spring clutch | ||||||
| Steering | Hydraulic steering with power assistance | ||||||
| Gear box | 9JS119TA ( 9Front gears+2 rear gears) | ||||||
| Bridge | Front axle | 7T | |||||
| Rear axle | 18T | ||||||
| Engine | Model | ||||||
| Fuel Type | Diesel fuel | ||||||
| Type | Water-cooled .four-stroke, six-cylinder , direct injection, turbocharged |
||||||
| Max output power(hp) | 350hp | ||||||
| Braking system | Service Brake | Compressed air brake | |||||
| Park Brake | Spring energy | ||||||
| Auxiliary brake | engine exhaust brake | ||||||
| Eletric system | 24v | ||||||
| Drum Description | |||||||
| Mixing volume | 8m3 | Loading Coefficient | 66.7% | ||||
| Charging speed | ≥3 m3/min | Discharging Speed | ≥1.3 m3/min | ||||
| Mixing speed | 0-16rpm | Residual rate | ≤0.5% | ||||
| Inclination angle | 16±0.5° | Oil tank working temperature | 50ºC-70ºC | ||||
| Drum material | Disk End | 8mm/16MnR | Water tank volume | According to mixer tank | |||
| Slump | More than 12 | ||||||

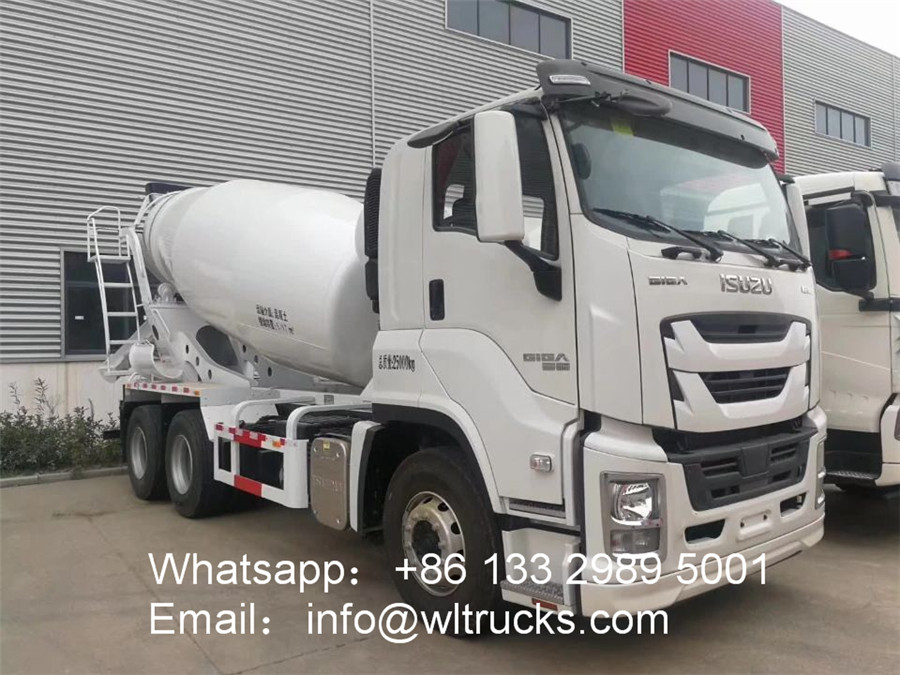

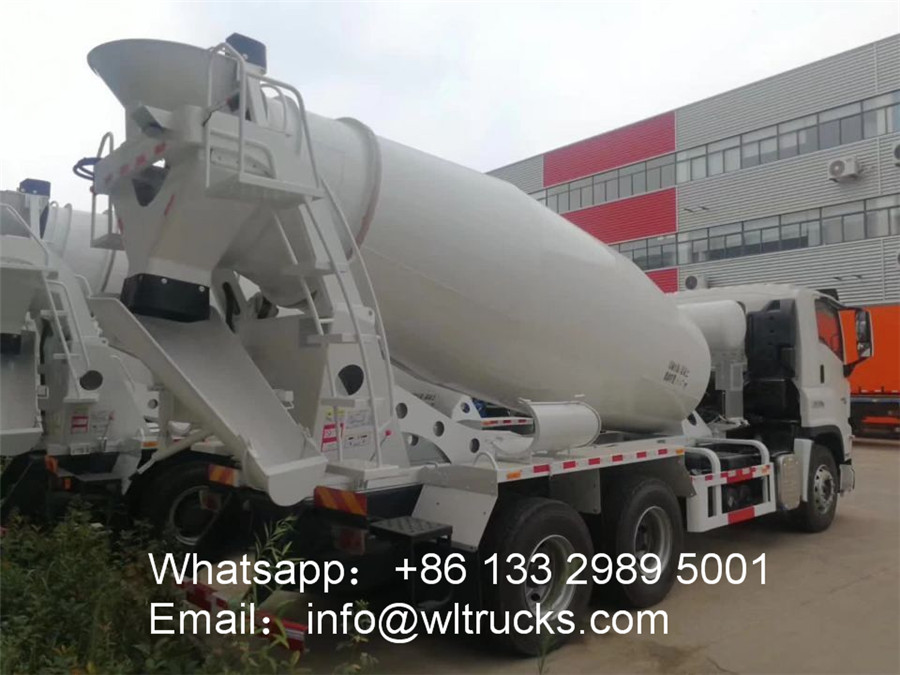

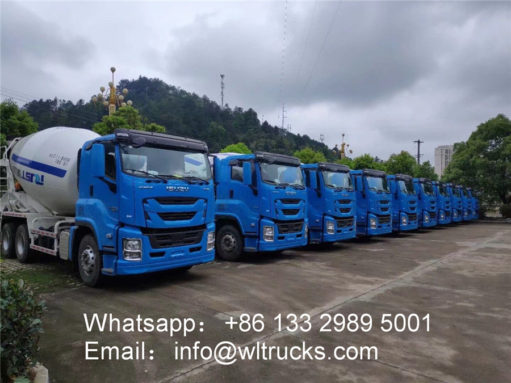

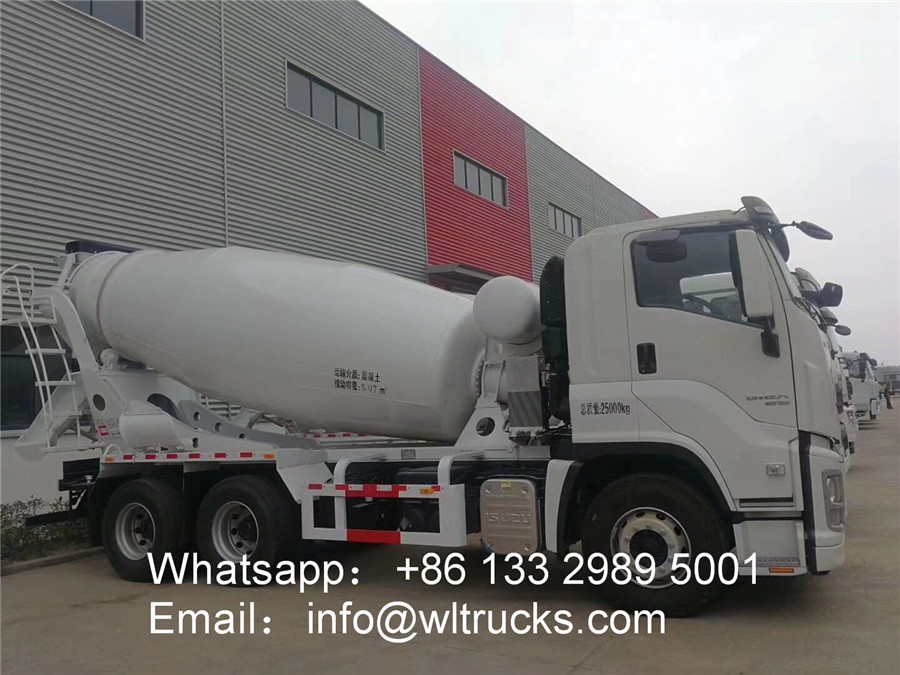

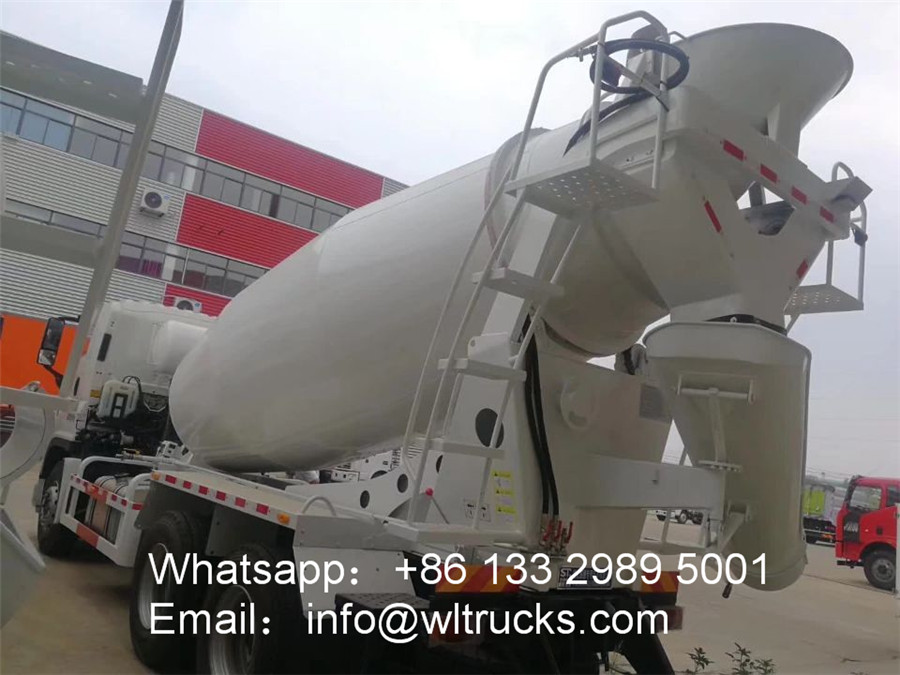

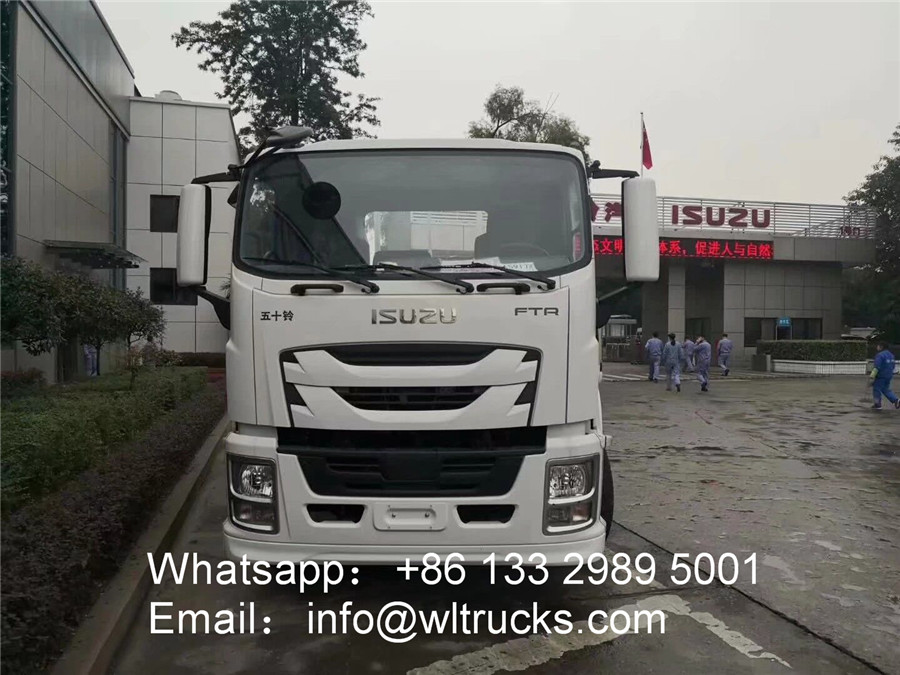

cement mixer vehicle detailed picture:
mixing trucks Structural composition drawings:
