6×4 Dongfeng 35m cement pump machine truck Adopts 6×4 Dongfeng Tianjin Cab, wheelbase:4350+1300mm,8 speeds gearbox, vehicle size:10945*2500*3920mm, equipped with Yuchai/Cummins 240hp Eruo 3 diesel engine.
products description:
Concrete pump truck is a machine that uses pressure to continuously transport concrete along a pipe. It consists of a pump body and a delivery tube.
The pump body is mounted on the chassis of the car, and then equipped with a telescopic or inflected cloth boom to form a pump truck.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery.
6×4 Dongfeng 35m cement pump truck Specification:
|
35m concrete pump truck parameters |
|||
| Name / model | EHY5251THB | ||
| Chassis | |||
| Chassis model | EQ1250 | Emission Standards | Eruo 3 |
| engine | Yuchai/Cummins 240 horsepower | Gearbox | Fast eight |
| Tire specifications | 10 .00-20 | Wheelbase (mm) | 4350+1300 |
| Boom system | |||
| Maximum vertical height of the boom (m) | 35 .3 | Boom horizontal cloth radius (m) | 30.4 |
| Cloth depth | 19 | Angle of rotation of each arm | 90/180/235/180/180 |
| Front leg span distance ( mm ) | 6900 | Rear leg span distance ( mm ) | 7660 |
| Leg opening method | Front telescopic, rear swing leg | Tail hose length (m) | 3 |
| Concrete pipe diameter | 125 ( inside diameter ) | ||
| Electrical control system | |||
| Control power supply | 24V | Control module | SYMC |
| Operating Voltage | 24V | Intermediate electrical appliance brand | Matsushita |
| Wireless remote control brand | HBC or Trinity Intelligence | ||
| Hydraulic drive system | |||
| Hydraulic system type | Open | System work pressure | 31.5 |
| Main hydraulic pump brand | Rexroth | Main oil pump model | VL0190 |
| Main oil pump displacement ( ml ) | 190 | Suction, oil return filter brand | Dawn hydraulic |
| Boom balance valve brand | Rexroth | Outrigger multi-way valve brand | Taiwan Oil Power |
| Hydraulic lock brand | Rexroth or Achilles | Cylinder hydraulic seal brand | The United States and country Parker |
| Hydraulic tank volume ( L ) | 350 | Hydraulic oil cooling method | Air cooled |
| Main cylinder | Changsha Cooperation | Transfer case brand | German Sibao or strain |
| Slewing reducer brand | Trinity | Hose connector brand | Eaton |
| Cleaning system | |||
| Pneumatic or plunger pump | |||
| Size / quality | |||
| Total vehicle length ( mm ) | 10650 | Total vehicle width ( mm ) | 2300/2500 |
| The total height of the vehicle is about ( mm ) | 3850 | The total mass of the vehicle is about ( kg ) | 24900 |
| Pumping system | |||
| Concrete distribution valve form | S tube type | Maximum theoretical delivery (high pressure / lower) | 50/80 |
| Concrete piston brand | Trinity | Maximum concrete outlet pressure high pressure / low pressure | 12/7 |
| Delivery cylinder inner diameter / stroke | 2 30×1650 | Maximum feeding height ( mm ) | 1380 |
| Hopper volume ( L ) | 600 | Pumpable concrete slump ( mm ) | 180-230 |
| Allowable maximum aggregate size ( mm ) | 40 | Lubrication method | Centralized lubrication |

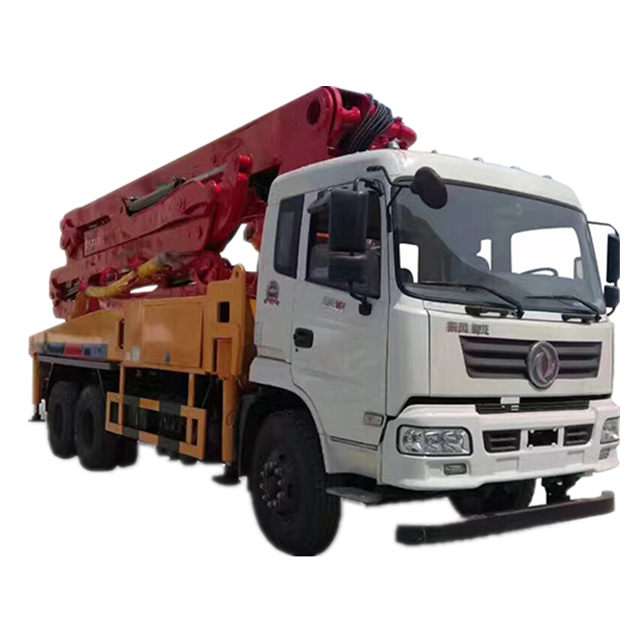

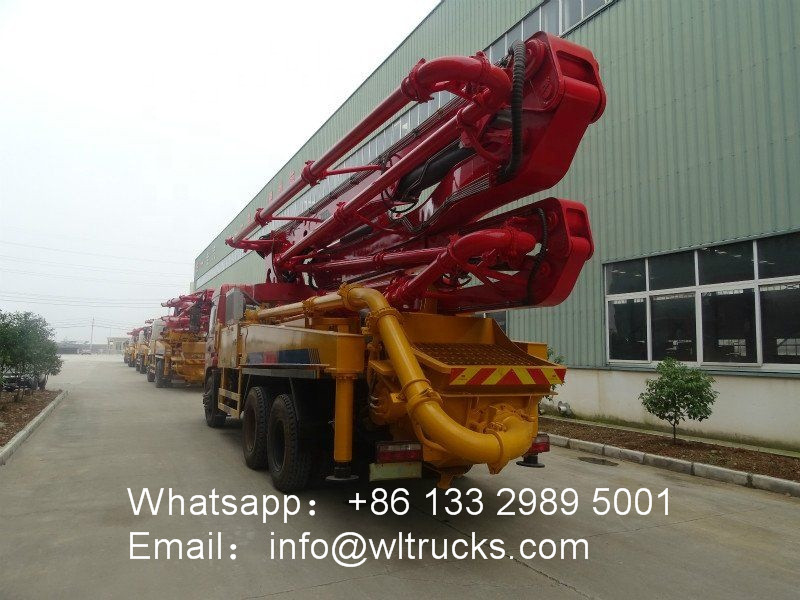

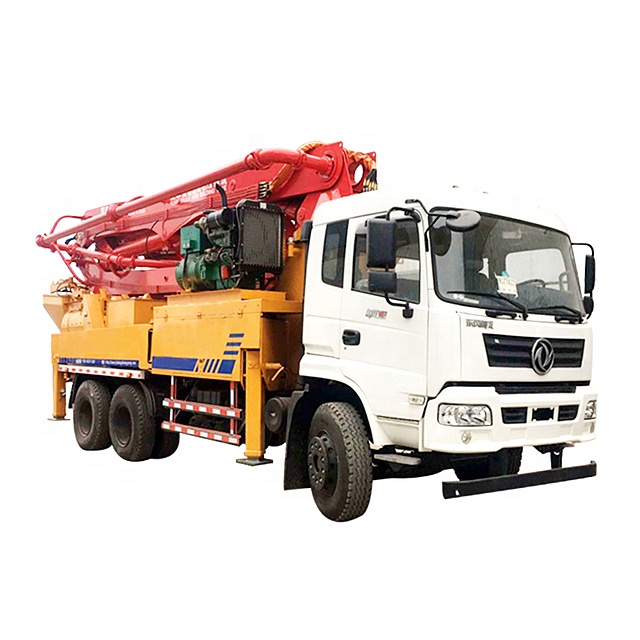

cement pump truck detailed picture:

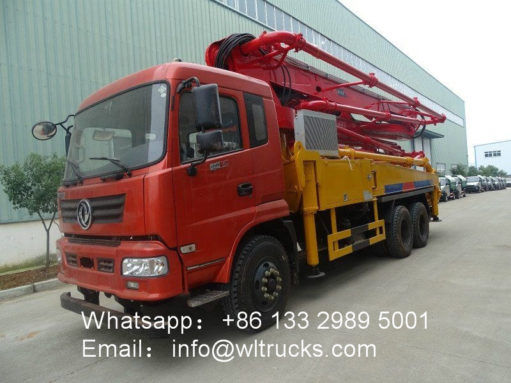

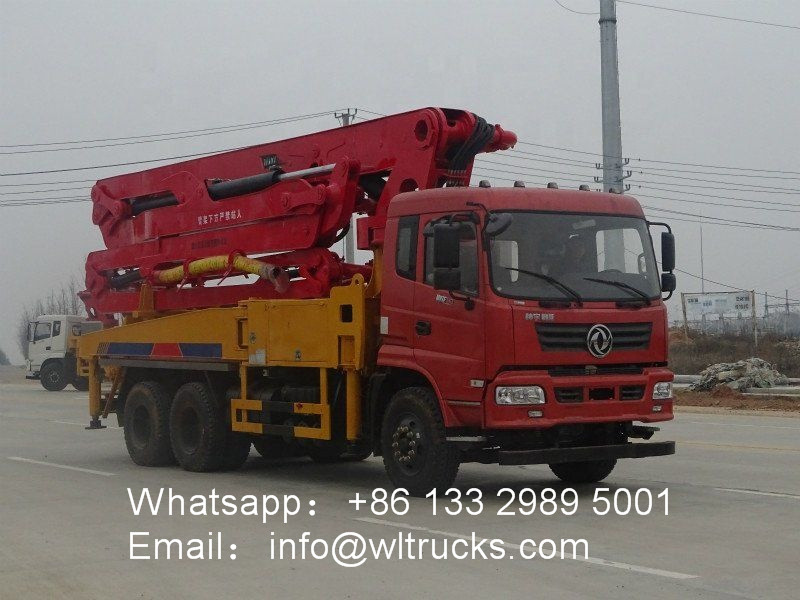

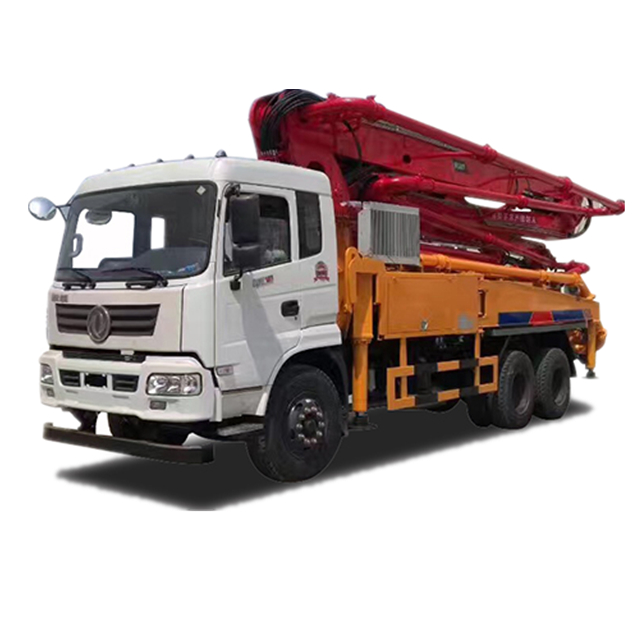

Concrete pumping truck Product Display:
