5m3 JAC mechanical sweeper truck Bodywork configuration:
The road sweeper is retrofitted with JAC (wheelbase 3308) National Fifth Class 2 chassis, equipped with auxiliary engine, fan, water tank, garbage bin, left and right vertical sweeper, rear suction cup, sweeper dust reduction system, hydraulic system, special device The control system and auxiliary frame are modified (can be added before sprinkling and then sprinkling).
5m3 JAC mechanical sweeper truck Chassis configuration:
JAC (wheelbase 3308) National Fifth Class 2 chassis, forward cab, with original direction assistance, 7.00R16 steel tires, equipped with JAC 86kw engine, low fuel consumption. The auxiliary engine adopts the powerful Jiangxi Isuzu 57Kw engine.
5m3 JAC mechanical sweeper truck Vehicle description:
The automatic clutch drives the fan to reduce the impact on the engine when the fan starts and stops. In use, it has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost savings. Adopt the listed company Beibo Taixin high-power wear-resistant and maintenance-free centrifugal fan, no noise, high efficiency, large air volume and long service life.
5m3 JAC mechanical sweeper truck Specification:
|
Vehicle |
Model |
Road sweeper |
|
Vehicle model |
HYS5071TSLH5 |
|
|
Dimensions |
6148 × 2050 × 2510mm |
|
|
Total quality |
7360kg |
|
|
Curb quality |
5130kg |
|
|
Chassis |
Brand |
JAC |
|
model |
HFC1070P93K1C3ZV |
|
|
Cab |
Junling |
|
|
Number of passengers in the cab |
2 |
|
|
Wheelbase |
3308mm |
|
|
engine |
JAC 86kw |
|
|
Tire |
7.00R16 |
|
|
Tops |
Auxiliary engine |
Jiangling 57kw |
|
Water tank volume |
1.5m³ (carbon steel) ³ |
|
|
Dustbin volume |
4m³ (stainless steel) |
|
|
Sweeping width |
2.8m |
|
|
Work ability |
45000-90000㎡ / h |
|
|
Maximum inhaled particles |
110mm |
|
|
Cleaning efficiency |
≥ 95% |
|
|
Working speed |
3-25km / h |
|
|
Maximum discharge angle of trash bin |
45 ° |
|
|
Optional |
Can be added before sprinkling and sprinkling |
|

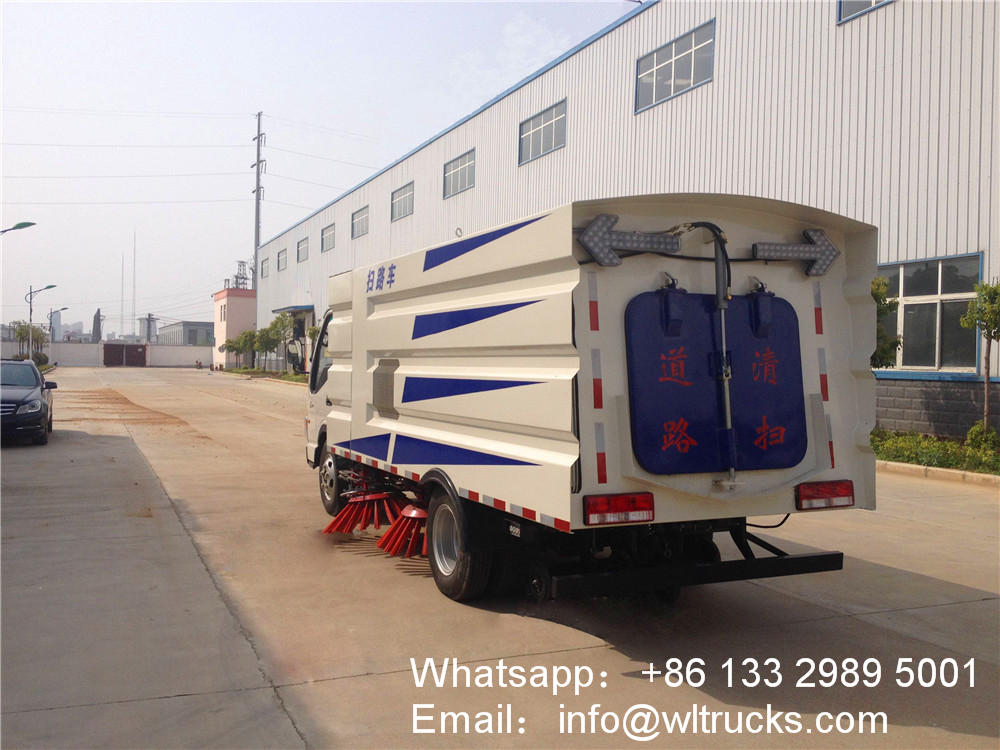

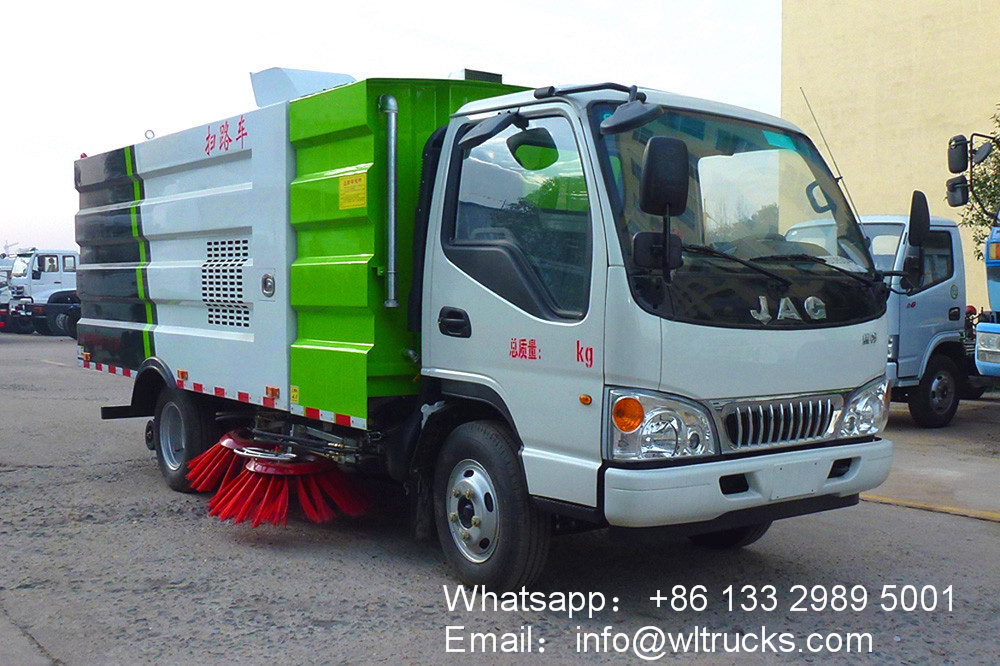

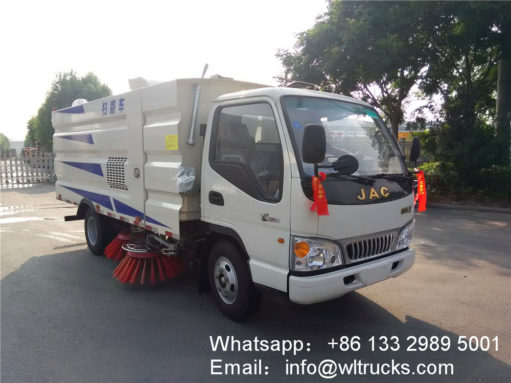

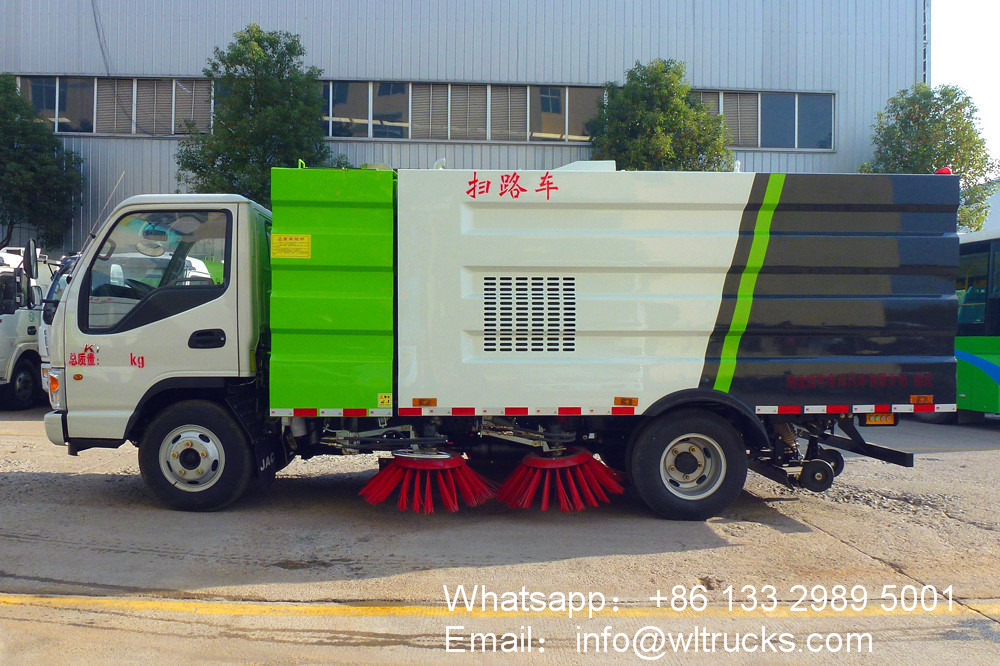

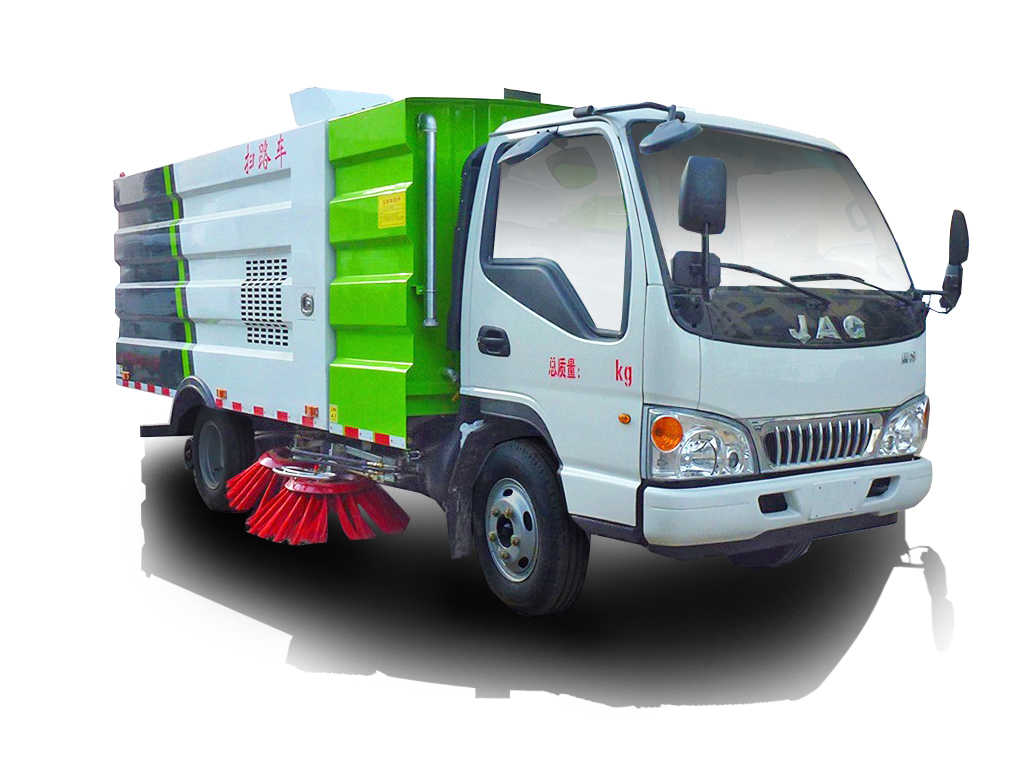

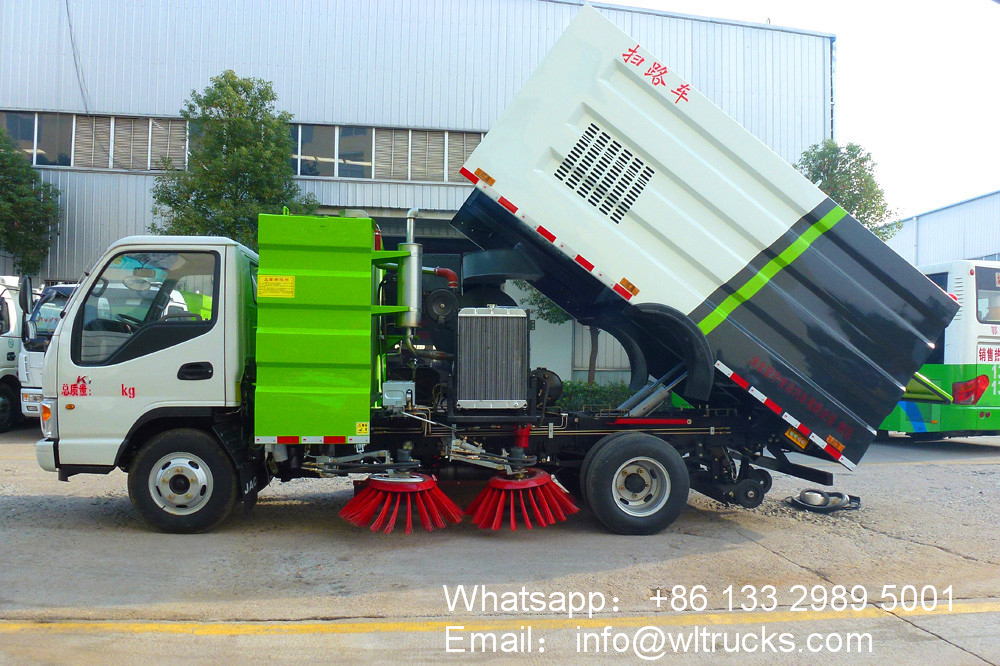

5m3 JAC mechanical sweeper truck detailed image
