Foton 5m3 street sweeper truck Configuration:
1. The sub-engine Jiangling 57kw, maximum suction particles 110mm, water tank volume 1.5m³ (carbon steel), cleaning efficiency ≥95%, dustbin volume 4m³ (stainless steel), operating speed 3 ~ 25km / h, cleaning width 3-3.2m The maximum discharge angle of the garbage bin is 45 °, and the operating capacity is 45000-90000㎡ / h.
Foton 5m3 street sweeper truck Chassis configuration:
* Brand Foton Engine Quanchai 70KW * Cabin occupant 2 * Wheelbase 3360mm Tire 6.50-16
Foton 5m3 street sweeper truck Vehicle description:
The road sweeper is modified by Futian (wheelbase 3360) National Class III and Class II chassis, with auxiliary engine, fan, water tank, garbage bin, left and right vertical sweep, rear suction cup, sweeping dust reduction system, hydraulic system, special device The control system and auxiliary frame are modified (can be added before sprinkling and then sprinkling).
Foton 5m3 street sweeper truck Specification:
| Road Sweeper with Snowplow Dongfeng | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Foton | |
| Overall Dimension | 6200 * 2200 * 2400 mm | |
| GVW / Kerb Weight | 4,895kg / 2,965kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | QuanChai | |
| Power | 90Ps (70 KW) | |
| Displacement | 3656 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3300 mm / 2 | |
| Tyre Specification | 650-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 4 CBM | |
| Dustbin Material | Stainless Steel | |
| Water Tank Capacity | 1,500 Litres (About 500 gallons) | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine | JMC engine (Japanese technology) 77 HP (57 KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|

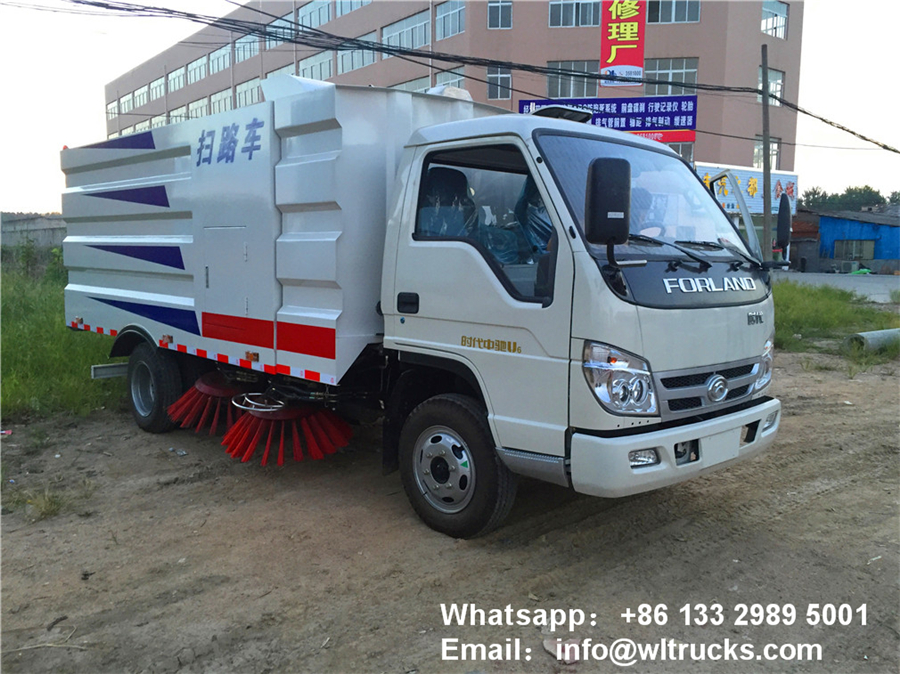

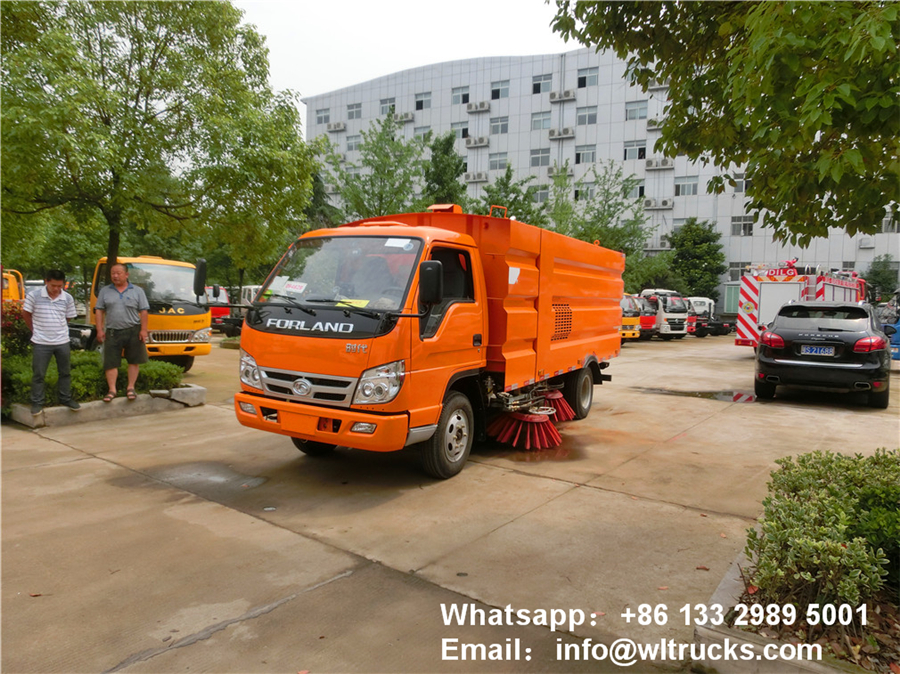

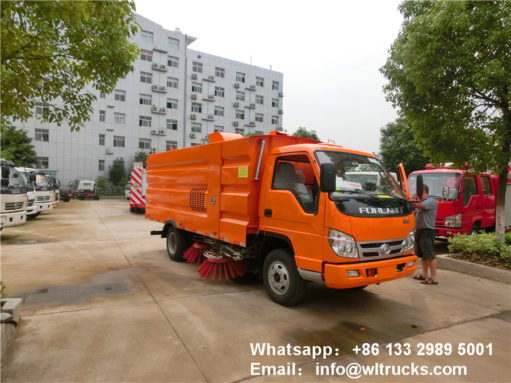

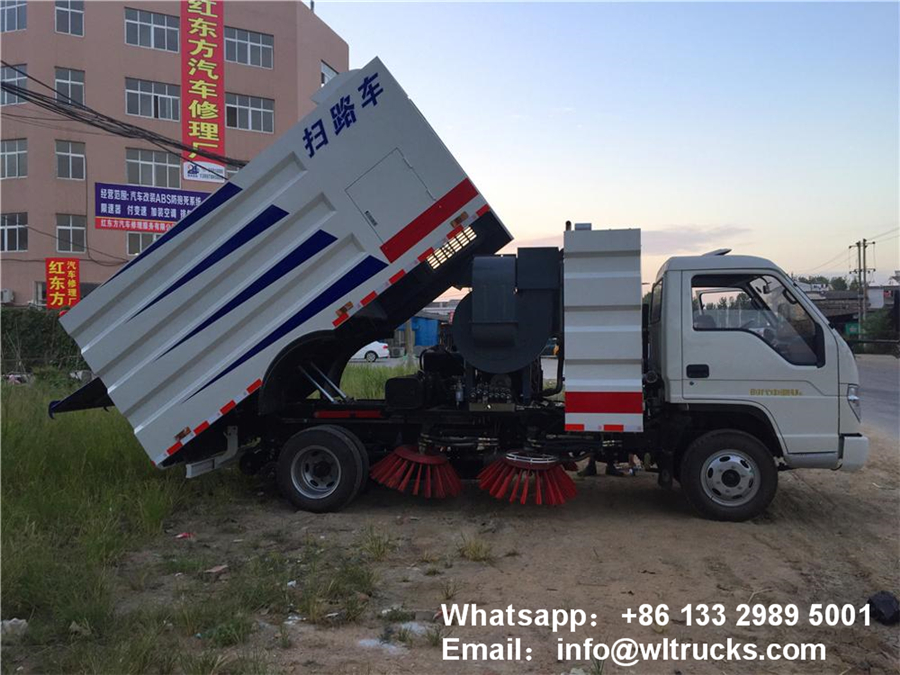

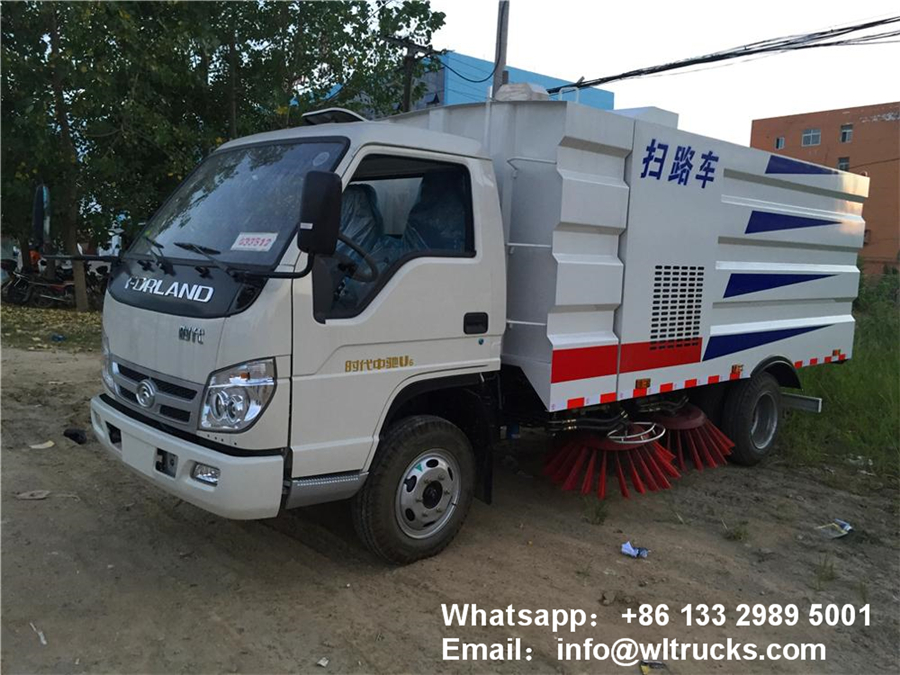

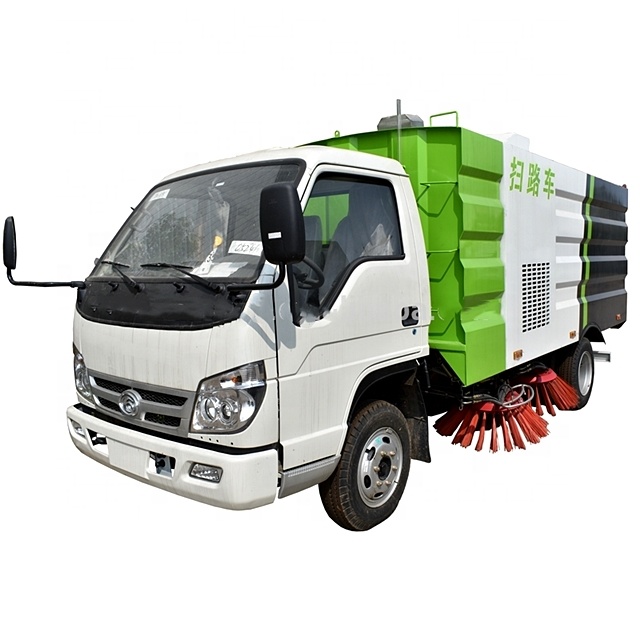

Foton 5m3 street sweeper truck detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
