Foton small 3 ton sweeper truck is equipped with auxiliary engine (30-horsepower diesel auxiliary engine), with a water tank volume of 0.5 cubic meters and a trash tank volume of 1.5 cubic meters. Maintenance-free automatic clutch, high-quality maintenance-free fan, wear-resistant hydraulic cylinder, Siemens electric control switch, left and right front sweep and rear suction cup spray dust pressure system, maximum suction particle diameter 50mm, equipped with two-way operation button.
Features:
Foton small 3ton road sweeper truck configuration:
The combination of the four-sweeping disc and the suction cup for sweeping and suction, the sweeping ability is excellent; the brooms on both sides can work at the same time or can work independently on one side. -20 km, the fuel consumption for cleaning operations is as low as less than 2.5L per 10,000 square meters. Spray water during cleaning to reduce secondary environmental pollution. After testing, the performance is excellent.
The combination of the four-sweeping disc and the suction cup for sweeping and suction, the sweeping ability is excellent; the brooms on both sides can work at the same time or can work independently on one side. -20 km, the fuel consumption for cleaning operations is as low as less than 2.5L per 10,000 square meters. Spray water during cleaning to reduce secondary environmental pollution. After testing, the performance is excellent.
Futian small 3ton road sweeper truck chassis configuration:
Install auxiliary engine (50-horsepower diesel auxiliary engine), the water tank volume is 0.5 cubic meters, and the trash tank volume is 1.5 cubic meters. Maintenance-free automatic clutch, high-quality maintenance-free fan, wear-resistant hydraulic cylinder, Siemens electronic control switch, left and right front sweep and rear suction cup spray pressure system, maximum suction particles ø50mm, equipped with two-way operation button. (It is normal to have secondary dust in the work of the road sweeper).
Foton small 3ton road sweeper truck Description:
Adopt the original “center disc brush + rear suction nozzle” symmetrical structure layout form, which is convenient for cleaning the left and right sides of the road. ★ All stainless steel water tanks and stainless steel trash bins are made of 201 stainless steel profiles, which are corrosion resistant and have a large volume. The inner layer is smooth, rust-free, non-skeletal, non-sticky, easy to unload and easy to clean.
Specification:
Foton small 3 ton road sweeper truck Specification:
| Small Road Sweeper Truck Foton | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Forland(Foton) | |
| Overall Dimension | 5300 * 1700 * 2100 mm | |
| GVW / Kerb Weight | 3,620 kg / 2,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Quanchai Diesel Engine | |
| Power | 68 Ps (50 KW) | |
| Displacement | 1809 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 2300 mm / 2 | |
| Tyre Specification | 6.00-13 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Water Tank Capacity | 500 Litres (About 130 gallons) | |
| Dustbin Material | Stainless Steel | |
| Dustbin Capacity | 1.5 CBM | |
| Sweeping Capacity | 35,000 – 50,000 m³/h | |
| Sweeping Speed | 3-25 km/h | |
| Max Sweeping Width | 2500 mm | |
| Brooms | 2 sets at each side | |
| Auxiliary Engine | JX493 (Japanese technology) 77 HP (57 KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
Detailed image

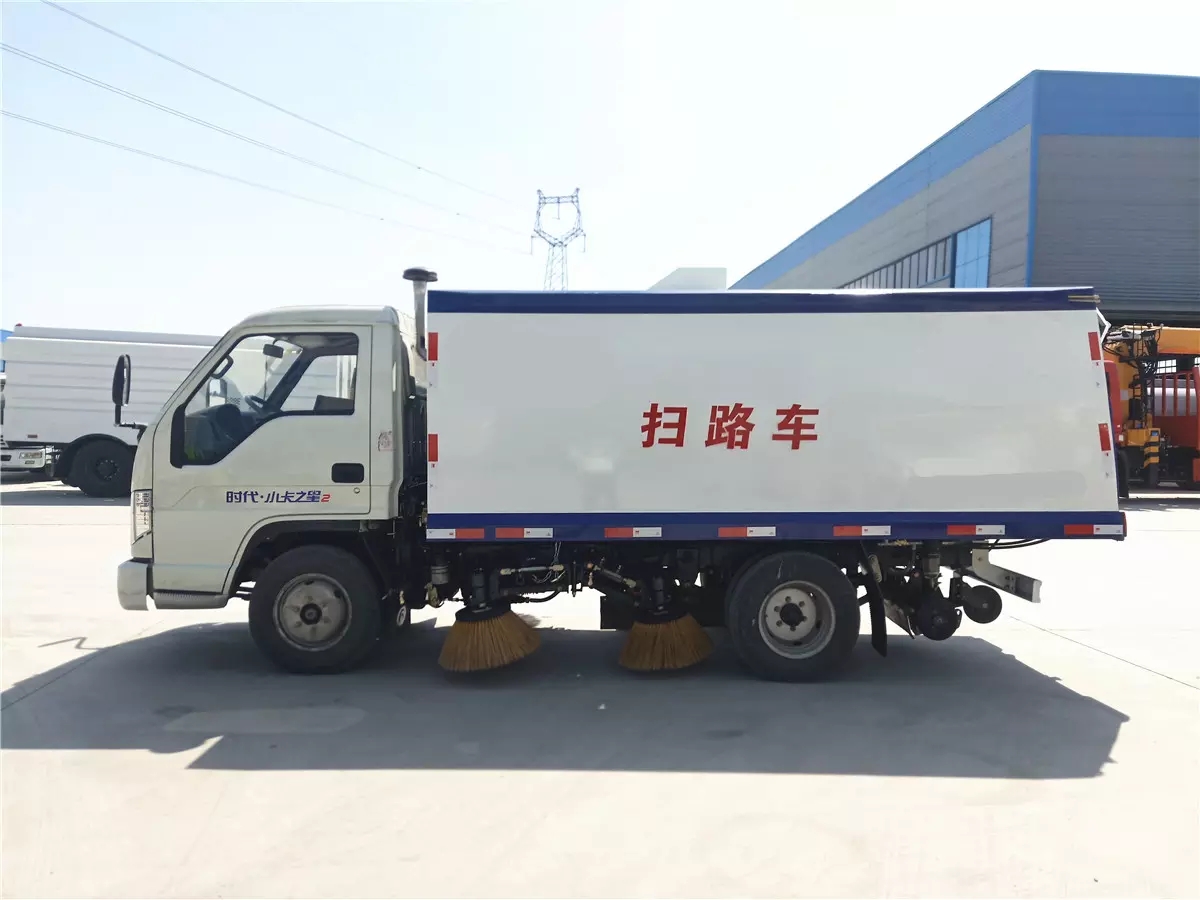

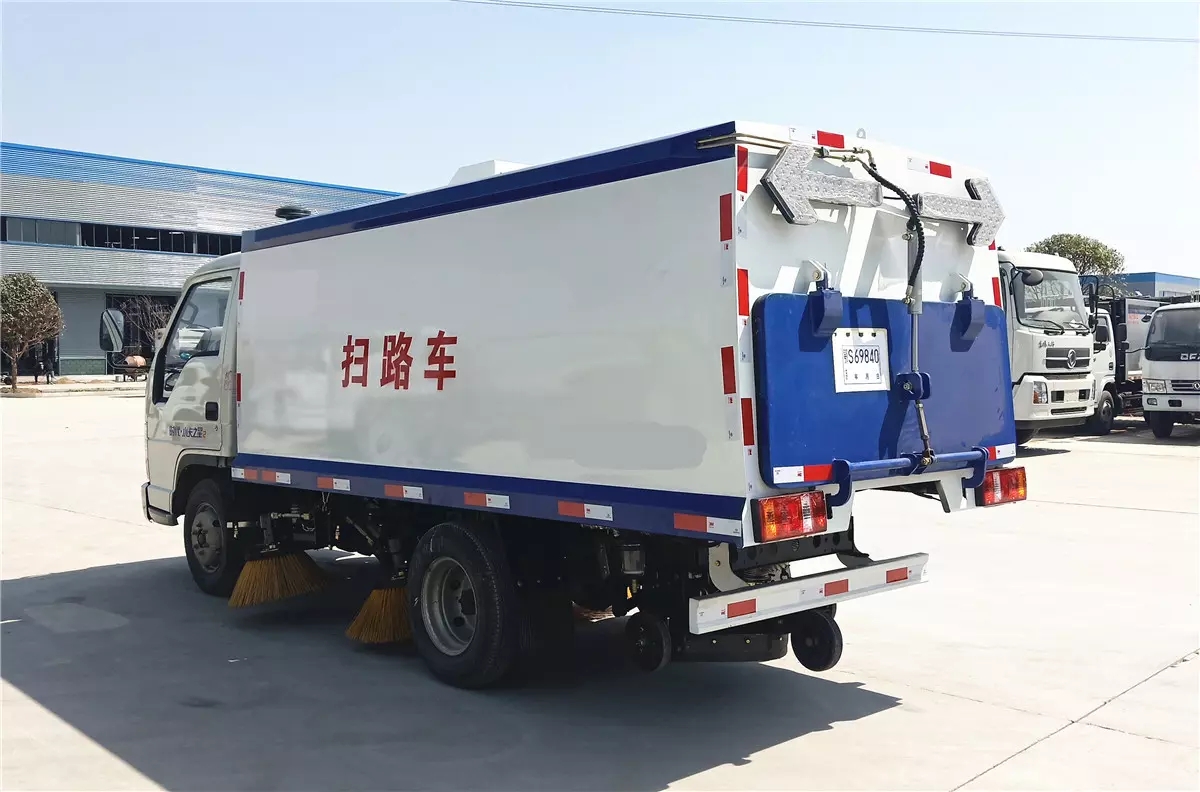

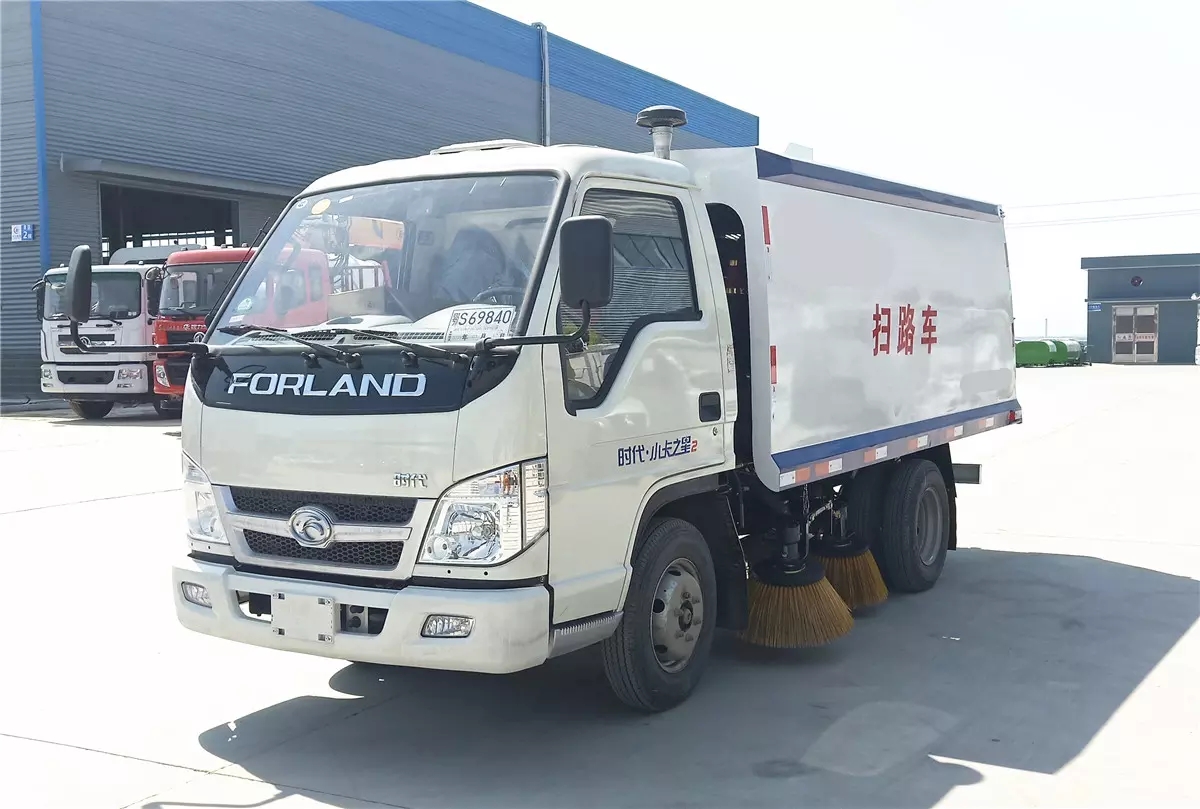

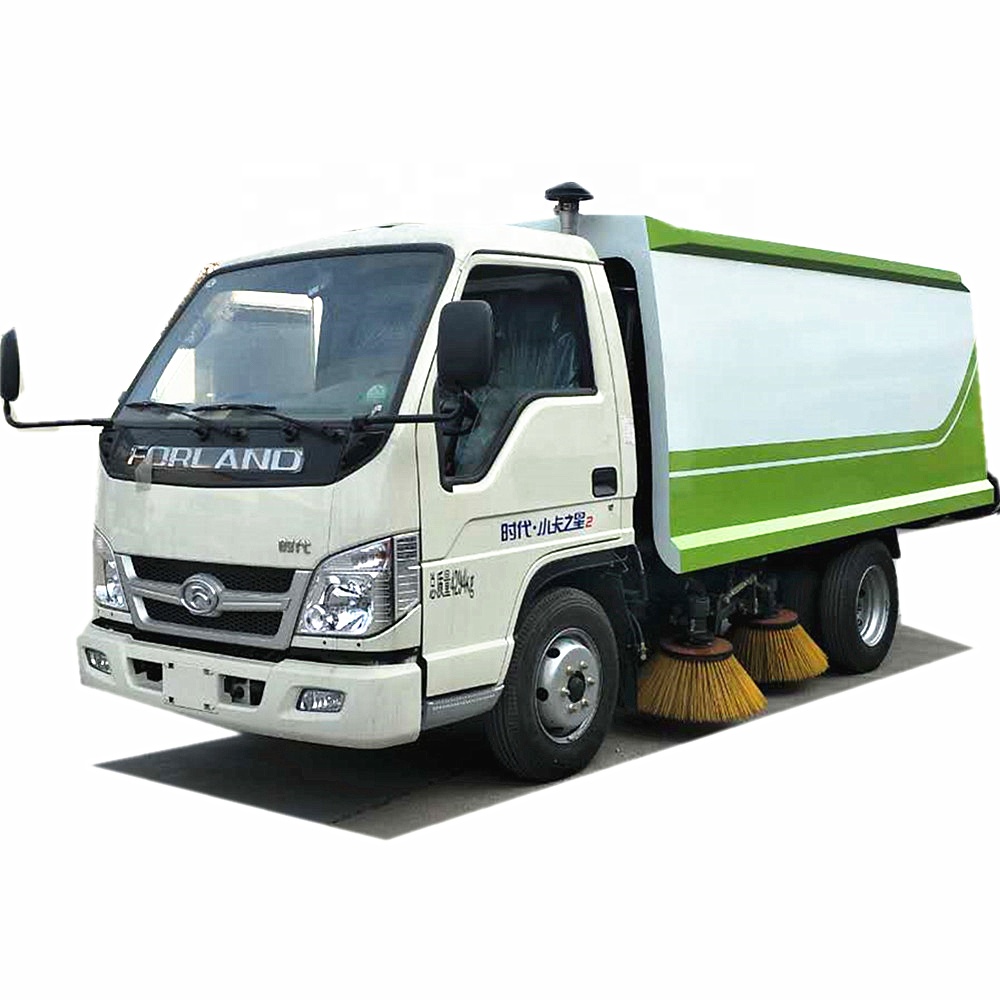

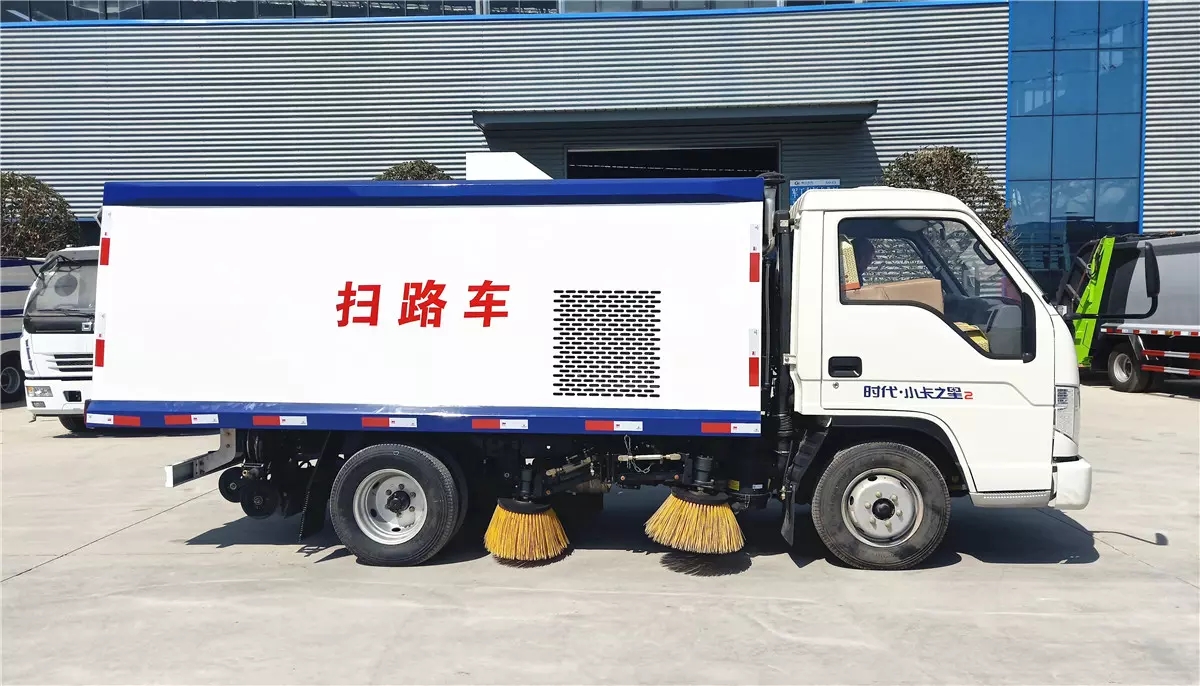

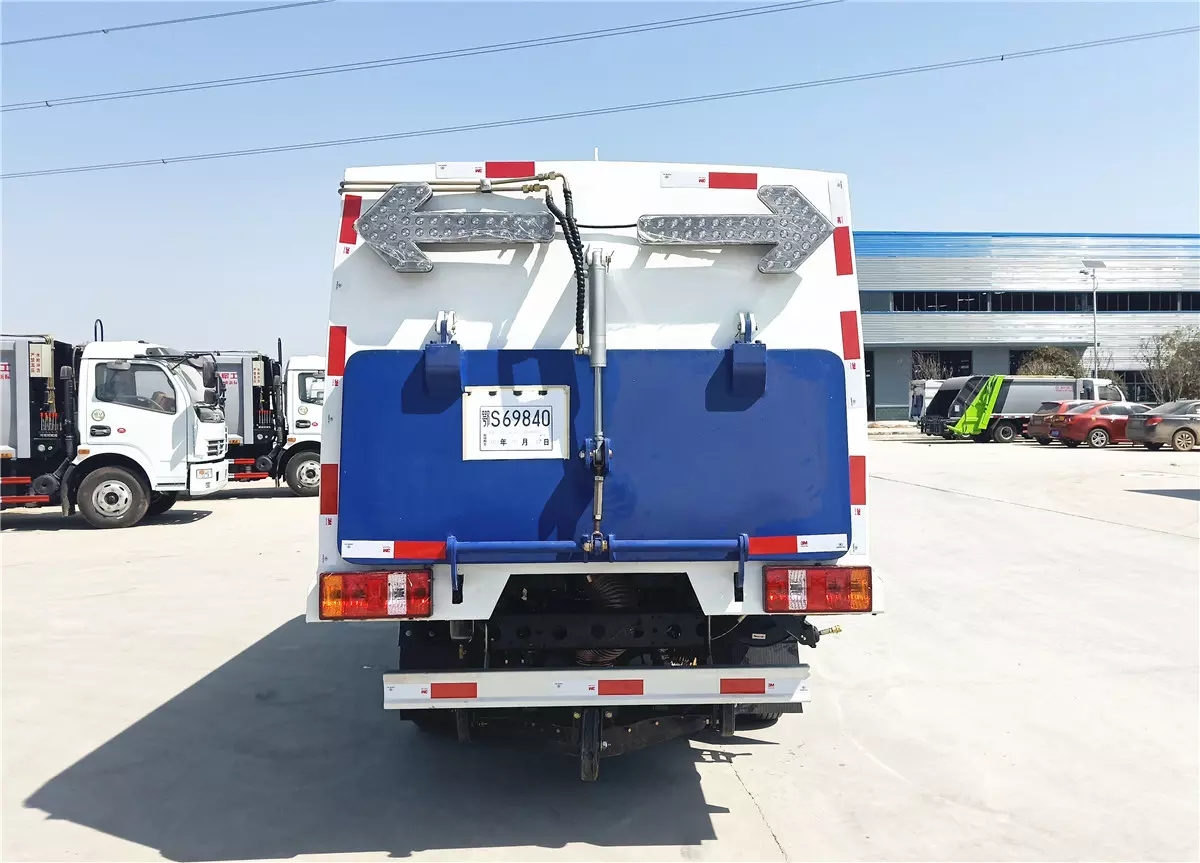

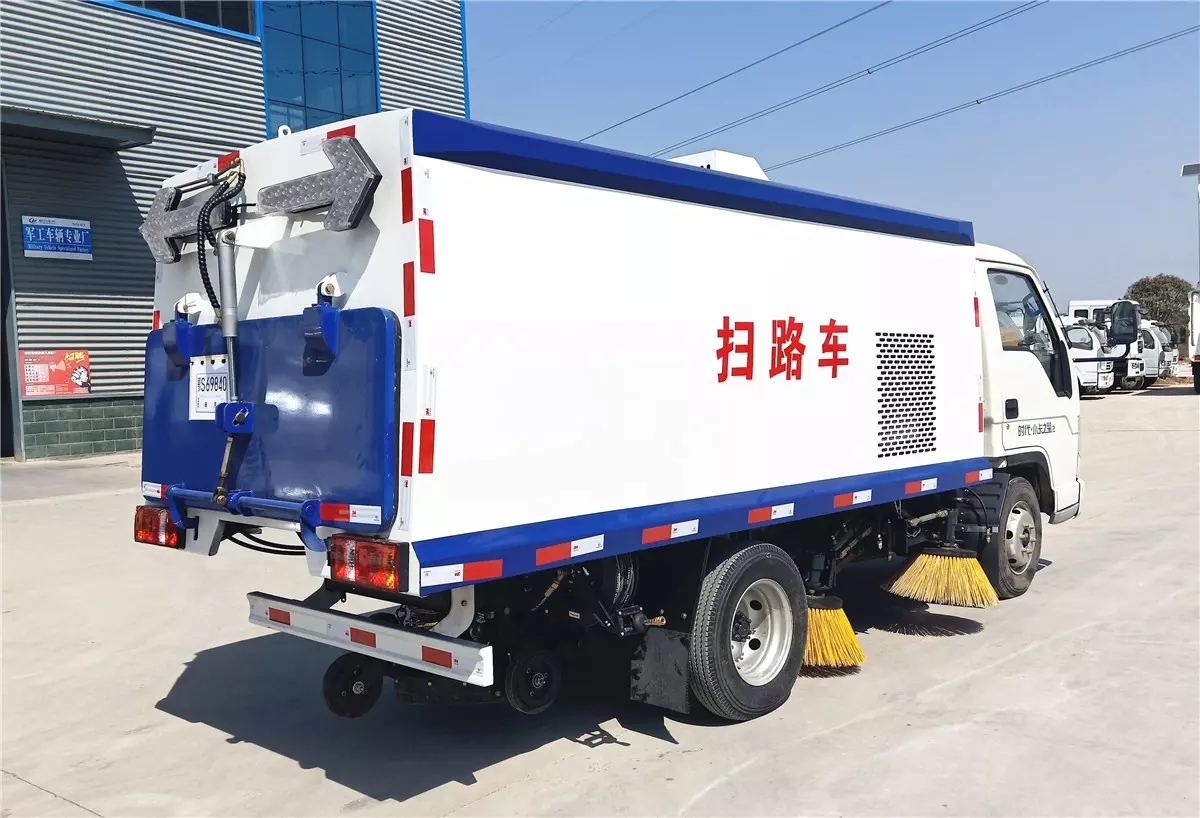

Foton 3 ton sweeper truck detailed image
