JMC 8 ton truck mounted road sweeper ensures the safety of trucks during transportation. Aiming at the use and environment of the vacuum cleaner disc, referring to the vacuum cleaner disc structure of advanced road sweepers at home and abroad, the following improvements are made to the traditional vacuum cleaner disc.
JMC 8 ton truck mounted road sweeper structure and working principle of the vacuum cleaner is an important working device of the road sweeper. It is a kind of garbage guide conveying device that transports the rubbish from the front into the middle of the road sweeper from the ground to the garbage box.
JMC 8 ton truck mounted road sweeper Bodywork configuration:
Main technical parameters of CLW5080TSLJ5 road sweeper Product name: Jiangling Kairui (National Fifth) road sweeper Dimensions: 6830 × 2220 × 2650 (mm) Chassis model: JX1083TK25 Cargo compartment size: ×× (mm) Total quality: 8210 ( Kg) Approach / departure angle: 20/13 (°) Rated mass: 2215 (Kg) Front overhang and rear overhang: 1155/1860 (mm) Curb weight: 5800 (Kg) Maximum speed: 100 (km / h)
JMC 8 ton truck mounted road sweeper Chassis configuration:
1. The wheelbase (3815) of Jiangling Road Sweeper has electric doors and windows and air conditioning. The cab is forward-turned with direction assistance and the tires are 7.50R16. Air shock absorbers on the front and rear axles. Equipped with Jiangling 112KW engine, with exhaust brake, light weight, ultra quiet, low fuel consumption. 2. The auxiliary engine adopts the powerful 77-horsepower engine of Isuzu, with a water tank volume of 4m3 and a dustbin volume of 4m3.
JMC 8 ton truck mounted road sweeper Specification:
| General Technical Parameters | |||||
| Overall Dimension | 6830x2220x2650 (mm) | ||||
| Gross Vehicle Weight | 9000(Kg) | ||||
| Curb Weight | 2800(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | JMC | ||||
| Drive model | 4*2 | ||||
| Cabin | single row, LHD, with air condition. | ||||
| Number of Passengers | 2 | ||||
| Engine | Model | ISUZU/152HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS. | |||
| Power | 112KW/152HP | ||||
| Emission standard | EURO 3 | ||||
| Displacement | 3550(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | ||||
| Brake System | Oil break | ||||
| Wheel Base | 3815mm | ||||
| Front/Rear Axle Loading | 3500/5000(Kg) | ||||
| Overhang | Mechanical Suspension, 11/9+7H | ||||
| Tire | 7.50R16, steel wire tire, 6pc with 1 spare tire | ||||
| Sweeping Speed | 3-20 km/h | ||||
| Upperstructure Specification | |||||
| Tank | Water Tank | Material | Stainless steel 304 | ||
| Volume | 2(cbm) | ||||
| Dust Tank | Material | Stainless steel 304 | |||
| Volume | 7(cbm) | ||||
| Auxiliary Engine | Model | ISUZU | |||
| Power | 57KW/78HP | ||||
| Maximum sweep width | 3m | ||||
| Maximum cleaning capacity | 40000m³/h | ||||
| Standard Configuration | 1. Equipped with 2 sweeping brushes on each side; | ||||
| 2. Equipped with Sanyo Motor; | |||||
| 3. Equipped with HIP-SD-7 electromagnetic valve set; | |||||
| 4. Equipped with continuously variable speed automatic clutch; | |||||
| 5. Equipped with German Schneider control switch; | |||||
| 6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device; | |||||
| 7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system; | |||||
| 8. Equipped with hydraulic system(control box lift, rear door open); | |||||
| 9. Equipped with rear LED arrow lights; | |||||
| 10. User’s operation manual 1 set. | |||||
| Optional Configuration | Front flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc. | ||||

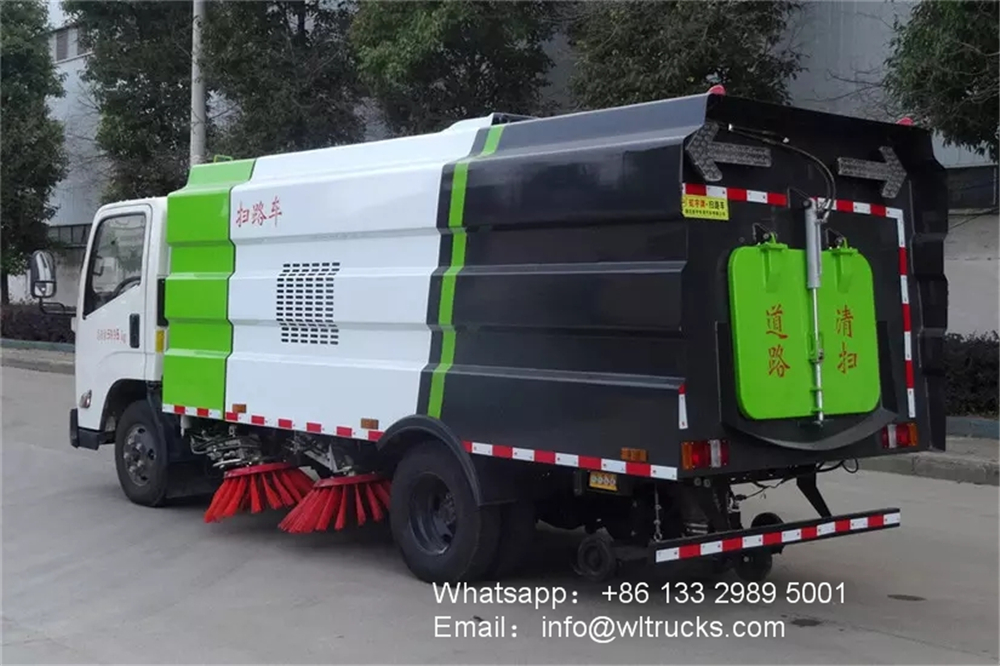

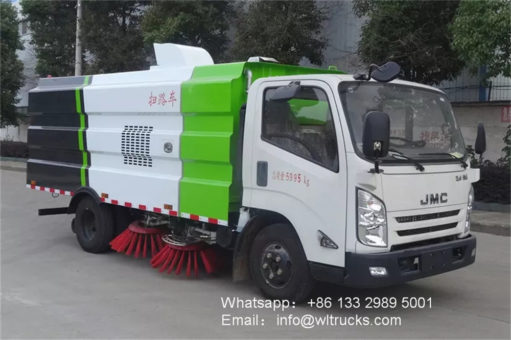

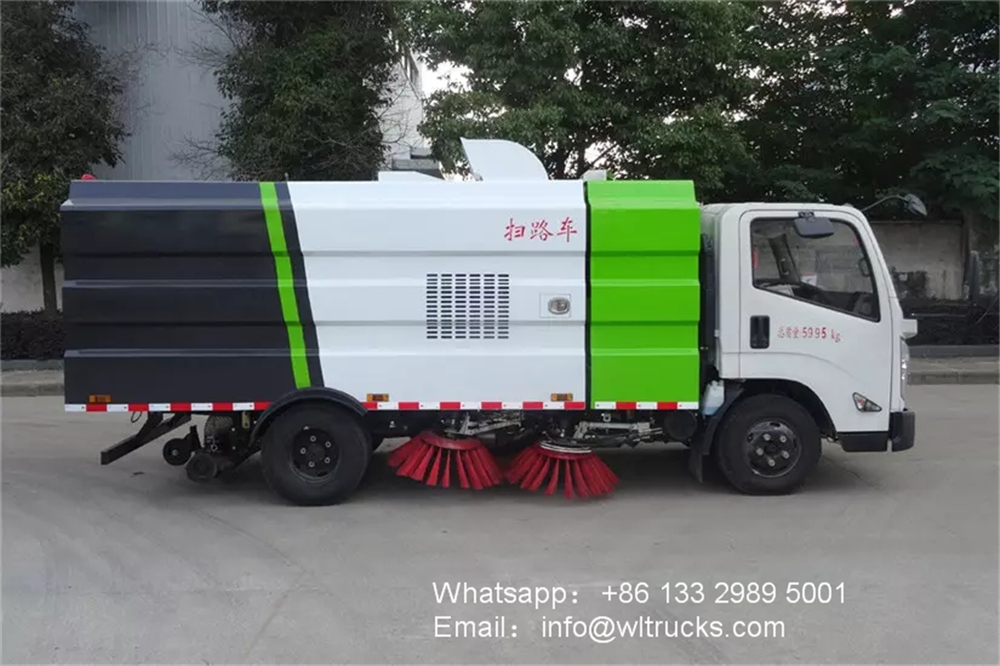

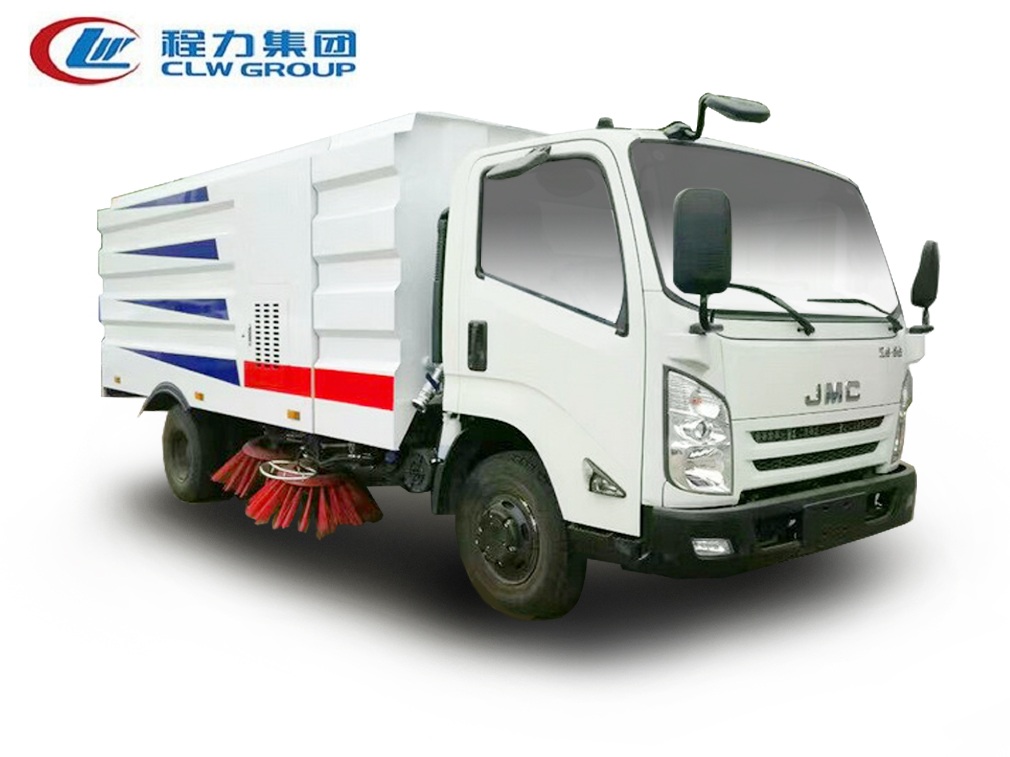

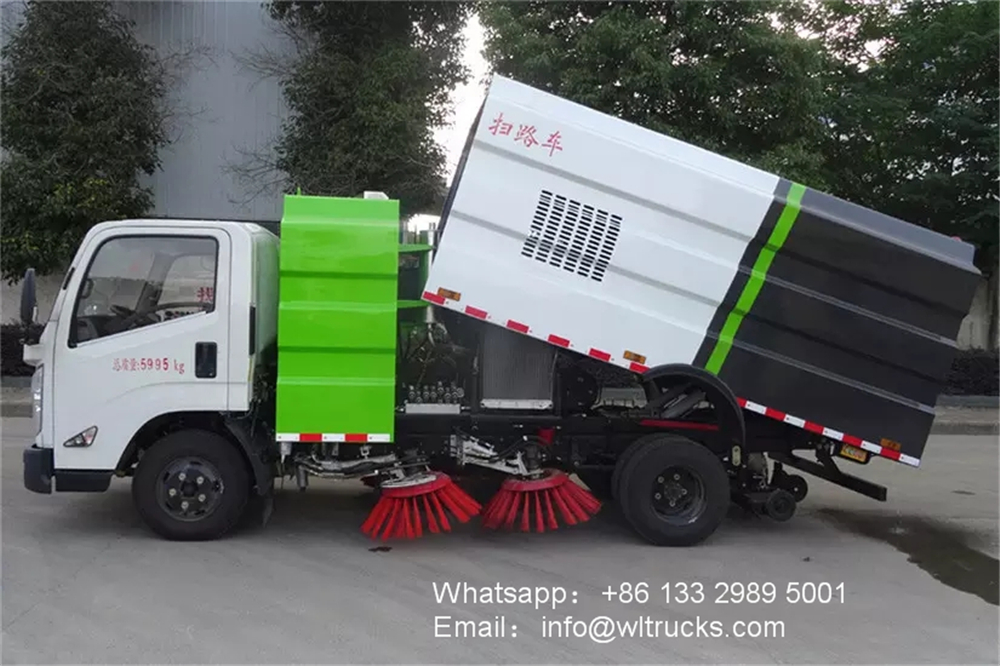

JMC 8 ton truck mounted road sweeper detailed image
