3 ton isuzu sweeper truck wheelbase 2600m, Isuzu 98-horsepower engine, air conditioner multi-function belt with 4 sweeping disks, 77-horsepower sub-engine in the cloud, Sanyo Electric, Schneider control switch, Haps solenoid valve group, stepless automatic Clutch, maintenance-free centrifugal automatic fan, electronic water pump, tail LED arrow indicator, manual pump emergency system, automatic lifting function for garbage lifting.
Features:
3 ton isuzu sweeper truck configuration:
The combination of the four-sweeping disc and the suction cup for sweeping and suction, the sweeping ability is excellent; the brooms on both sides can work at the same time or can work independently on one side. -20 km, the fuel consumption for cleaning operations is as low as less than 2.5L per 10,000 square meters. Spray water during cleaning to reduce secondary environmental pollution. After testing, the performance is excellent.
The combination of the four-sweeping disc and the suction cup for sweeping and suction, the sweeping ability is excellent; the brooms on both sides can work at the same time or can work independently on one side. -20 km, the fuel consumption for cleaning operations is as low as less than 2.5L per 10,000 square meters. Spray water during cleaning to reduce secondary environmental pollution. After testing, the performance is excellent.
3 ton isuzu sweeper truck chassis configuration:
Install auxiliary engine (50-horsepower diesel auxiliary engine), the water tank volume is 0.5 cubic meters, and the trash tank volume is 1.5 cubic meters. Maintenance-free automatic clutch, high-quality maintenance-free fan, wear-resistant hydraulic cylinder, Siemens electronic control switch, left and right front sweep and rear suction cup spray pressure system, maximum suction particles ø50mm, equipped with two-way operation button. (It is normal to have secondary dust in the work of the road sweeper).
3 ton isuzu sweeper truck Description:
Adopt the original “center disc brush + rear suction nozzle” symmetrical structure layout form, which is convenient for cleaning the left and right sides of the road. ★ All stainless steel water tanks and stainless steel trash bins are made of 201 stainless steel profiles, which are corrosion resistant and have a large volume. The inner layer is smooth, rust-free, non-skeletal, non-sticky, easy to unload and easy to clean.
Specification:
3 ton isuzu sweeper truck Specification:
| Truck Specification | ||
| Cab | ISUZU single cab, with power steering. Electronic flameout, | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 95 | |
| Overall dimension(mm) | 5995*2300*2520 | |
| GVW( kg) | 5000 | |
| Wheelbase(mm) | 2600 | |
| Tire | 650-16 | |
| Gear box | 5-speed | |
| Bridge | Front axle | 2T |
| Rear axle | 4.8T | |
| Engine | Model | ISUZU(Euro 4) |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 3958 | |
| Max output power/rotate speed (hp /rpm ) | 80/2500 | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Vice generator | ||
| Model | JMC 77hp | |
| Rated power (kw) | 57 | |
| High pressure cleaning | ||
| Cleaning speed (km/h) | 3-20 | |
| Cleaning width(m) | 2.8-3.2 | |
| Cleaning pressure (mpa) | 10 | |
| Pump flow(L/MIN) | 154 | |
| Suction sweep operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 120 | |
| Suction sweep width(mm) | 23.3-3.5 | |
| Maximum cleaning power(m²/h) | 70000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3-20 | |
Detailed image

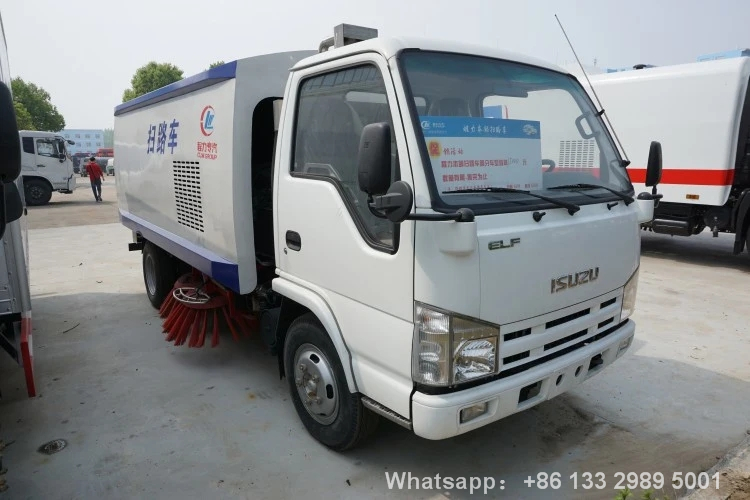

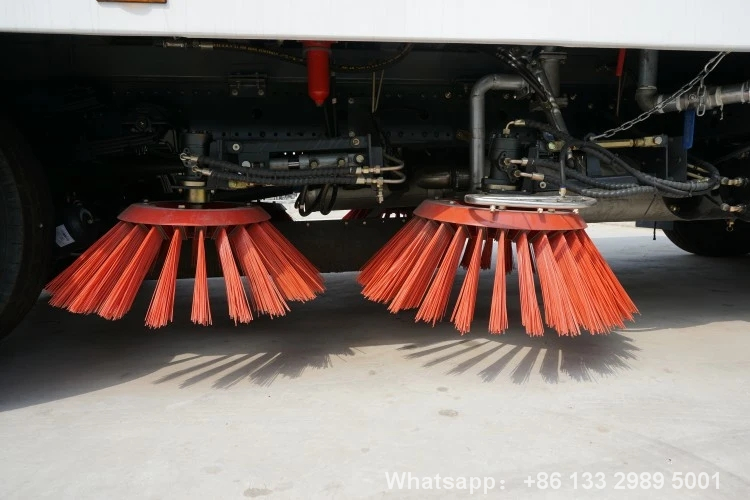

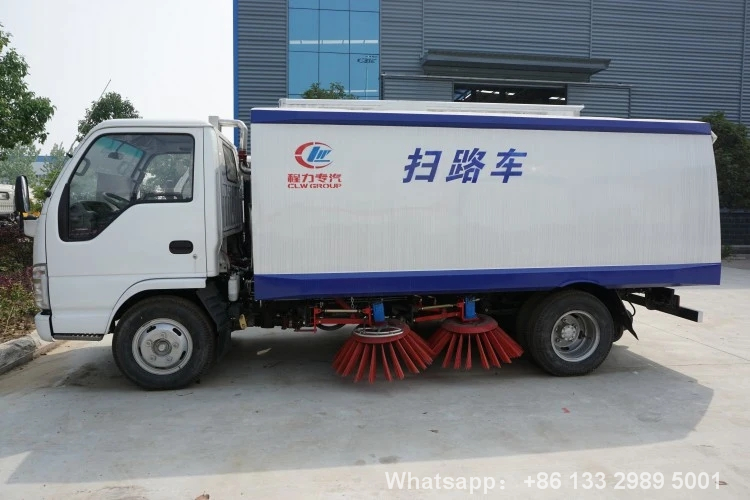

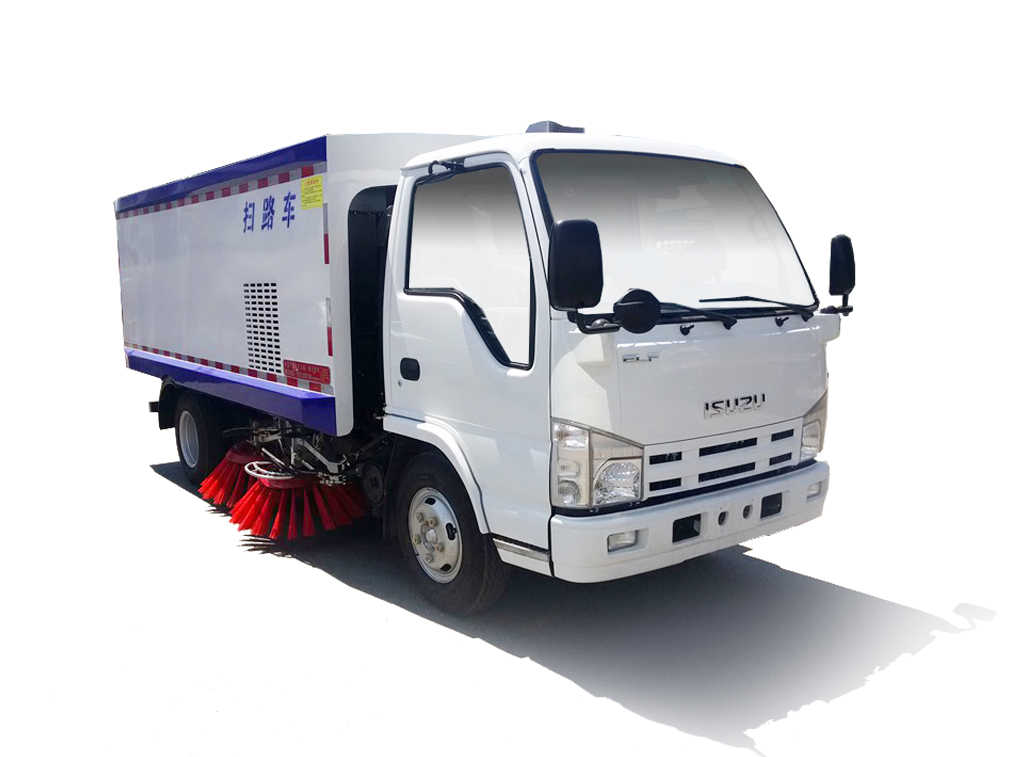

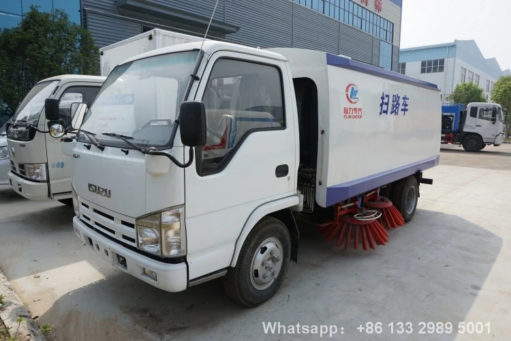

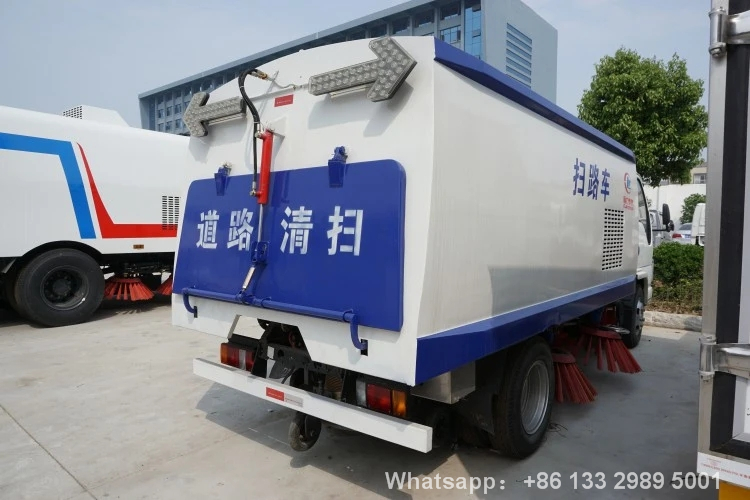

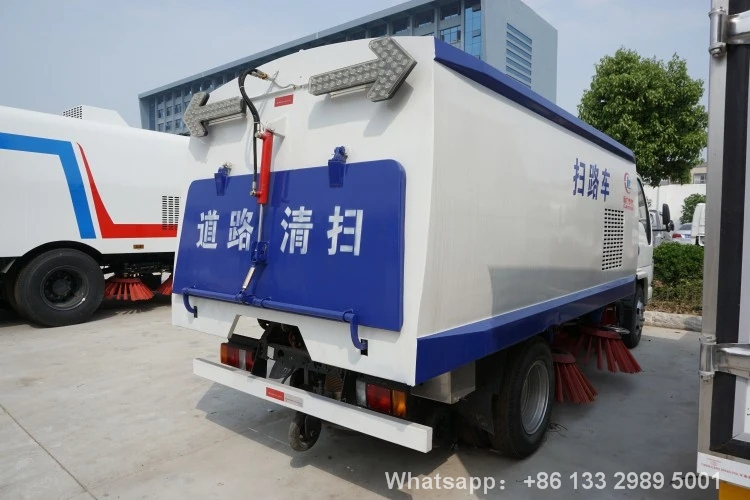

3 ton ISUZU sweeper truck detailed image
