3 ton Double Row Isuzu refrigerator truck
Double Row Isuzu refrigerator truck Chassis model: QL1040A6HWY, quasi passengers 2+3, ISUZU 4KH1CN5LS engine, power 72kw, 98 hp, 5 speed gearbox, direction assist, cab heating and cooling air conditioning, with ABS, oil brake, 6.50 tires, 3360 wheelbase.
The outside of the box is glass fiber reinforced plastic, the inner stainless steel, 8cm insulation board, the outer dimensions of the whole car: 5995×1930×2870 (mm), the inside dimensions of the box: 3150×1750×1750 (mm).
3 ton Double Row Isuzu refrigerator truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
3 ton Double Row Isuzu refrigerator truck specification:
| General Technical Parameters | |||||
| Overall Dimension | 5995*2130*2960(mm) | Gross Vehicle Weight | 4495(Kg) | ||
| Curb Weight | 2866(Kg) | Loading Weight | 1499(Kg) | ||
| Chassis Specification | |||||
| Chassis parameters | Chassis Brand | ISUZU | |||
| Cabin | double row, Left Hand Driving, with A/C | ||||
| Engine | Model | 4KH1CN5LS, 4 Cylinders | |||
| Power | 98HP | ||||
| Emission standard | EURO IV or V | ||||
| Displacement | 2.999L | ||||
| Fuel type | Diesel | ||||
| Gearbox | MSB, 5 Forward & 1 Reverse Gear | ||||
| Front and Rear Axle load | 2.5T/4.8T | ||||
| Wheel base | 3360(mm) | ||||
| Overhang( Front/Rear) | 1130/1505(mm) | ||||
| Angle(Approach/departure) | 20/16(°) | ||||
| Brake System | Oil brake | ||||
| Steering Gear | Power Assistant | ||||
| Tire | 7.00R16 8PR, 6 Pieces with 1 Spare Tire | ||||
| Maximum speed | 105(km/h) | ||||
| Superstructure | |||||
| Van | Box size | 3150*1750*1750(mm) | |||
| Material | Fiberglass | ||||
| Insulating Layer | 8cm Polyurethane Foam | ||||
| Truck refrigeration unit | Brand | THERMOKING/CARRIER/other chinese brand | |||
| Applicable temperature (ºC) | -18~0 | ||||
| Remarks | Part Optional: Ventilation slot Meat Hook External power supply Side door |
||||
3 ton Double Row Isuzu refrigerator truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
3 ton Double Row Isuzu refrigerator truck New craft:
3 ton Double Row Isuzu refrigerator truck Optional configuration:
3 ton Double Row Isuzu refrigerator truck Bodywork details:

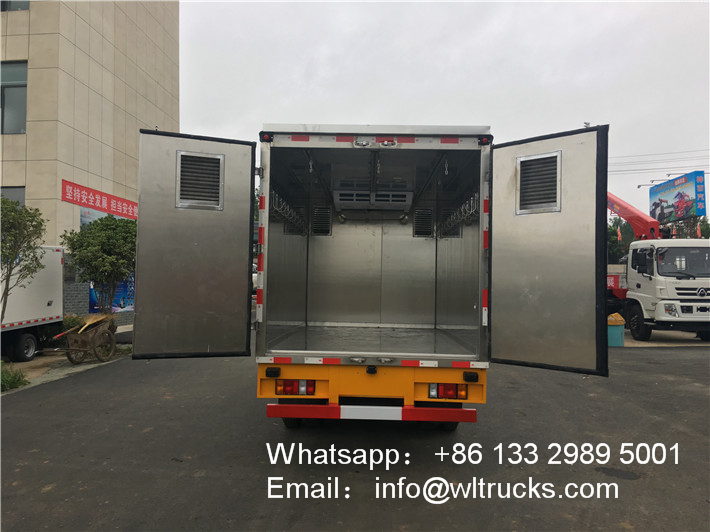

3 ton Double Row Isuzu refrigerator truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
