2 Axles 35000 liter Stainless Steel Milk Tanker Trailer Adopt 2 axle Fuhua Bridge, The volume of the tank is 30-35 cubic meters, and the internal size of the tank is 10020x2300x1600 (mm). The standard sub-bin is four warehouse, and each warehouse has a self-flow outlet.
milk tanker truck advantages:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Tank manufacturing standards：
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
1. The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
2. The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
3. The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
4. The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
5. There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
6. It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
2 Axles 35000 liter Stainless Steel Milk Tanker Trailer Specification:
|
Vehicle Information
|
Model
|
CLW9350GNY
|
|
Brand
|
CLW
|
|
|
Overall dimension
|
8800*2500*3650 mm
|
|
|
GVW
|
34400 KGS
|
|
|
Curb weight
|
8400 kgs
|
|
|
Payload
|
26000 Kgs
|
|
|
Walking mechanism
|
Kingpin
|
2 inch /3.5 inch
|
|
Axle Number
|
2
|
|
|
Axle Brand
|
FUWA 13T
|
|
|
Wheelbase
|
4700+1310 mm
|
|
|
Tire size
|
12R22.5
|
|
|
Tire number
|
8+1( spare tire )
|
|
|
Approach/Departure angle
|
-/17
|
|
|
Front/Rear Hanging
|
-/1640( mm)
|
|
|
Number of leaf spring
|
/8/8,-/4/4
|
|
|
ABS
|
With
|
|
|
Milk Tank
|
Volume
|
26000 Liters
|
|
Warehouse
|
4
|
|
|
Manhole
|
4 , 500 mm with breath valve
|
|
|
Cleaning system
|
CIP cleaning system
|
|
|
Cleaning diameter
|
2.5 m
|
|
|
Tank inside material
|
304-2B ( Food Grade) 4 mm stainless steel
|
|
|
Insulation
|
polyurethane foam 100 mm
|
|
|
Tank outside material
|
201 stainless steel 1 mm
|

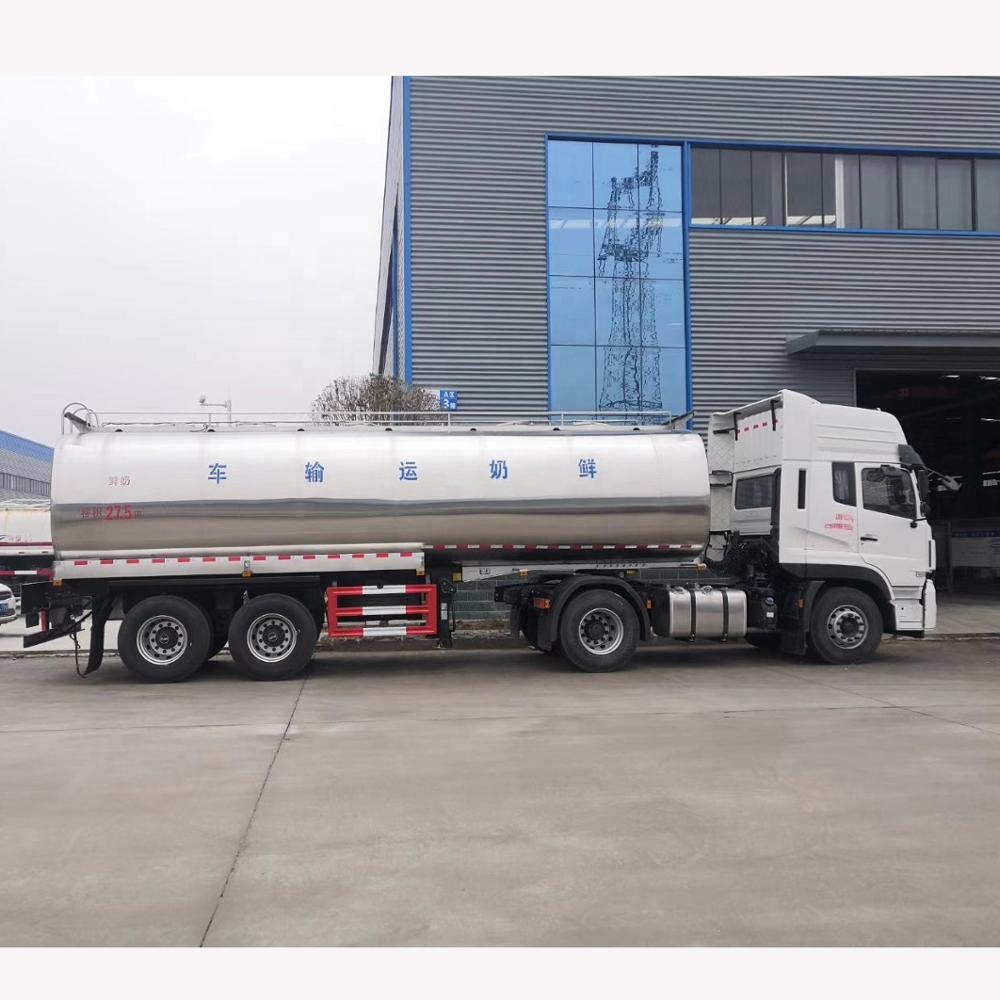

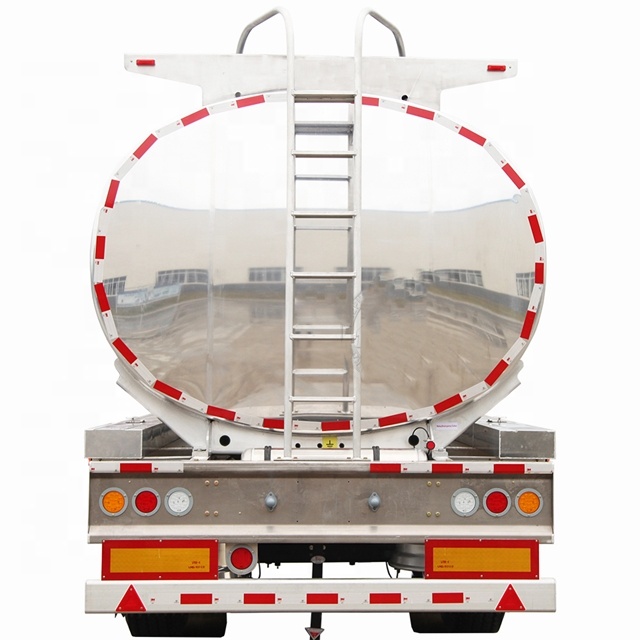

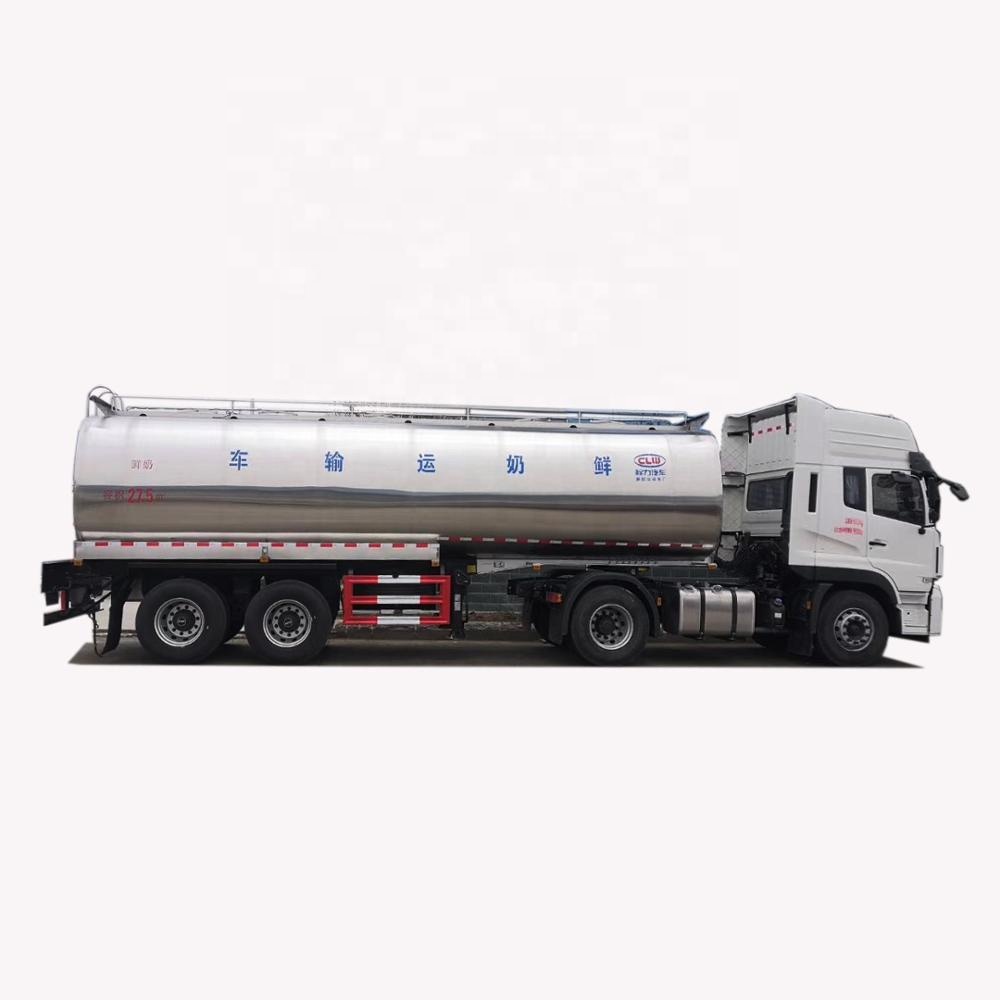

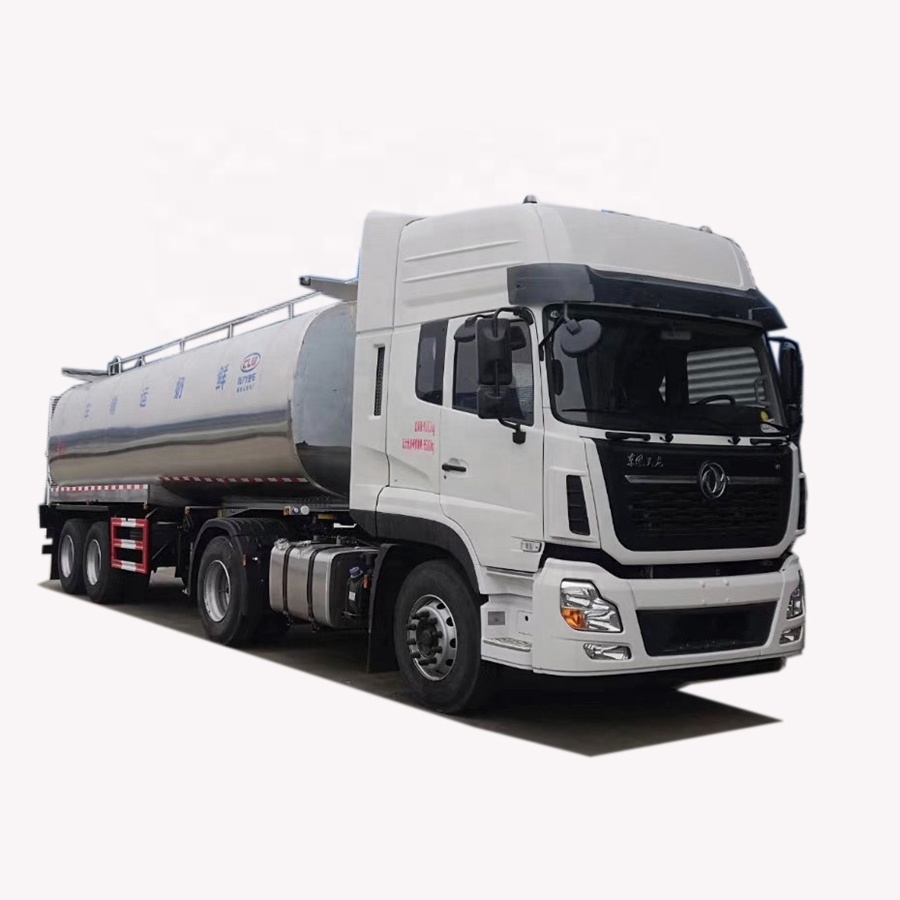

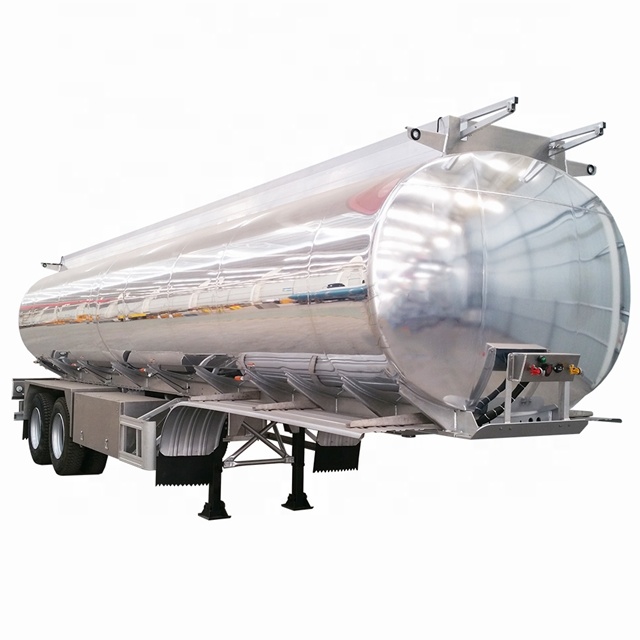

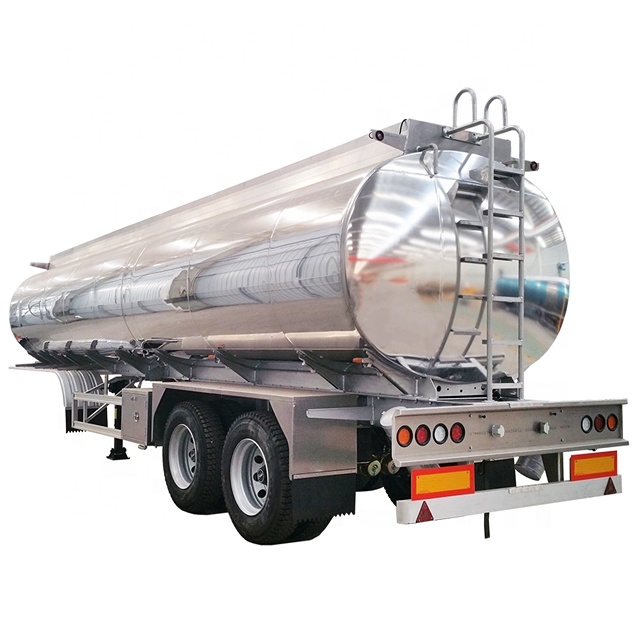

Milk tank truck detailed picture:
