3 axis 45000 liter Stainless Steel Milk Tank Trailer Adopt 3 axis Fuhua Bridge, The volume of the tank is 40-45 cubic meters, and the internal size of the tank is 10020x2300x1600 (mm). The standard sub-bin is five warehouse, and each warehouse has a self-flow outlet.
milk tanker truck advantages:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Tank manufacturing standards：
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
1. The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
2. The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
3. The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
4. The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
5. There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
6. It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
3 axis 45000 liter Stainless Steel Milk Tank Trailer Specification:
| Main Dimensions | ||
| Overall Length | 10600mm | |
| Overall Width | 2500mm | |
| Overall Height | 3650mm | |
| Curb Weight | 10000kg | |
| Loading Capacity | 30m3 | |
| Loading Weight | 30000kgs | |
| Total Volume | 30 m3 | |
| Medium | milk , drinking water , beverages | |
| Tanker Body Material | Stainless steel of Food grade. | |
| End plate | Stainless steel of Food grade | |
| Lifting Ladder | Including Top walkway and backside Aluminum material | |
| Manhole cover | 2 sets with 2 breather valves | |
| Bottom Valve | 1 set | |
| Discharging valve | 1 set | |
| Discharging Pipe | 4″rubber hose, 2pcs, 6m long | |
| Axle | 3 axles | |
| Fuwa 13 Ton | ||
| wheel base | 5100+1310+1310mm | |
| Landing Gear | C200,Two-speed, manual operating, heavy duty landing gear | |
| King Pin | 90# | |
| Suspension | Leaf spring suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber | |
| Tire | 12R22.5,12pcs + 1 spare | |
| Tank | 1. Material: Stainless steel of Food grade. 2. Steel thickness (inside and separation: 4 mm minimum),Outside layer: 2.0 mm minimum,Middle layer (thermal insulation) 80 mm polyurethane foam 3. Medium temperature change≤1°C during 24 hours. 4.Pump installation: Pump will be stores in a SS cabinet with a door and lock. 5..Automatic cleaning device with rotatable sprinkler. |
|

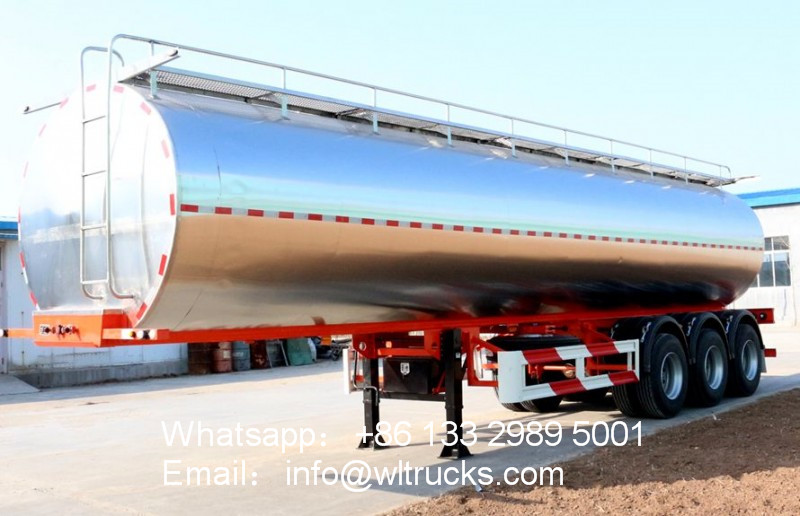

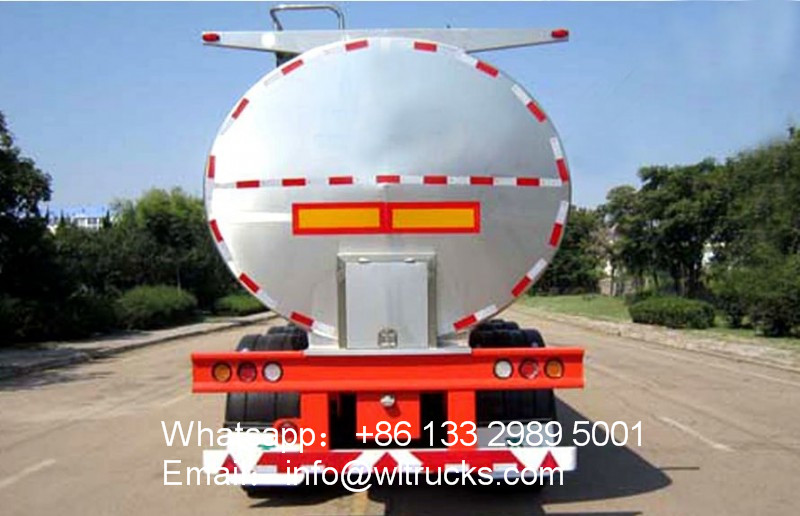

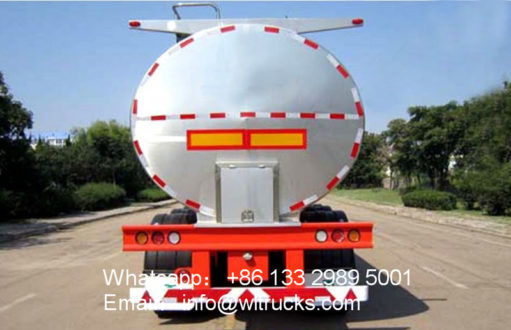

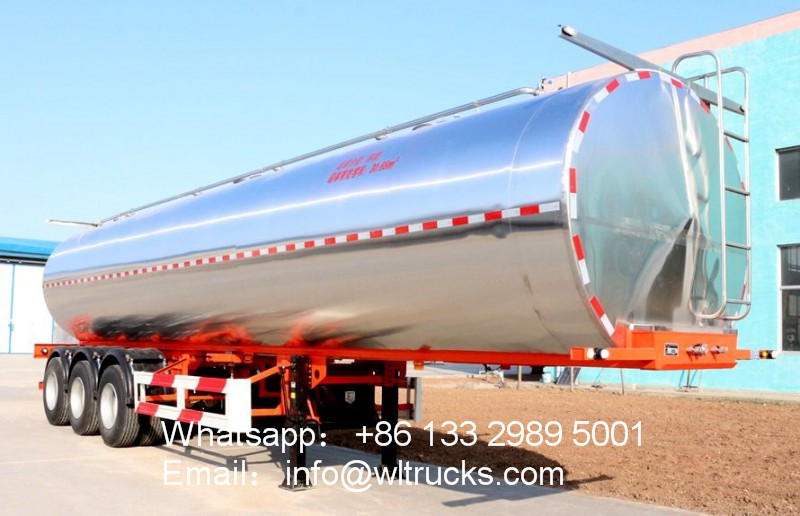

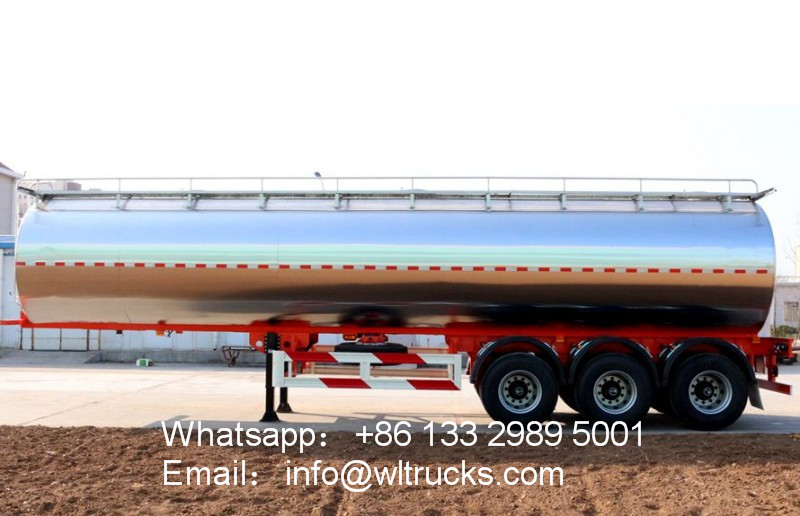

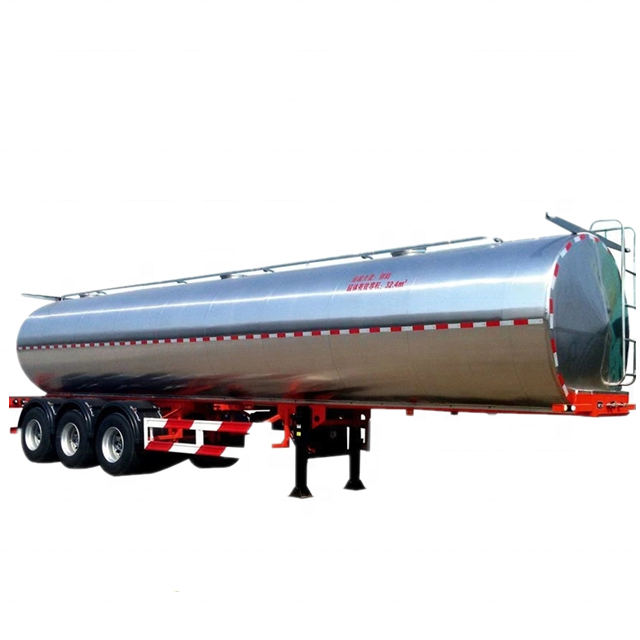

Milk tank truck detailed picture:
