8X4 Dongfeng 25 ton to 30 ton stainless steel milk/beer tank truck Adopt 8×4 Dongfeng Tianlong cab, Cummins 310 horsepower engine, 10 speed gearbox. The volume of the tank is 25-30 cubic meters, and the internal size of the tank is 9000×2150×1530 (mm). The standard sub-bin is Three warehouse, and each warehouse has a self-flow outlet.
milk tanker truck advantages:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Tank manufacturing standards：
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
1. The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
2. The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
3. The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
4. The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
5. There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
6. It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
8X4 Dongfeng 25 ton to 30 ton stainless steel milk/beer tank truck Specification:
|
Milk tank truck
|
||
|
#
|
Descriptions
|
Specifications and types
|
|
General
|
Truck Brand
|
Chengliwei (our brand)
|
|
Chassis Brand
|
DONGFENG
|
|
|
Approx. Dimension
|
11880*2500*3770 mm
|
|
|
GVW./Kerb Wt.
|
31000/ 13535 kg
|
|
|
Cab
|
Cab Capacity
|
3 persons’ seat
|
|
Air Conditioner
|
Air Conditioner is optional
|
|
|
Chassis
|
Drive Type
|
8X4,left hand drive
|
|
Fuel Type
|
Diesel
|
|
|
Engine Make & Model
|
DONGFENG ENGINE
|
|
|
Power
|
270 Ps / 198 KW
|
|
|
Displacement
|
6700 ml
|
|
|
Emission Standard
|
EURO III or EURO IV
|
|
|
Brake
|
Air Brake
|
|
|
Wheelbase/No.of axle
|
1850+4350+1350 mm / 4
|
|
|
Tyre Specfication
|
11.00-20,11.00R20
|
|
|
Tyre Number
|
12 tyres and 1 spare tyre
|
|
|
Max Speed
|
80 km/h
|
|
|
Paint
|
Automative metallic paint
|
|
|
Capacity
|
18-30CBM
|
|
|
Structure& Function
|
1 Tank material :stainless steel
2 Tanker could be divided into many compartments as required
3 Equipped with cleaning device
4 Tank external insulation layer thickness:100mm
|
|

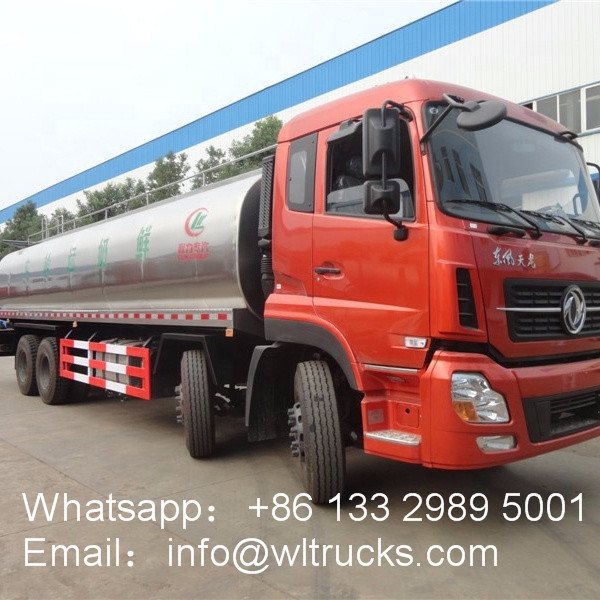

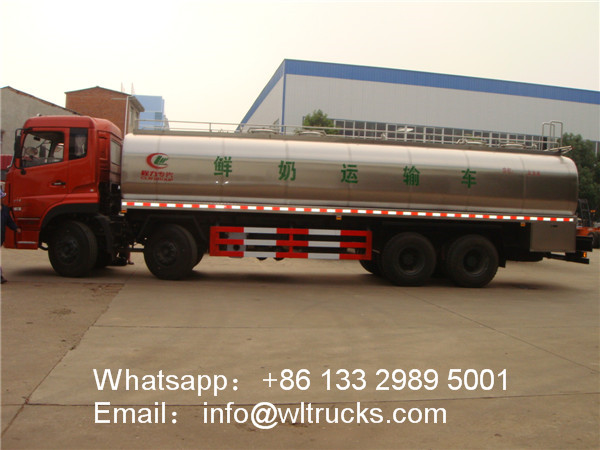

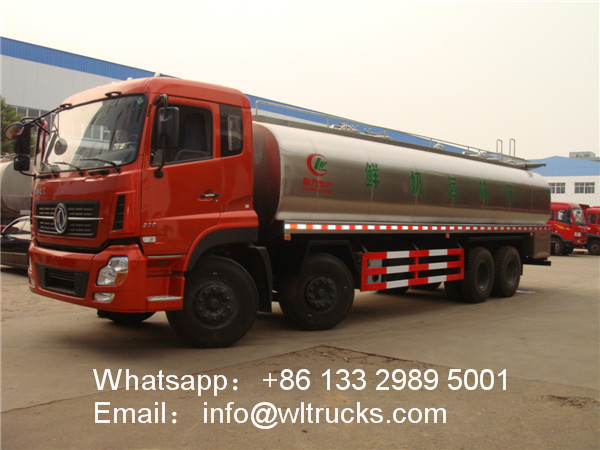

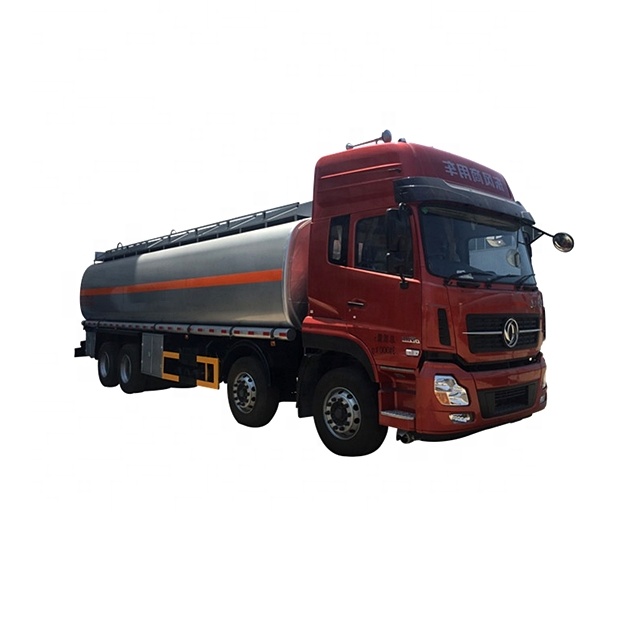

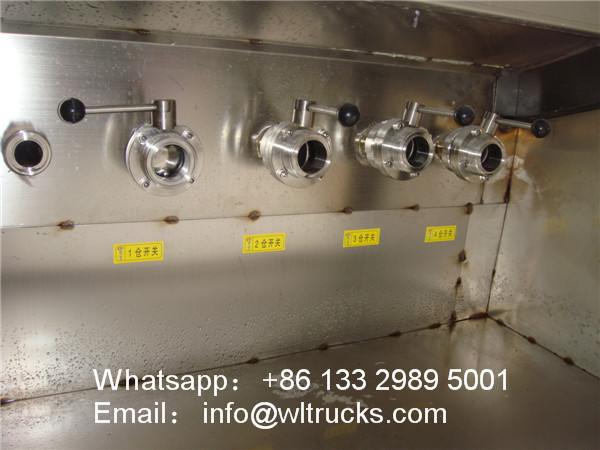

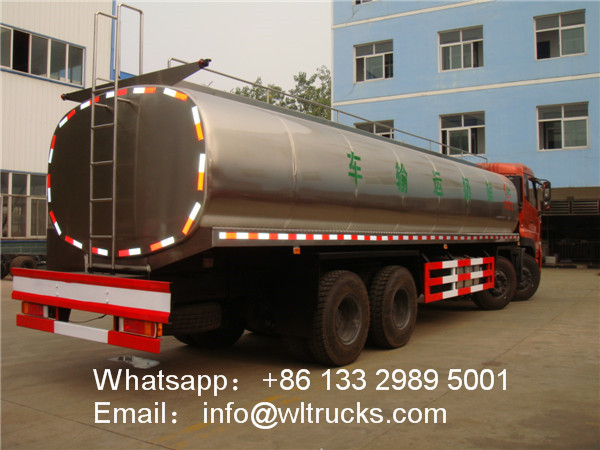

Milk tank truck detailed picture:
