products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

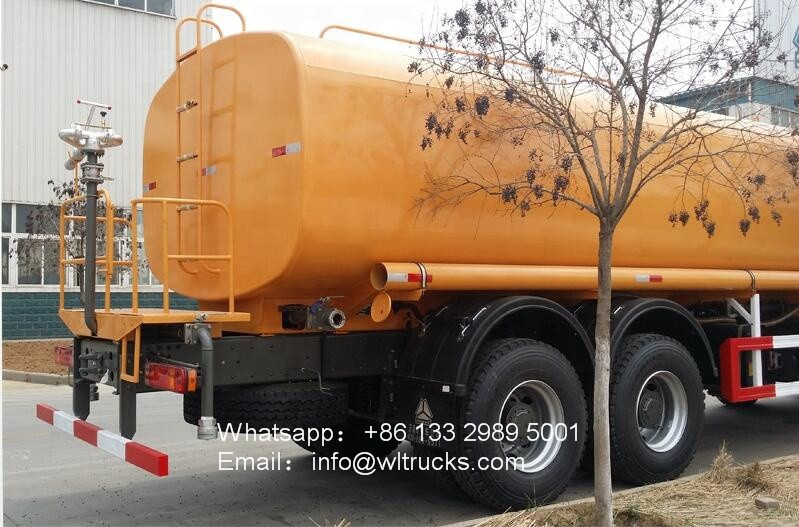

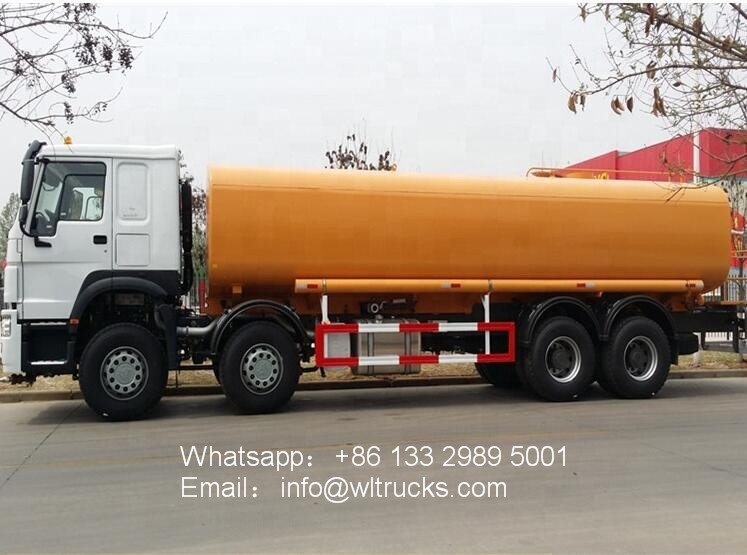

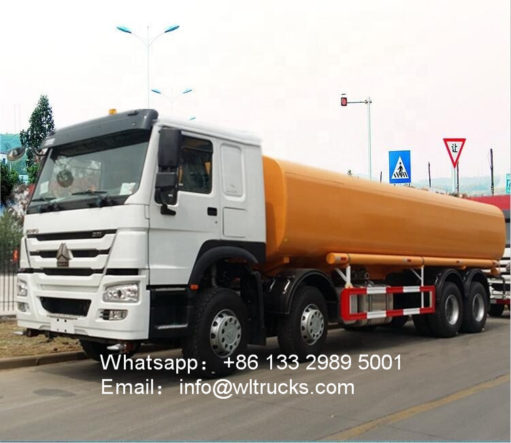

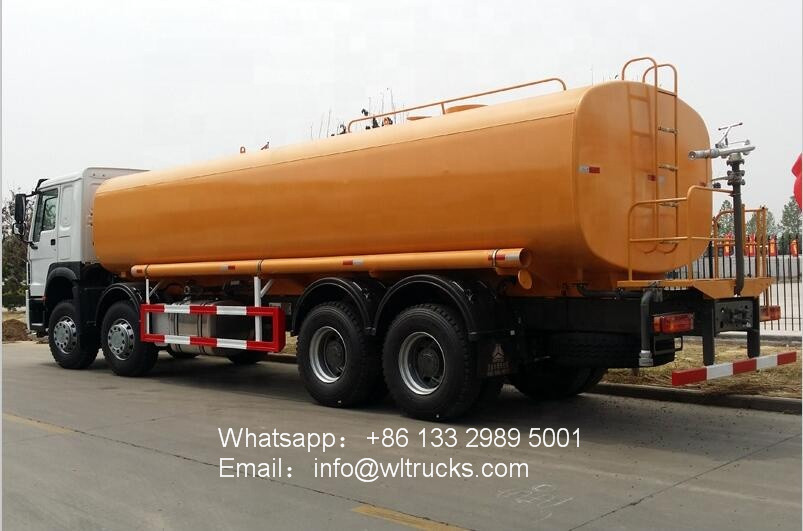

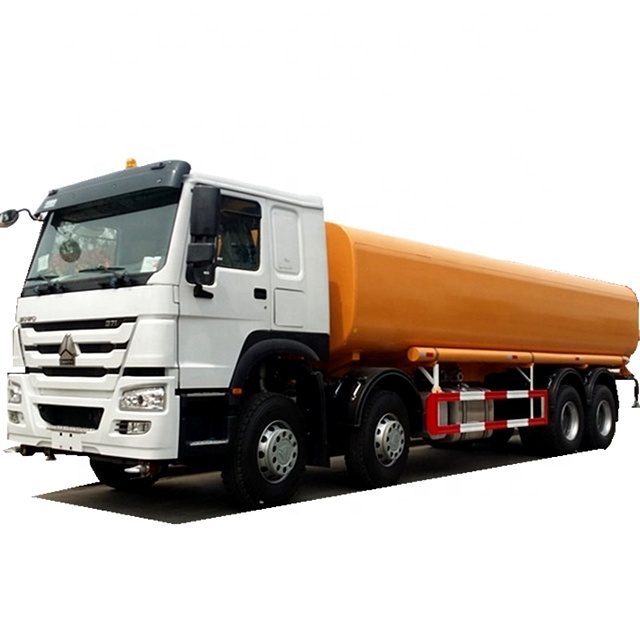

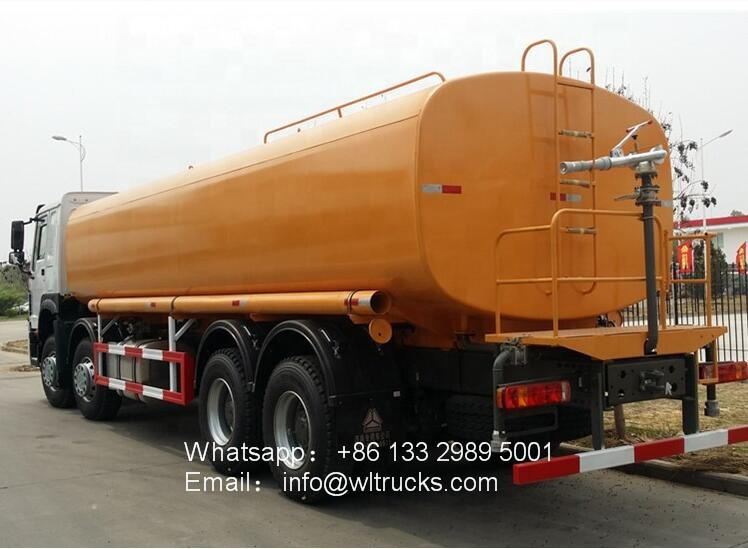

Sinotruk howo 8×4 30 ton water tanker truck Specification:
|
Model
|
ZZ1317N4667W
|
|
|
Cabin
|
HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.
|
|
|
Engine
|
Model
|
WD615.47
|
|
Horse Power (Hp/rpm)
|
371/2000, Euro II Emission Standard
|
|
|
Max.Toruqe(Nm/rpm)
|
1460/1200-1500
|
|
|
Displacement L
|
9.726
|
|
|
Type
|
6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke common rail diesel engine
|
|
|
Transmission
|
HW19710, 10 speeds forward and 2 speeds reverse.
|
|
|
Front Axle
|
HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs
|
|
|
Driving Axle
|
HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
|
|
|
Suspension
|
Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
|
|
|
Steering System
|
ZF8118, Hydraulic steering with power assistance
|
|
|
Brake System
|
Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
|
|
|
Tire
|
12.00R20
|
|
|
Fuel Tank Capacity (L)
|
400L Diesel Tank
|
|
|
Kurb Weight (kg)
|
15,800
|
|
|
Loading Capacity (kg)
|
28,200
|
|
|
Gross Vehicle Weight (kg)
|
44,000
|
|
|
Overall Dimension(L*W*H)(mm)
|
11900×2500×3320
|
|
|
Tank Capacity(L)
|
25,000
|
|
|
Tank Material
|
Carbon Steel
|
|
|
Nos of Compartment
|
1
|
|
|
Accessories
|
2 nos of duck-billed sprinklers (in front),
2 nos of cylindrical sprinklers (at rear),
2 nos of 2.5″ pressure water discharge,
1 nos of 3″ water sucking mouth,
1 nos of high shooting spray rod,
2 nos of 3″ 3m pipe,
|
|
|
Wheelbase(mm)
|
1800+4600+1350
|
|
|
Max. Speed (km/h)
|
90
|
|
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
