products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.

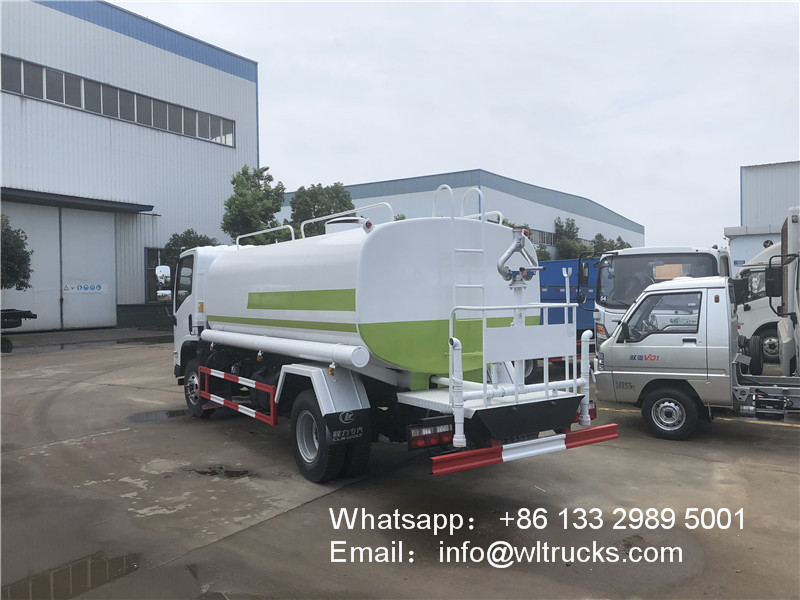

4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

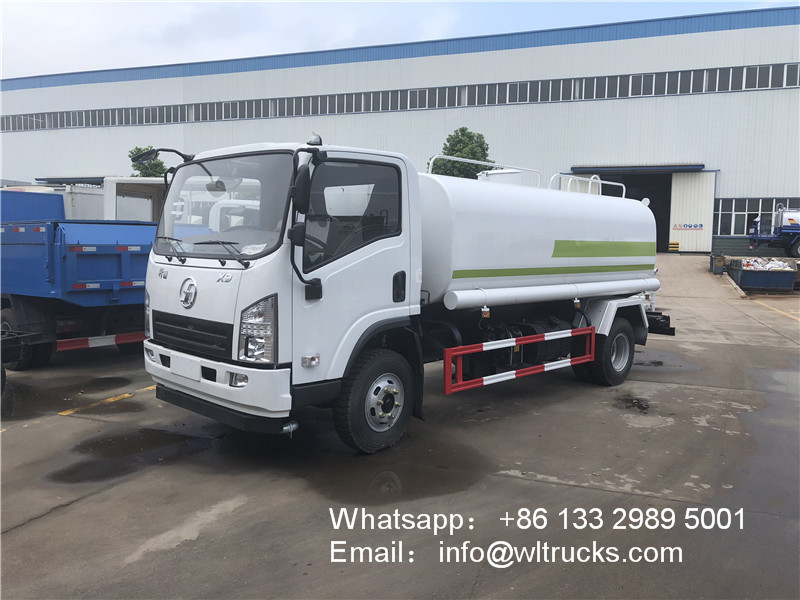

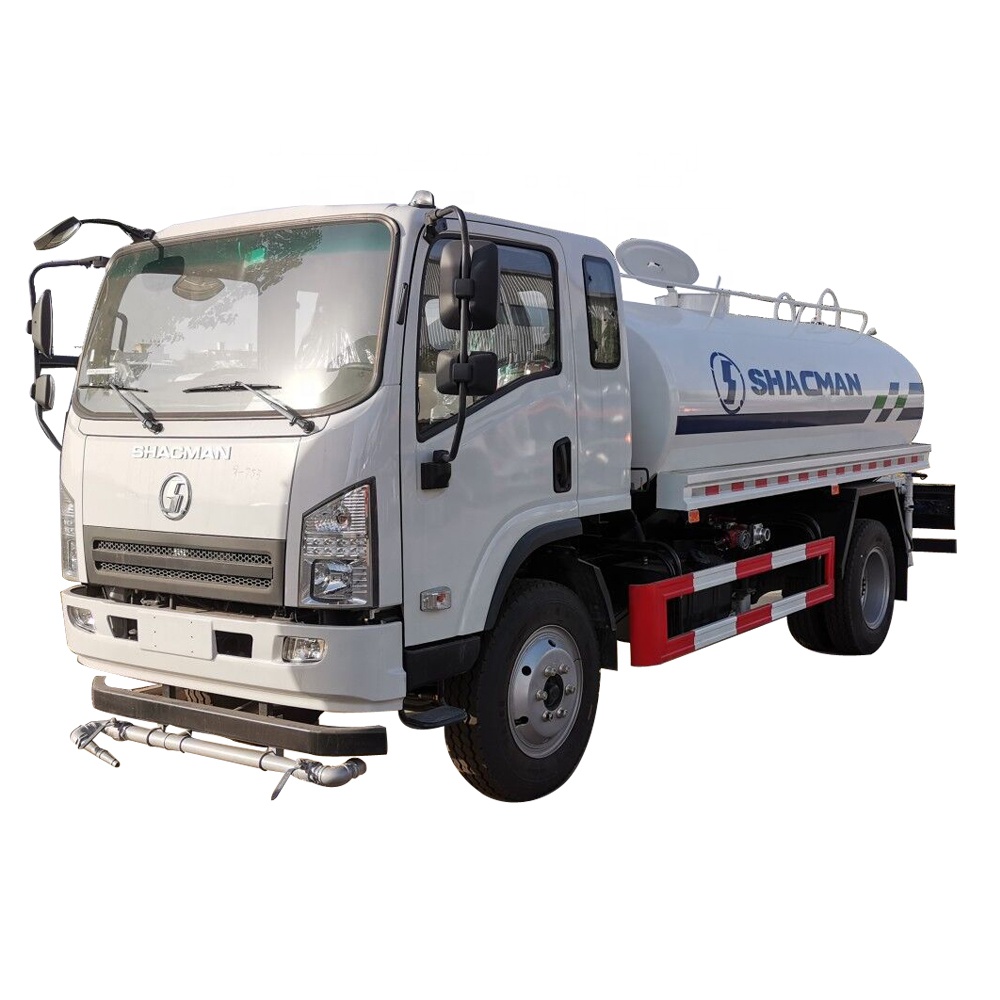

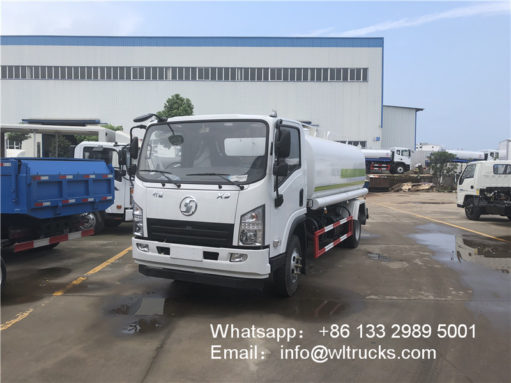

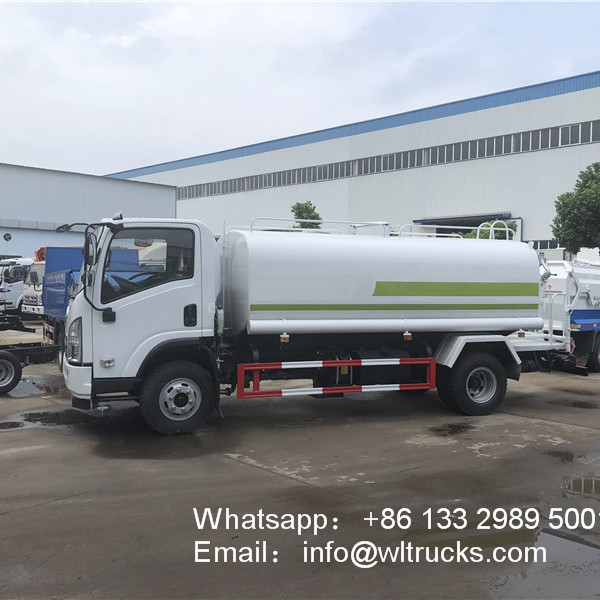

Shacman 10cbm to 15cbm water tank truck Specification:
|
Main specification |
||||||
|
Product model and name |
CLW5080GSS5SX water tank truck |
|||||
|
Gross weight(Kg) |
8280 |
Drive type |
4X2,LHD |
|||
|
Curb weight(Kg) |
4335 |
Overall dimension(mm) |
7000,7400,8400X2120,2400X2960,3400 |
|||
|
Approach/departure angle(°) |
17/14 |
Cab seats |
3 |
|||
|
Axle No. |
2 |
Front/rear hang(mm) |
1200/1700 |
|||
|
Axle load(Kg) |
3000/5280 |
Wheelbase(mm) |
3300 3800 |
|||
|
Max speed(Km/h) |
90 |
|
|
|||
|
Chassis specification |
||||||
|
Chassis model |
SX1080GP5 |
Manufacturer |
shacman Motor Co., Ltd |
|||
|
Brand name |
shacman |
Dimension(mm) |
6800×2015×2450 |
|||
|
Tire specification |
7.50-16 |
Tire No. |
6+1(One spare tire) |
|||
|
Steel spring number |
7/10+3 |
Front track base(mm) |
1670 |
|||
|
Fuel type |
Diesel |
Rear track base(mm) |
1525 |
|||
|
Emission standard |
Euro IV |
Transmission |
5 forward gear |
|||
|
Cab |
Singel row,3person allowed,With power steering,Choose to fix A/C |
|||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||
|
ISF3.8s5154 |
BeiJing FOTON Cummins Engine Co.,Ltd GuangXi YunNei Engine Co.,Ltd |
3760 3920 |
115(156HP) 115(156HP) |
|||
|
Tank body |
||||||
|
Tank capacity(m³) |
8m3 10m3 12m3 15m3 |
Tank material |
Q235B Carbon steel |
|||
|
Water pump model |
65QZ40/45(Weilong pump) |
Water pump flow(m³/h) |
40 |
|||
|
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
|||
|
Main feature |
||||||
|
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. |
||||||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
