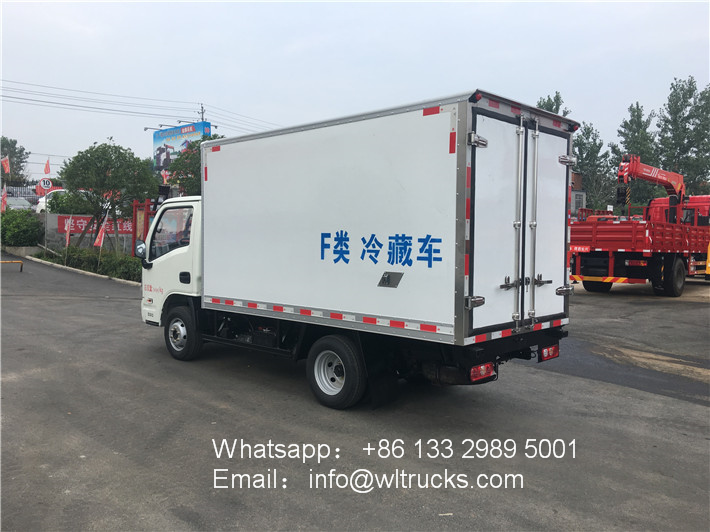

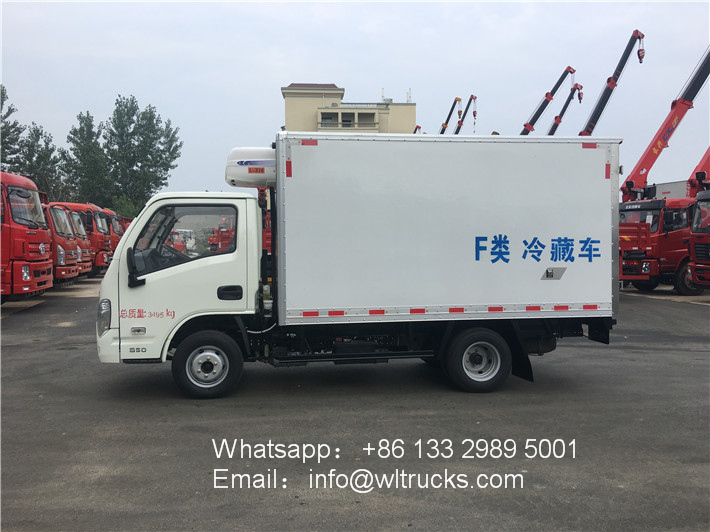

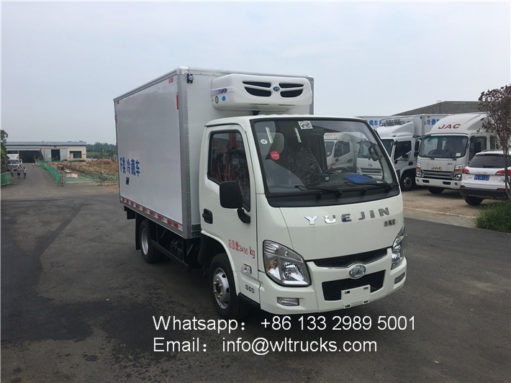

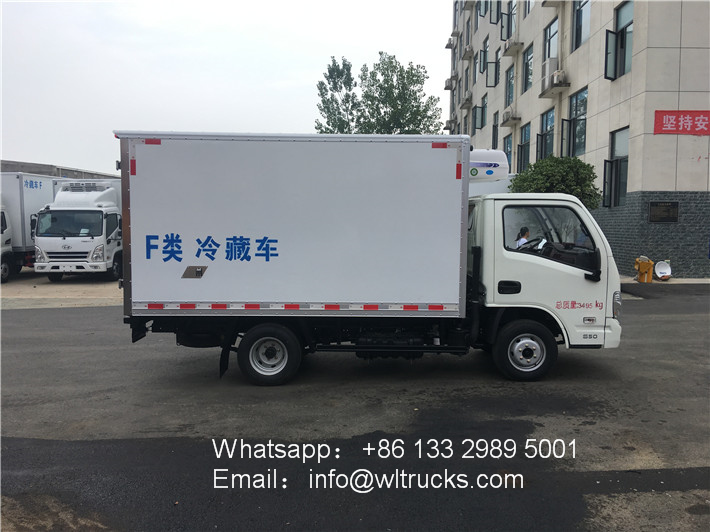

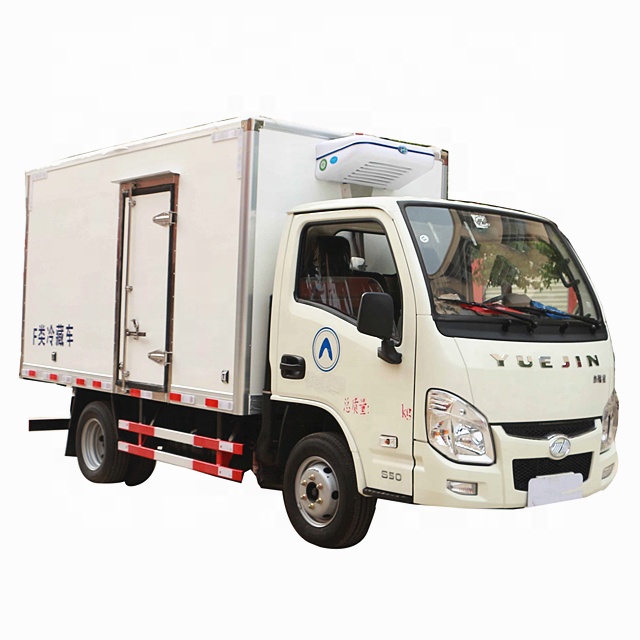

IVECO yuejin 2 ton refrigerator van truck
Adopt the original Yuejin Xiaofuxing chassis, Liuzhou Wuling 87 horsepower gasoline engine, National V emission standards, 185R14 rear dual tire vacuum tires, front fog lights, electric flameout, front and rear shock absorption, light truck chassis light truck body.
Top: Refrigerated car body size: 3305 × 1540 × 1650mm, inside and outside glass fiber reinforced plastic box, 8CM thick polyurethane insulation layer, stainless steel door lock, with double rear door, and Han Xue-5 degree unit
Optional equipment: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
IVECO yuejin 2 ton refrigerator van truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
IVECO yuejin 2 ton refrigerator van truck specification:
|
[The main technical parameters]
|
|||
|
product name
|
Yuejin small refrigerated truck
|
Product number
|
NJ5032XLCPBGBNZ1
|
|
Total mass
|
3495 (Kg)
|
Rated contained mass
|
1245 (Kg)
|
|
Curb quality
|
2120 (Kg)
|
Dimensions
|
5155x1705x2560 (mm)
|
|
Cabin ride
|
2 people
|
Cargo size
|
3260x1550x1650 (mm)
|
|
Wheelbase (mm)
|
2650
|
Maximum speed (Km/h)
|
100
|
|
Chassis configuration
|
Single row comfortable cab, MT78 five-speed gearbox, standard warm air, with original power steering, front disc rear drum, plastic tank 45 liters, with front fog lamp (optional original air conditioner), using Kunming Yunnei Diesel engine, 95 hp, 185R14 6PR wire tire (rear double wheel).
|
||
|
[Chassis technical parameters]
|
|||
|
Chassis model
|
NJ1032PBBNZ1
|
Fuel type
|
Diesel
|
|
Tire specifications
|
6.00-13 8PR, 6.00-14 8PR, 185R14 6PR
|
Number of tires
|
6
|
|
emission
|
National Five Standard
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (Kw)
|
|
D19TCIE10
|
Kunming Yunnei Power Co., Ltd.
|
1910
|
70
|
|
[Special function description] Car body
configuration: the inside and outside of the car are made of glass steel plate, the middle is polyurethane insulation board, which is made up of vacuum negative pressure platform, and the heat preservation effect reaches the national A-level standard. Door bolts, door trims, door locks and wrap angles are all stainless steel, aluminum anti-slip flooring. Optional configuration : 1, optional right side door; 2 optional aluminum ventilation slot (adding ventilation slots to help cool air circulation, improve 50% cooling effect); 3, optional car body reinforcement Install the meat hook rail (optional straight rail or mechanical rail); 4. The optional body is made of fully sealed stainless steel (the seafood must be installed, the seawater is corrosive); 5. The optional external power supply 280V-380V ( After the parking is turned off, the electric cooler can be plugged in to continue cooling. 6. Optional 3G mobile temperature and humidity real-time monitor (optional with printing device)! |
|||
IVECO yuejin 2 ton refrigerator van truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
IVECO yuejin 2 ton refrigerator van truck New craft:
IVECO yuejin 2 ton refrigerator van truck Optional configuration:
IVECO yuejin 2 ton refrigerator van truck Bodywork details:

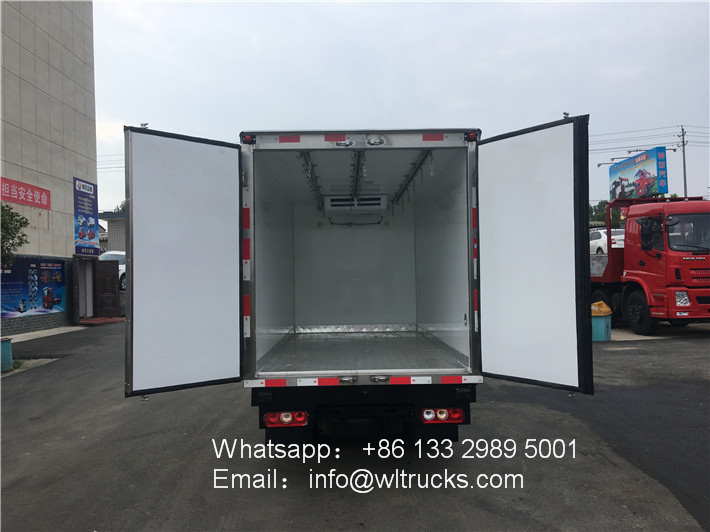

IVECO yuejin 2 ton refrigerator van truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
