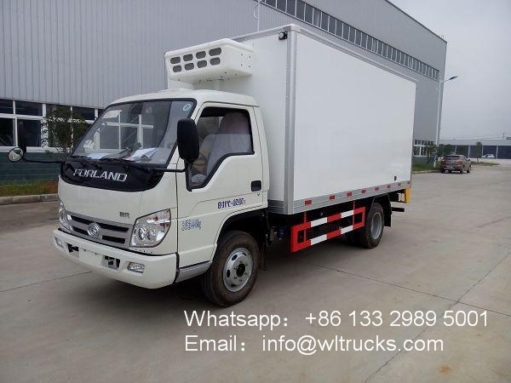

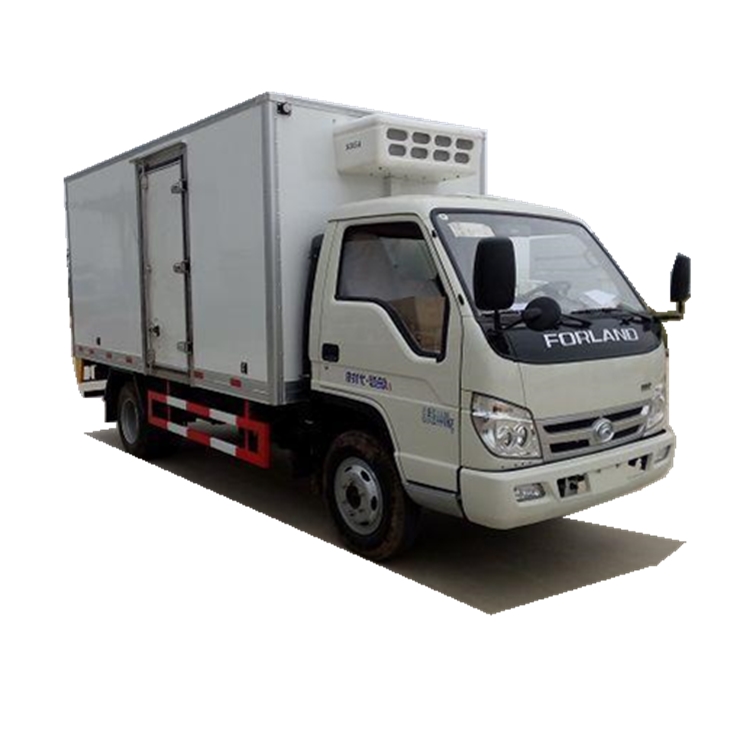

Foton 3 ton refrigerated truck
Adopts Foton era small card star 3 series refrigerated truck, wide body cab, Anhui Quanchai 90 horsepower Euro three engine, the body is made of 2.2mm glass fiber reinforced plastic inside and outside, and the middle insulation material is 6cm thick imported polyurethane, which is made by vacuum lamination The thickness of the car body is 80mm, and the thickness of the door is 80mm.
The inner bottom plate is a brand-new glass fiber reinforced plastic or aluminum plate with a 6 cm polyurethane imported in the middle. The glass fiber reinforced plastic bottom plate is convenient to take care of and drag the goods. The aluminum plate is easy to fix the cargo, but it is not convenient to slide the cargo. 2.5mm aluminum alloy edging around the body, stainless steel corner, stainless steel door lock, 4 pieces of anti-collision rubber, stainless steel door frame, stainless steel hinge, energy-saving LED lighting in the box.
Foton 3 ton refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton 3 ton refrigerated truck specification:
Sixth, the medical waste: the inside of the body must be made of fully enclosed stainless steel, with stainless steel closed inner door, installed anti-virus spray device, installed ultraviolet anti-virus device, install waste liquid spill box device!
|
Vehicle model
|
BJ5043XLC type refrigerated truck
|
Announcement batch
|
204
|
|
Company Name
|
Beiqi Foton Motor Co., Ltd.
|
Product trademark
|
Futian brand
|
|
Dimensions (mm)
|
5995×2140×2990
|
Total mass (Kg)
|
4495
|
|
Cargo size (mm)
|
4100×1920×1800
|
Rated load mass(Kg)
|
1590
|
|
Approach /departure angle
|
23/17
|
Curb weight (Kg)
|
2710
|
|
Front overhang /rear overhang(mm)
|
1085/1550
|
Maximum speed(km/h)
|
95
|
|
Vehicle identification code
|
LVBV3JBB×××××××××
|
||
|
Chassis model
|
BJ1043V9JEA-SB
|
||
|
engine model
|
Engine manufacturer
|
Displacement
|
power
|
|
4D26
|
Anhui Quanchai Power Co., Ltd.
|
2596
|
68
|
|
Fuel type
|
Diesel
|
Emission Standards
|
GB17691-2005 Country III, GB3847-2005
|
|
Number of axes
|
2
|
Number of tires
|
6
|
|
Wheelbase
|
3200, 3360
|
Tire specifications
|
7.00-16, 6.50-16, 7.00R16, 6.50R16
|
|
Axle load
|
1800/2695
|
Front track
|
1415, 1590, 1525
|
|
Number of leaf springs
|
8/9+8, 4/6+7
|
Rear track
|
1485
|
|
other
|
The top of the container is closed ,can not be opened , optional diversion cover , new front and front lighting .The car is equipped with CA4DC2-10E3, CY4102-C3F, 4DW93-84E3 three national three engines . Optional new front and front Part of the luminaire , optional door cover .
|
Foton 3 ton refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton 3 ton refrigerated truck New craft:
Foton 3 ton refrigerated truck Optional configuration:

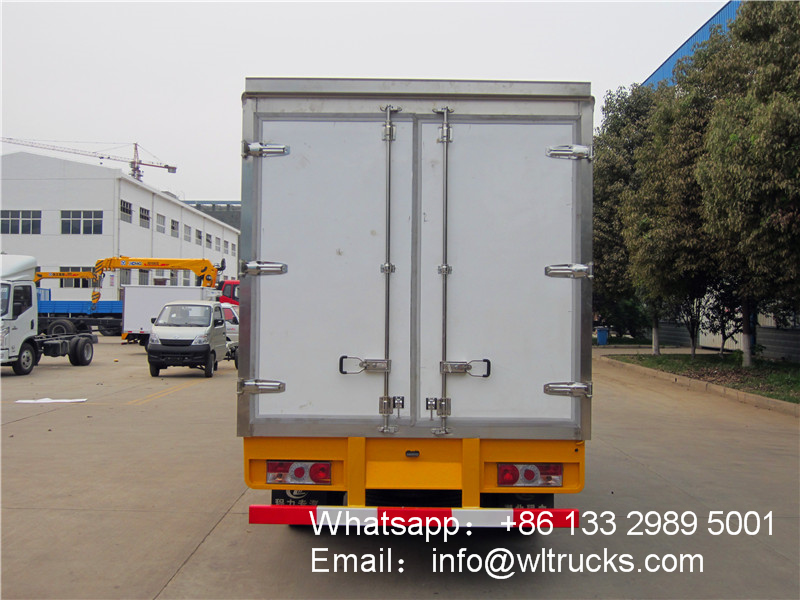

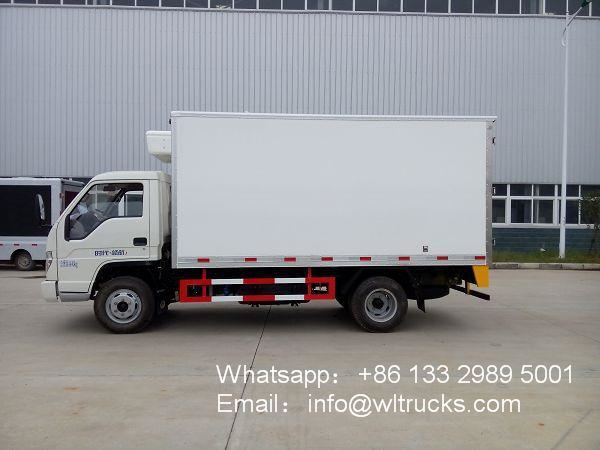

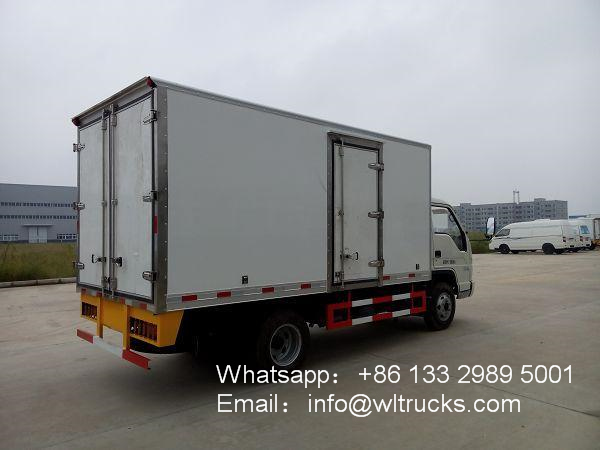

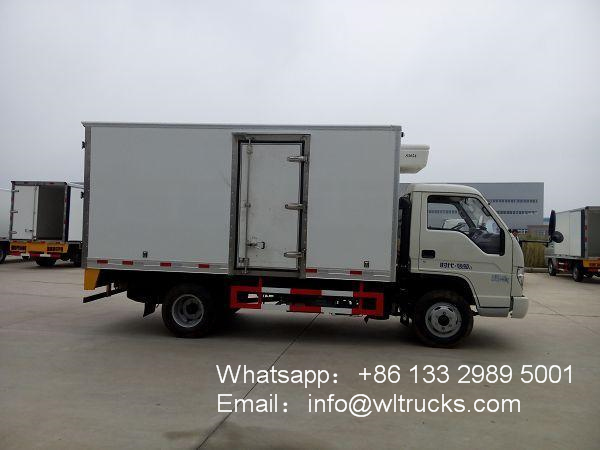

Foton 3 ton refrigerated truck Bodywork details:

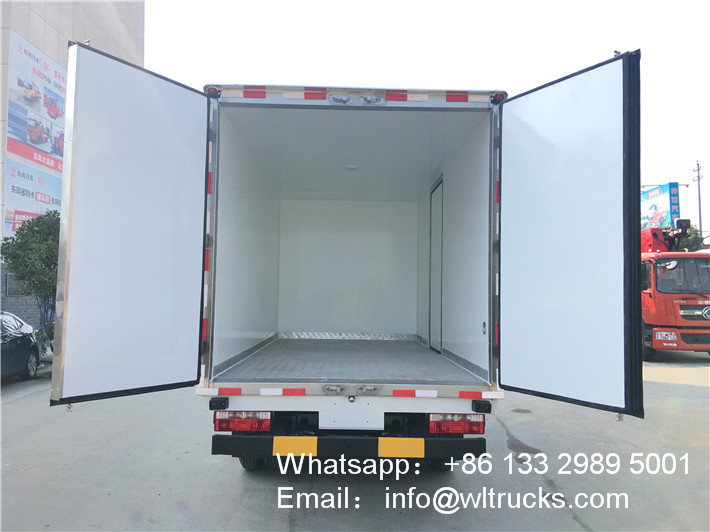

Foton 3 ton refrigerated truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
