We produce the ISUZU 5000liter to 8000liter lpg storage tank truck which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
China Lpg trucks Product Description:
1) Truck Brand : Howo,Dongfeng, faw, isuzu,foton,JAC,JMC,Shacman.etc
2) Tank Size: 3000liter to 35000liters
3) Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4) Refiling System : 2″ Flowmeter or intelligent filling dispenser machine, 2″ Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec: 4×2,4×4,6×4,6×6,6×2,8×4
6) tank material:Q345R Q370R SA516
ISUZU 5000liter to 8000liter lpg storage tank truck specification:
| ISUZU 5000Liters to 8000Liters lpg storage tank truck | ||
| Chassis Model /Manufacturer | QL1090 | |
| Overall Dimension | 7360*2200*2700mm | |
| Total Mass | 12350Kg | |
| Loading weight | 6000kg | |
| Kerb Weight | 6200Kg | |
| front overhang/rear overhang | 1110/2235 | |
| Engine | Model/Rated Power | 4HK1-TCG40 / 140kw 190Hp |
| Emission Standard | Euro 4 | |
| Displacement | 5193L | |
| manufacturer | ISUZU motor Co., Ltd. | |
| driving type | 4*2 | |
| Steering Type | Powering steering | |
| Type & Size of Tyre | 8.25-16 | |
| Tread( front/rear) | 1680/1650 | |
| Front axle | 4T front axle | |
| Rear axle | 7T rear axle | |
| Wheel Base | 3815mm | |
| Number of leaf spring of suspension | 8/10+6 | |
| Max Speed | 120Km/h | |
| Other | Capacity:5,000Litres to 6000Liters | |
| With LPG Pump, LPG Dispenser, LPG Filling Nozzle | ||
| Other | ISUZU MSB Five forwards transmission | |
| Power steering. air condition | ||
| Oil brake with vacuum booster pump | ||
Lpg trucks Different designs:
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.

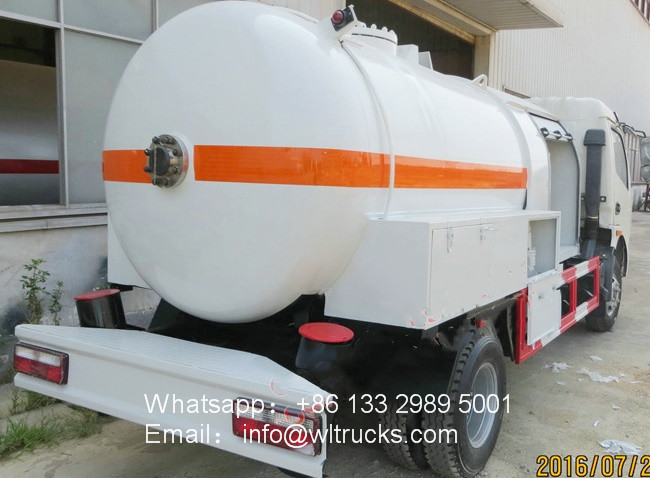

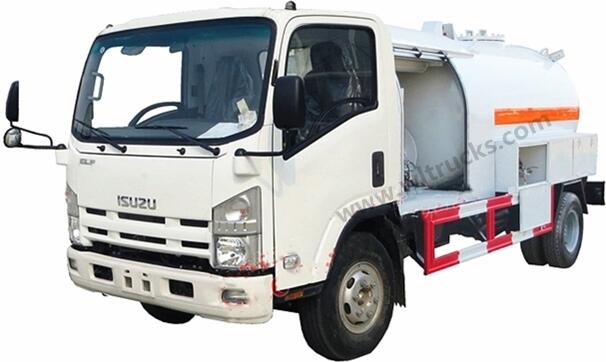

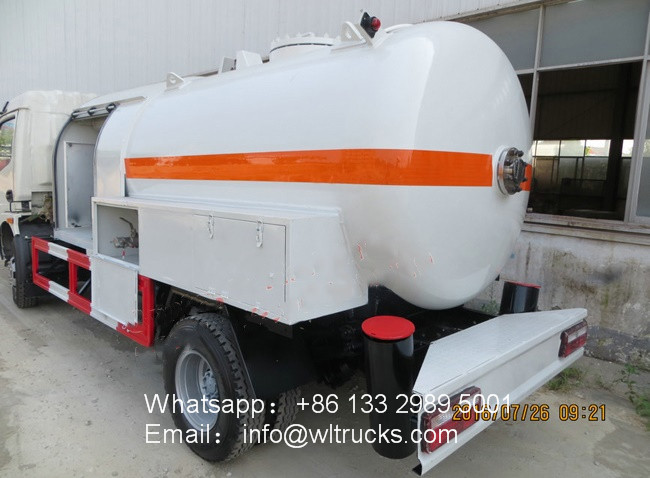

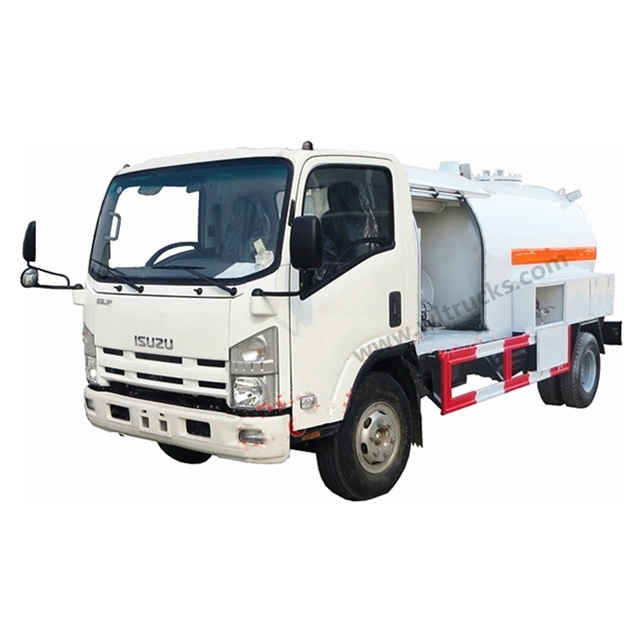

ChengLi lpg gas truck details:
lpg delivery truck type exhibition：

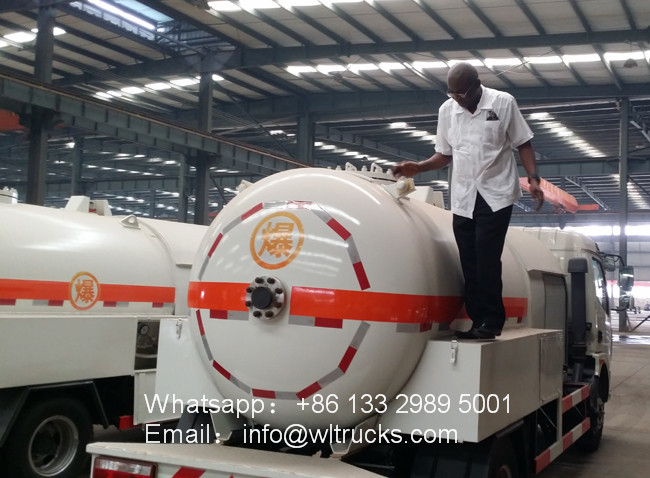

lpg tanker truck Production Process：
FAQ:
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
Our customers are located in 127 countries and regions around the world
