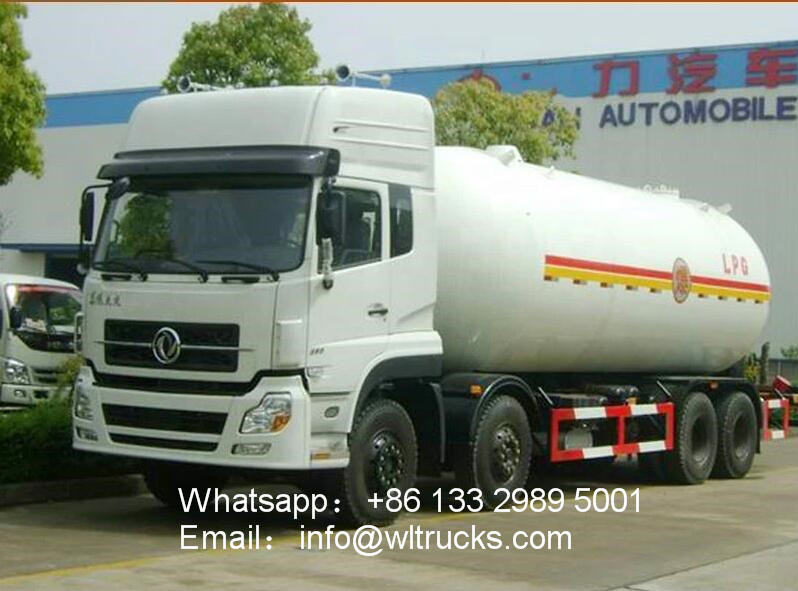

We produce the 8X4 Dongfeng 35000L lpg propane truck which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
China Lpg trucks Product Description:
1) Truck Brand : Howo,Dongfeng, faw, isuzu,foton,JAC,JMC,Shacman.etc
2) Tank Size: 3000liter to 35000liters
3) Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4) Refiling System : 2″ Flowmeter or intelligent filling dispenser machine, 2″ Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec: 4×2,4×4,6×4,6×6,6×2,8×4
6) tank material:Q345R Q370R SA516
8X4 Dongfeng 35000L lpg propane truck specification:
| Chassis Specifications | |
| Item No. | Parameters |
| Overall Dimension | 11220x2500x3800 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 32000 kg |
| Curb Weight | 11200kg |
| Max Loading Weight | 18000kg(18Ton) |
| Wheel Base | 1950+4400+1300 mm |
| Front/rear Tread | 2050/1860 mm |
| Approach/Departure Angle | 16/12 degree |
| Front Axle | HF6.5,6500kg X2 |
| Rear Axle | ST18,18000kgX2 |
| Engine | C260-20, 260HP,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 260HP EURO 3 |
| Displacement | 8300mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Gearbox | 9js119 |
| Cabin | Dongfeng D913 cabin,2 Passengers allowed,with Air Conditioner |
| Tire | 10.00R20 Steel Wire Tire, with 1 spare tire. |
| LPG tank Specifications | |
| Tank Volume | 37.2cbm |
| Tank material | Q370R |
| Tank diameter | 2475mm |
| Tank Shell thickness | 12mm |
| Tank Head thickness | 12mm |
| Tank length | 8186mm |
| Gas phase | DN25 |
| Liquid Phase | DN50 |
| Filling gas | Propane(LPG) |
| Design Pressure | 1.61Mpa |
| Accessories Specifications | |

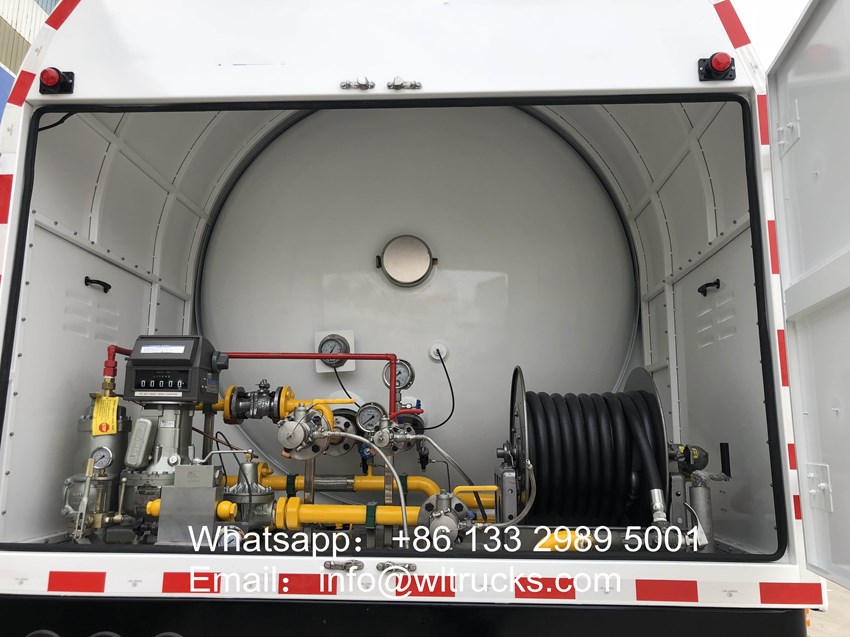

| LPG Pump & Hydraulic Motor | 1 set |
| LPG Dispenser Flowmeter | 1 pc for filling cylinder |
| Hose Reel with Filling Gun | 1 set, lenth of hose reel: 15M |
| Level Gauge | Rochester Float Ball type, at the rear of tank |
| Safety Valve | 1,DN50 |
Lpg trucks Different designs:
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.
ChengLi lpg gas truck details:
lpg delivery truck type exhibition：
lpg tanker truck Production Process：
FAQ:
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
