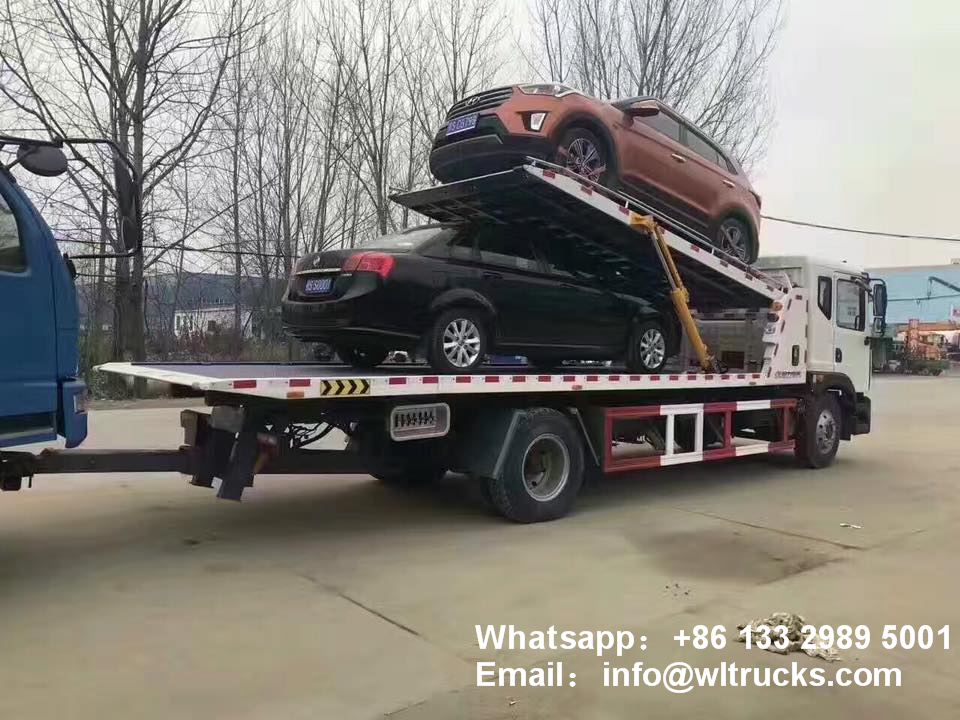

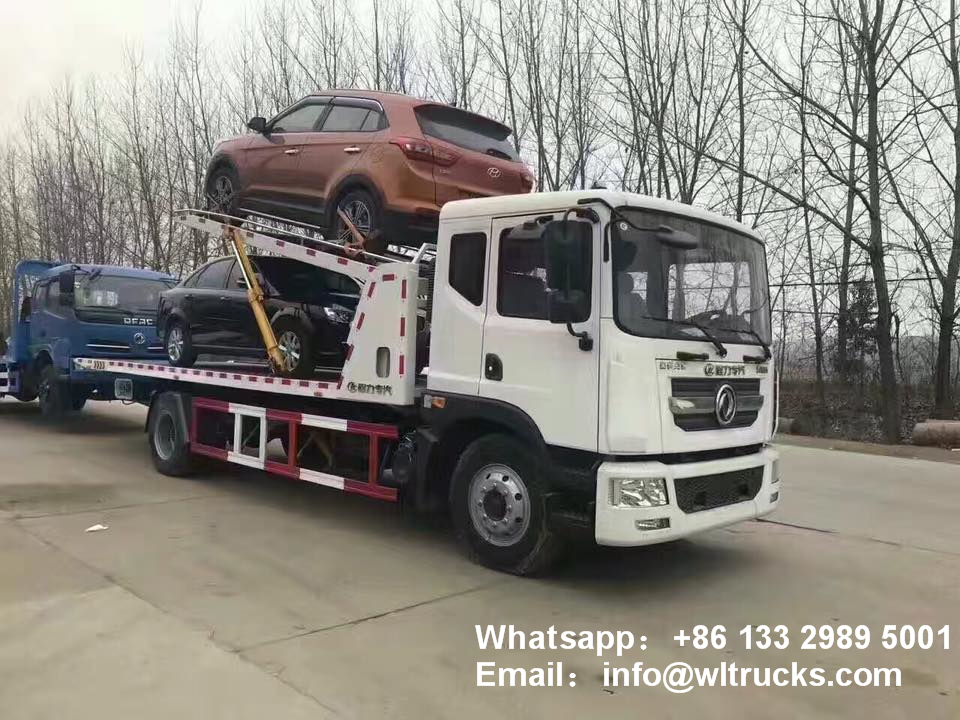

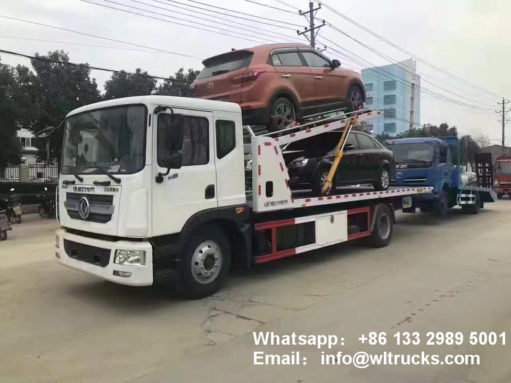

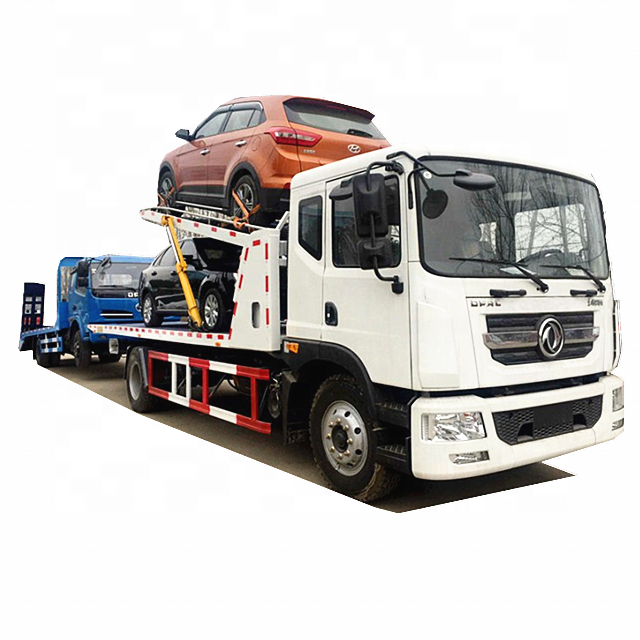

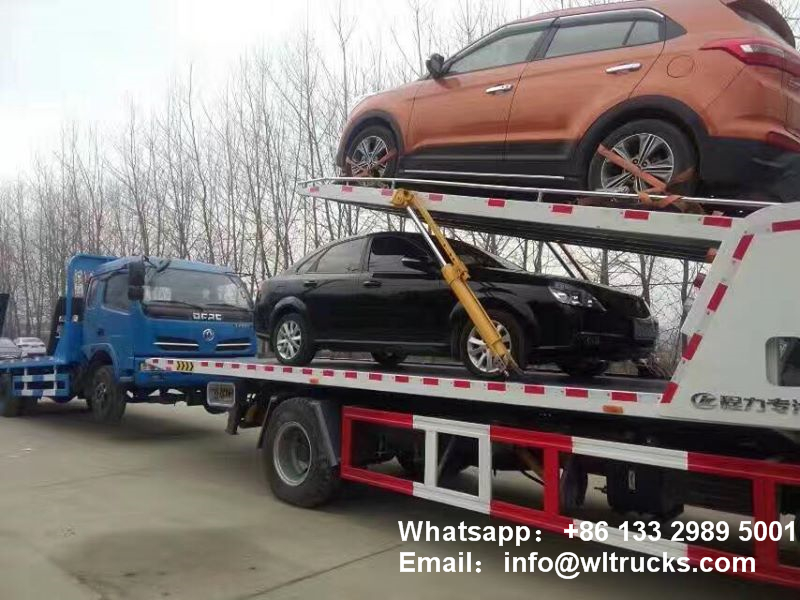

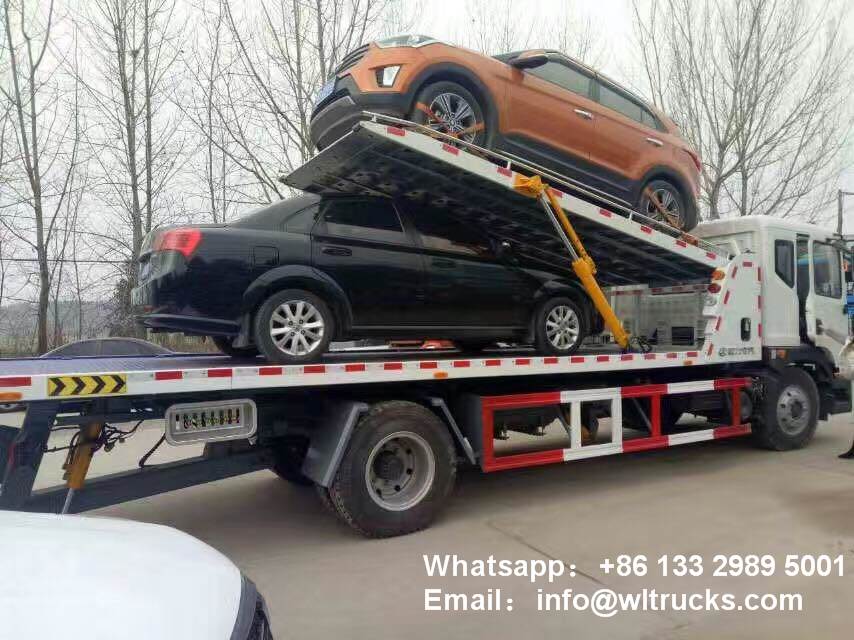

Dongfeng One Towing Three Flatbed Recovery Tow Truck
Dongfeng One Towing Three Flatbed Recovery Tow Truck Chassis configuration：
Adopt Dongfeng D9 series chassis, semi-flat roof cab can be turned forward, Cummins 170 horsepower, 190 horsepower engine, 6-speed gearbox, wheelbase 4700mm, 9 tons rear axle, 250mm double-layer (7 + 4) beam, 9.00 original Nylon tires, double-sided linkage operation, with direction assistance, original ABS, air brake.
Dongfeng One Towing Three Flatbed Recovery Tow Truck Bodywork configuration：
The truck has a length of 6.2mter to 7 meters and a width of 2.5 meters. The plate can use 4 thick checkered plates or a new disposable stamping plate. 6 tons of tops, with 5 tons of hydraulic winch, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of trailer forks, pair of seven-character forks, pair of square sleeves, one set of tools on board, bundled With 4 sets, two working lights, equipped with yellow LED long-row electronic warning lights.
Dongfeng One Towing Three Flatbed Recovery Tow Truck specification:
| General Technical Parameters | |||
| Overall Dimension | 9500x2480x2760(mm) | ||
| Gross Vehicle Weight | 15795 kg | ||
| Curb Weight | 8950 kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | Dongfeng | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 6 Cylinders | |
| Power | 125 KW/170HP/190HP | ||
| Emission Standard | EURO II | ||
| Displacement | 4730ml | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4T/9T | ||
| Wheel Base | 5200 (mm) | ||
| Overhang( Front/Rear) | 1858/1865 mm | ||
| Angle(Approach/departure) | 19/13 (°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 9.00R20,6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Number | 2 Units | |
| Dimension | 7300×2320 mm | ||
| Dimension | 4600×2320 mm | ||
| Max. Loading Weight | 4500(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 5000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One set of Auxiliary Wheels 2. Bandages 8pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 3 Cars |
||
Dongfeng One Towing Three Flatbed Recovery Tow Truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
