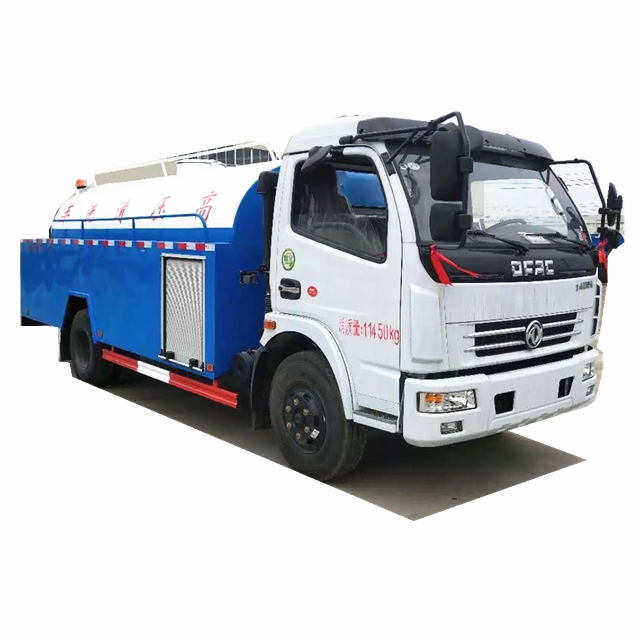

Dongfeng 8000liter High pressure cleaning truck Specification:
Dongfeng 8000liter High pressure cleaning truck Chassis configuration: Dongfeng stock chassis, wheelbase 3.8, Doric D7 white cab, Euro III, Chaochai 120-horsepower engine, 6-speed gearbox, 750 nylon tire, air brake, direction boost.
Dongfeng 8000liter High pressure cleaning truck Bodywork configuration: 6-8 cubic meters of water tank optional, national standard 5 mm thick Q235 steel plate is automatically welded, equipped with water filter device, liquid level gauge, standard equipped with German Pinfu 170/24 high pressure pump, hydraulic automatic reel +60 meters 19mm three-layer steel wire high-pressure pipe, equipped with 10 high-pressure nozzles with different functions.
Optional configuration: optional domestic Shuangyao or Tongjie high pressure pump, optional sprinkler watering function, optional vacuum suction function.
.
Dongfeng 8000liter High pressure cleaning truck Product parameters
| 【Vehicle technical parameters】 | |||||
| product name | 8M3 Cleaning Truck | batch | 309 | ||
| Total mass (Kg) | 8275 | Rated load mass (Kg) | 3980 | ||
| Curb weight (Kg) | 4100 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 3 | Rated passenger (person) | |||
| Dimensions (mm) | 7000 x 2200 x 2390, 2450 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 20/10 | Front / rear suspension (mm) | 1130/2070, 1150/2050 | ||
| Axle load (Kg) | 3300/4975 | Maximum speed (Km / h) | 103 | ||
| Remarks | The effective volume of the tank: 4.17 cubic meters; the external dimensions of the tank (long x long axis x short axis) (mm): 4200 x 1800 x 1300 (actual length 2800, of which the front 1400 is used to install high pressure pumps) : Q235A carbon steel, connection method: the left and right sides are welded, and the rear protection is a skirt board structure, height above ground (mm): 330. Machinery Co., Ltd. The wheelbase used only (mm): 3800. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | EQ1080SJ8BDC | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3800,3308,4100 | ||||
| Tire specifications | 7.50R16, 7.50R16, 245 / 70R19.5 12PR | ||||
| Front track (mm) | 1740 | Rear track (mm) | 1610,1586 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| CY4SK251 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3856 | 115 | ||
Dongfeng 8000liter High pressure cleaning truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Dongfeng 8000liter High pressure cleaning truck Working parameter New craft
Dongfeng 8000liter High pressure cleaning truck Optional configuration

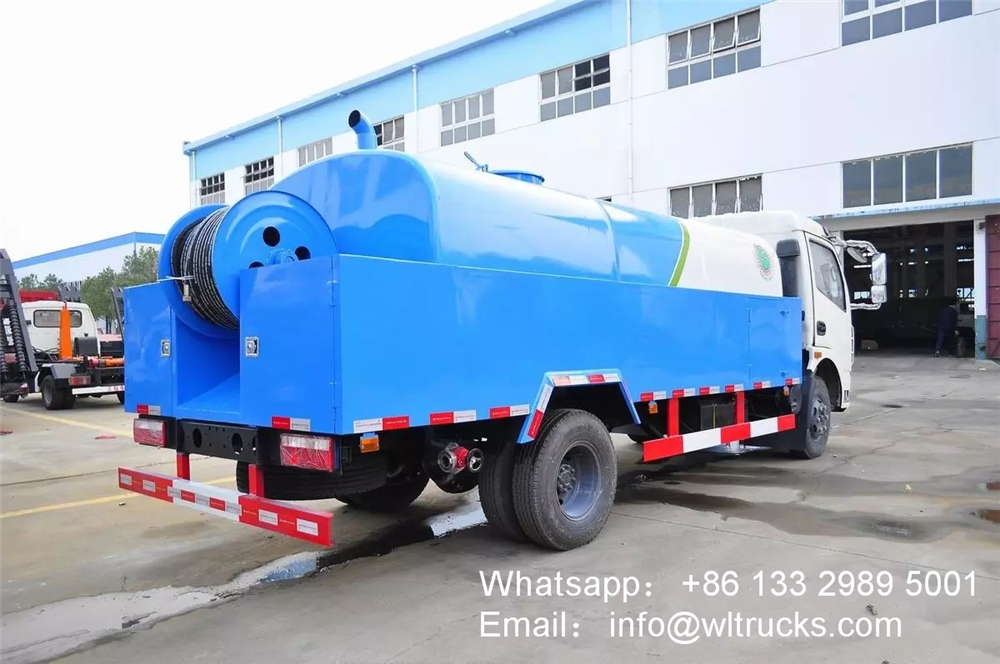

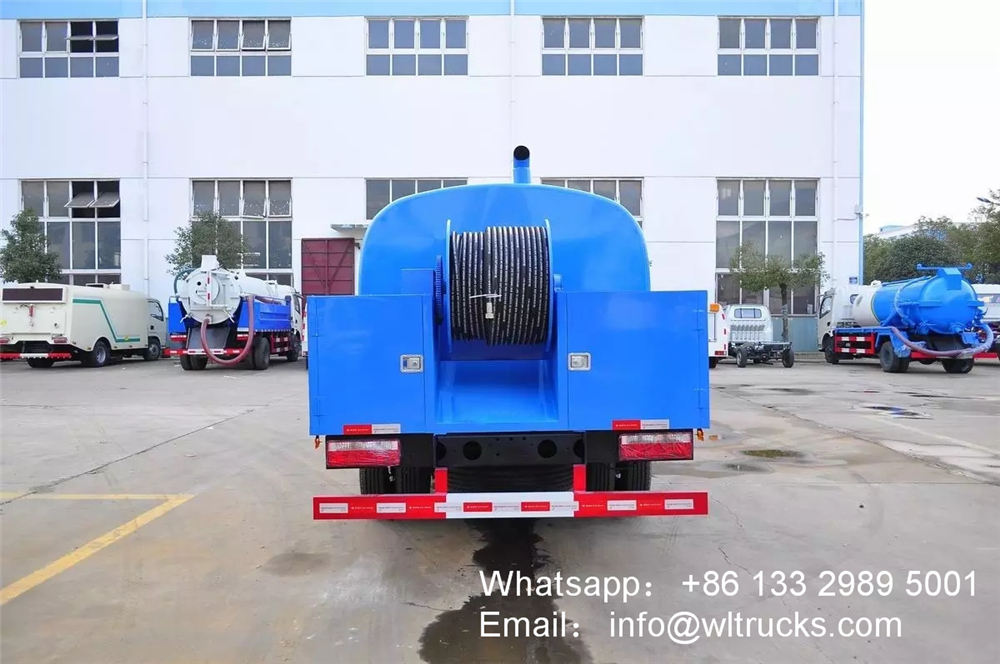

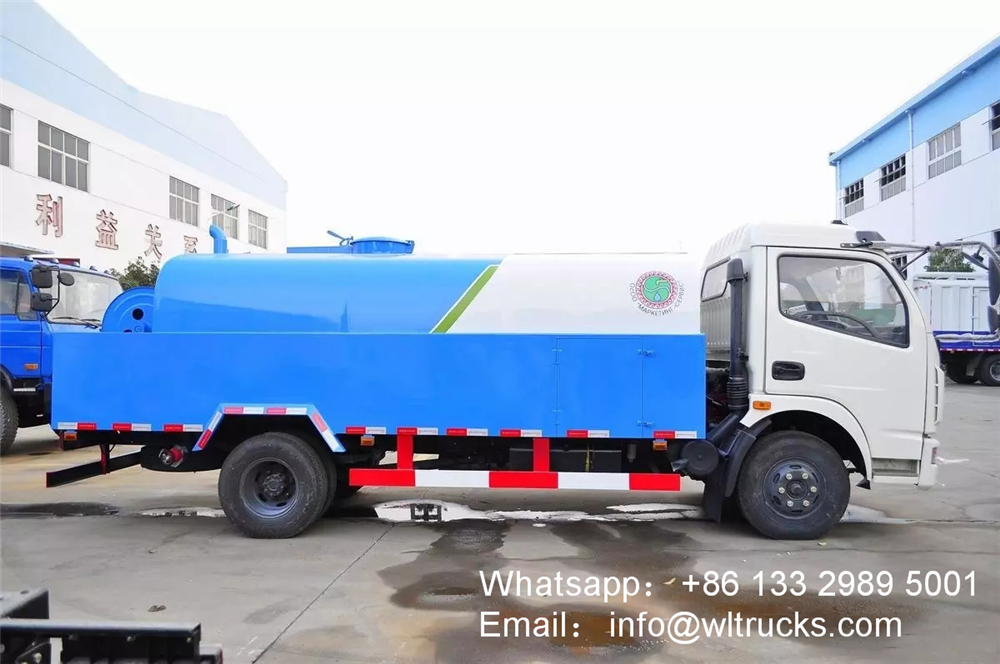

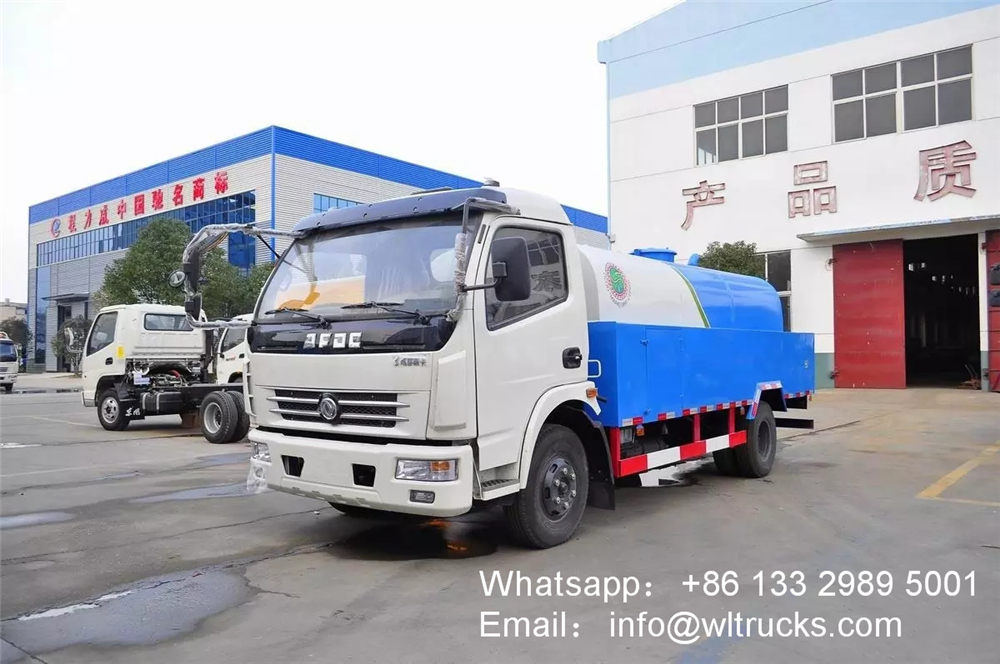

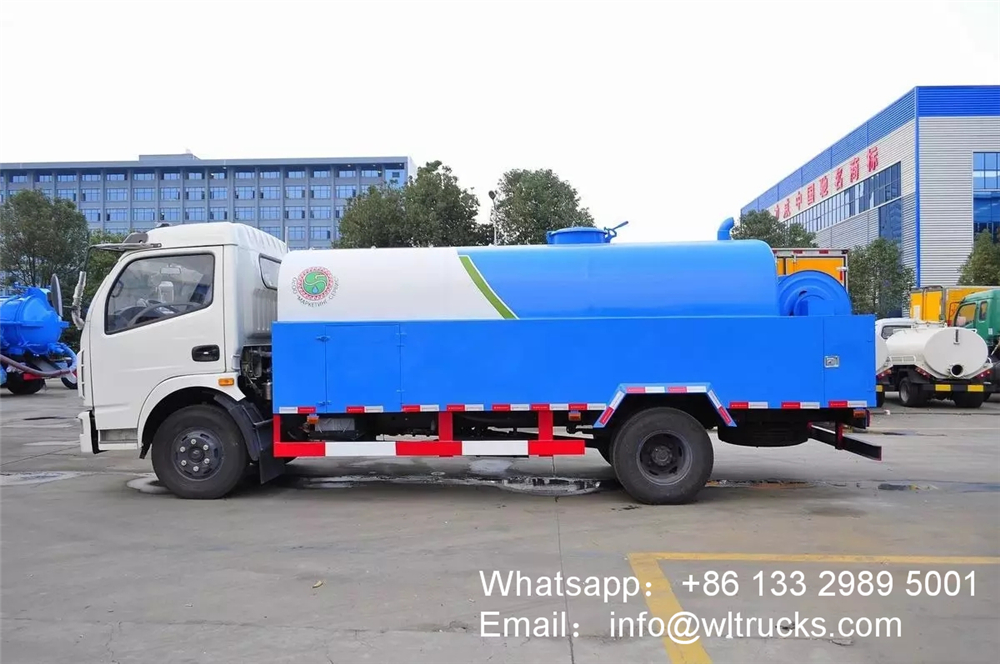

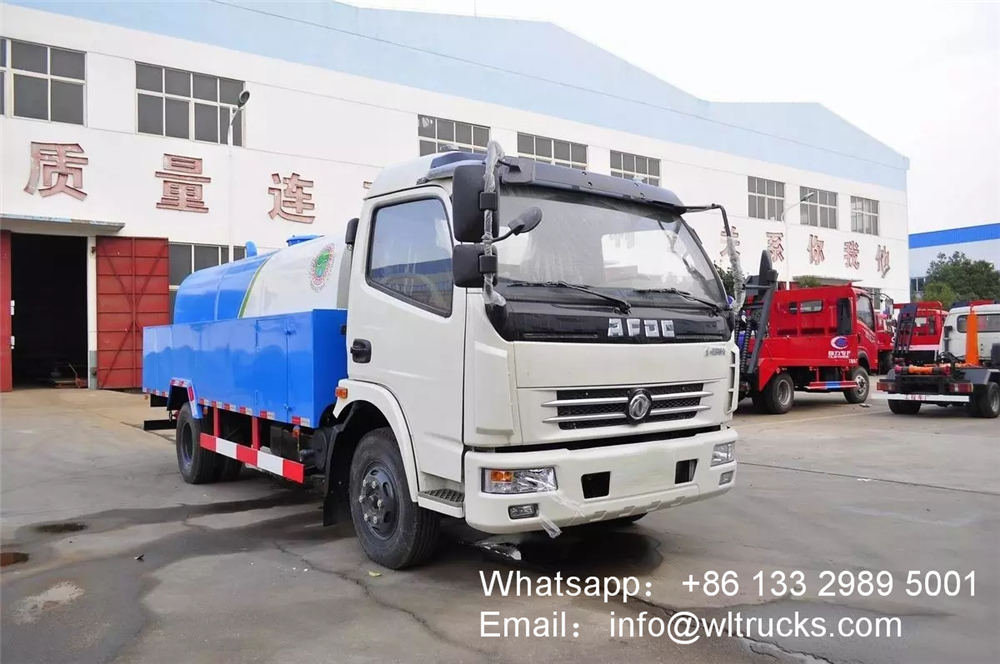

Dongfeng 8000liter High pressure cleaning truck Detailed image
