Dongfeng 5 ton Sewage treatment purification truck Specification:
Dongfeng 5 ton Sewage treatment purification truck Introduction:
It mainly used for sucking septic material and sludge from drains,transportation and discharge of sewage from septic tank and sludge from drains.And the sewage truck is also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.Chengli High pressure cleaning Digging pipe dredging truck rear part: fixed slope design, vehicle equipped with special digging device, hydraulic pipe with steel wire, high pressure resistant, imported multi-way valve, equipped with 3.5 square water tank, with high pressure dredging function, original Italy HPP imported high pressure pump pressure: 13MPA, equipped with φ13 high pressure pipe, the excavator can work up to 80 meters, operation mode: full remote control operation, full vehicle operation monitoring, reversing image.
Dongfeng 5 ton Sewage treatment purification truck Product parameters
It can be used for rapid treatment of septic tanks. At the same time, it can be installed with a stacking screw machine for secondary treatment of sewage, or a high-pressure pump can be installed for pipeline dredging.
The sewage treatment vehicle is composed of an automobile chassis, a sewage separation system, a sewage extraction system, a hydraulic system, and an electric system.
The car is easy to operate, and has been designed with various humanities on the basis of absorbing various technologies of similar products at home and abroad.
Its reasonable and reliable design ensures the speed of sewage treatment and reduces the cost of sewage treatment. The technical performance of the whole vehicle is leading and similar products. The car can be operated under various conditions through the improvement of all aspects of our company.
Product model: DFA5041TWC
Chassis model: Dongfeng Little Dolly DFA1041SJ20D5
Processing speed: 70-100m3/h
Ultimate vacuum: -98KPa
Vertical self-priming height: 9m
Discharge rate: 120m3/h
High pressure pump pressure: 16 MPa
High pressure pump flow rate: 122L/min
Dimensions: 5995x1950x2750
|
Serial number
|
name
|
Model, specification
|
Quantity
|
|
1
|
Car chassis
|
DFA1041SJ20D5
|
1
|
|
2
|
engine
|
CY4102-CE4D
|
1
|
|
3
|
Sewage separation tank
|
GW-FL-80/ GW-FL-100
|
1
|
|
4
|
Vacuum pump
|
2BVA5111
|
1
|
|
5
|
Sewage pump
|
P4
|
1
|
|
6
|
Hydraulic system
|
made in china
|
1
|
|
7
|
LED screen
|
GW-160*32 monochrome screen
|
1
|
|
8
|
Motor (optional)
|
4-18.5KW (Shanghai Source Power Motor)
|
1
|
|
9
|
Power distribution cabinet (optional)
|
QX4-30KW star triangle starter
|
1
|
|
10
|
High pressure pump (optional)
|
PF36
|
1
|
|
11
|
Cleaning water tank (optional)
|
3m3
|
1
|
|
12
|
Stacking screw machine (optional)
|
GWDL-202
|
1
|
|
13
|
Dosing machine (optional)
|
GWPE-20
|
1
|
Dongfeng 5 ton Sewage treatment purification truck advantages:
1. The truck adopts the Dongfeng Small Dolly card chassis. The model is compact and can easily enter and exit various districts, and can be driven on a blue card. The C certificate can drive and reduce the labor cost;
2, the shape of the car is beautiful and the door is equipped with special shutter doors for fire trucks. It does not occupy space after opening, safe and reliable, both beautiful and practical;
3. The car is different from other suction trucks or suction trucks. The sewage treatment vehicle can be operated continuously. The septic tank can be completed in one operation and does not need to be transported back and forth.
4. The sewage treatment vehicle has high operation efficiency and can save a lot of time for customers. It can process 70-100 cubic meters per hour, and can handle multiple septic tanks in one day. The treated sewage will not block the municipal pipe network and reach the basic sewage discharge standard. ;
5. The sewage treatment vehicle can be connected to external power supply to reduce engine wear and reduce processing cost, and can achieve zero fuel consumption and zero emissions;
6. The sewage treatment vehicle has reasonable design and adopts high-power water ring vacuum pump, which has strong suction capacity. Even if the half pipe is used for pumping manure, the treatment speed can be guaranteed, which is more suitable for the treatment of septic tank than the suction suction truck;
7. The safety of the operation is high. More than 80% of the processing work is done by machinery, the amount of manual work is small, and scientific process control ensures the safety of the job site and the operators;
8. After adding the stacking screw dewatering machine, the discharged sewage can be treated twice, and the feces in the sewage can be dehydrated and compressed to form a cake shape, and the discharged sewage can reach the national basic sewage discharge standard;
9. After installing the high-pressure cleaning pump, professional pipe dredging can be carried out, and one car can be used more, saving the cost of purchasing the car for the customer;
10. The whole vehicle spare parts are purchased from domestic famous brands. After many tests, the performance is good, the work is stable and durable.

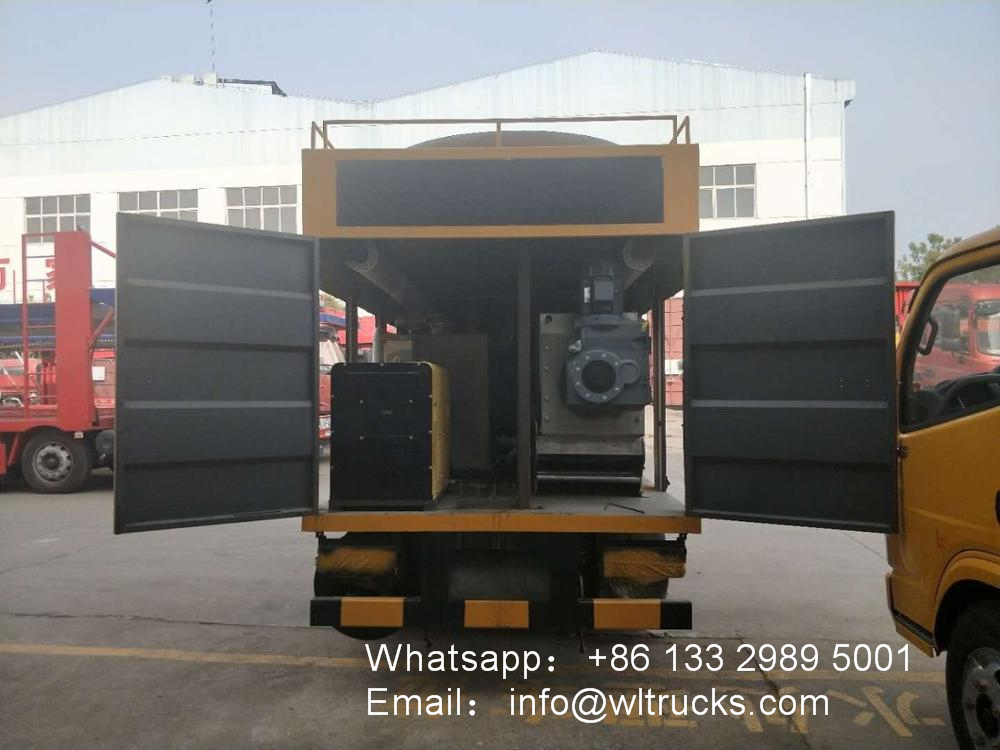

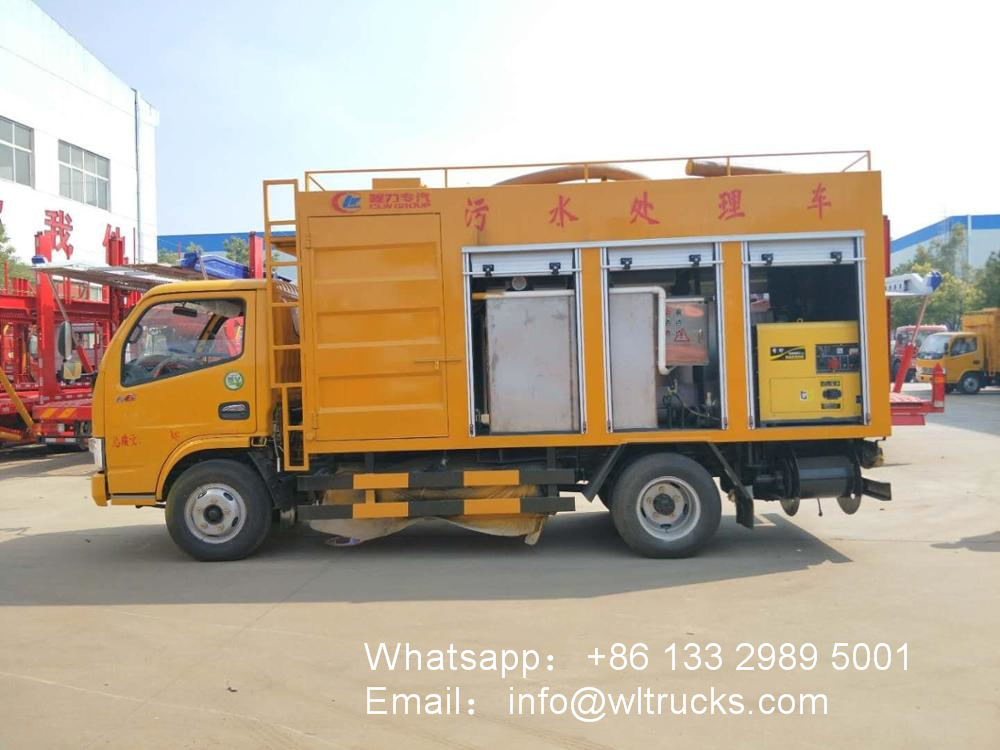

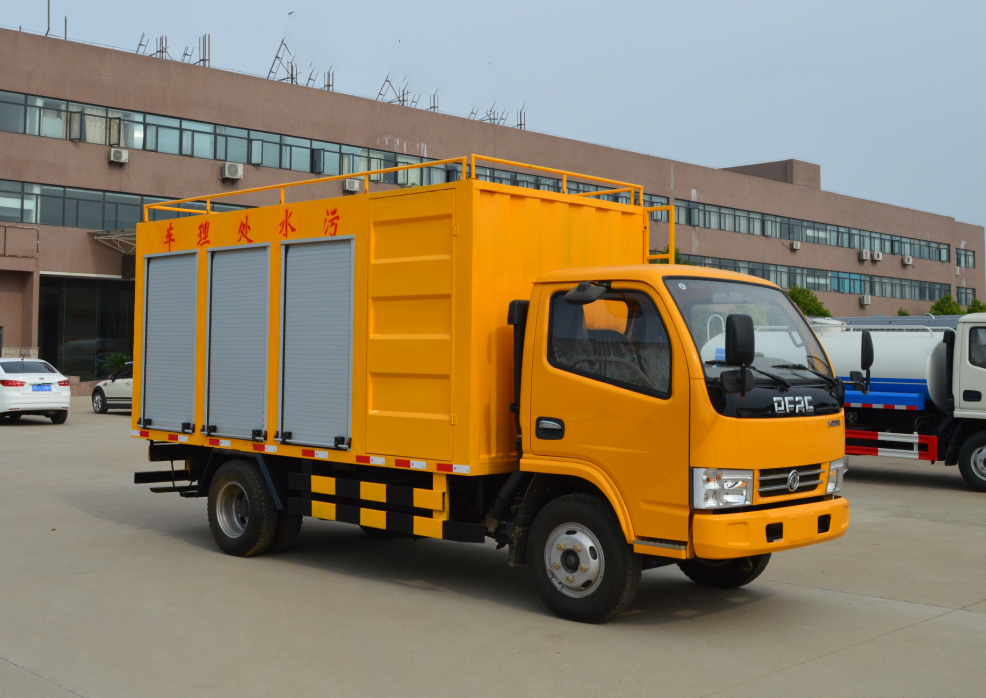

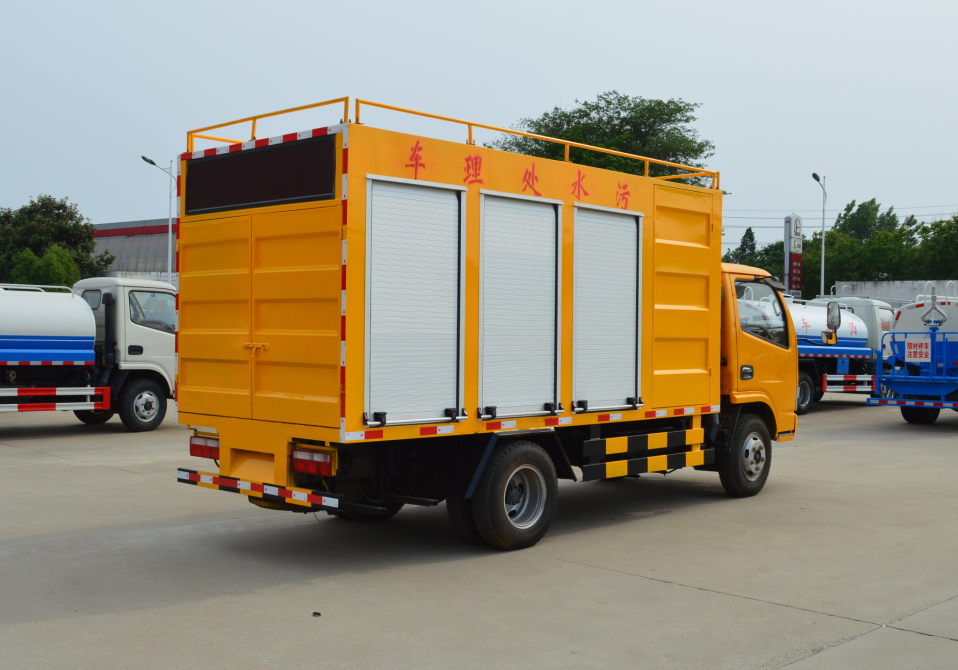

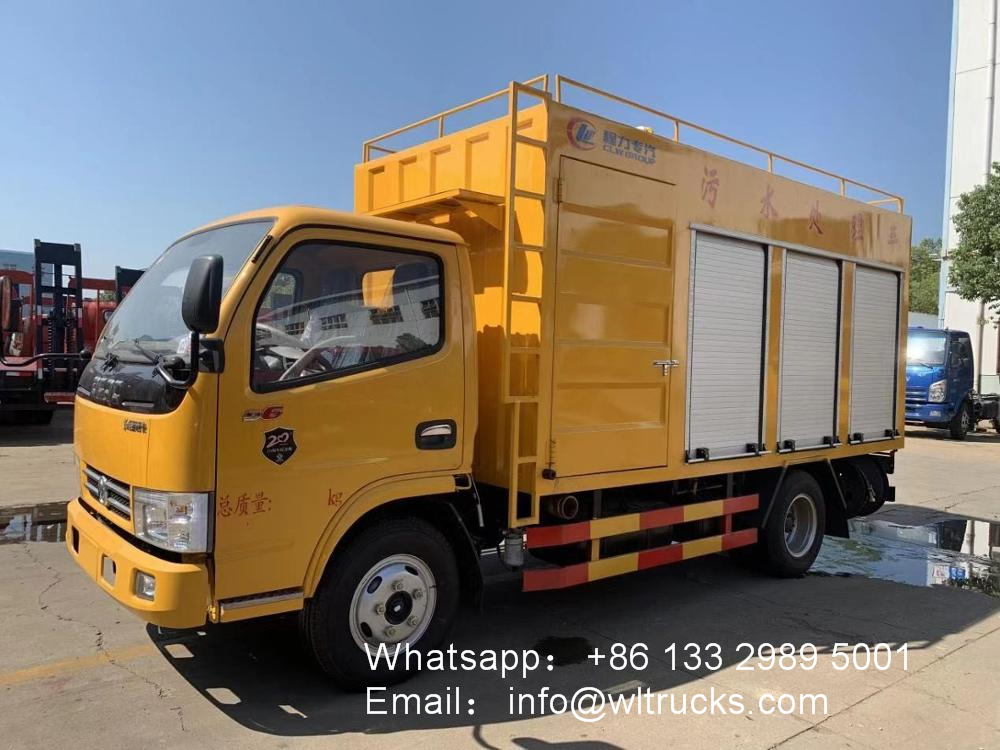

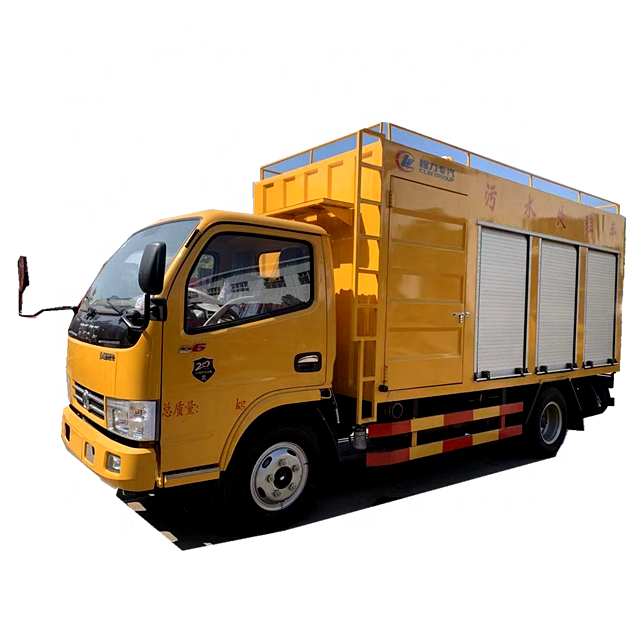

Dongfeng 5 ton Sewage treatment purification truck Detailed image
Dongfeng 5 ton Sewage treatment purification truck structure drawing
