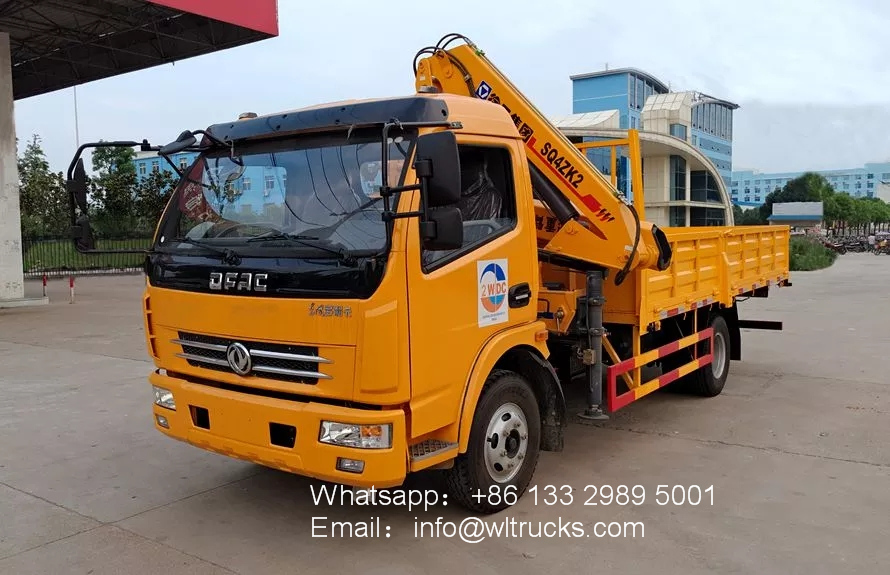

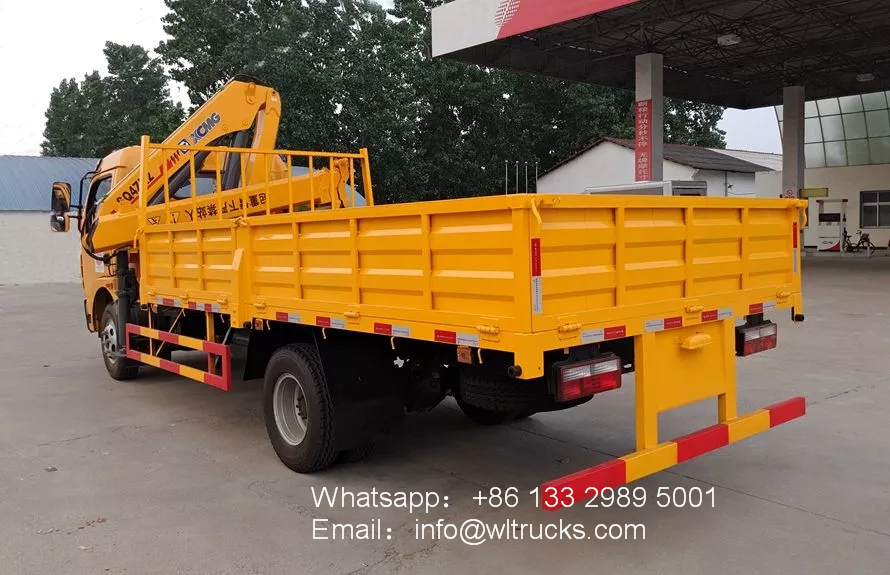

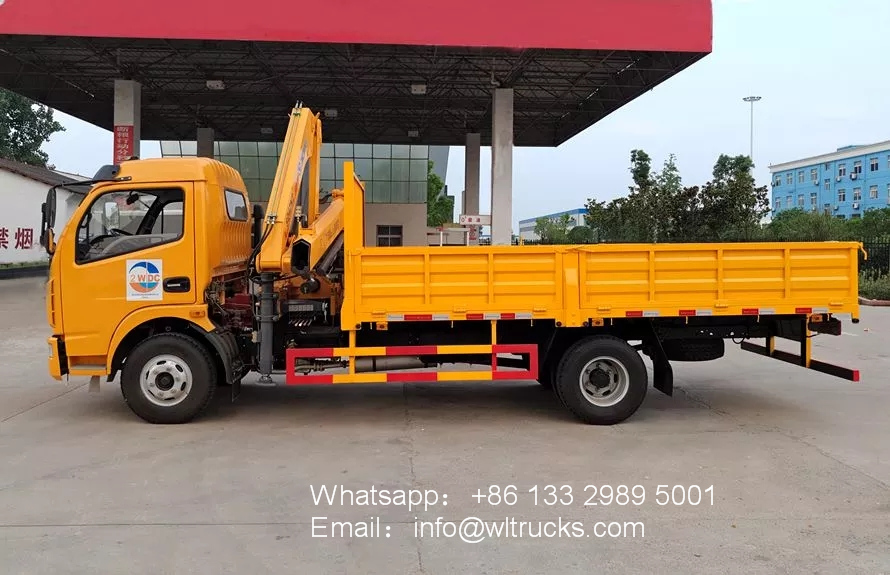

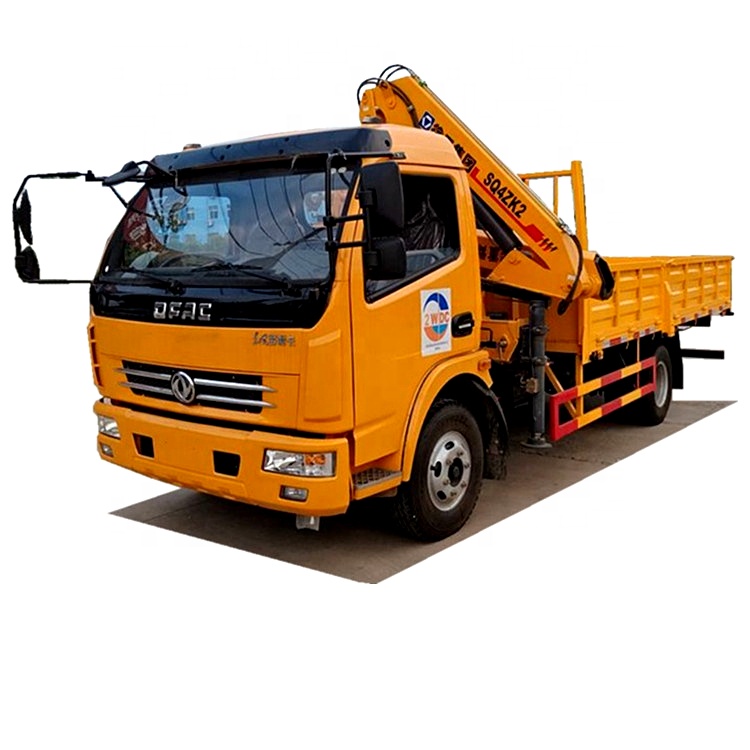

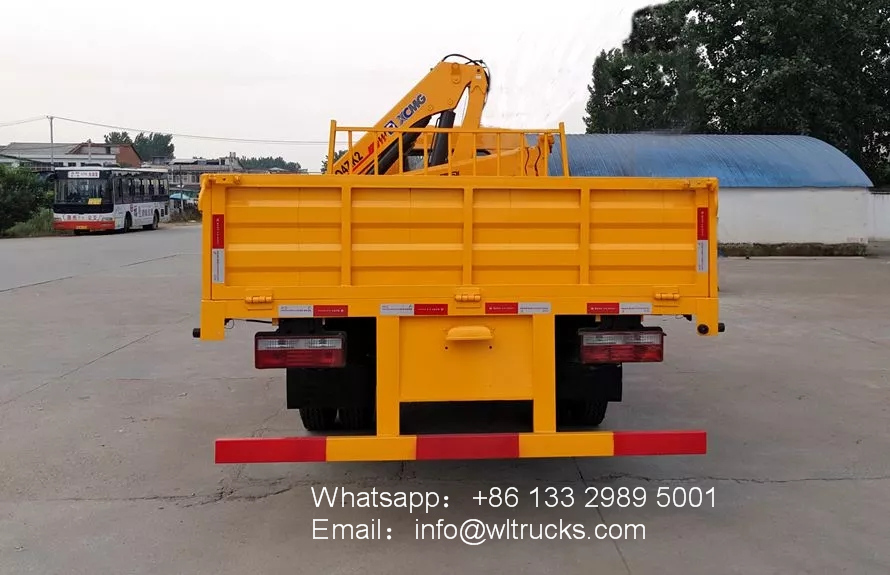

Dongfeng 4ton to 5ton folding arm mobile truck crane
Dongfeng 4ton to 5ton folding arm mobile truck crane Adopt Dongfeng D7 Dorica wide body cab, Ou Sanchao 120 horsepower, Wanliyang 6-speed gearbox, wheelbase 3800mm, 750-16 tires, vehicle size: 5995 * 2470 * 2990mm, car size: 3400 * 2300 * 550mm , Manual telescopic or hydraulic telescopic cargo box can be customized, the rear can be equipped with a ladder, automatic unloading elevator, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Dongfeng 4ton to 5ton folding arm mobile truck crane specification:
|
PRODUCT INFORMATION |
||
| Product Name | mini 4ton 5 ton truck mounted crane | |
| Cab | Single row cab, two doors, rated passengers 2 | |
| Chassis | Brand | DONGFENG |
| Drive type | LHD or RHD 4*2 | |
| Adaptive Crane | 3.2T/4T | |
| Crossbeam | 200mm | |
| Axle Load | 1.5T/3T | |
| Tire | 7.50 | |
| Tire No. | 6 | |
| Wheelbase(mm) | 3800 | |
| Braking System | air brake | |
| Transmission | Manual , 5 gearbox | |
| Engine | Model | CHAOCHAI |
| fuel type | diesel | |
| Horse Power(kw/hp) | 88kw/120hp | |
| Displacement(ml) | 3856 | |
| Emission standard | Euro 3/4/5 | |
| Dimension & weight | Overall dimension (L*W*H/mm) | 5995×2350×3200 |
| Axles No. | 2 | |
| Gross Weight(kg) | 4495 | |
| Curb Weight(kg) | 4000 | |
| Max speed(km/h) | 100 | |
| Performance parameter | Body dimension(L*W*H)(mm) | 4350×2150×550 |
| Max lift quality(kg) | 4T | |

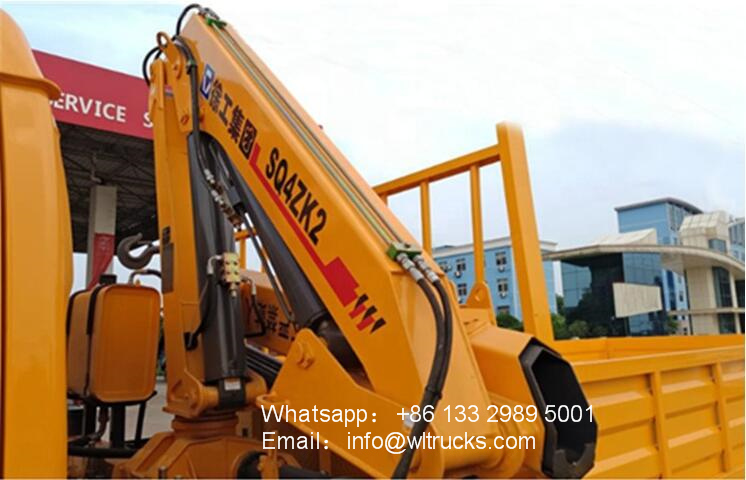

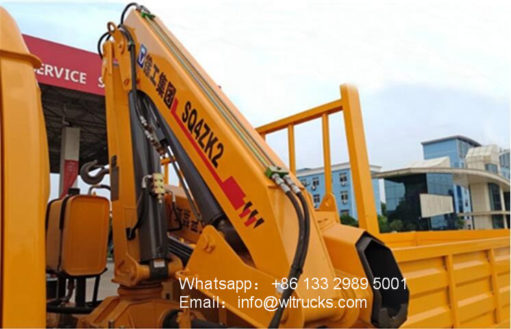

| Crane type | three section telescopic folding boom | |
| Max. Lifting Height(m) | 11.5m | |
| Supporting Legs | H type hydraulic outrigger | |
| Swivel Angle Range | 360 degree full rotation | |
Dongfeng 4ton to 5ton folding arm mobile truck crane Working parameter:
