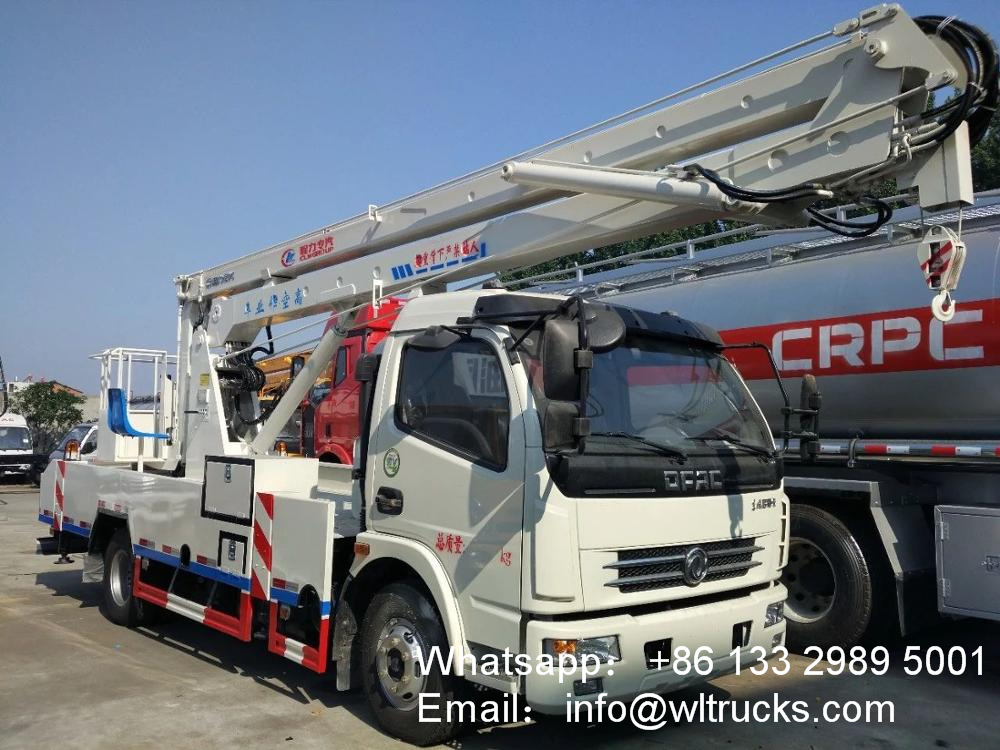

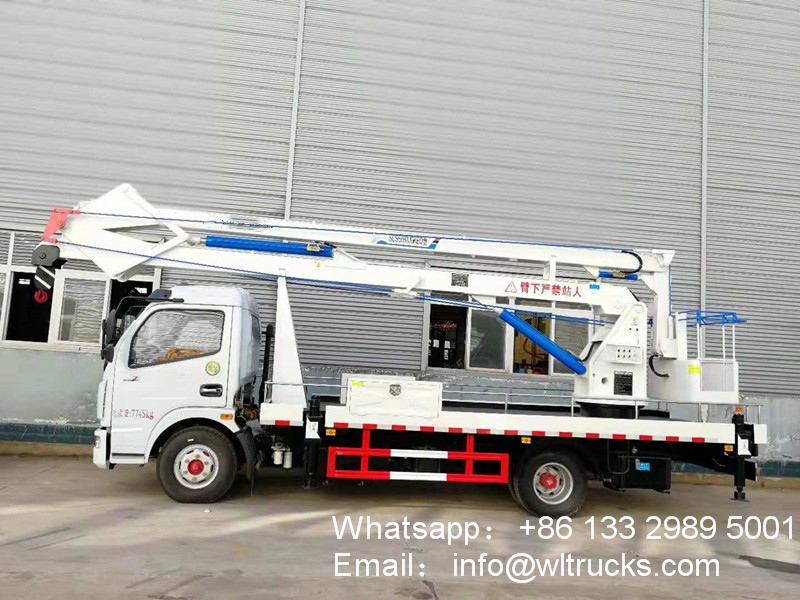

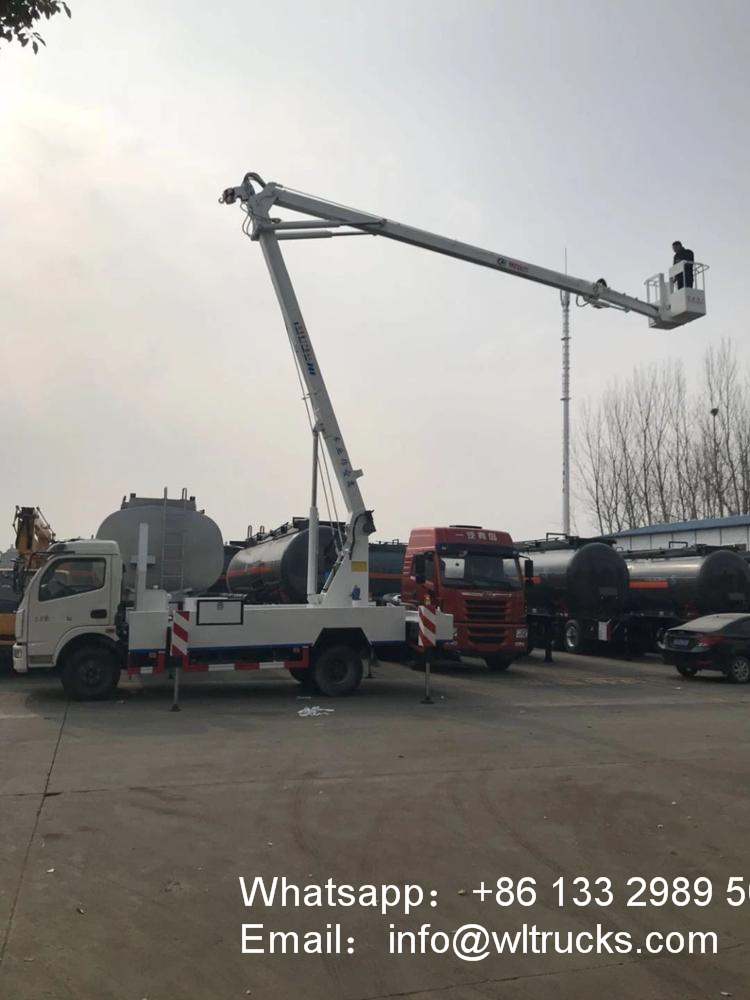

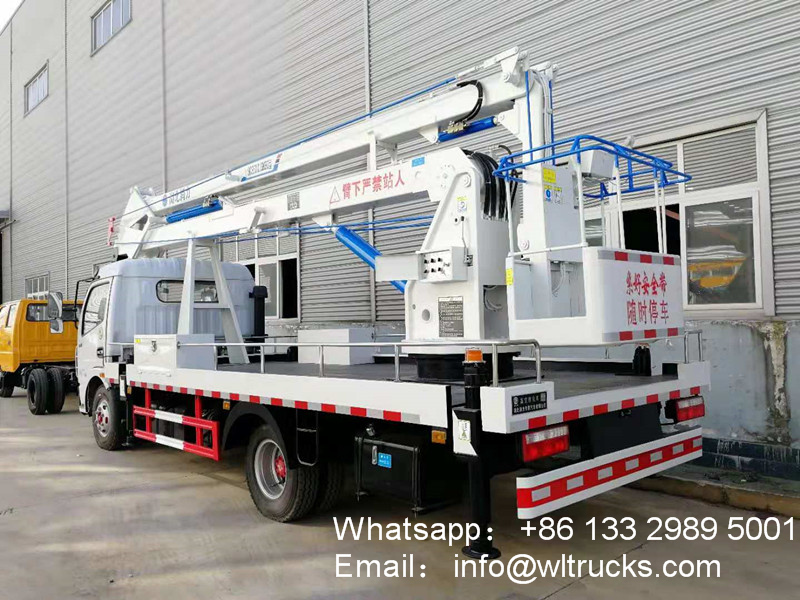

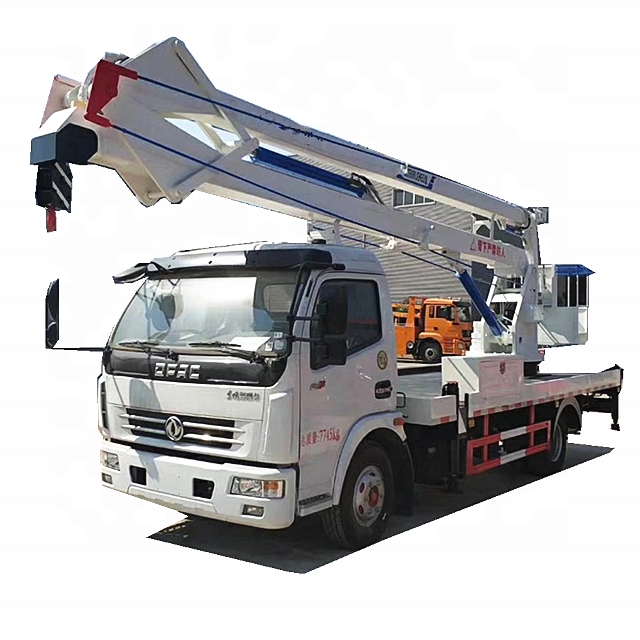

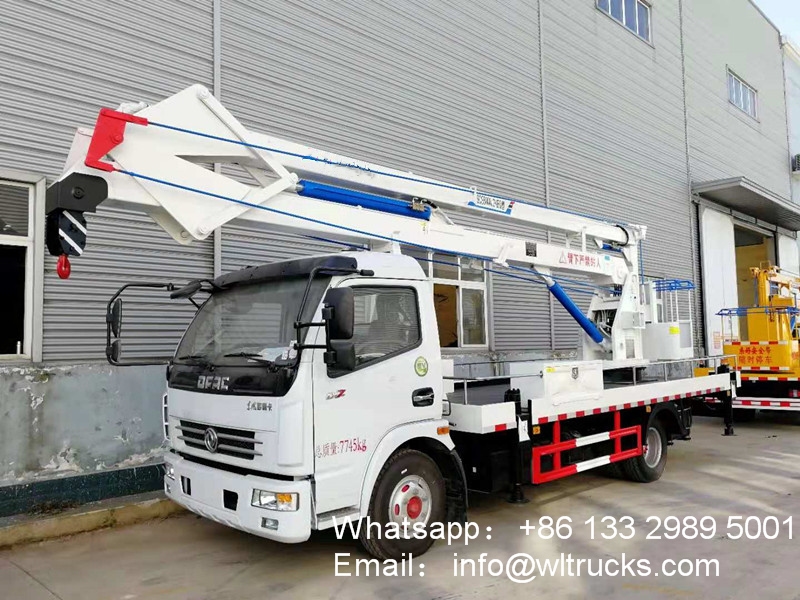

Dongfeng 18m aerial work truck
Dongfeng 18m aerial work truck Application area：
Aerial platform vehicles are widely used for installation, maintenance and ascending operations in industries such as municipal administration, electric power, street lights, advertising, communications, photography, gardens, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises, etc.
Aerial platform truck are also known as: street light repair trucks, hydraulic lift trucks, ascending platform trucks. Our company specializes in the production of 6 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters , 28 meters, 32 meters, 38 meters, 45 meters aerial platform trucks, lift trucks, products are widely used in electric power, street lamps, municipal Aerial work areas such as gardens, communications, airports, shipbuilding, ship repair, transportation, advertising, photography, etc. According to the type, it is mainly divided into: vertical lift type (also known as scissor type) aerial work truck, folding arm type lift aerial work truck, self-propelled aerial work platform, telescopic boom type aerial work truck, and ladder truck.
Dongfeng 18m aerial work truck specification:
| Truck Mounted Aerial Work Platform | |
| Overview | |
| Name | Truck Mounted Aerial Work Platform |
| Dimension(LxWxH) | 7400X1980X3100(mm) |
| Total Mass | 8050Kg |
| Rated Payload | 5000Kg |
| Kerb Weight | 3050Kg |
| Passenger | 3 |
| Approach/Departure | 19/15 |
| Max. Speed | 90km/h |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng/EQ1060TJ20D3 |
| Driving Type | 4*2 right/left hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Six (five speed forward and one reverse, manual) |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 7.00-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| The Paremeters of Engine | |
| Manufacturer/Model | Chaocai/CY4102-C3F |
| Rated Power | 95hp/70kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3856ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 450N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Platform Dimension | 1100X570X1000mm |
| Max Working Height | 16000 mm |
| Max Working Radius | 8000 mm |
| Angle Of Rotation | 360° |
| Platform Loading | 200kg |
| Platform Passenger | 2 |
| Rotating Speed | 0-2 r/min |
| Common Accossories | Double operation systems,bucket insulation,3 booms,hydraulic oil tank, 500kg lifting hook,box truck body design,4 hydraulic H-shape legs,2 signal lamps,2 tool boxes. |
Dongfeng 18m aerial work truck Working parameter:
