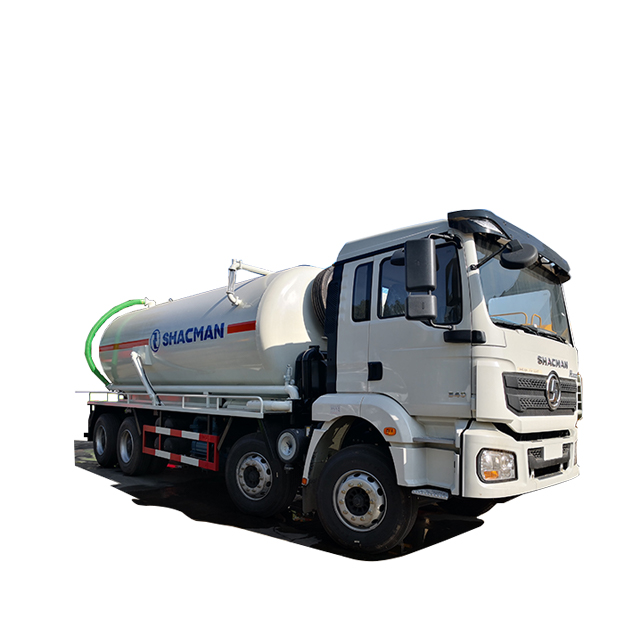

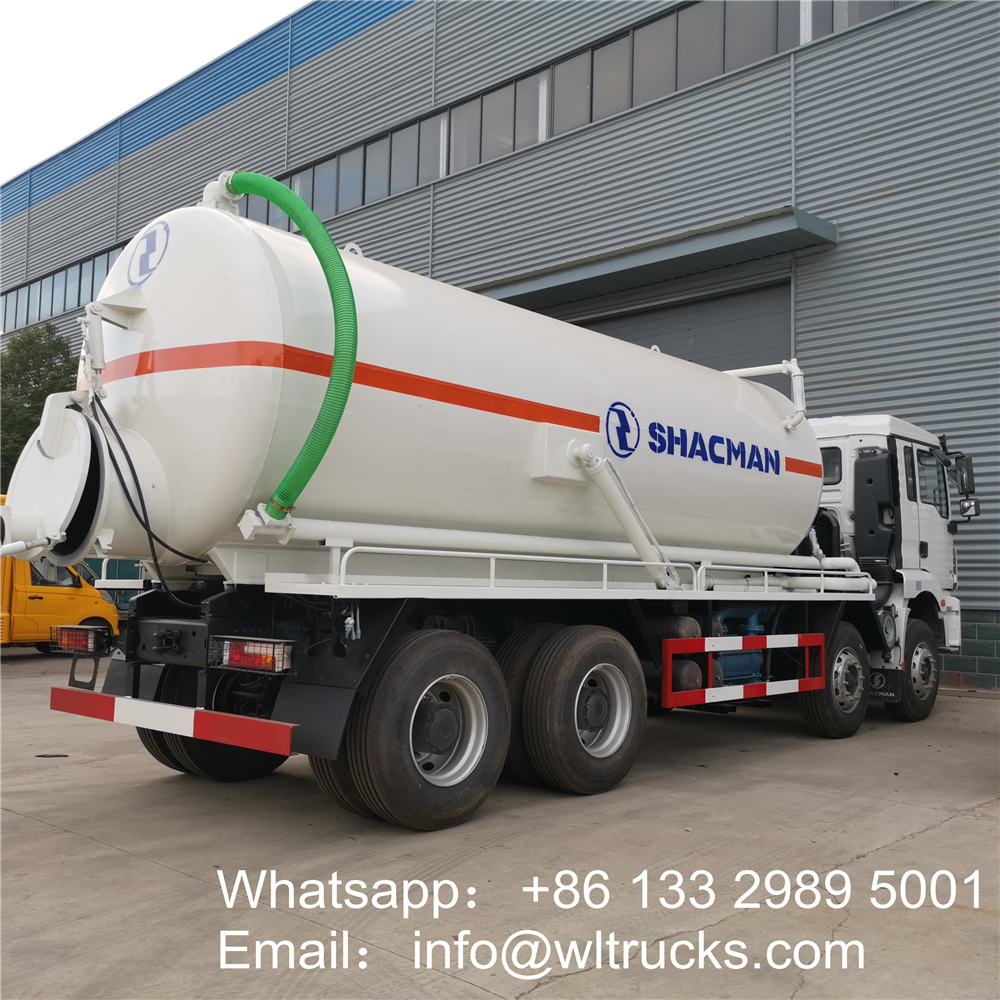

8X4 Shacman 20000liters vacuum sewage suction truck Specification:
8X4 Shacman 20000liters vacuum sewage suction truck Chassis configuration: Chassis Delong luxury cab, wheelbase 5825+1350, Weichai 290 horsepower, tires 11.00R20, air brake, with ABS, power steering, electric doors and windows, driving recorder.
8X4 Shacman 20000liters vacuum sewage suction truck Top-loading configuration: the tank body can be selected from 16-20m3, equipped with a double vacuum pump, full 15 minutes of suction, 8 minutes of pumping and exhausting, double-cylinder lifting and unloading of the tank body, large opening at the end of the tank, 1 self-flow valve equipped 1 dirty pipe.
Optional configuration: optional auxiliary engine + water ring vacuum pump, optional hydraulic opening of the tailgate, customized color and logo.
8X4 Shacman 20000liters vacuum sewage suction truck Product parameters
| Product Technical Specifications | ||||
| Item | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | CHENGLIWEI | ||
| Overall Dimensions L*W*H | 10100*2500*3850mm | |||
| Weights | GVW. | 31000kgs | ||
| Kurb Weight | 11870kgs | |||
| Rated Payload | 18000kgs | |||
| Chassis | Chassis Brand | Shacman | ||
| Drive Type | 8×4 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Weichai engine | ||
| Power | 247Kw /336HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
| Performance | Max. Speed | 90km/h | ||
| Wheel base | 1800+4600+1350,1800+4575+1400 mm | |||
| Tyre Specifications | 11.00-20,12.00R20 | |||
| No. of Tyre | 10 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 2 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 16-18 m³ | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump | China famous vacuum pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||
| Basic Equipments |
Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
| Paint | Tank color is according to client’s requirements. | |||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
8X4 Shacman 20000liters vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
8X4 Shacman 20000liters vacuum sewage suction truck Working parameter New craft
8X4 Shacman 20000liters vacuum sewage suction truck Optional configuration

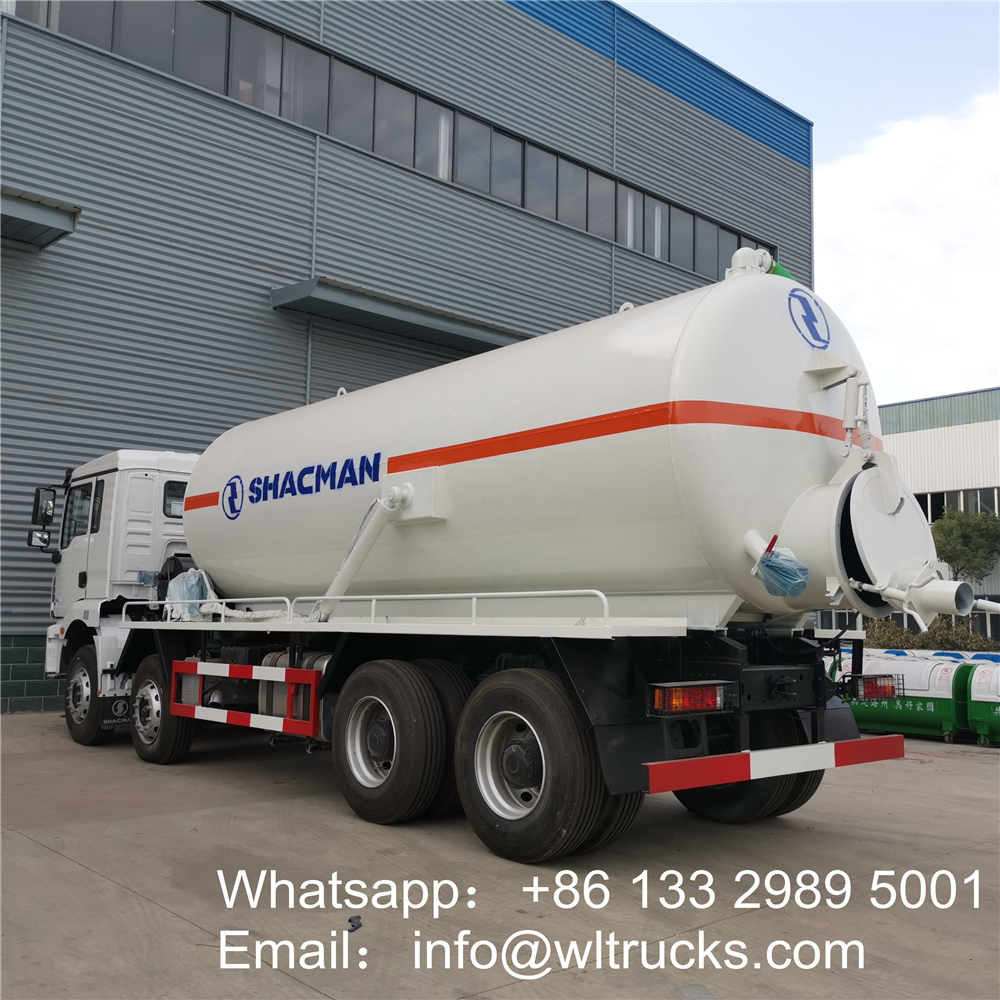

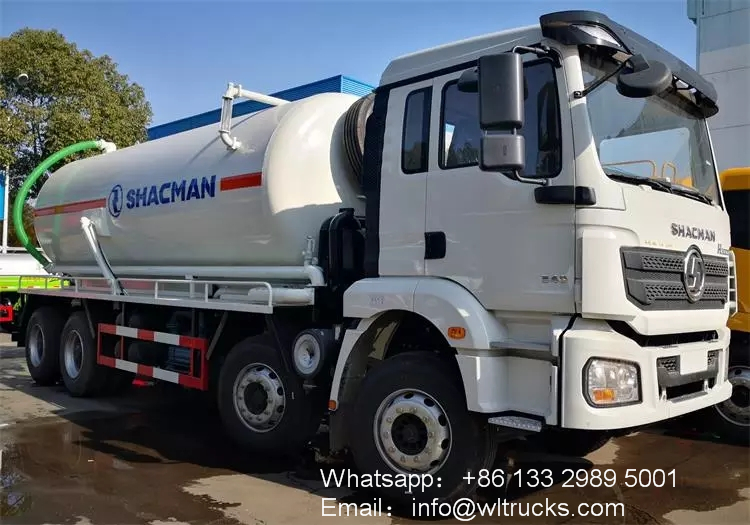

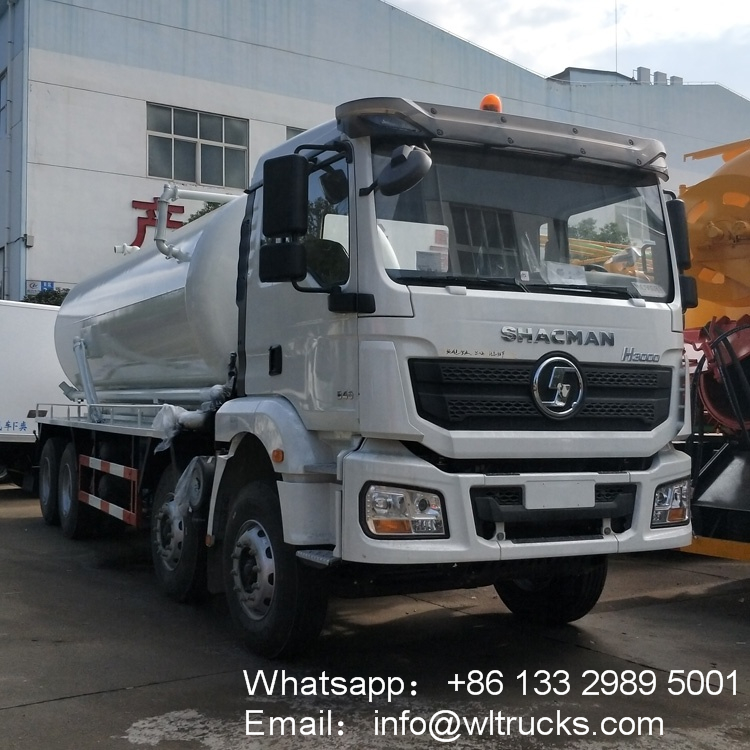

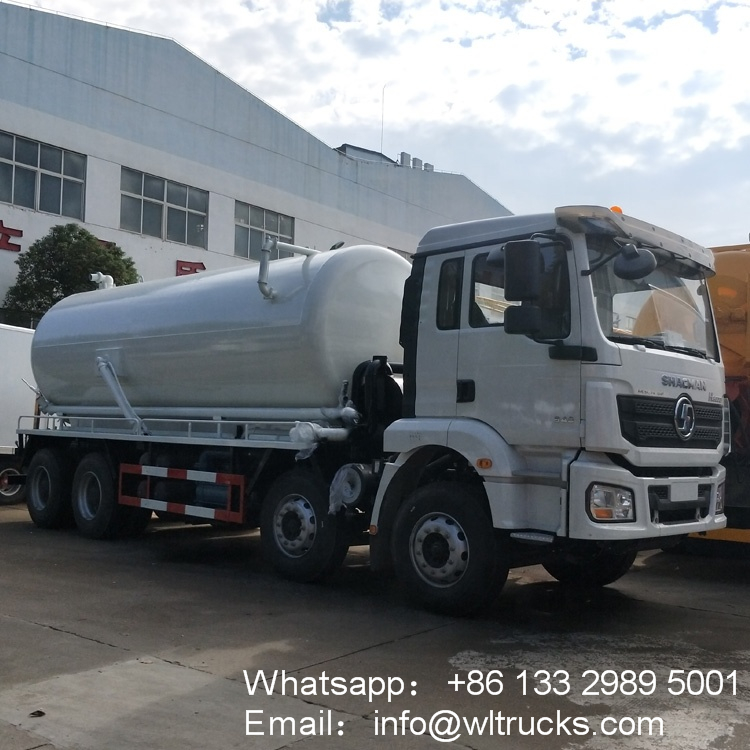

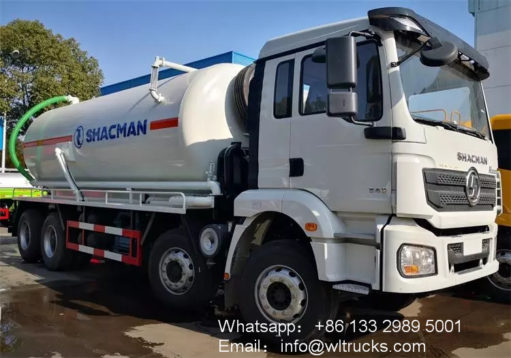

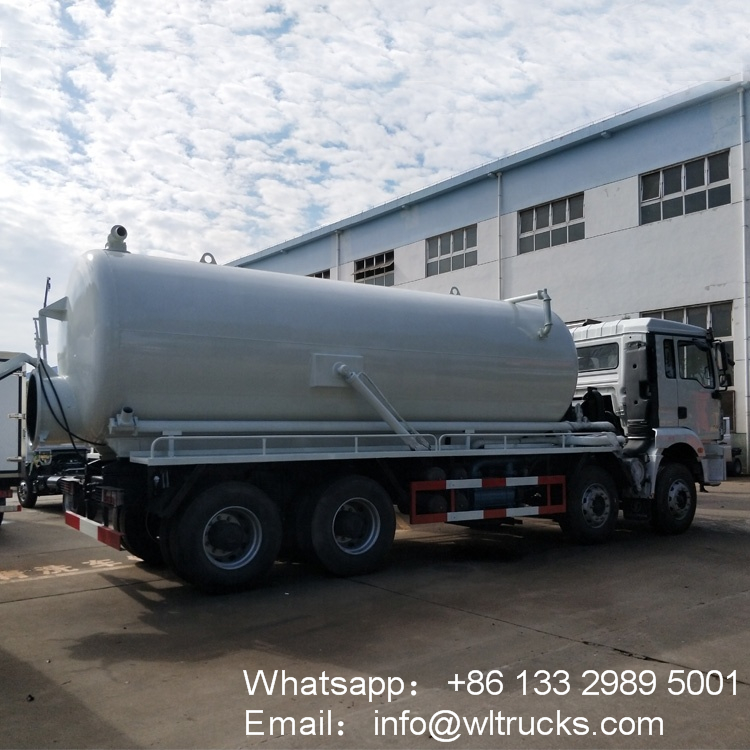

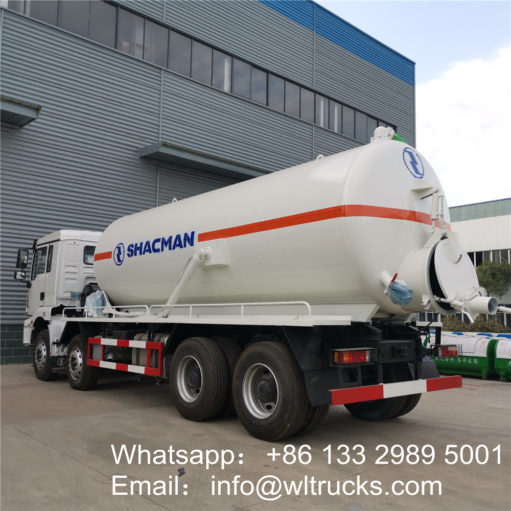

8X4 Shacman 20000liters vacuum sewage suction truck Detailed image
