products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

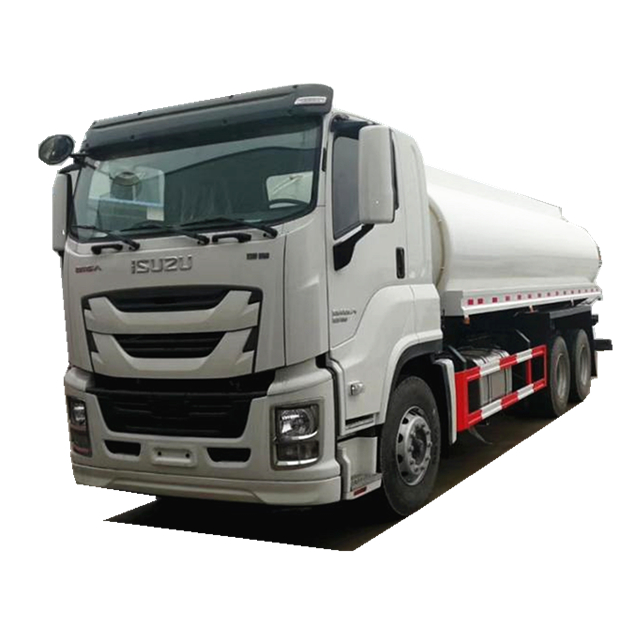

6×4 ISUZU 20000 liter to 25000liters water tank truck Specification:
| Product name | CLW5330GSSQL5 japan water truck | Options |
| Producer | ChengLi Special Automobile Co.,Ltd | |
| Brand | CLW | |
| Cab & chassis | Japan chassis | |
| Overall dimention | 10150*2500*3250(mm) | |
| Volume of tank body | 20000 liters | 1~25cbm, trailer |
| Material of water tank | Q235 | Stainless steel |
| Engine power | Qingling lsuzu 6WG1-TCG51 460HP diesel engine
turbo charged, intercooler, 15.68L, 2060N.m torque |
|
| Driving cab | GIGA luxury cab, LHD, 3 seats, with bunk, A/C, power window, central lock, multi-function dashboard, multi-function steering wheel | |
| Steering | Power steering | |
| Transmission | FAST 12-speed gearbox | |
| Brake | Air brake | |
| Watering system | ||
| Front flushing nozzle | Two, manual valve,12~14 mters, pneumatic control | >16meters |
| Rear sprayer | Two, manual valve,5~7 meters, pneumatic control | |
| Side sprayer | Two, manual valve,7~9 meters, pneumatic control | |
| Main valve of watering system | Four position three-way ball valve | Pneumatic valve |
| Control way | Manual | Automactic |
| Three-way filter net | One unit, under tank body | |
| Water intake/outlet | One unit | |
| Fire hydrant joint | One unit | |
| Manhole | One unit | |
| Options | ||
| High pressure water monitor | One unit, range >25m | Fire monitor,range>40m |
| Pneumatic ball valve | One unit, auto controlled type | |
| Shape of front flushing nozzle | Duckbill nozzle | |
| Sprayer machine | for air dust suppression,wet air, spraying pesticides | Option power |
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
