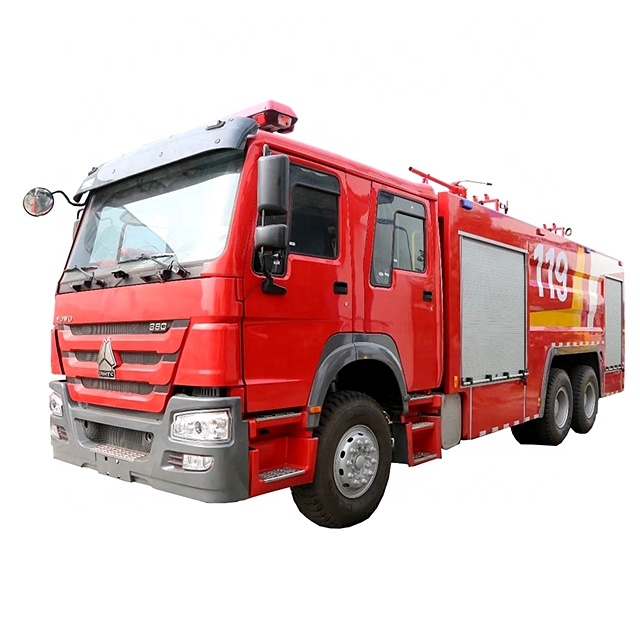

6×4 HOWO 16ton water foam fire engine truck Adopting Sinotruk HOWO ZZ5347V4647E1 chassis, the liquid carrier tank is made of high-quality carbon steel, and is elastically connected to the chassis, carrying water 12780kg (PM160), foam liquid volume 2770kg (PM160), equipped with CB20.10/30.60 medium and low pressure fire fighting Pump, rated flow 60L/S, roof mounted PL48 (PM160) fire cannon.
Product Specifications:
| Vehicle model | CLW5314GXFPM160 foam fire truck | Chassis model | ZZ5347V4647E1 |
| engine | Sinotruk 340 horsepower engine/249kw | Emission Standards | Eruo 3 |
| Outside dimensions | 10655×2500×3540mm | Wheelbase | 4600+1350mm |
| Carrier volume | 16000L (water 12780, foam 3200) | Tank size | 3900×2400×1415 water tank 820×2400×1415 foam tank |
| Fire Pump | Shanghai Xiongzhen CB10/60 | Fire cannon | Chengdu West PL48 |
| Fire pump rated flow | 60L/s 1.0MPa | Environmental protection/exemption | Yes/To be released |
| Rated flow of fire monitor | 48L/s 1.0MPa | Fire gun range | Water≥55m Foam≥50m |
Howo 16t foam fire truck detailed introduction
| Outside dimensions | 10655×2500×3540mm |
| Maximum total mass | 30900kg |
| Carrier volume | Foam car water 12780kg, foam 2770kg, water tank car water 15500kg |
| Maximum speed | 95km/h |
| Fire pump rated flow | 60L/s 1.0MPa |
| Rated flow of fire monitor | Foam truck: 48L/s 1.0MPa Water tank truck: 60L/s 1.0MPa |
| Fire gun range | Foam truck: foam ≥50m water ≥55m water tank truck: ≥70m |
| Specific power | 249/30.9=8 |
| Approach / departure angle | 14°/11° |
Main parameters of chassis
| model | ZZ5347V4647E1 | |
| manufacturer | China National Heavy Duty Truck Group Jinan Truck Co., Ltd. | |
| Engine rated power | 249kw | |
| engine capacity | 9726ml | |
| Engine emission standards | GB17691-2005 National V | |
| Drive form | 6×4 | |
| Wheelbase | 4600+1350mm | |
| Maximum allowable gross weight | 34000kg | |
| Minimum turning radius | ≤23m | |
| Gearbox | Manual |

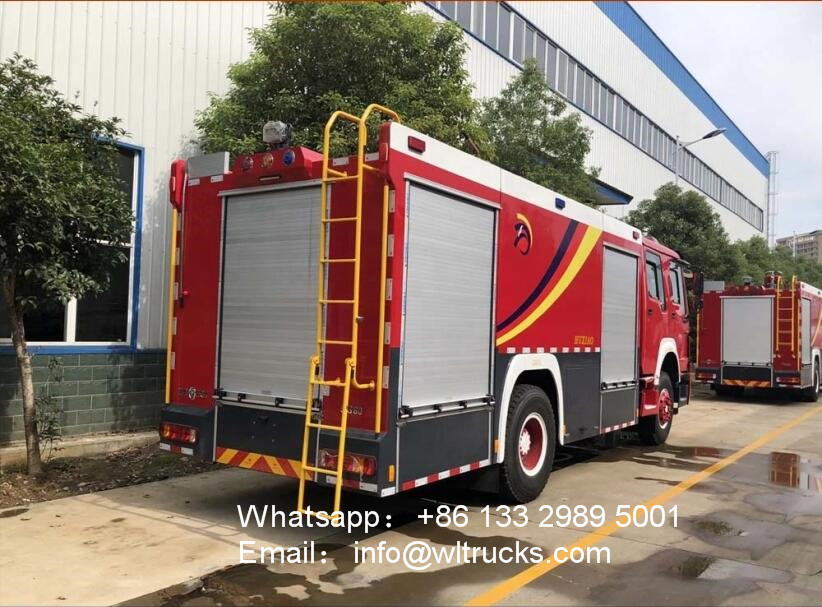

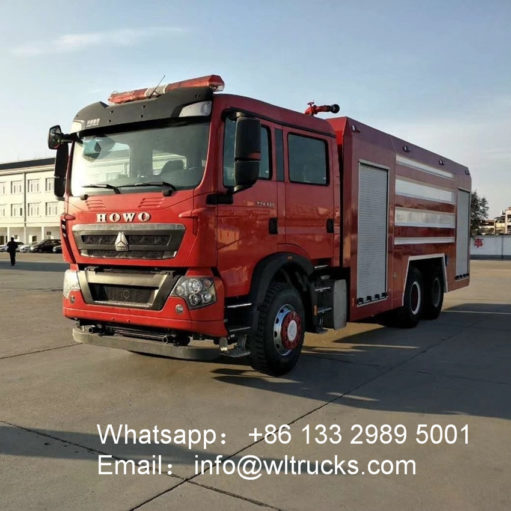

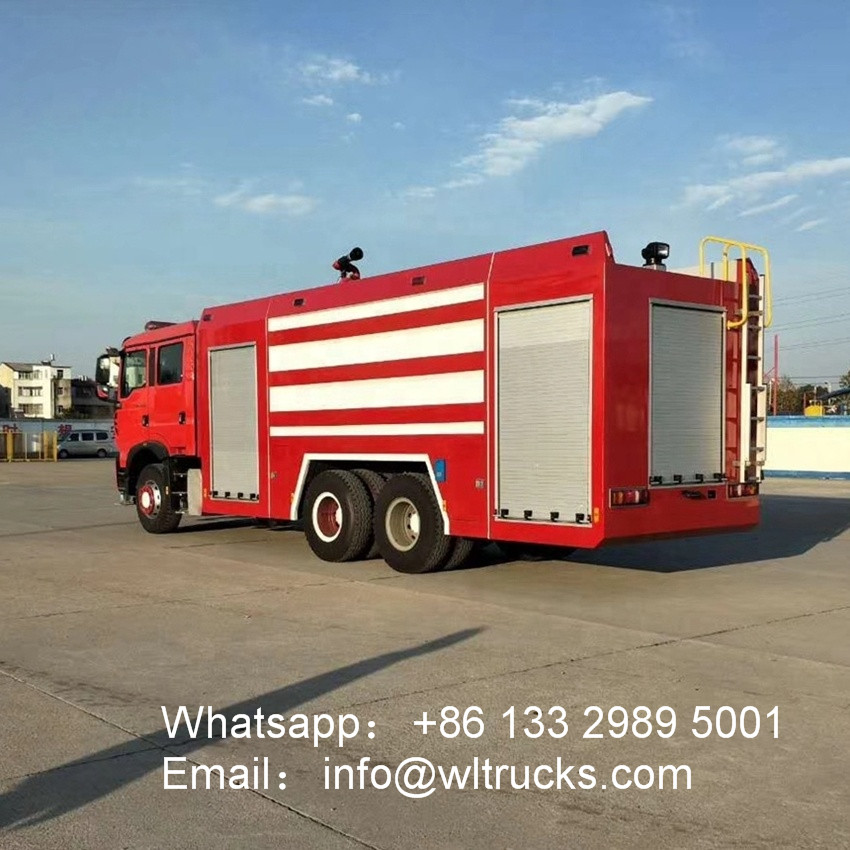

6×4 HOWO 16ton water foam fire engine truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
