Sinotruk 3 ton small crane truck

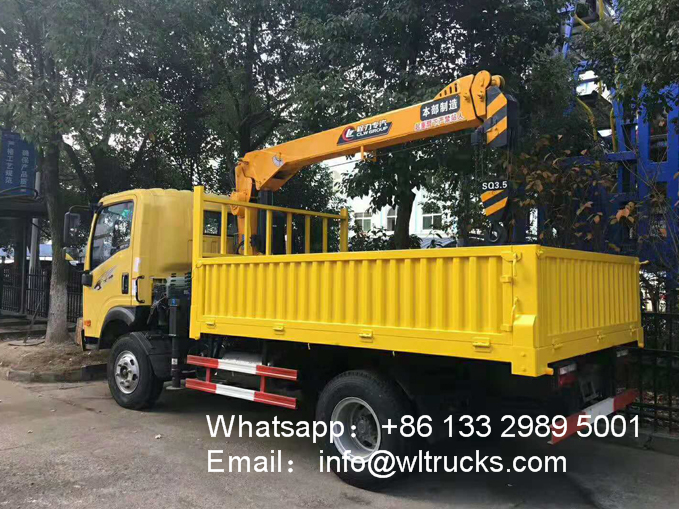

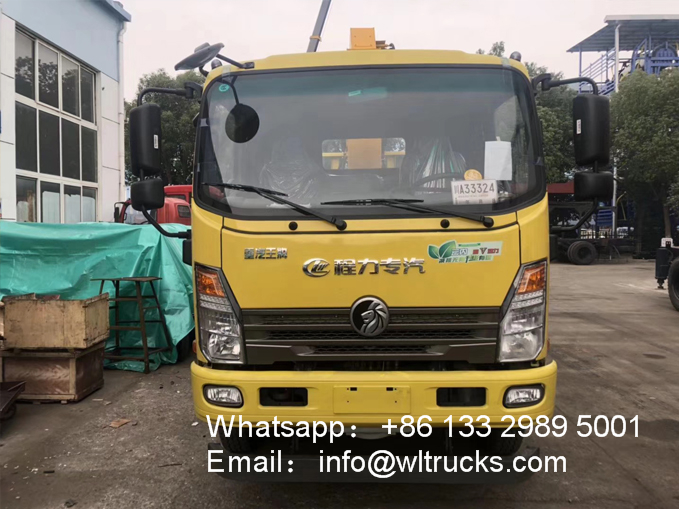

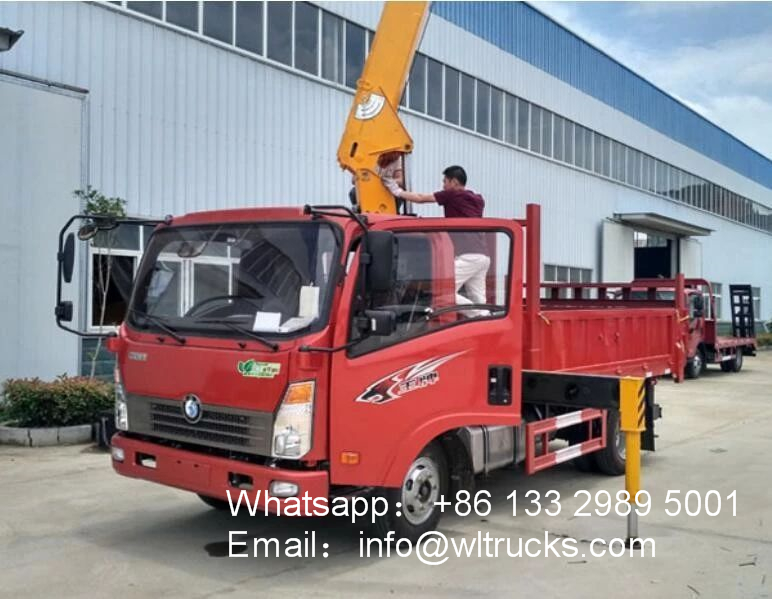

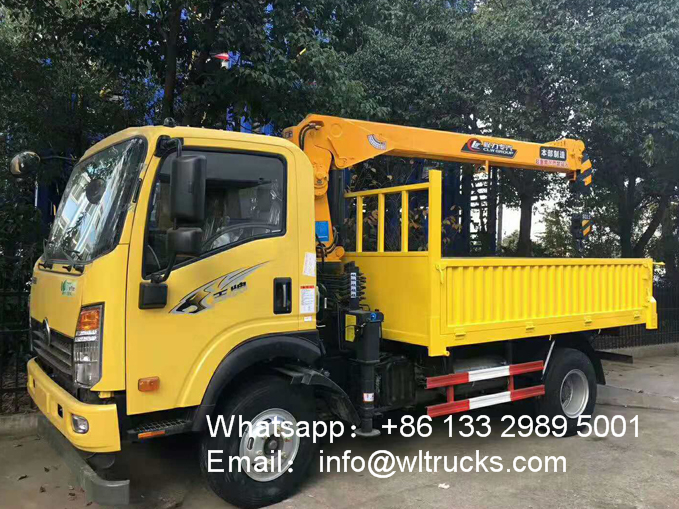

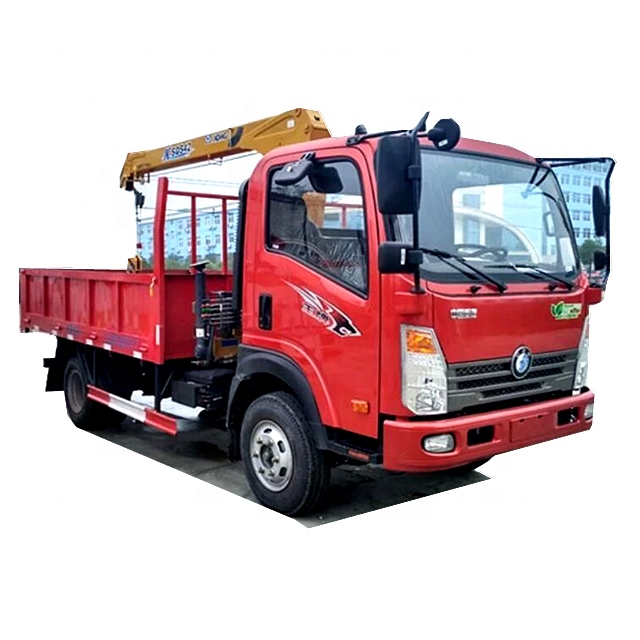

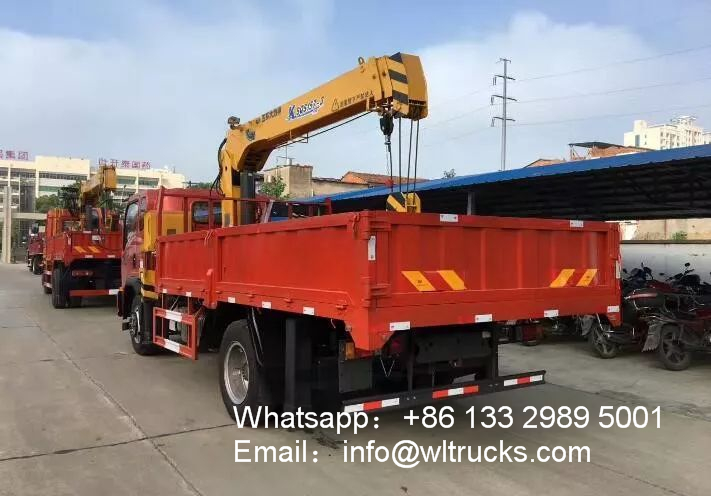

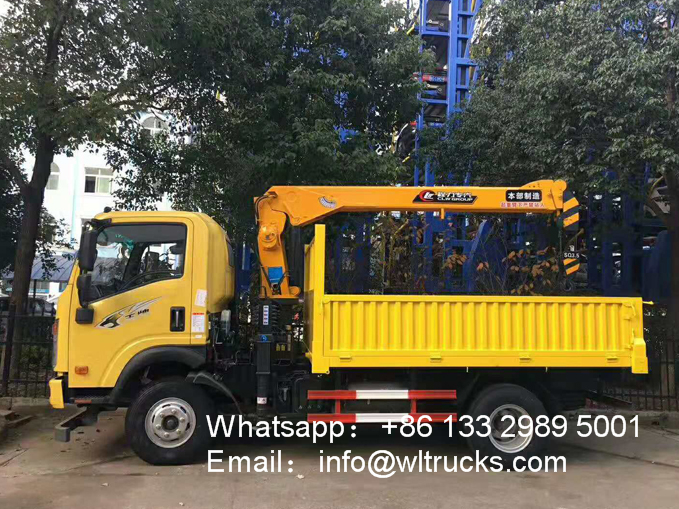

Sinotruk 3 ton small crane truck Adopt Sinotruk Ace 2080 single-row cab, wheelbase 3360mm, engine is Xichai 95 horsepower, 5-speed gearbox, 230 beams, 4 tons rear axle, heater, air brake, power steering, ABS. It is loaded with 2 tons of 3-section straight arm crane (model SQS42-3), with a maximum lifting height of 9 meters, a working radius of 7.9 meters, and full rotation.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Sinotruk 3 ton small crane truck specification:
| Crane tonnage: | 2-3.5 tons |
| Chassis brand: | Sinotruck wangpai |
| engine: | Xichai 90 horsepower |
| Gearbox: | 5 files |
| Emission Standards: | Eruo 3 |
| Dimensions: | 5995×2065×2900 |
| Container size: | 3590×1850×380 |
| Wheelbase: | 3360 |
| Front/rear bridge: | 2 tons front axle, 3.5 tons rear axle |
| Tires: | 7.00-16 |
| Crane description: | The Tengyu 2 ton truck-mounted crane has a maximum lifting capacity of 2 tons, a maximum working radius of 5.5 meters, and a maximum lifting height of 7.5 meters. It is fully hydraulic and fully slewing. |
| Configuration instructions: | Sinotruck wangpai cab, xichai 90 hp engine, 5-speed gearbox, 3360mm wheelbase, 2 ton front axle, 3.5 ton rear axle, 7.00R16 wire tyre, oil brake, exhaust brake, ABS. |
SQ3.5SA2 (3.5 tons three-section arm truck crane) parameters
| Crane model | SQ3.5SA2 (3.5 tons two straight arms) | |||||
| Maximum lifting mass (kg) | 3500 | |||||
| Maximum lifting torque (nm) | 70000 | |||||
| Sectional form | hexagon | Slewing mechanism | Rotation speed r/min | 2.5 | ||
| Section number | 3 (two sections) | Swing range (°) | 360 | |||
| Length m | 3.5-7.6 | Outrigger | Type | Upright leg | ||
| Maximum working radius m | 7.6 | Span m | 1.85-3.1 | |||
| Extending speed m/s | 3/30 | Hydraulic system | System pressure mpa | 17.5 | ||
| Range of amplitude | 0-73° | Tank volume L | 40 | |||
| Arm speed | 73/14°/s | safety equipment | Overturn alarm | |||
| Maximum lifting height m | 9.5 | Self weight kg | 1050 | |||
| Single rope allowed tension N | 8750 | Match truck | Loading trucks with a mass of more than 1 ton | |||
| Maximum single rope speed m/min | 36 | Note: The above table parameters are rated parameters when the engine speed is 1500r/min. | ||||
| Wire rope diameter mm | 8 | |||||
| Wire rope length m | 55 | |||||
| Working radius m | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.6 |
| Rated load kg | 3500 | 1880 | 1080 | 780 | 580 | 430 |
Sinotruk 3 ton small crane truck Working parameter:
