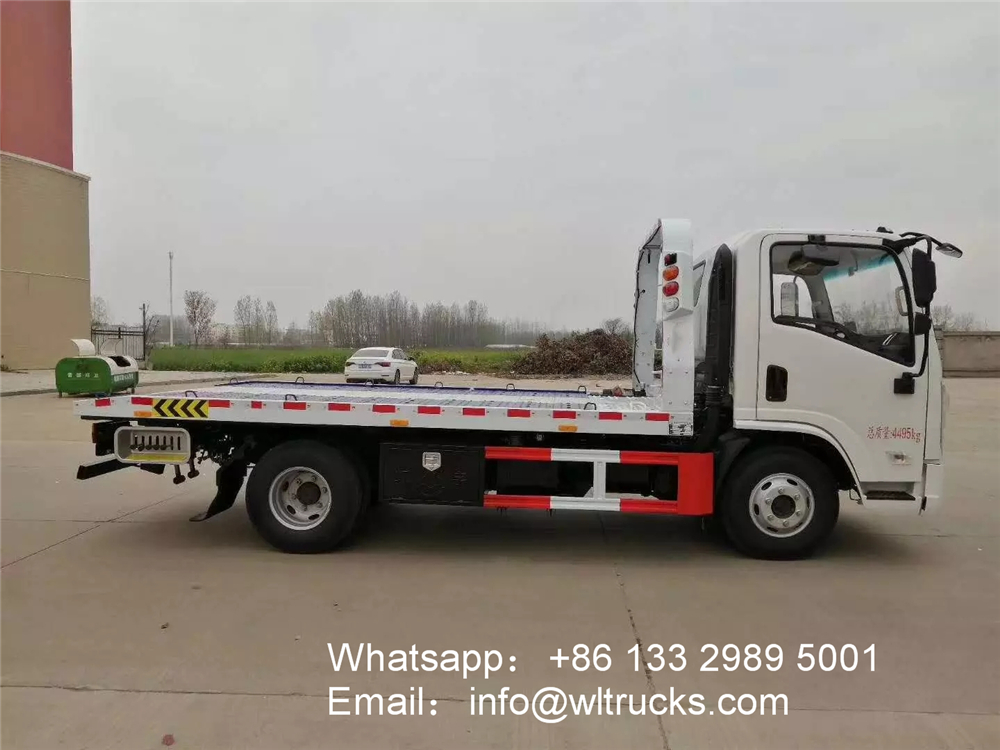

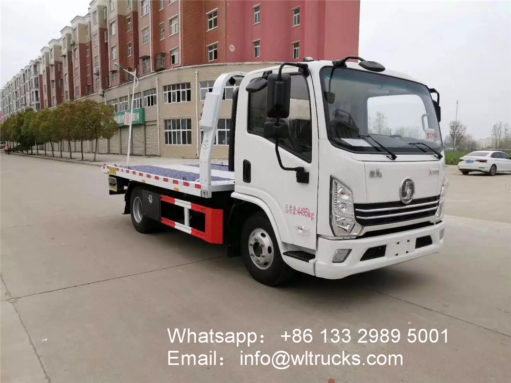

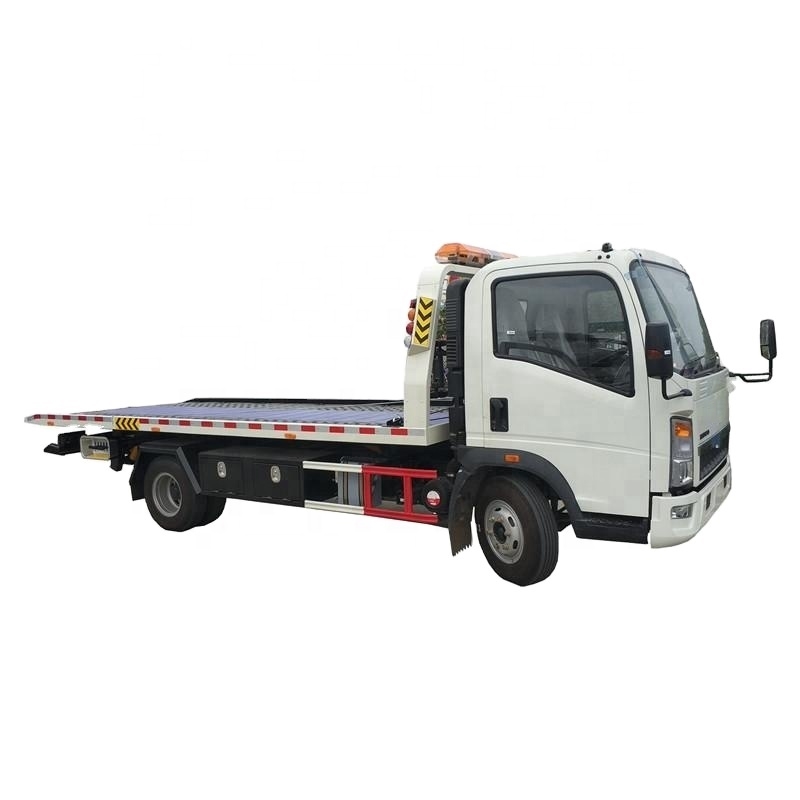

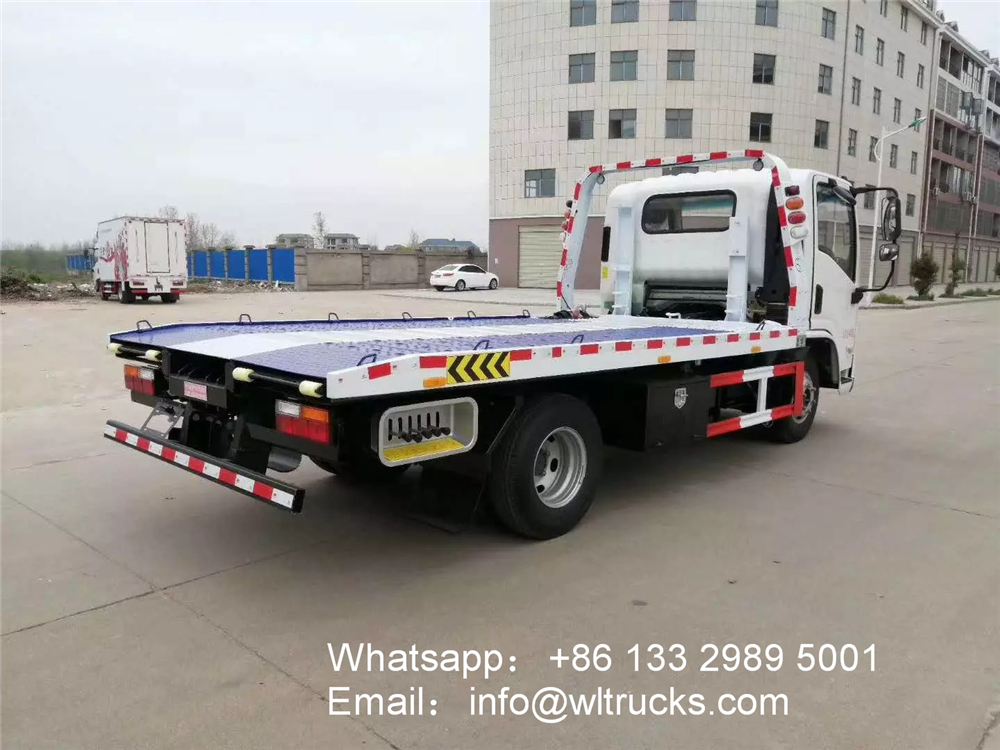

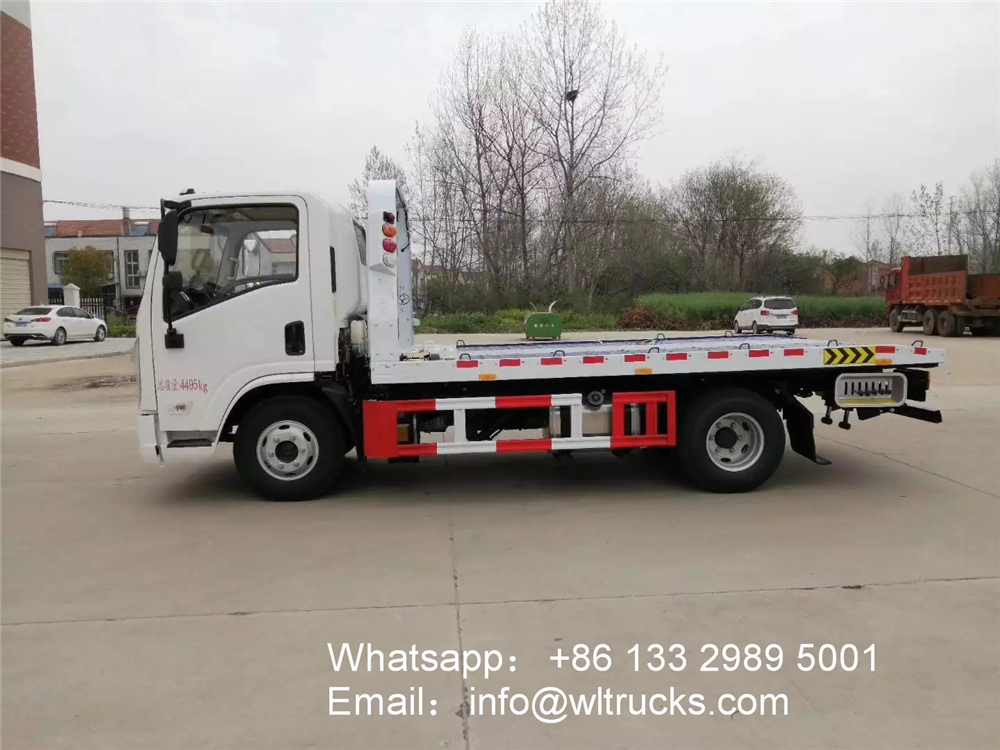

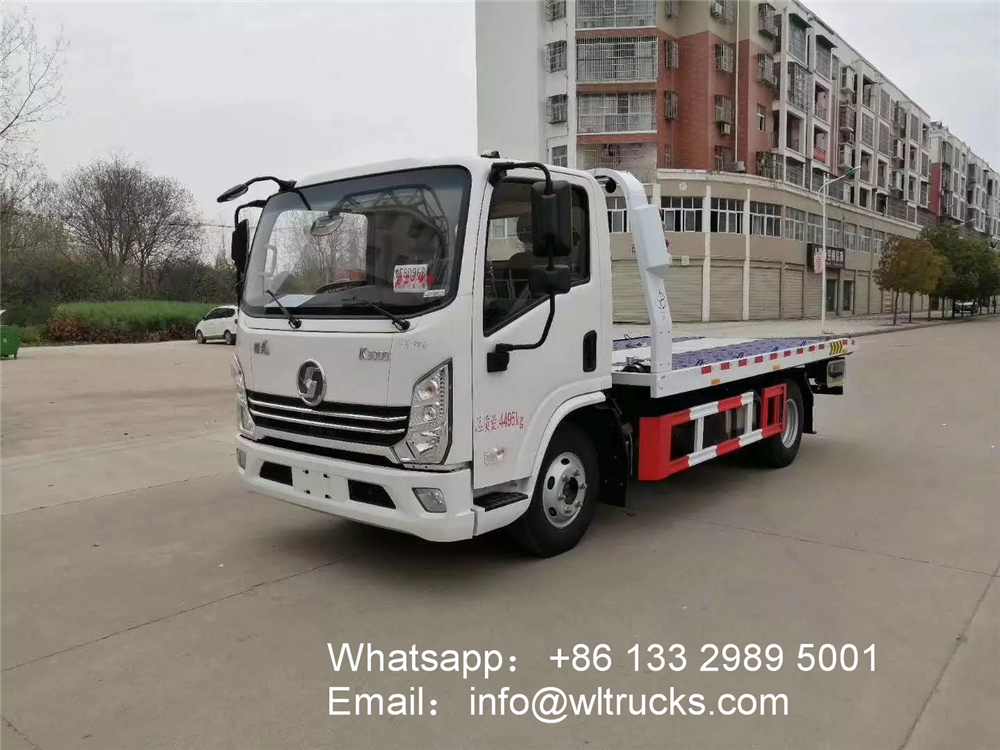

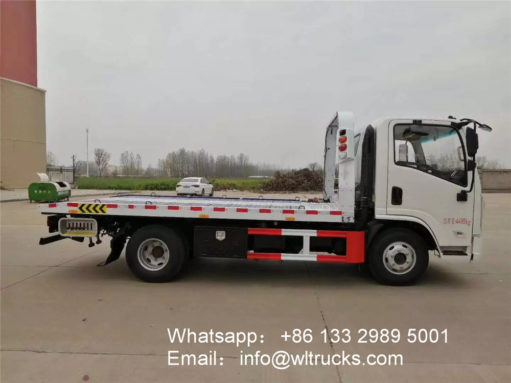

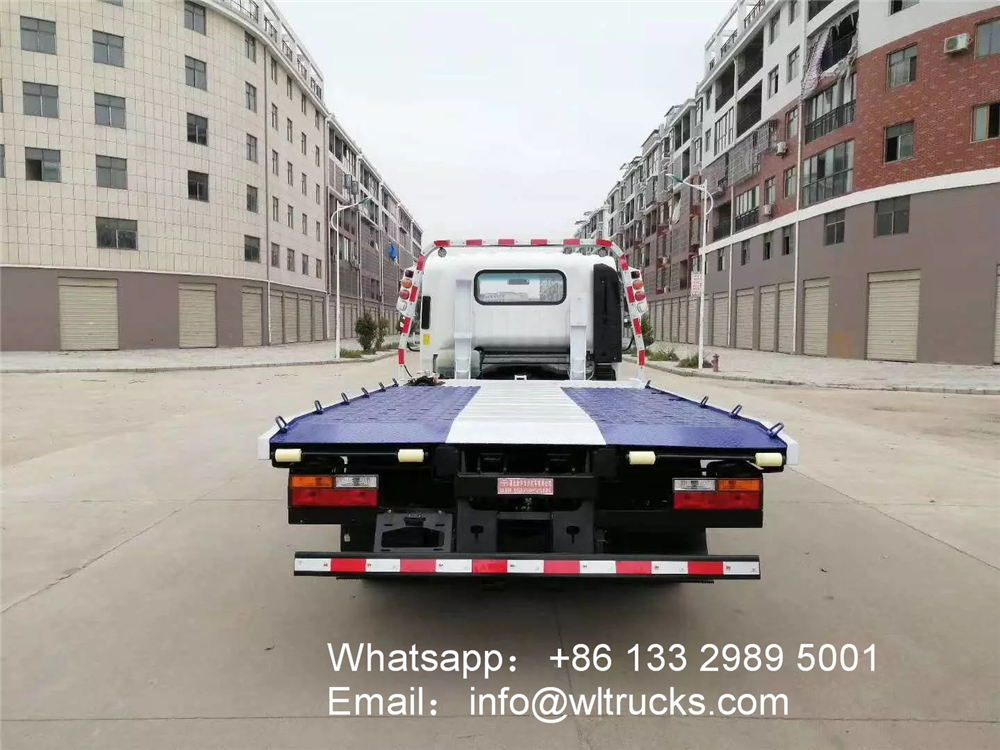

Shacman 3 ton low bed tow truck
Shacman 3 ton low bed tow truck Bodywork configuration:
The truck has a length of 4.2 meters and a width of 2.32 meters. The plate can use 4 thick checkered plates or one-time forming stamping plates. The tail plate adopts a flip plate and a new pull type tail plate. The length of the tail plate is 1.2 meters.
3 tons of tops, equipped with 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, paired with auxiliary wheel trolley, pair of 7-character forks, pair of square sleeves, one set of tools, four sets of straps, chain Hook, two work lights, with long yellow LED warning lights.
Shacman 3 ton low bed tow truck specification:
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2475 (mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 3800kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | FAW | |
| Cabin | Single, Right Hand Driving | ||
| Engine | Model | CA4DD1-13E5, 4 Cylinders | |
| Power | 99KW/130HP | ||
| Emission Standard | EURO V | ||
| Displacement | 2.999L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 3T/6T | ||
| Wheel Base | 3300(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200×2320 (mm) | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
||
Shacman 3 ton low bed tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
