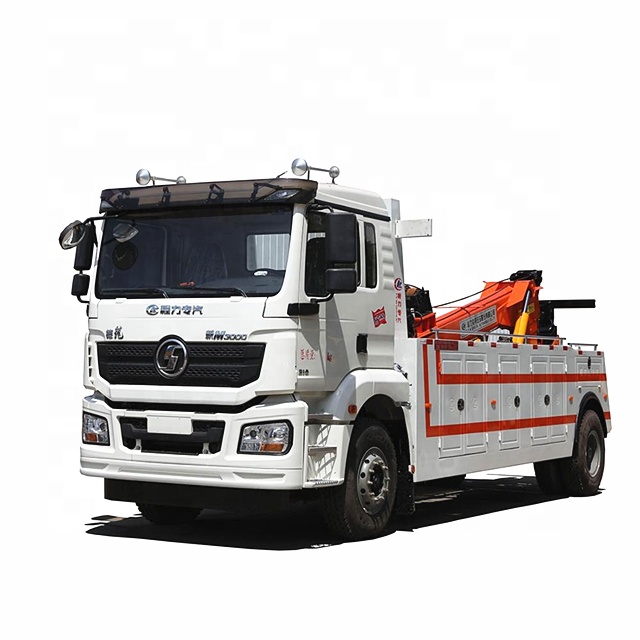

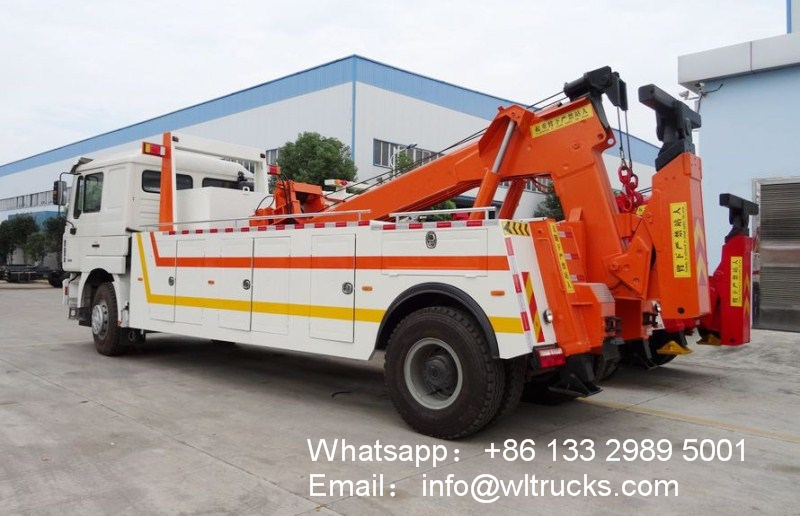

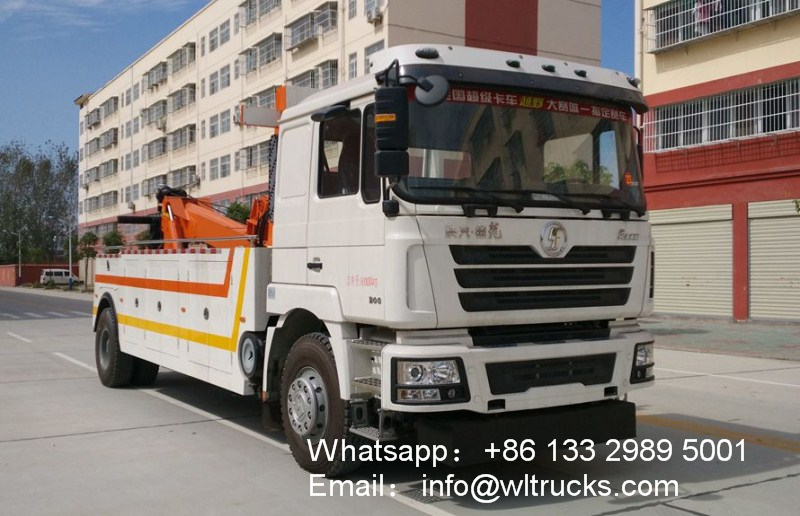

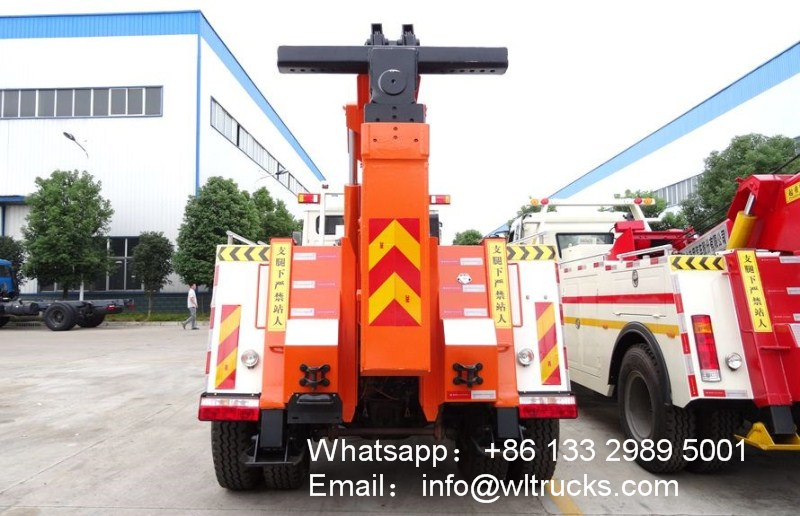

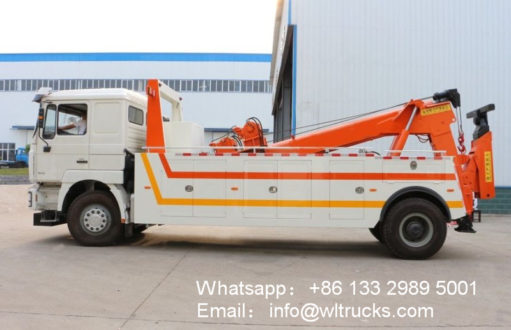

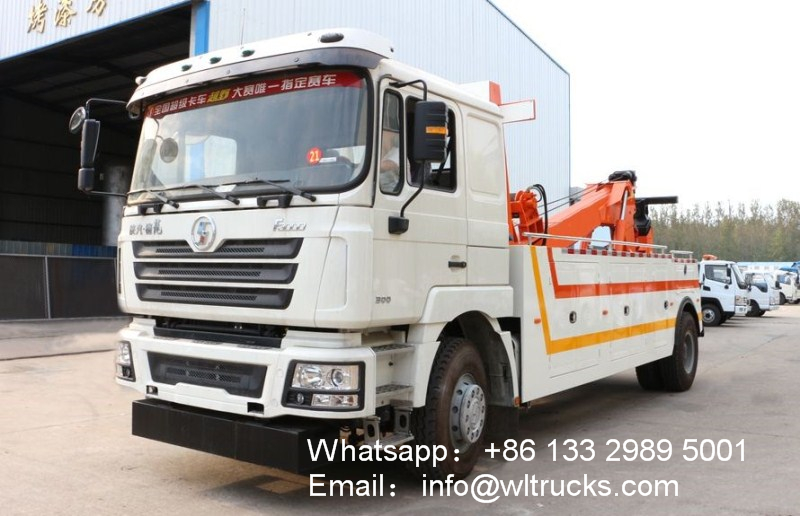

Shacman 16 ton rollback tow trucks
Shacman 16 ton rollback tow trucks Chassis：
It adopts Shaanxi Automobile Delong chassis, Delong row semi-cab, original cab air conditioner, electric glass, Weichai 300 horsepower engine, Fast 8-speed gearbox, 7.5 tons front axle, 16 tons rear axle, wheelbase 5975mm , 12.00R20 original steel wire tire, original abs.
Shacman 16 ton rollback tow trucks Towing wrecker truck Bodywork：
10 tons of united bodywork, two-section six-sided boom, three-section support arm, split carriage, imported hydraulic system, double-sided linkage operation device, front bumper equipped with counterweights, both in performance and endurance are relatively strong.
Two 8-ton electro-hydraulic winches, 35m steel wire rope, 16mm in diameter, equipped with 4 sets of steel forks, one set of trailers, one set of steel plate lugs, one set of tire holding devices, one set of tools on board, auxiliary light assembly 1 set, 1 set of auxiliary trachea assembly, 1 yellow long row LED engineering warning light.
Shacman 16 ton rollback tow trucks specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions (mm) | 9320x2500x3250 |
| Total mass (kg) | 16000 | Curb weight (Kg) | 14305 |
| Winding specifications | 16 tons | Tops | 12 tons |
| Chassis technical parameters | |||
| Chassis name | Shaanxi Automobile Delong | Chassis model | SX1166NN601 |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase (mm) | 5975 | Tire specifications | 12.00R20 steel wire tire |
| Gearbox | 8 speeds | Rear axle | 10 tons rear axle |
| Fuel type | Diesel | brake | Air brake |
| Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| WP10.300E40 | Weichai Power Co., Ltd. | 9726 | 300 horsepower |
| Basic upload configuration | |||
| Standard configuration | 12-ton conjoined bodywork, with 8-ton x 2 hydraulic winch, 35-meter steel wire rope, 4 sets of steel forks, a set of trailers, a set of steel plate lugs, a set of tire protection devices, a set of tools on board, auxiliary lights One set of assembly, one set of auxiliary trachea assembly, and one set of yellow long-row engineering warning lights. | ||
Shacman 16 ton rollback tow trucks Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
