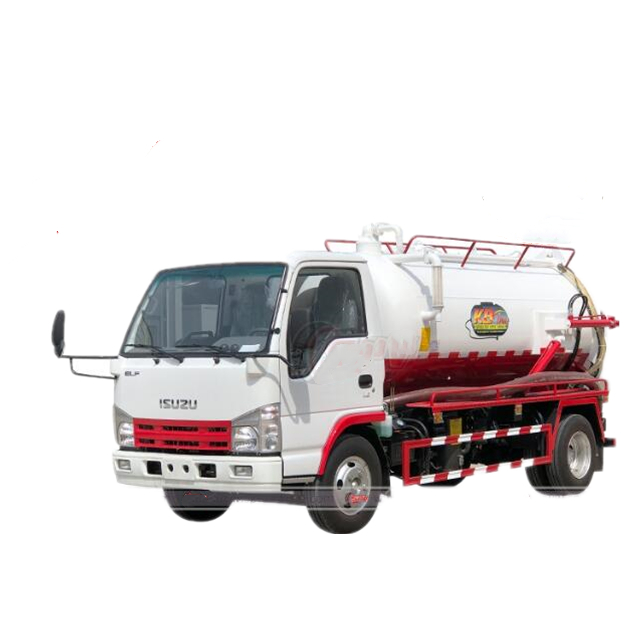

ISUZU 5000 liter sewage suction truck Specification:
ISUZU 5000 liter sewage suction truck Chassis configuration: ISUZU elf 100p cab, isuzu 98 horsepower Euro 3 engine, 5-speed gearbox, 700 tires with spare tires, with direction assistance.
ISUZU 5000 liter sewage suction truck Bodywork configuration: volume of 5 cubic meters, full suction for 5 minutes, pumping and draining for 3 minutes, equipped with SK-6 water circulation vacuum pump, optional 5 ton oil pump, tank body lifting self-unloading, tail cover hydraulic opening, mechanical locking, hand washing device There is one tail spout and one suction pipe.
Optional configuration: optional solid-liquid separation filter cartridge, and optional yellow paint for the entire vehicle.
| Company Name | Chengli Special Purpose Vehicle Co., Ltd. | Brand name | Cheng Liwei |
| Total quality | 7360 | Tank volume | 3-5 cubic meters |
| Rated mass | 3450 | Chassis model | ISUZU ELF 100P |
| Number of axes | 2 | Wheelbase | 3308mm |
| Tire specifications | 7.00 | Number of tires | 6 |
| Fuel | Diesel | Emission Standards | Eruo 4 |
| Configuration introduction | The tank body is made of carbon steel 6mm plate. Equipped with Hangzhou Weilong Pump Vacuum Sewage Pump (Suizhou Yifeng Vacuum Pump); the tank volume is 5 cubic meters, the color of the tank body is as per the announcement paint, with a stained window, sight pipe, and suction pipe 6 meters, with Oil-water separator, anti-overflow valve, with hand-washing device, hydraulic cylinders on both sides of the tank are equipped with lifting function, the back cover is arc-shaped and can be opened, and the back cover can directly flow by the self-flow valve. | ||
ISUZU 5000 liter sewage trucks Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |

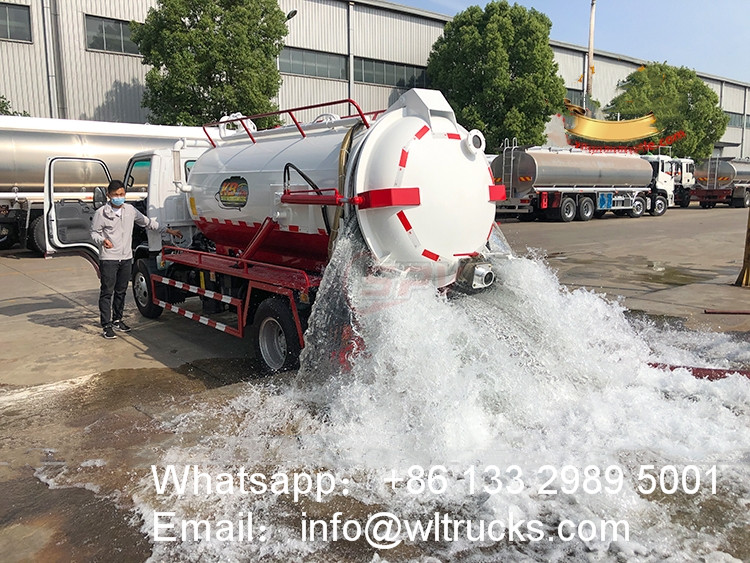

| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
sewage trucks Working parameter New craft
ISUZU 5000 liter sewage suction truck Optional configuration

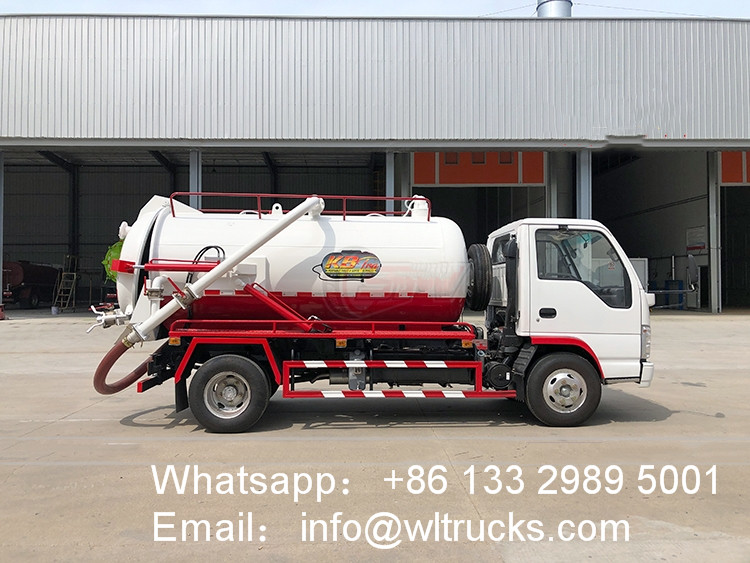

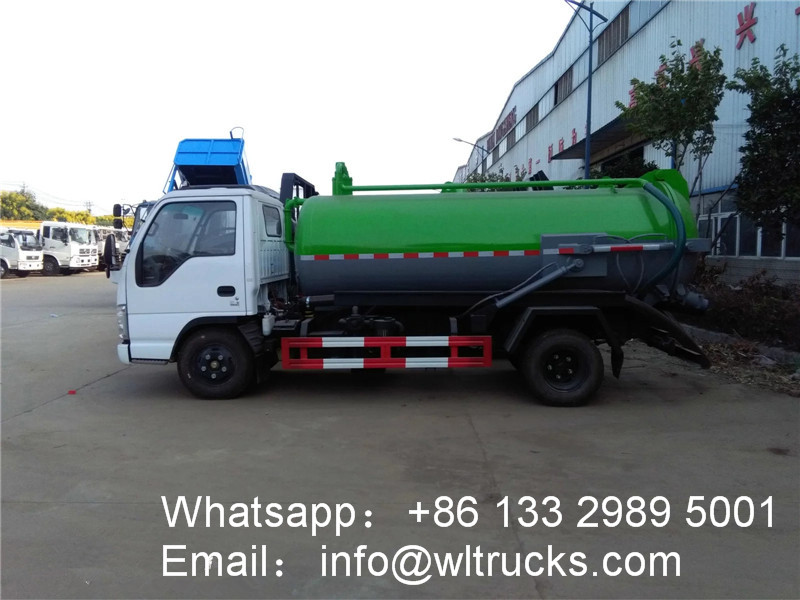

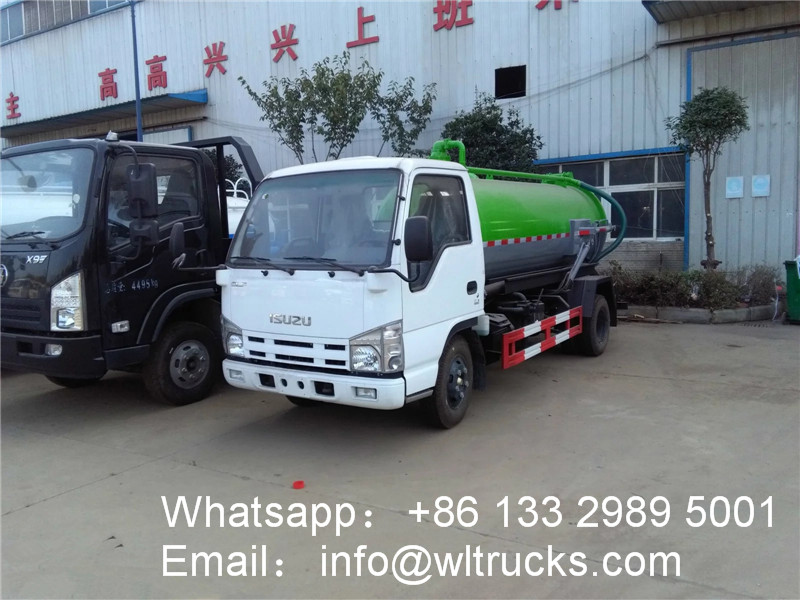

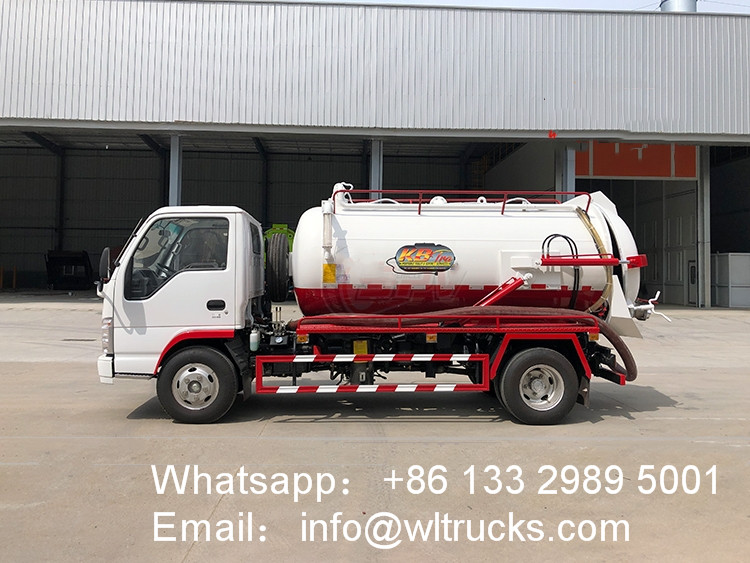

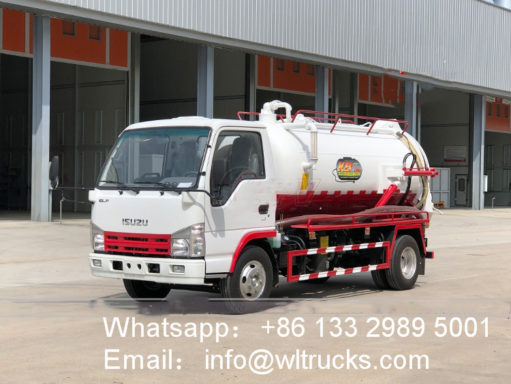

ISUZU 5000 liter sewage suction truck Detailed image
