HOWO 8000liter sewer jetting sewage suction truck Specification:
HOWO 8000liter sewer jetting sewage suction truck Product parameters
| Name |
8CBM Sewage Suction Truck Dong Feng Brand |
||
| Item |
Specifications |
Item |
Specifications |
| Truck | |||
| Model |
CLW5120GXWE6 |
Gross Weight (kg) |
11000 |
| Overall dimensions |
6500×2120×2700(mm) |
Payload (kg) |
6000 |
| Wheelbase (mm) |
3800 |
Curb Weight (kg) |
5800 |
| Front Track (mm) |
1130 |
Approach Angle |
21° |
| Rear Track (mm) |
2070 |
Departure Angle |
14° |
| Number of axles |
2 |
Number of Tyres |
6 |
|
|
Tyre Specification |
7.50R16 |
|
| Max speed (km/h) |
103 |
ABS |
√ |
| Paint |
White, Blue, etc |
Allowable Cab Passengers |
3 |
| Front Overhang |
1745mm |
Rear Overhang (mm) |
1802mm |
| Chassis | |||
| Model |
EQ1090GLJ |
Brand |
Dongfeng |
| Emission Level |
Euro 3 |
Axle Load |
4350/7645kg |
| Leaf Spring |
8/10+7 |
|
|
| Engine (Motor) | |||
| Brands |
Model |
Displacement |
Rated Power |
| Dongfeng CY |
CY4102BZQ |
3856CC |
88kw (120hp) |
| Superstructure | |||
| Tank Capacity |
5.5CBM |
Tank Dimension |
4400×1500mm |
| transferred media |
sewage |
Density (kg/cbm) |
800 |
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
HOWO 8000liter sewer jetting sewage suction truck Working parameter New craft
HOWO 8000liter sewer jetting sewage suction truck Optional configuration

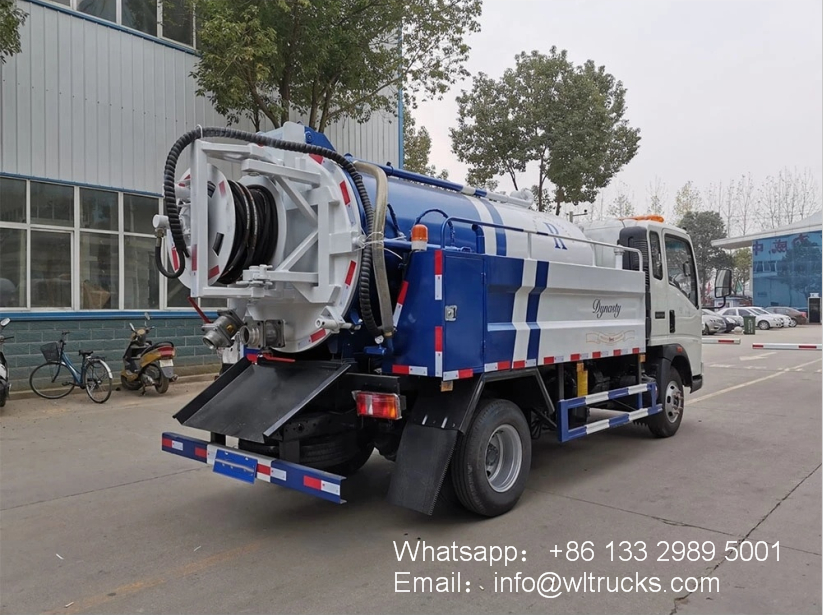

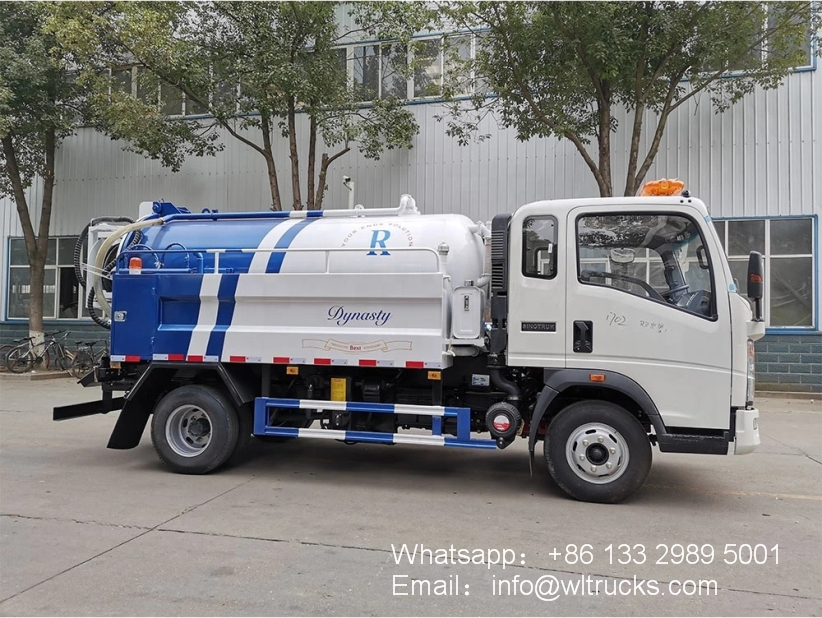

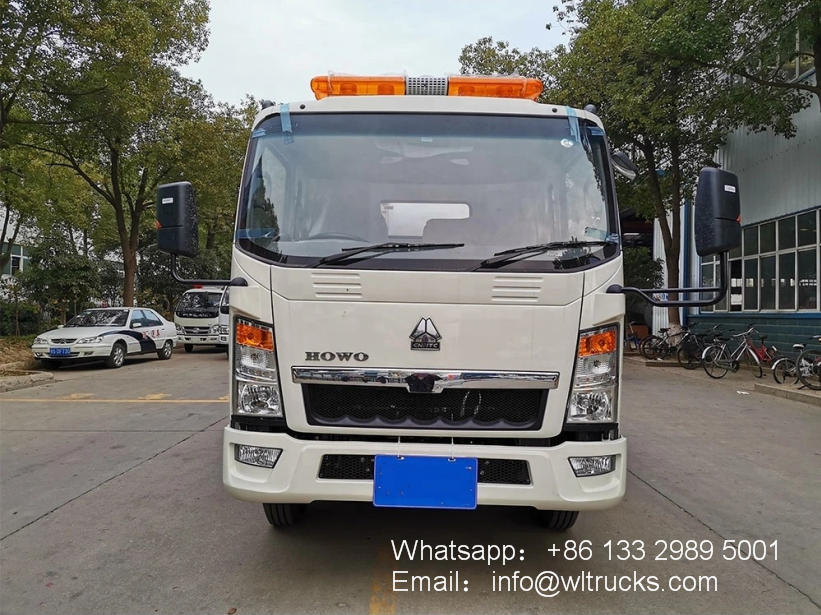

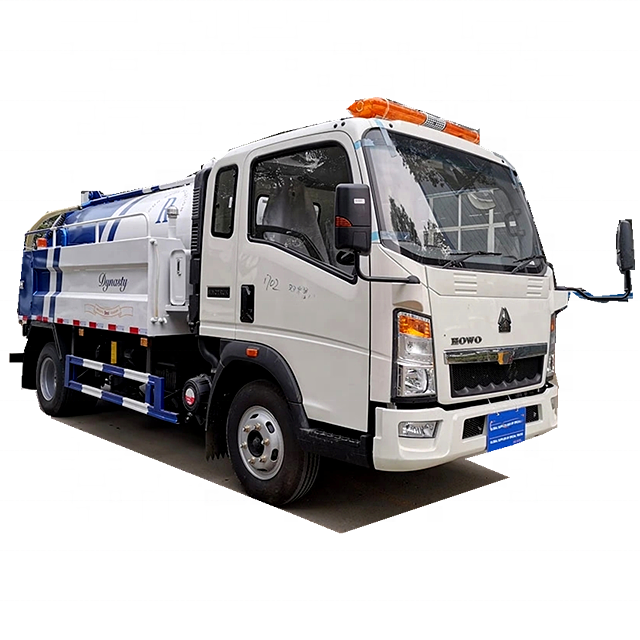

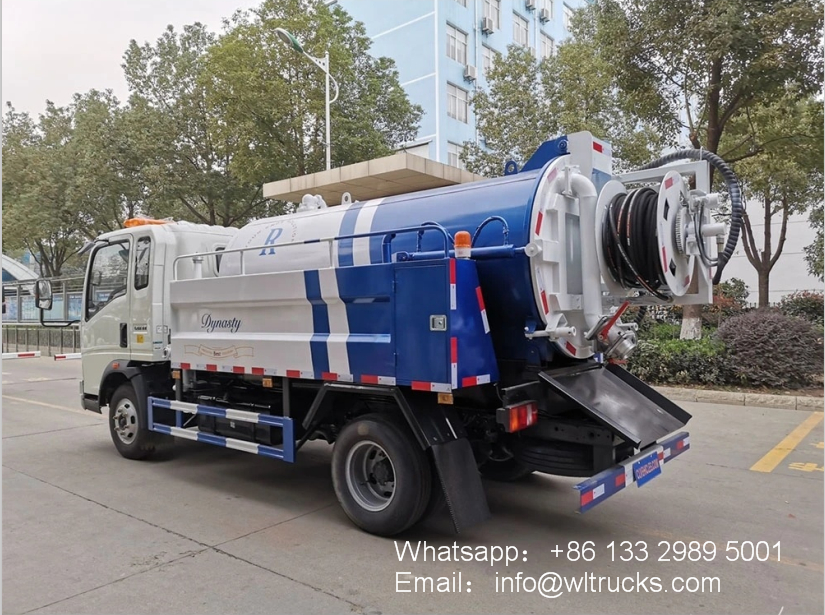

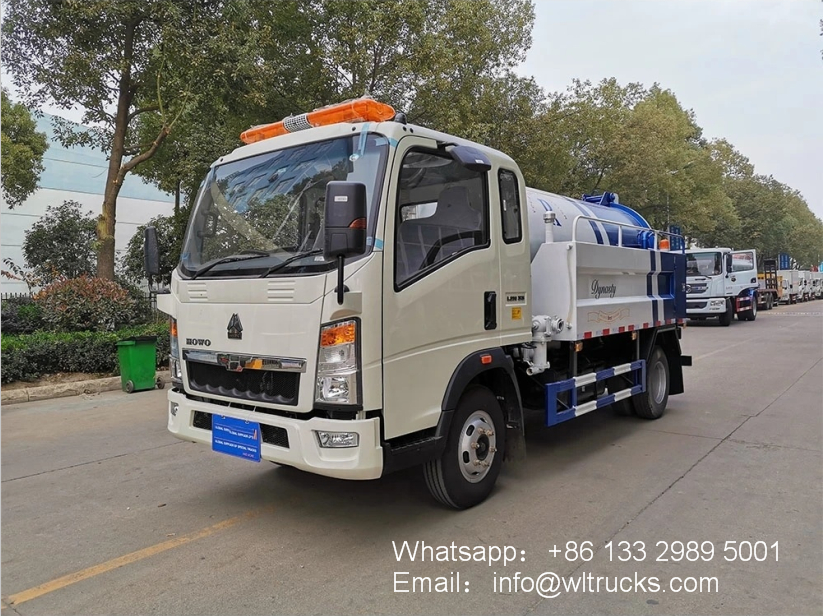

HOWO 8000liter sewer jetting sewage suction truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
