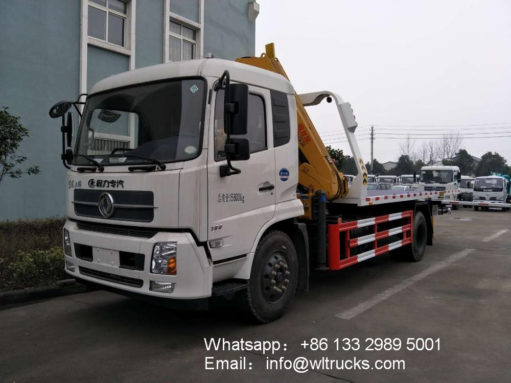

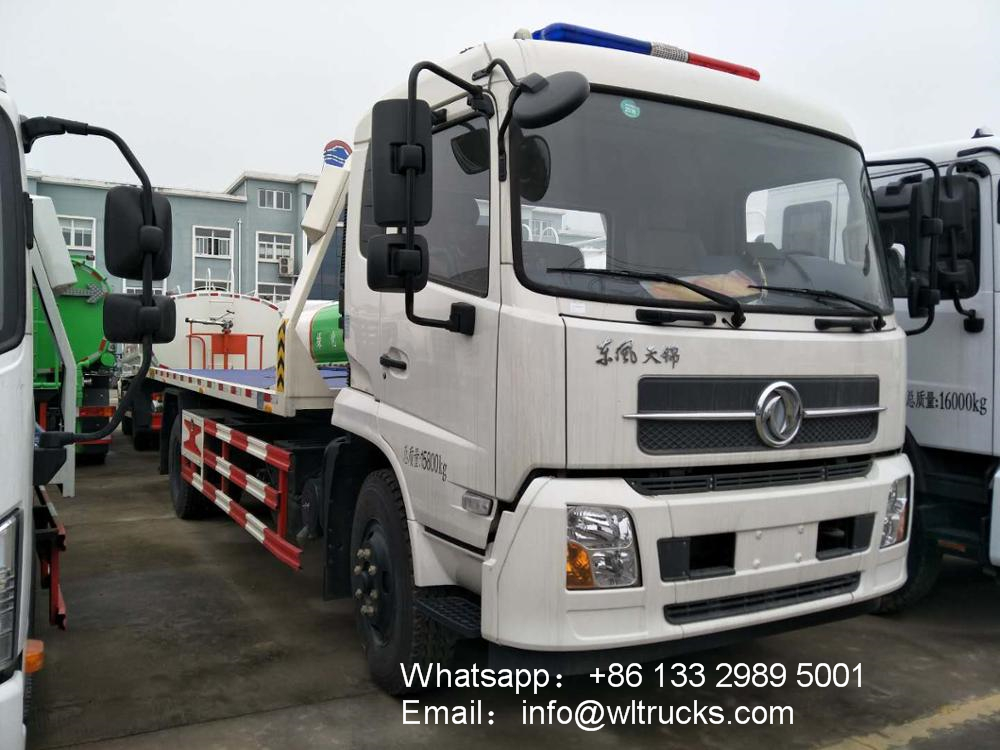

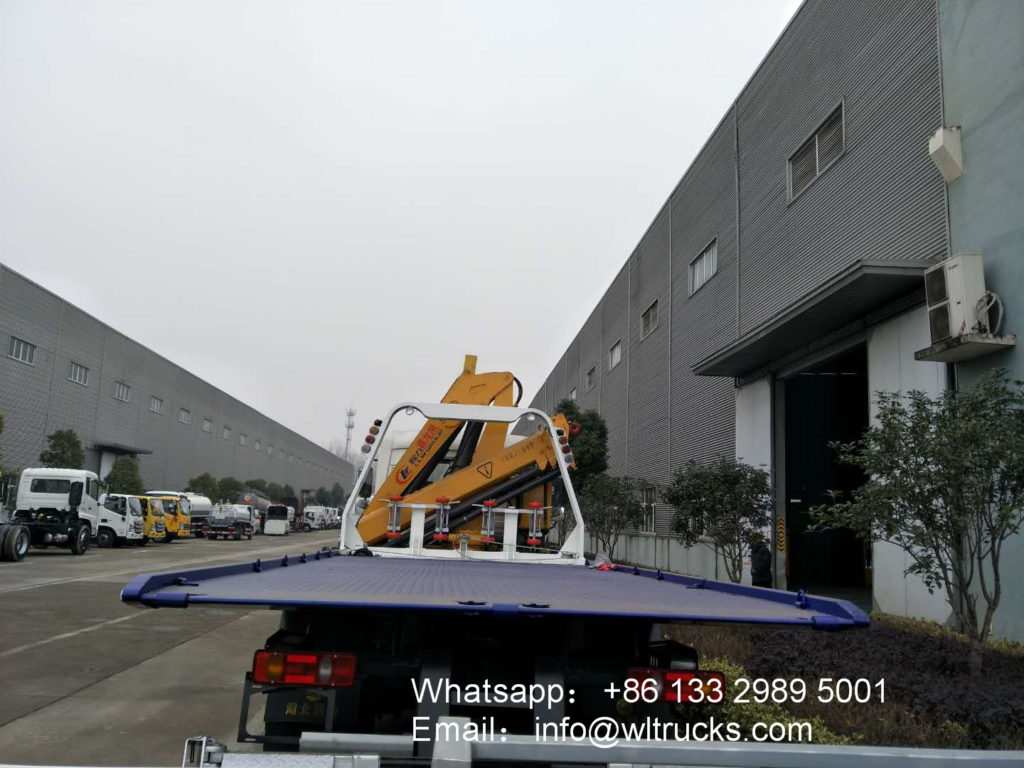

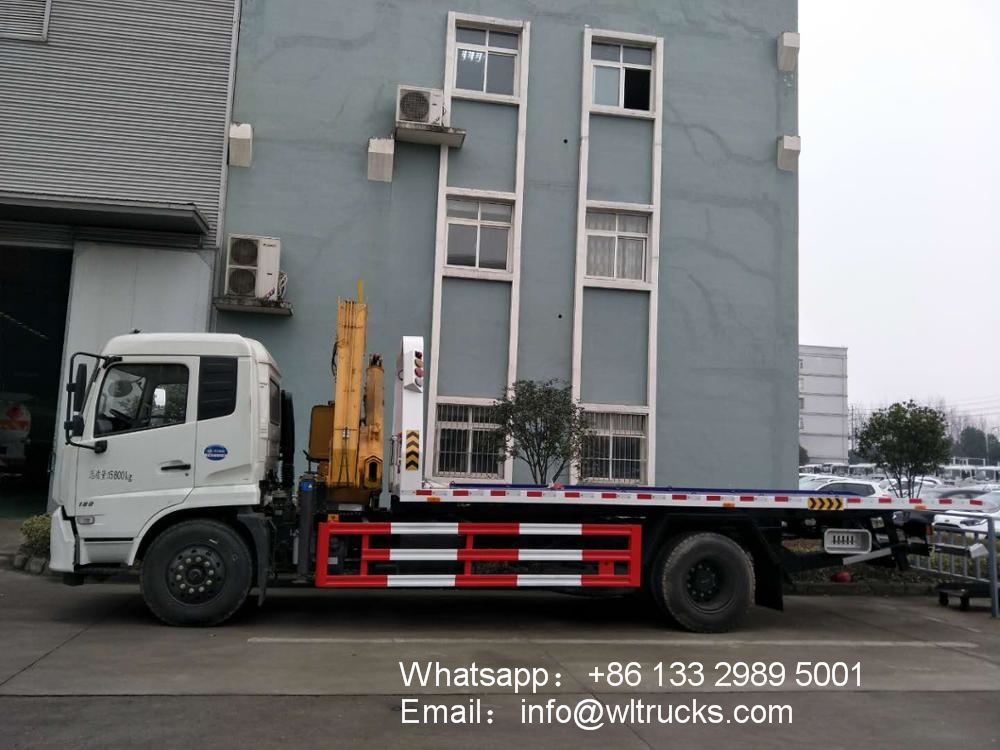

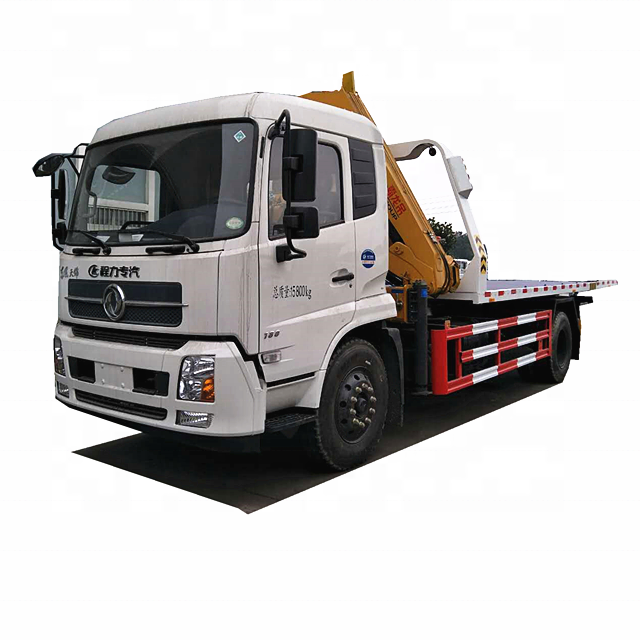

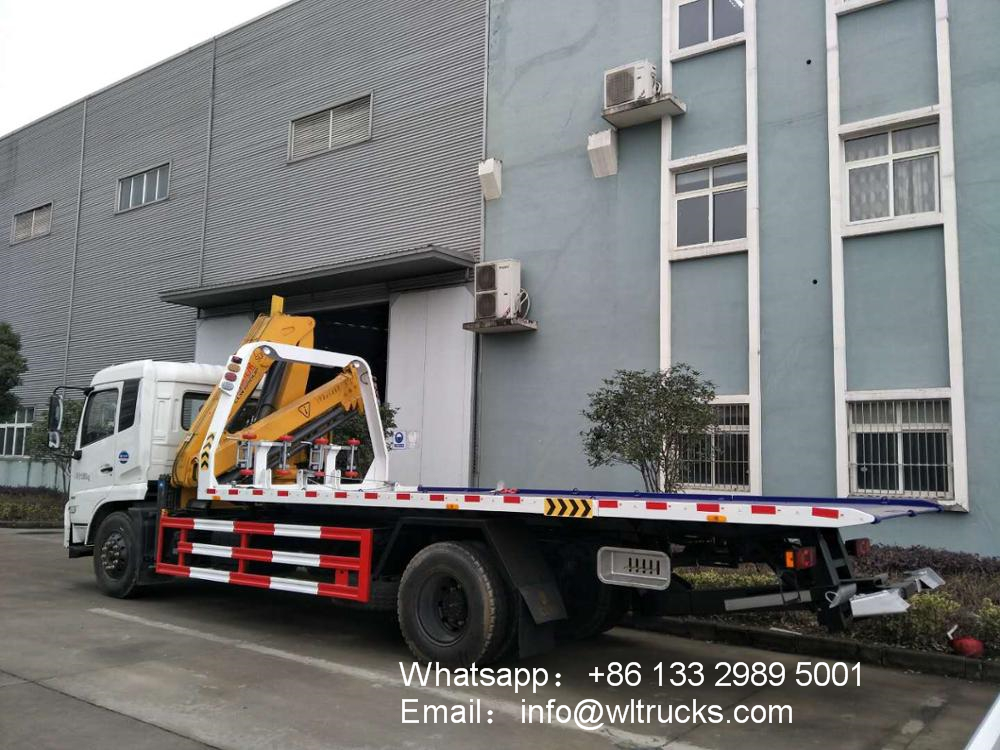

Dongfeng tianjin slide bed tow truck with 8 tons folding arm crane
- Chassis:
Dongfeng tianjin slide bed tow truck with 8 tons folding arm crane Adopt Dongfeng Tianjin series chassis, a row and a half cab, Cummins 190, 210 horsepower engine, 8-speed gearbox, wheelbase 4700mm, 1000 tires, air brake. - Bodywork:
The plate is 6 meters long and 2.4 meters wide. The flat plate can be a patterned plate or disposable stamping plate. It is equipped with a 5 ton or 6.3 ton crane. The 6 ton support arm plate is equipped with a 6 ton winch. Bodywork, imported hydraulic system, double-sided linkage operation device. With floor hook, equipped with a set of vehicle tools, 2 auxiliary wheel trolleys, a pair of L-shaped tire holding frames, 4 sets of straps, and a long yellow row of LED engineering lights.
Dongfeng tianjin slide bed tow truck with 8 tons folding arm crane specification:
|
Vehicle technical parameters
|
|||
|
product name
|
4×2 Dongfeng tianjin 10 tons slide bed tow truck with 8 tons folding arm crane
|
Dimensions (mm)
|
9440x2480x2760
|
|
Total mass (kg)
|
12495
|
Curb weight (Kg)
|
10000
|
|
Flat size (mm)
|
6000×2400
|
Plate thickness
|
4 thick
|
|
Hoisting specification
|
6 tons
|
Tops
|
6 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Dongfeng Tianjin
|
Chassis model
|
DFL1120B21
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase (mm)
|
4700,5000
|
Tire specifications
|
9.00R20 wire tire
|
|
Gearbox
|
6-speed shift
|
Rear axle (kg)
|
9000
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
ISD180 50
|
Dongfeng Cummins Engine Co., Ltd.
|
4500
|
180 horsepower
|
|
Top basic configuration
|
|||
|
The standard configuration
|
6 tons of tops, with 6 tons of winches, 35 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronic engineering warning lights, A set of car tools.
|
||
|
Optional configuration
|
It can be installed with imported parts, tow forks, towed forks, hand washing boxes, LED long row strobe lights, all falling floors.
|
||
Dongfeng tianjin slide bed tow truck with 8 tons folding arm crane Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
