Dongfeng 8500L high pressure cleaning truck Adopts Dongfeng Tianjin wide-body cab, wheelbase 4.5 meters, Eruo 3 Cummins 190 horsepower engine, 8-speed gearbox, 1000-16 tires.
The tank volume is 8.5 cubic meters, equipped with Jiangxi isuzu 77 horsepower auxiliary engine, stainless steel high-pressure pipeline, French control switch, Taiwan pneumatic control, tail LED arrow light.
German high-pressure water pump, front-mounted stainless steel telescopic high-pressure flushing frame, flushing width 3.5 meters, cleaning pressure 10MPa, forward flushing width 20 meters, 18 meter high-pressure cleaning gun in the middle, and 2 sets of spraying devices at the rear. Weilong atmospheric pressure water pump, 14 meters in front, sprinkling dust behind, greening water cannon and other conventional watering functions.
Working parameter:
| Serial number | project name | unit | Specifications / Technical parameters |
| 1 | Effective volume of tank | m3 | 6-8.5 |
| 2 | Sprinkler cleaning width | m | 2.5-3.5 |
| 3 | Working speed | Km/h | 5-20 |
| 4 | Low pressure flushing width | m | ≥21 |
| 5 | High pressure cleaning width | m | 3.5 |
| 6 | Water spray | L/m2 | 0.2-2.0 |
| 7 | High pressure flushing system pressure | MPa | ≥10 |
| 8 | High-pressure flushing water flow | L/min | ≥138 |
| 9 | Spray flow | L/min | ≥129 |
| 10 | Water cannon range | m | ≥35 |
| 11 | Self-priming height | m | 6.5 |
Dongfeng 8500L high pressure cleaning truck Specification:
|
Effective volume
|
8.5 cubic meters
|
||
|
Vehicle model
|
CLW5160GQXD5
|
||
|
Chassis model
|
DFL1160BX1V
|
||
|
Exterior
|
Vehicle size
|
8980, 7980 × 2490 × 3080 (mm)
|
|
|
Tank size
|
3410× 2280 × 1450 (mm)
|
||
|
Engine
|
Engine manufacturer
|
Dongfeng Cummins
|
Dongfeng Cummins
|
|
Engine model
|
ISB180 50
|
ISB210 50
|
|
|
Engine power
|
132
|
155
|
|
|
Engine horsepower
|
180
|
210
|
|
|
Emission Standards
|
Country five
|
||
|
Performance
|
Total mass ( kg)
|
15800
|
|
|
Curing quality ( kg)
|
7960
|
||
|
Rated load mass ( kg)
|
7645
|
||
|
Wheelbase ( mm)
|
4500/4700
|
||
|
Tire specifications
|
10.00-20/10.00R20
|
||
|
Number of tires
|
6
|
||
|
Maximum speed ( km/h)
|
90
|
||
washing truck composition structure:

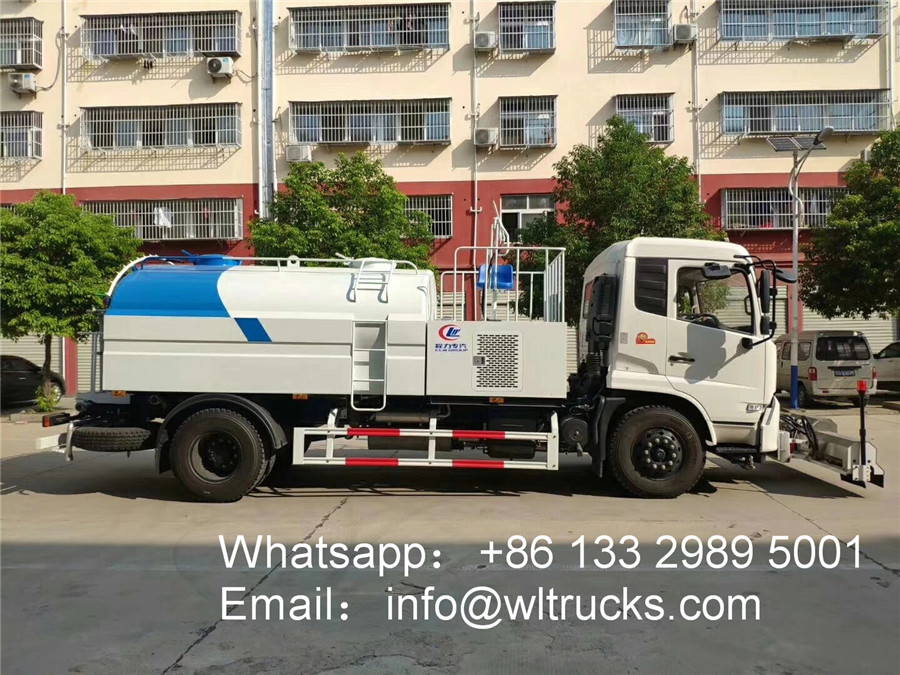

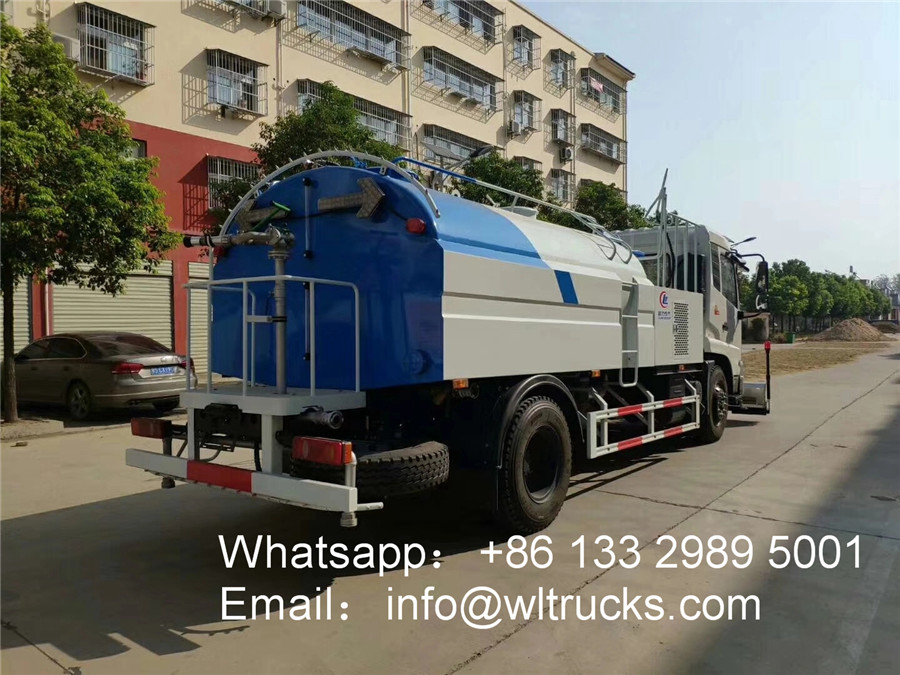

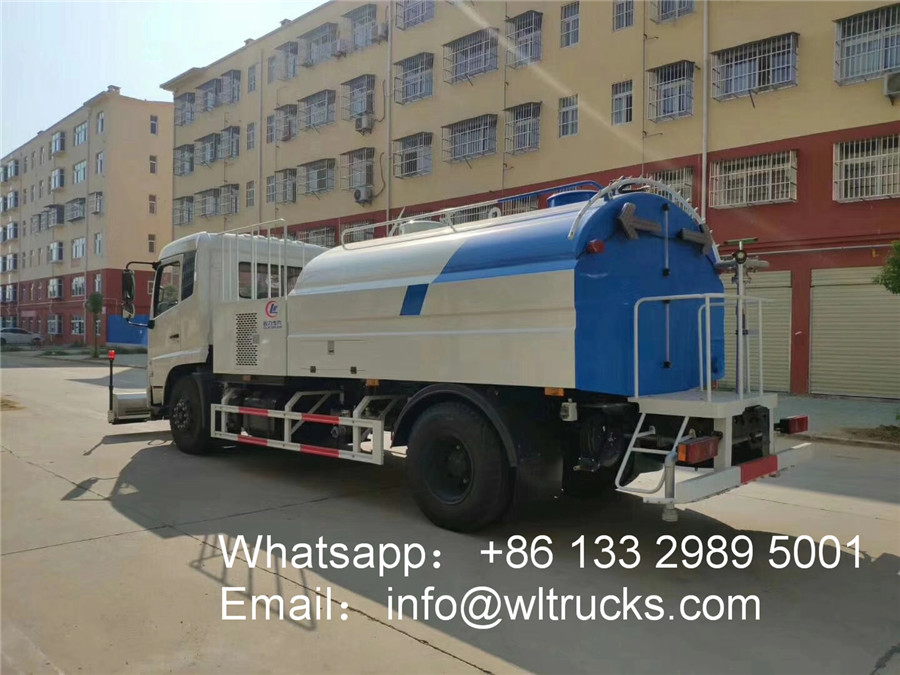

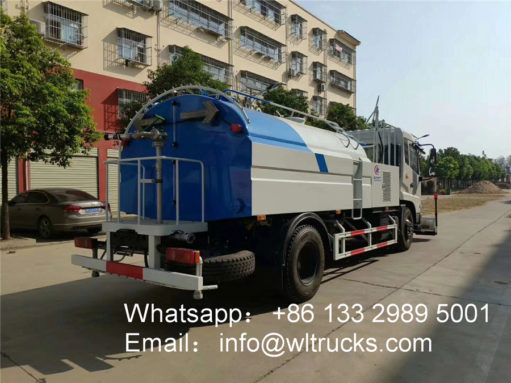

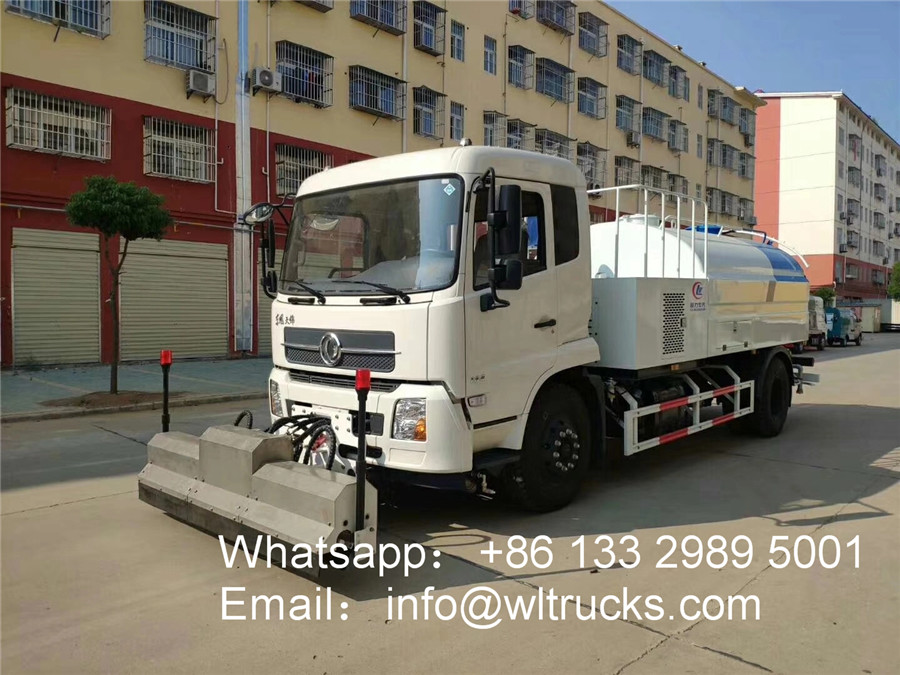

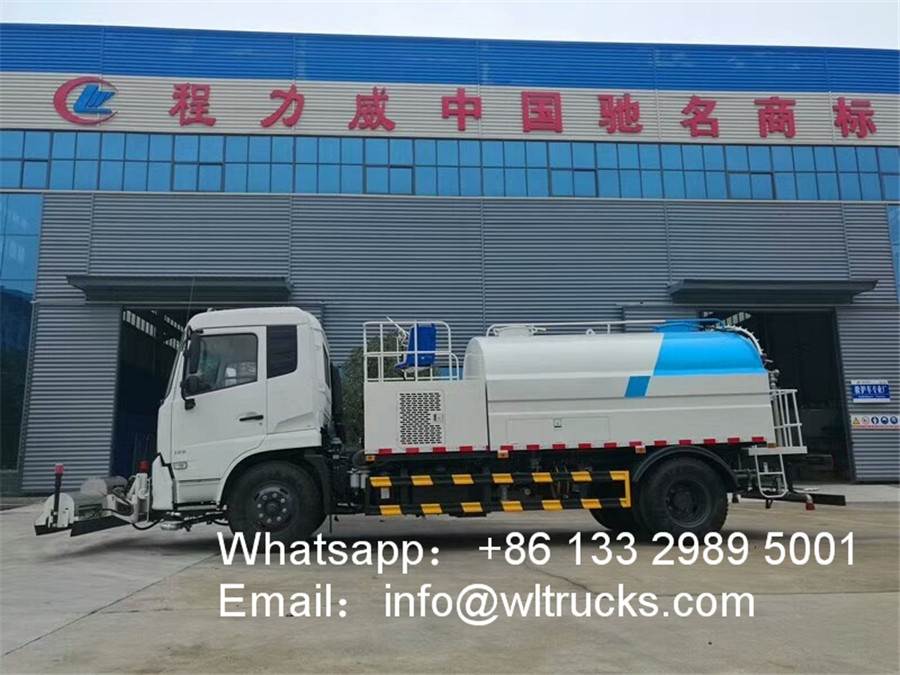

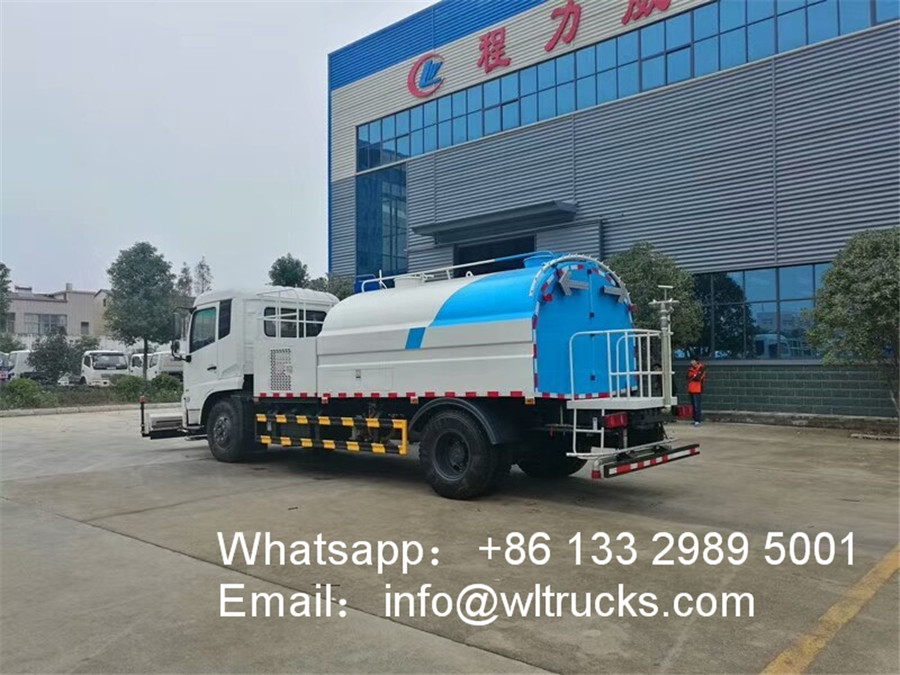

high pressure cleaning truck working photos：
clean truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
wash truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
