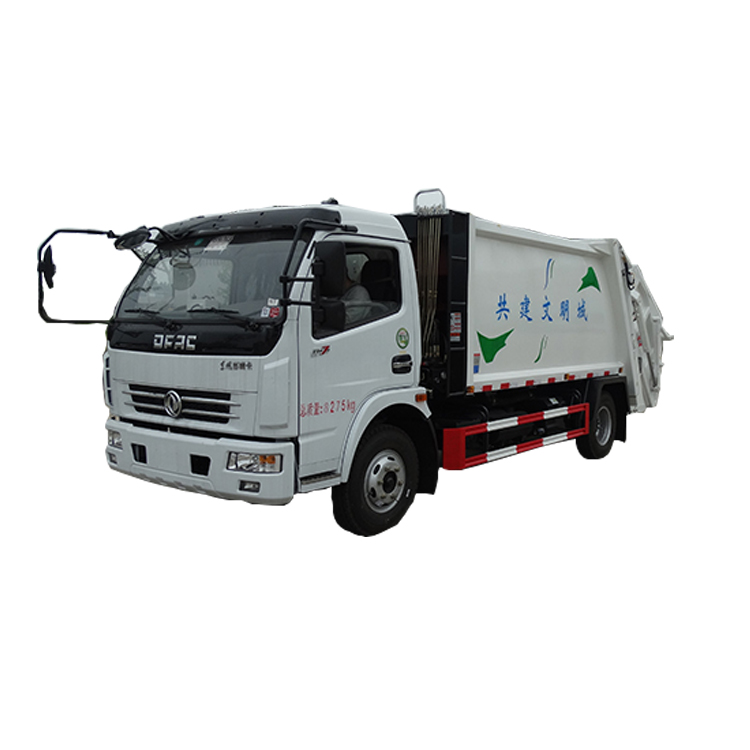

Dongfeng 8 ton compressed garbage truck Product Description:
Dongfeng 8 ton compressed garbage truck Chassis configuration: Dongfeng original chassis, wheelbase 3.8 meters, Doric D7 wide body white cab, Chaochai 120 horsepower 6-speed gearbox, power steering, air brake, 750 tires with spare tires
Dongfeng 8 ton compressed garbage truck Bodywork configuration: Compressed volume 6-8 cubic meters, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder oil replacement, Changyuan 40 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 Sewage collection box, 3 operation control boxes, with night lighting, equipped with two-way compression function, the two-way hydraulic lock is not leaking.
Dongfeng 8 ton compressed garbage truck Optional configuration: optional double pump confluence + double valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device. It can hold 120-140 barrels to produce garbage, with more power and more load.
Dongfeng 8 ton compressed garbage truck Specifications:
| General Technical Parameters | |||
| Overall Dimension | 7100*2250*2750(mm) | ||
| Gross Vehicle Weight | 7360(Kg) | ||
| Curb Weight | 5400(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Single Row, LHD, with air condition, audio system, and USB, etc. | ||
| Number of Passengers | 2 | ||
| Engine | Model | Chaochai 156HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS. | |
| Power | 115KW/156HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2771(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | ||
| Brake System | Oil break | ||
| Wheel Base | 3800mm | ||
| Front/Rear Axle Loading | 1800/3500(Kg) | ||
| Approach/Departure Angle | 24/12° | ||
| Tire | 7.50R16, 6pc with 1 spare tire | ||
| Max Driving Speed | 98(km/h) | ||
| Upperstructure Specification | ||
| Compector Box | Box Volume | 8CBM |
| Box Capacity | 5Ton | |
| Dirty Water Tank Volume | 0.2CBM | |
| Hopper Volume | 0.8CBM | |
| Compression density | 0.8-0.9T/CBM | |
| Compression ratio | 3-4 | |
| Compression cycle time | ≤15 s | |
| Unload garbage time | ≤23 s | |
| Body Thickness | Side | 3mm, Carbon Steel-Q345A |
| Bottom | 4mm, Carbon Steel-Q345A | |
| The Electromagnetic Valve | UZCT-115/24V, 2sets | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration |
|
|
| Options | Tail feed flip frame or flip bucket, PLC one-button control system, etc. | |
Dongfeng 8 ton compressed garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Dongfeng 8 ton compressed garbage truck New craft:

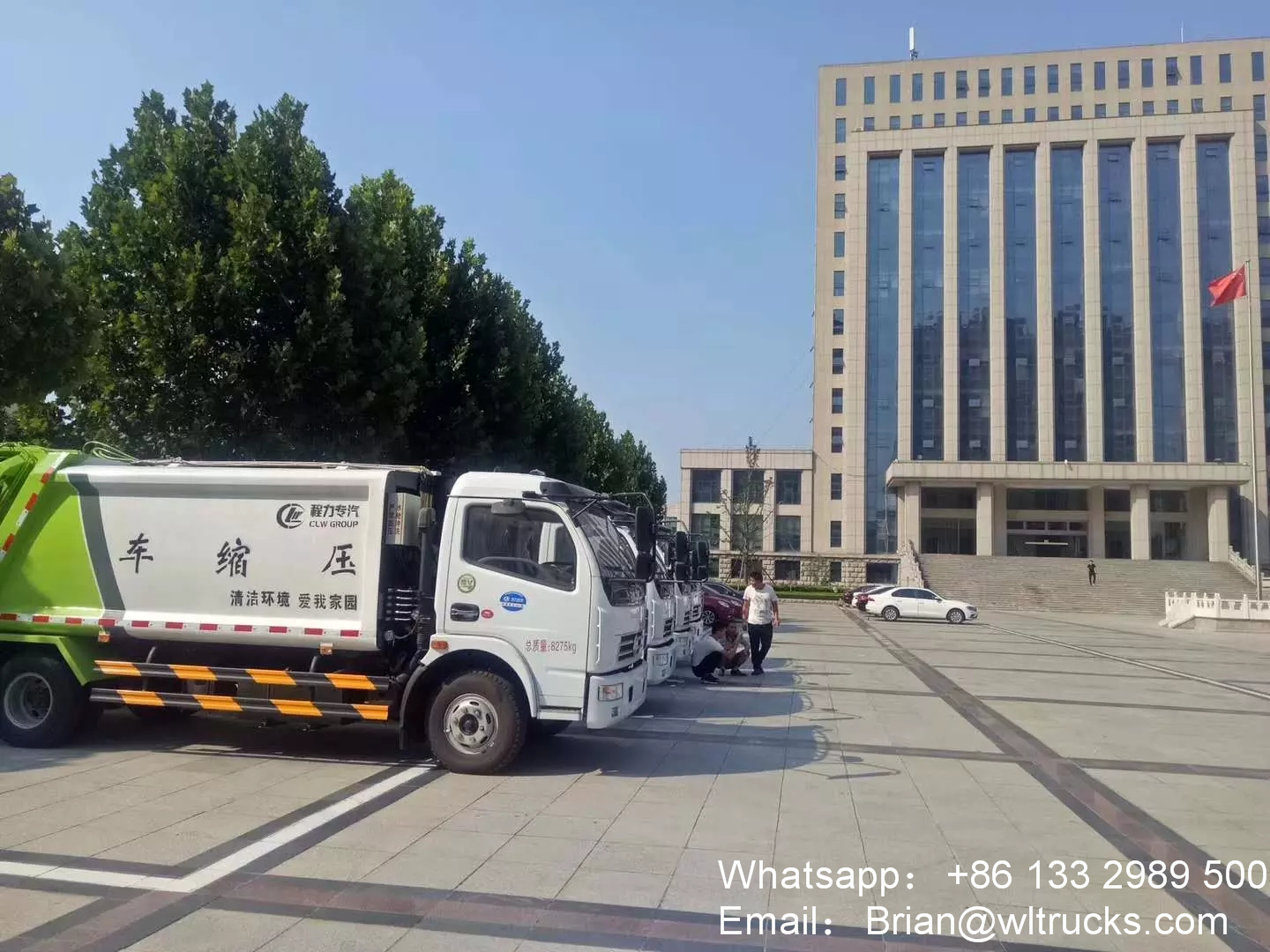

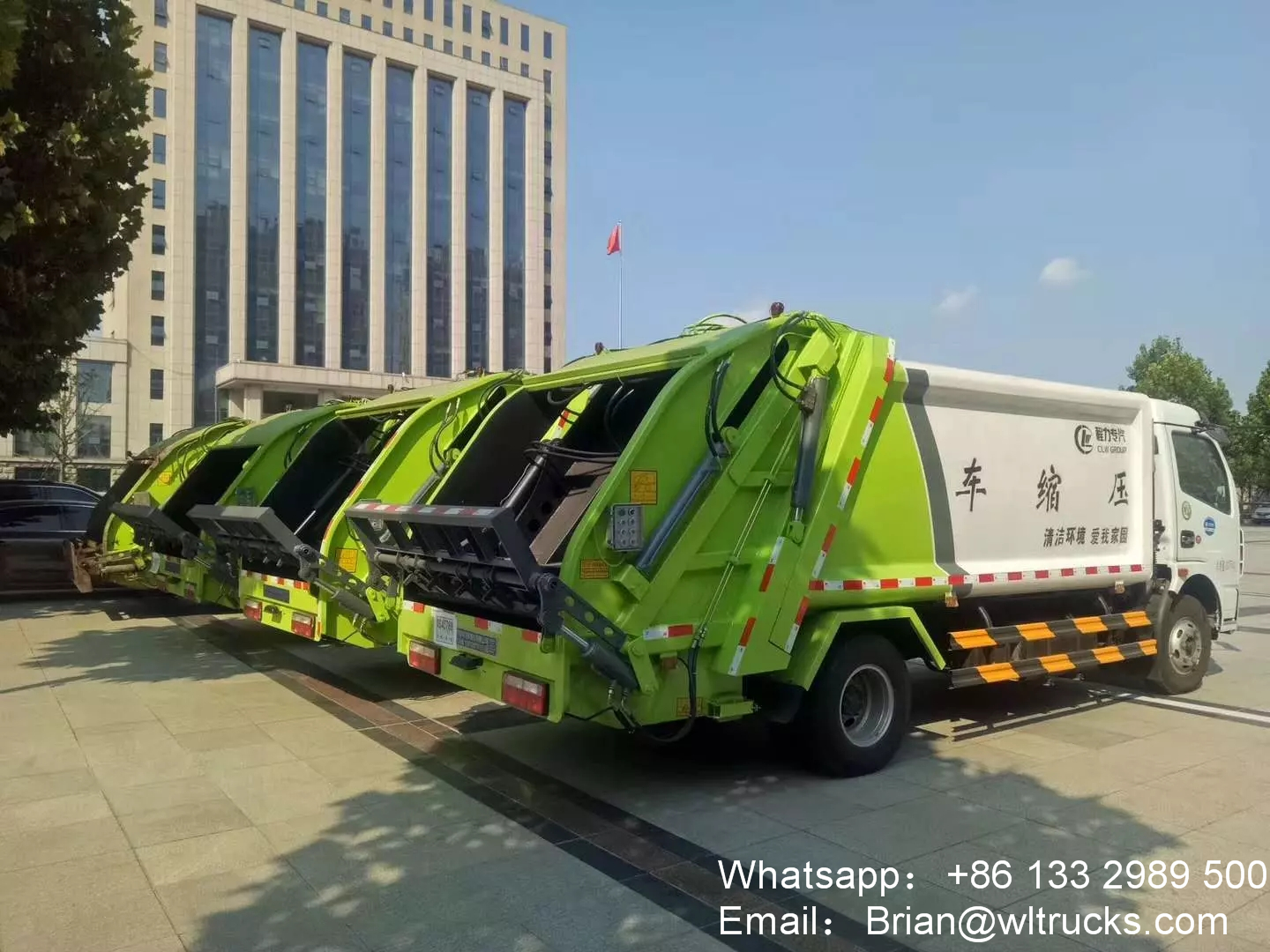

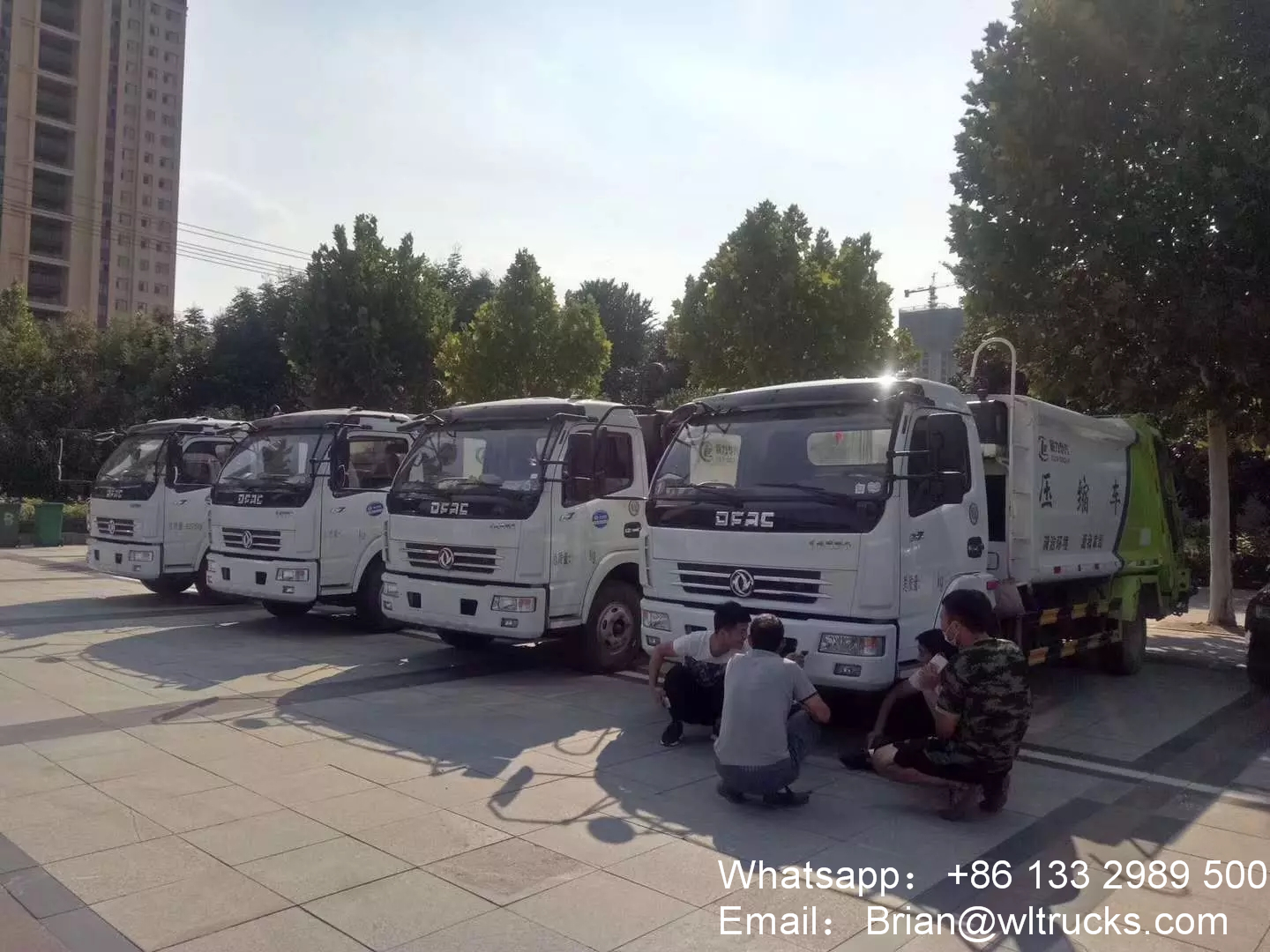

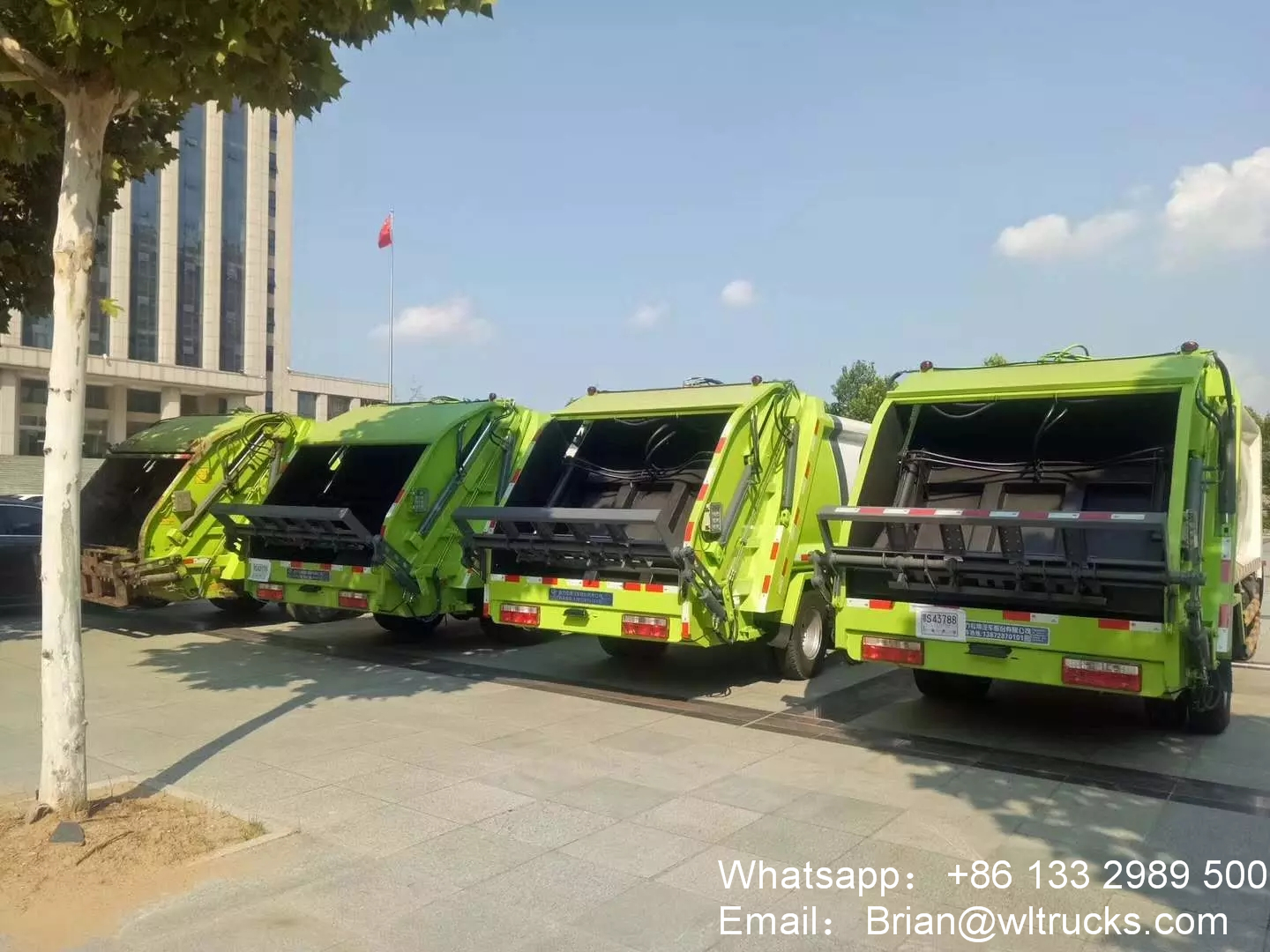

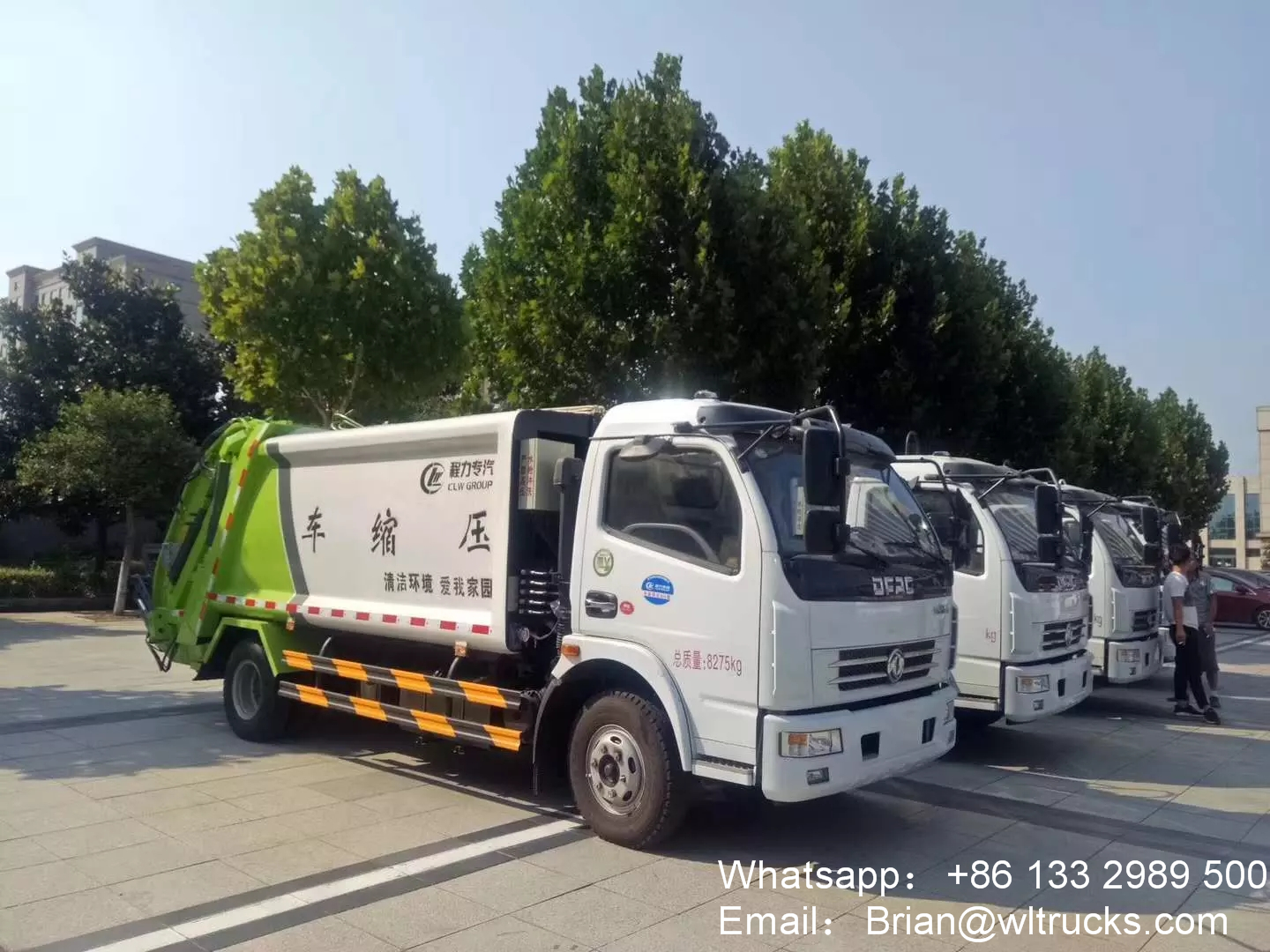

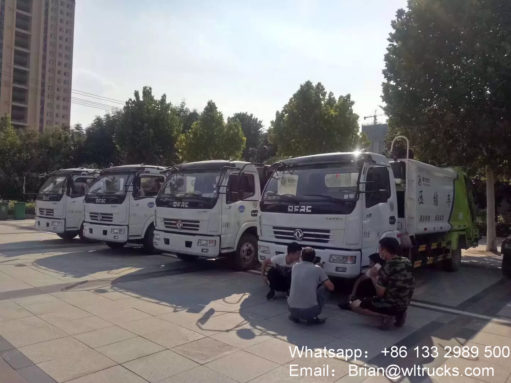

Dongfeng 8 ton compressed garbage truck Detailed Images:
Dongfeng 8 ton compressed garbage truck Structure diagram：
Dongfeng 8 ton compressed garbage truck Detail drawing:
Customizable garbage truck models
