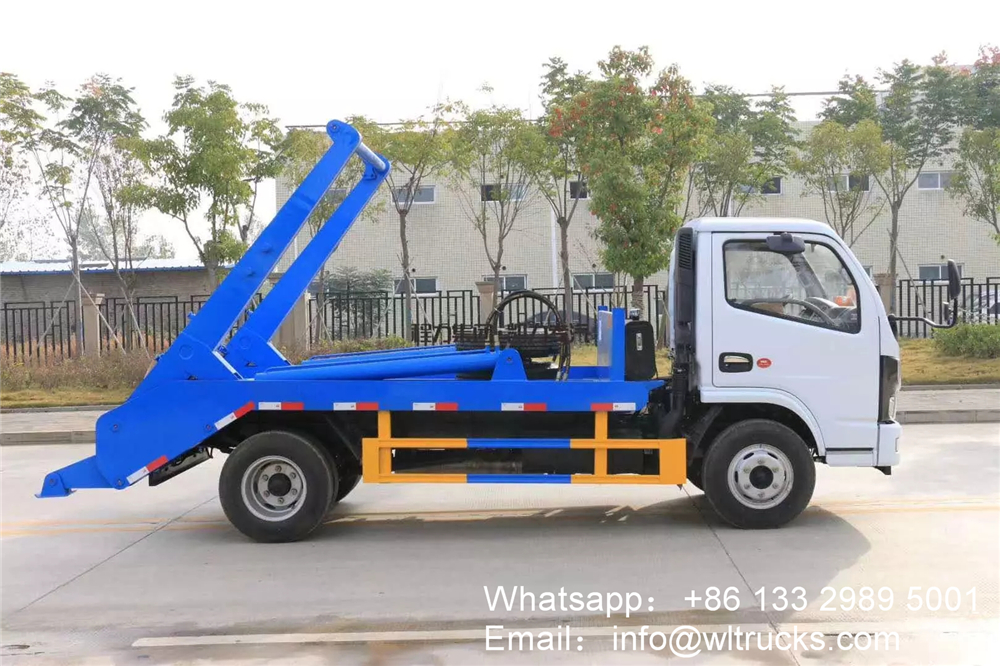

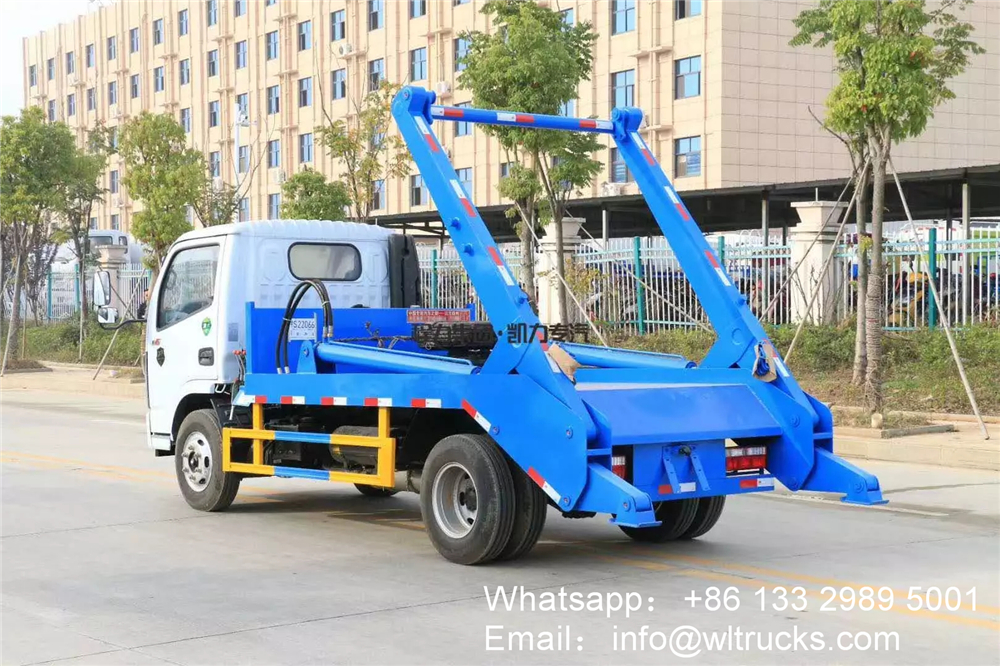

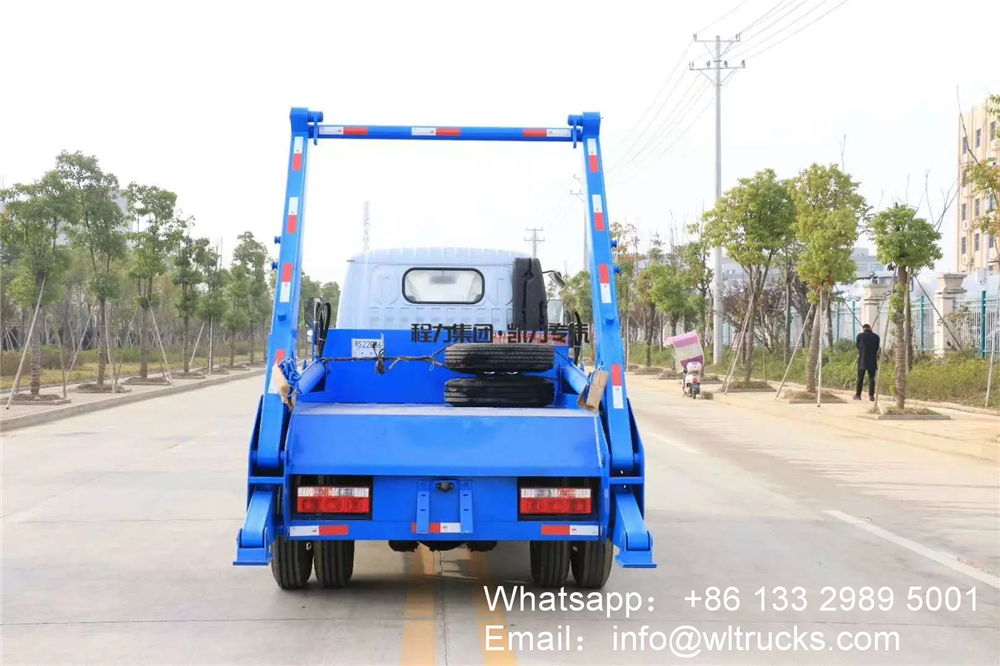

Dongfeng 5000 liter Swing arm garbage truck Product Description:
Dongfeng 5000 liter Swing arm garbage truck Chassis configuration: A single-row cab designed for Dongfeng Dollyka D6 series Dollyka light truck series, with manual overturn design, more convenient for maintenance. Chaochai 95-horsepower high-performance diesel engine, Euro III emissions, fuel-efficient and efficient, equipped with Dongfeng 5-speed manual gearbox, high transmission efficiency, directional power assist, air brake, reasonable configuration and practicality.
Dongfeng 5000 liter Swing arm garbage truck Special configuration: It is composed of hydraulic mechanism composed of car body, swing arm mechanism, oil pump, oil cylinder, control valve and so on. The body material is high-quality carbon steel, thickness (unit: mm): 3cm side and 4cm bottom.
Dongfeng 5000 liter Swing arm garbage truck Specifications:
| General Technical Parameters | |||
| Overall Dimension | 5950X2500X2900 (mm) | ||
| Gross Vehicle Weight | 7360(Kg) | ||
| Curb Weight | 4100(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Single Row, LHD, with air condition. | ||
| Number of Passengers | 3 | ||
| Engine | Model | Chaochai 102HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS. | |
| Power | 75KW/102HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2750(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 2Reverse, manual operation, with power steering. | ||
| Brake System | Oil break | ||
| Wheel Base | 3308mm | ||
| Front/Rear Axle Loading | 2500/5000(Kg) | ||
| Approach/Departure Angle | 30/21(°) | ||
| Overhang | Mechanical Suspension, 9/11+8 | ||
| Tire | 7.00R16, 6pc with 1 spare tire | ||
| Max Driving Speed | 98(km/h) | ||
| Upperstructure Specification | ||
| Garbage Hopper | Standard Configuration | With one garbage bin, with hydraulic rear outrigger |
| Volume | Ground type, 4CBM | |
| Loading Capacity | 2-3Ton | |
| Thickness | Side 3mm, Bottom 4mm, Carbon Steel Q235B | |
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
|
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
Dongfeng 5000 liter Swing arm garbage truck structure diagram:
Dongfeng 5000 liter Swing arm garbage truck Structure diagram：

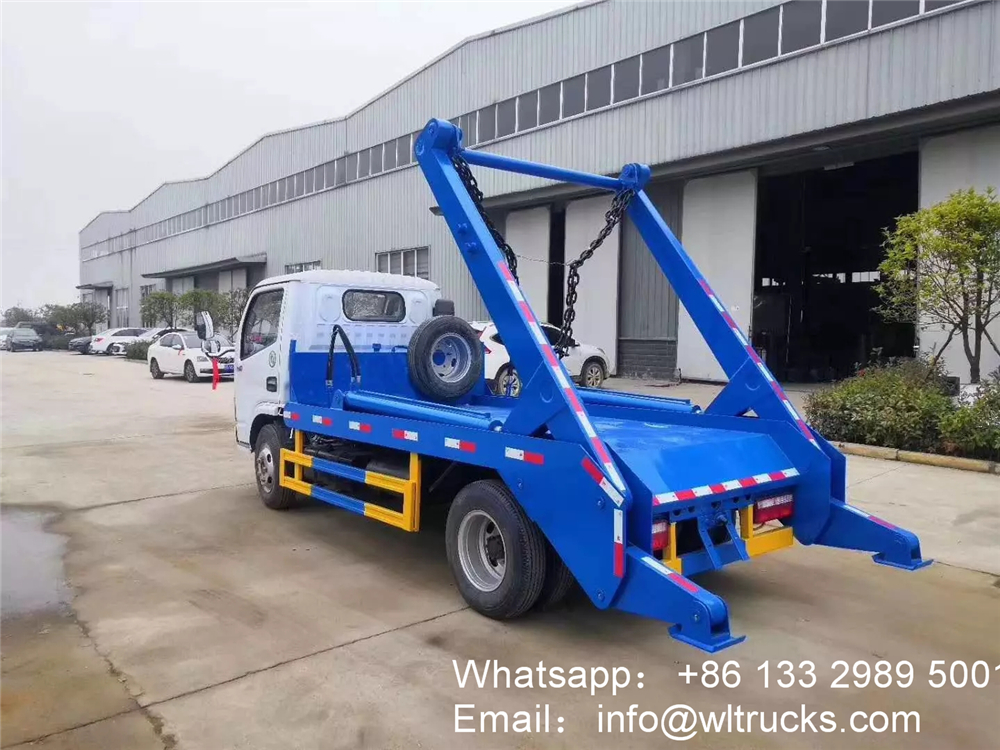

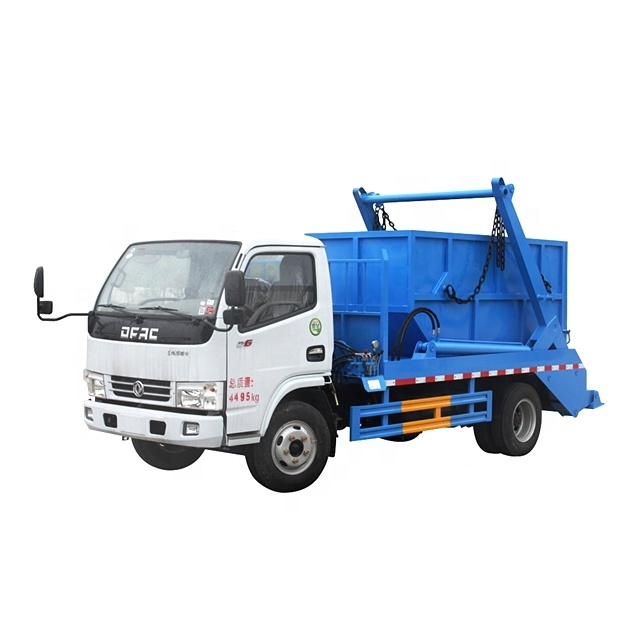

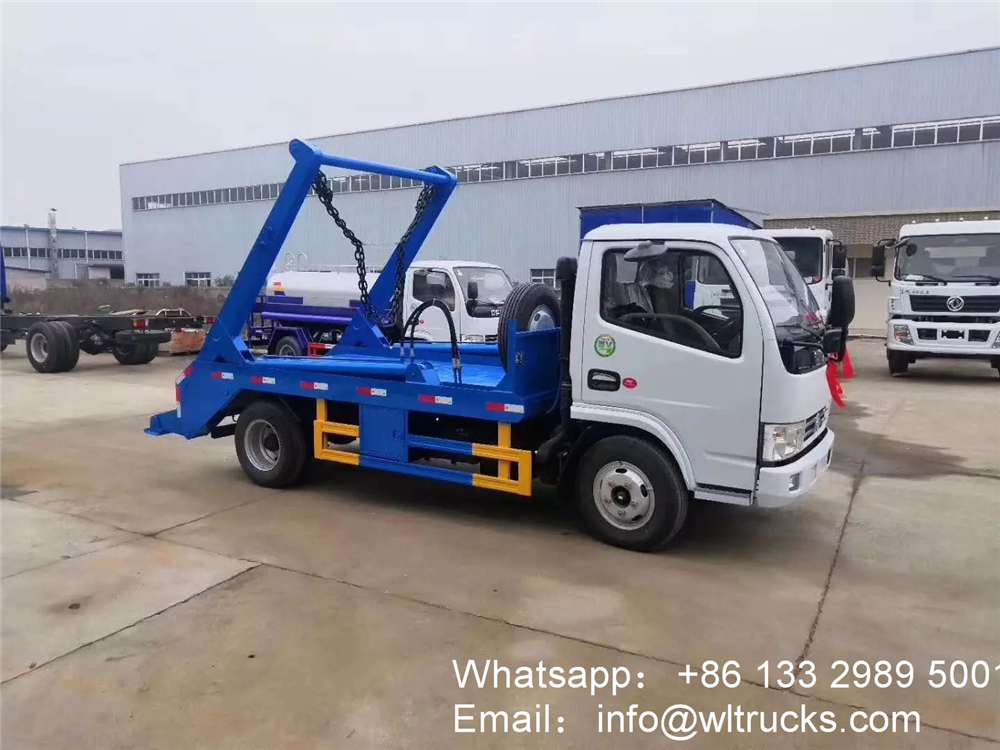

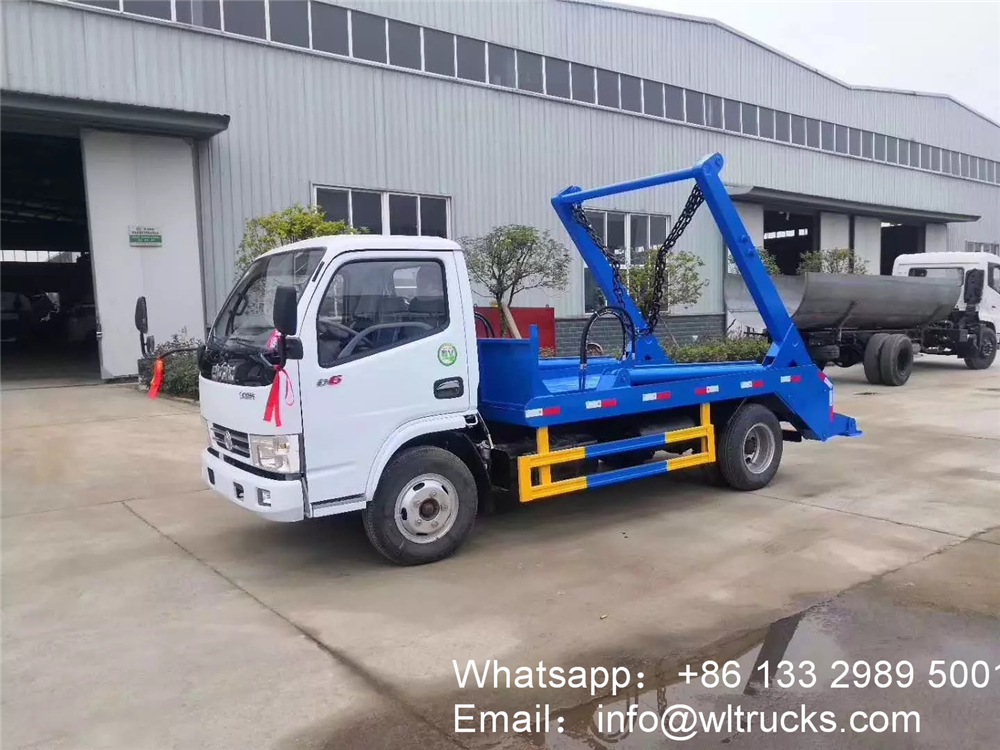

Dongfeng 5000 liter Swing arm garbage truck Detail drawing:
