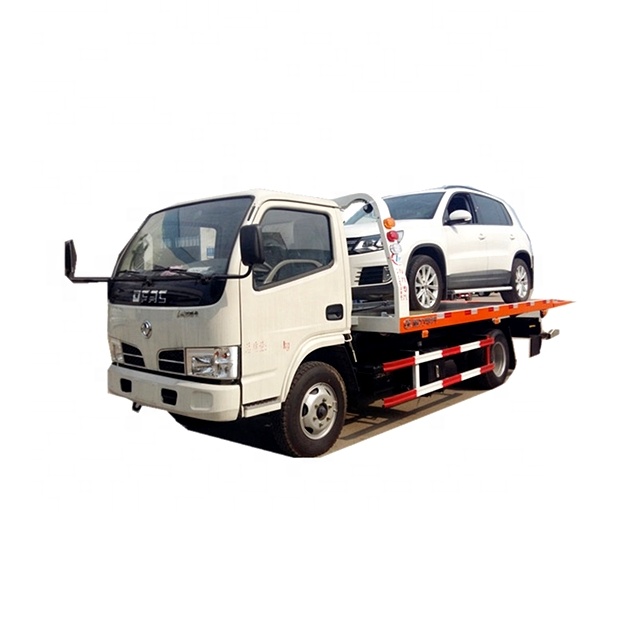

Dongfeng 3 ton Flat tow trucks
Adopt Dongfeng Dolka D6 series chassis, single-row forward-turning cab, 95-horsepower diesel engine, 5-speed gearbox, wheelbase 3300mm, 1.8-ton front axle, 3.5-ton rear axle, 7.00 nylon tires, with direction assist Brake.
Dongfeng 3 ton Flat tow trucks Bodywork configuration:
The truck has a length of 4.2 meters and a width of 2.32 meters. The flat plate adopts a new type of disposable stamping plate with holes or 4 thick pattern plates. The tail plate can be a flip plate or a new pull-out tail plate. The tail plate is 1.2 meters long and 3 tons. Top, equipped with 4 tons of hydraulic winch, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of square sleeves, one set of on-board tools, 4 straps, two work lights, with long yellow rows Electronic police lights.
Dongfeng 3 ton Flat tow trucks specification:
| General Technical Specification | |||||
| Overall Dimension | 5997x2300x2220(mm) | ||||
| Gross Vehicle Weight | 4495 (Kg) | ||||
| Curb Weight | 3600(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | Dongfeng | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 75KW/102HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 3707(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Pneumatic(Air break/exhaust brake) | ||||
| Wheel Base | 3308(mm) | ||||
| Front/Rear Axle Loading | 3000/3500(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.00R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 105(km/h) | ||||
| Superstructure Specification | |||||
| Platform Organ | Dimension | 4200*2320(mm) | |||
| Rear manual flip board length | 1200(mm) | ||||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 3000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
